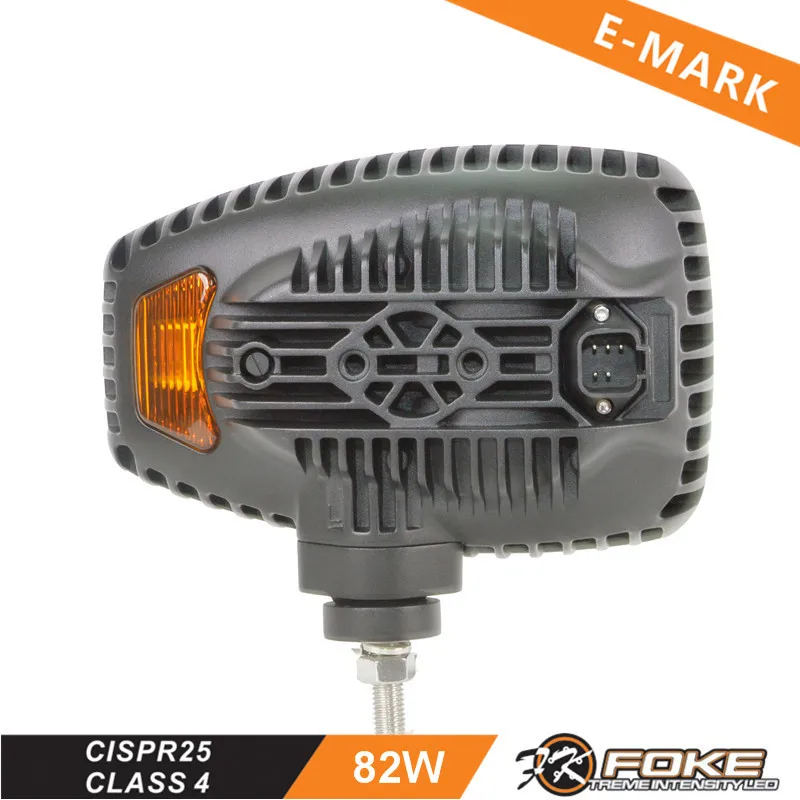

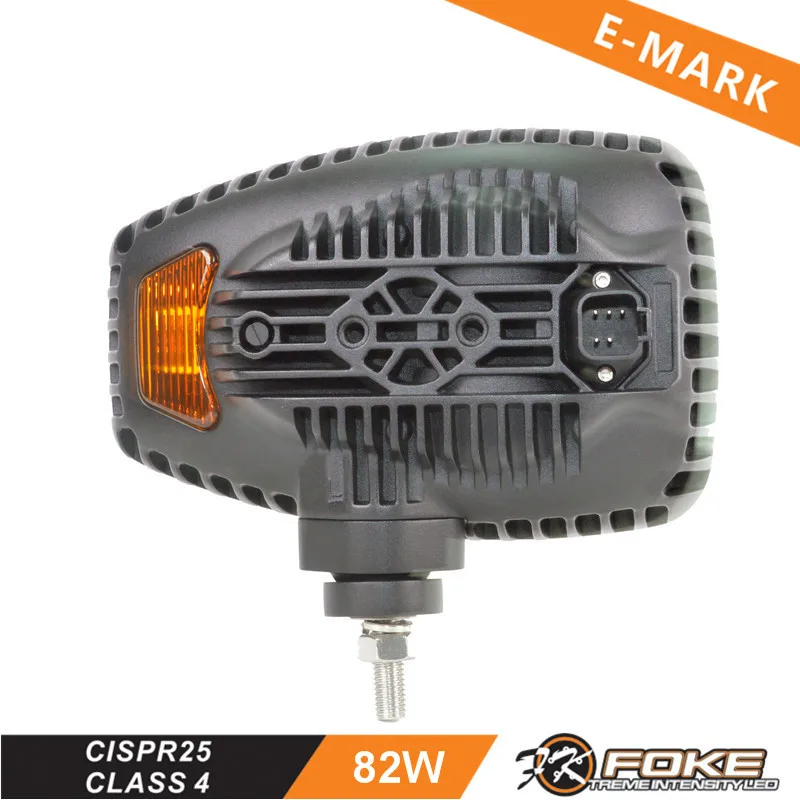

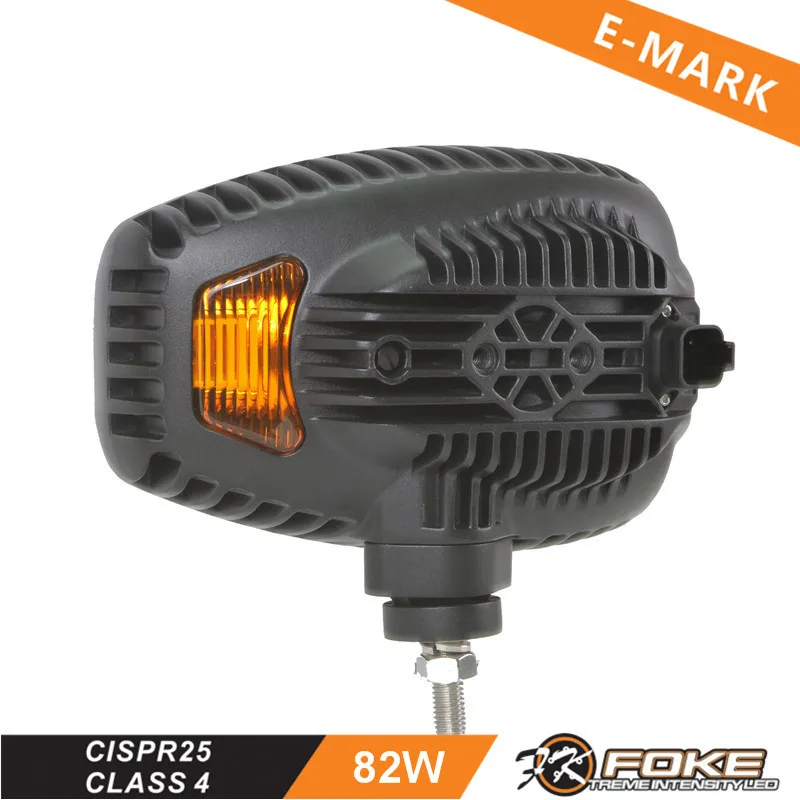

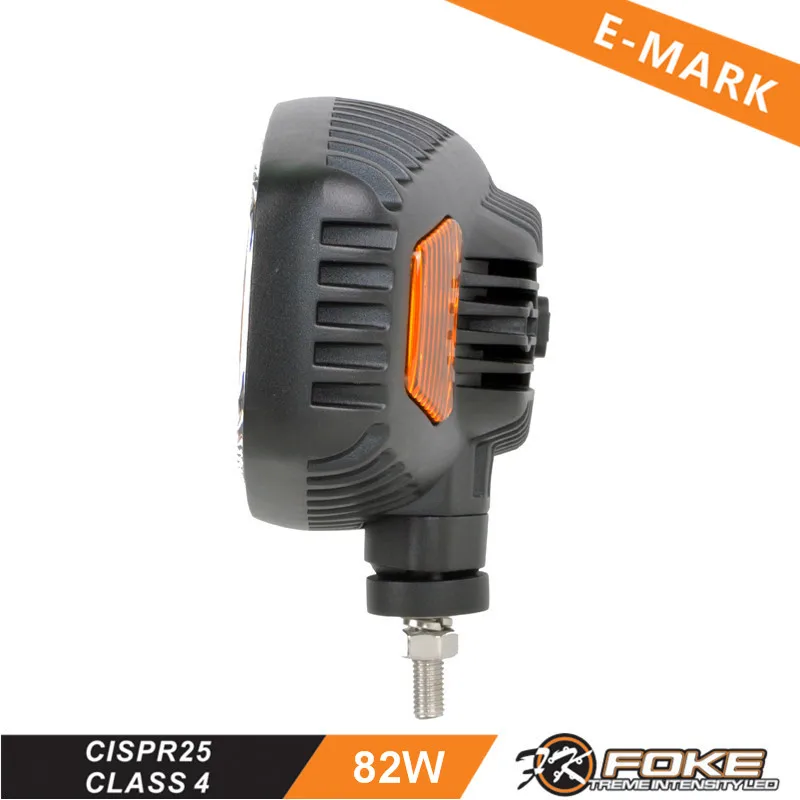

Emark 82W Led Work Lamp for Snowplow Skid Steer Loader Led Tractor headlamp Combination Headlight with DRL and Turn Signal

Share on:

Price in USD:Details


Product Overview


Product Description

 Emark 82W Led Work Lamp for Snowplow Skid Steer Loader Led Tractor headlamp Combination Headlight with DRL and Turn Signal



LED Power   82 Watt
Brightness   6000 Lumens
LED Type   Osram LEDs
Operating Voltage    9-32 V DC
Color Temperature    6000K(Cool White)

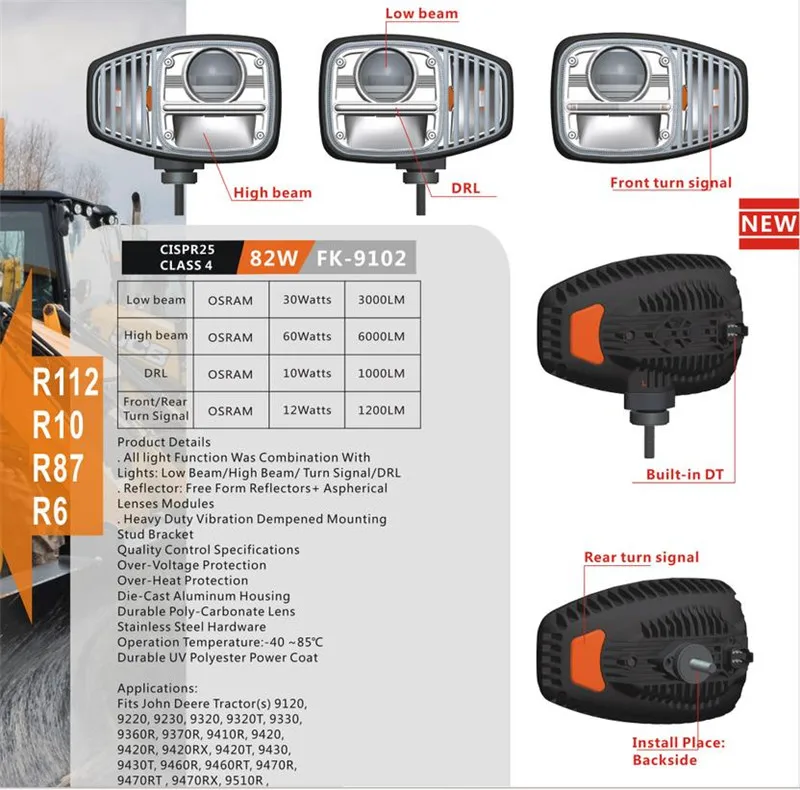

Beam Pattern

   30W Low beam + 60W High beam, with 12W Day       Running Light, 12W Front turn signal light+Rear       turn   singal light



    229*173*106MM (W*H*D)

Lens    PC
Housing Material    Diecast aluminum housing
Mounting Bracket    Stainless steel bracket
Waterproof Rate    IP68
Certificate    CE/RoHs/ E-Mark R112+R10+R87+R6            CISPR25(EMC) Class 4



Product Show








Product Feature

. Multiple Light Functions Combination: Low Beam/High Beam/ Turn Signal / DRL
. Reflector: Free Form Reflectors+ Aspherical Lenses Modules
. Heavy Duty Vibration Dempened Mounting Stud Bracket
Over-Voltage Protection
Over-Heat Protection
Die-Cast Aluminum Housing
Durable Poly-Carbonate Lens
Stainless Steel Hardware
Operation Temperature:-40 ~85℃
Durable UV Polyester Power Coat


Die cast aluminum casing with anticorrosion, Shockproof, Waterproof and better Light perception, can resist in the rain or harsh environments.



Fits John Deere Tractor(s) 9120, 9220, 9230, 9320, 9320T, 9330, 9360R, 9370R, 9410R, 9420, 9420R, 9420RX, 9420T, 9430, 9430T, 9460R, 9460RT, 9470R, 9470RT , 9470RX, 9510R, 9510RT, 9520, 9520R, 9520RT, 9520RX, 9520T, 9530, 9530T, 9560R, 9560RT , 9570R, 9570RT, 9570RX, 9620, 9620R, 9620RX, 9620T, 9630, 9630T
Replaces John Deere OEM nos AZ54038 / AZ54037, it fits most John Deere Tractors.
HELLA part number 996174261 & 996174251, replaces HELLA Universal C220 series original headlamp

Univesal - fit for the heavy machinery, excavators, dozers, loading shovel, agricultural harvester, snow plough, Fastrac tractors etc.

Install Method:
Mount Underneath In The Middle
Mount At Side Left Or Right
Mount With Rear Bolt



Company Information


FOKE is the high quality LED lights manufacturer! We do waterproof test, aging test and short circuit test for every LED light before exit factory. Our defect product rate was controlled under 0.05%.  Do NOT miss the REAL factory!


ALI  .jpg


1.How long is the warranty for each light?
The warranty of our prducts is 12 Months. During the warranty period, any problems caused by non-human factors, we will replace the new accessories or new light together with next order.

2.Can I visit your factory?
Yes, our factory is 1 hour far from Guangzhou Baiyun Internation Airport. We can pick you up when you arrive at GZ Airport.
Factory Add: No.888 Zone B Science & Technology Industrial Park, Shishan Town, Nanhai District, Foshan City, Guangdong Province, China
3. How long is the lead time?

 3-5 working days for sample order after payment received.

 7 to 25 working days for bulk order after deposit.


4. What is the Shipping Way?

Sample Order: ship by express such as UPS, FEDEX, DHL, EMS or TNT etc.

Bulk Order: Delivered by Air or Sea.

5. How will our factory guarantee the product quality?

Before order, we can send you the sample. After sample approval , we proceed the mass production. Before delivery, we will send you the pictures of the packaging and the products. Inspect the goods by yourself is also welcome.
