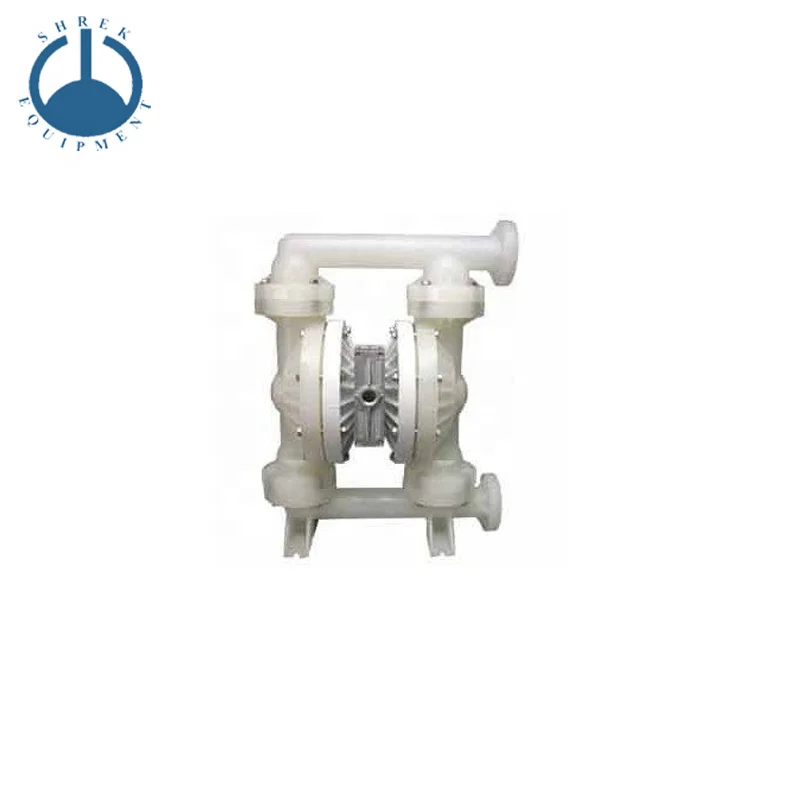

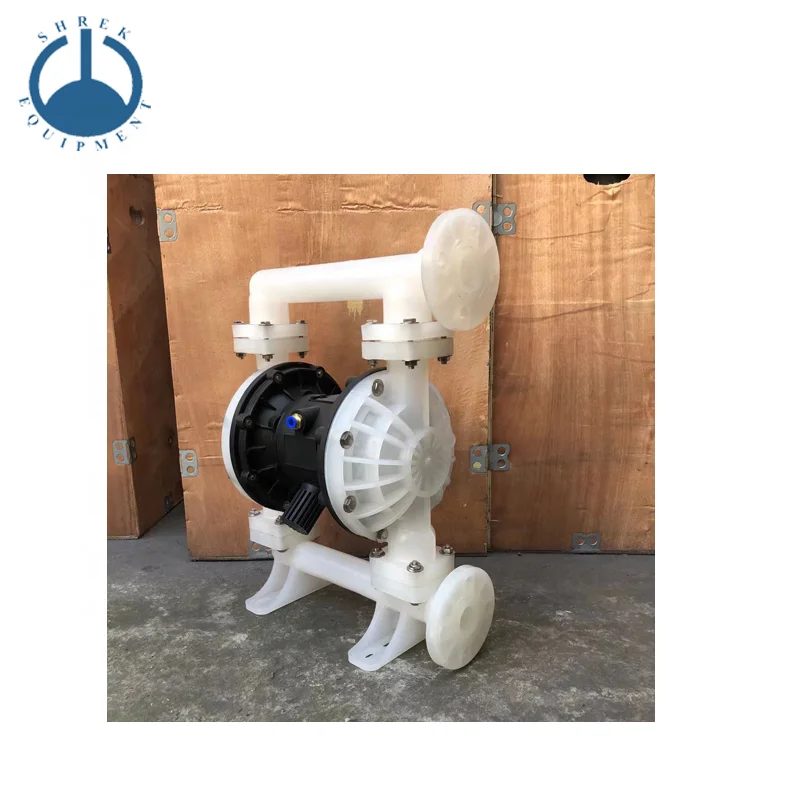

Top quality CE certified QBK perfluoroplastics strong acid and alkali resistant pneumatic diaphragm pump

QBK perfluoroplastics strong acid and alkali resistant pneumatic diaphragm pump

1. Pump paint, gum and pigment.
2. Adhesives and glues, all types can be pumped.
3. Pump peanut butter, kimchi, mashed potatoes, small red sausage, apple jam, chocolate, etc.
4. All kinds of tiles, porcelain, bricks and pottery glaze slurry.
5. After the oil well is drilled, pump the sediment and grouting.
6. Pump various emulsions and fillers.
7. Pump all kinds of sewage.
8. Use pumps as oil tankers and barges to clear the warehouse and absorb the sewage in the warehouse.
9. Hops and baking powder syrup, syrup, syrup.
10. Pump water in mines, tunnels, tunnels, beneficiation and slag. Pump cement grouting and mortar.
1. Overview of pneumatic diaphragm pumps
QBY3 series pneumatic diaphragm pump can not only pump flowing liquid and dry powder, but also transport some non-flowing media. It has many advantages of self-priming pump, submersible pump, canned motor pump, mud pump, and impurity pumping and conveying machinery. Mainly used to transport corrosive, toxic, volatile liquids. The pneumatic diaphragm pump of the corresponding material can be selected according to different conveying materials.
2. Product features of pneumatic diaphragm pump
1. No need to irrigate and divert water, the suction lift is up to 5 meters, the head is 70 meters, and the outlet pressure is 0.8Mpa
2. The flow is spacious and the passing performance is good, allowing large particles up to 10 mm in diameter. When pumping mud and impurities, there is little wear on the pump;
3. The head and flow can be adjusted steplessly through the valve opening (air pressure adjustment is between 1-7bar)
4. The pump has no rotating parts, no shaft seal, and the pumped medium such as diaphragm is completely separated from the moving parts and workpiece medium of the pump, and the conveyed medium will not leak out. Therefore, when pumping toxic, volatile or corrosive media, it will not cause environmental pollution and endanger personal safety;
5. No need to use electricity, safe and reliable to use in flammable and explosive places
6. Can be submerged in the medium to work
7. Easy to use, reliable in work, just simply open and close the gas valve for start and stop, even if the pump runs without medium for a long time due to unexpected circumstances or suddenly stops the pump, it will not be damaged. Once overloaded, the pump will stop automatically , With self-protection performance, when the load returns to normal, it can automatically start operation;
8. Simple structure and few wearing parts. The pump has simple structure and is easy to install and maintain. The medium conveyed by the pump will not come into contact with the moving parts such as the valve and linkage, unlike other types of pumps due to rotors, pistons, and gears. , Blades and other parts wear and tear, resulting in a gradual decline in performance;
9. It can transport relatively viscous liquids (viscosity below 10,000 centipoise);
10. The pump does not need to be lubricated with oil. Even if it is idling, it has no effect on the pump. This is a major feature of the pump;

1. Q:Are you a manufacturer accepting OEM order?
A: We are a manufacturer and we can professional manufacture OEM equipment for customers
2. Q:What's your products MOQ?
A: Different model has different MOQ, pls check with salesman.
3. Q: How can I get some samples?
A: Yes, we provide sample for customer trial use;
4 Q: What's your delivery time?
A: 1.The samples can be sent to you within 3-7 days.
2.The batch order can be shipped to you within 5-15 days after order confirmation
5 : Q:What's your warranty & after service policy?
A: 2 Months for all products, and some products warranty is 24 months.
6 Q: How many qty so I can get your OEM service with myself brand name?
A: Different Models have different MOQ requirement, pls consult our salesman.
7 Q: What's the payment can you accept?
A:Usually we accept L/C,T/T ,Western Union, PayPal and Alipay, also RMB transfer in China.

 1, Export safe standard packing or customed packing according to customers' requirement;

 2  By courier(TNT, FEDEX, DHL, UPS, EMS etc.)

 3, By air

 4, By sea

 5, By railway or by truck

Shaanxi Shrek Equipment Co., Ltd. was founded in 1982, and has been committed to developing a full range of chemical equipment as well as carbon steel, titanium steel and stainless steel pressure vessels for various industries ever since. For over 30 years, Shrek has thrived on providing customers with quality products and Shrek has since grown to become a world leader in the field of custom fabrication for chemical reactors, tanks, vessels and related laboratory/pilot reactors and other chemical production equipments including parts and fittings;

Advanced equipment technology, reliable product quality and incomparable price and service have brought us great reputation among customers.

At present, Shrek covers a total area of 170,000 square meters, including 110,000m2 workshops. With the most up-to-date glass-lined equipment manufacturing technology, equipment and over 1000 employees including more than 300 professional technicians, we hold a capacity to produce 30,000 sets of glass-lined equipment per year. We have been an admittedly the largest glass-lined equipment producer in China with a net asset of 500 million RMB. The annual output and sales of Shrek glasslined steel equipments are 30% more than the sum of that of competitors in China. Outstanding durability helps us win the users' trust and favorable comment at home and abroad. Shrek has obtained the Design and Manufacture Licenses for National Class I, II, III Pressure Vessels, and we are the first in the industry in China to win American ASME Certificate, European PED Certificate and Russian RTN Certificate, as well as ISO9001 Certificate and ISO14001 Certificate. And, we own glass-lined equipment manufacture license and the license for free import and export. In addition, Shrek has been awarded the title of Shaanxi Star Enterprise and the Shaanxi Famous Brand for glass-lined equipment. Hundreds of certificates of honors have been granted to Shrek, and because of our innovation we have gotten 36 utility model patents for our glass-lined equipment. Continuous development of new products and advanced technology makes Shrek far ahead in glasslined equipments industry. Since its inception,Shrek has made the science and technology innovation as the motto of the company. This promotes continuous improvement of technology and keeps Shrek always in the leading area of glass-lined equipment industry

No matter what your requirements, Shrek can custom build a vessel that will outperform your expectations. Every Shrek vessel is individually designed to meet particular conditions specified by you, our customer. Our vessels can operate at a range of pressures, from high vacuum conditions to over 70 MPa. Temperature is also no challenge for Shrek, as our vessels can operate at temperatures as low as absolute zero to as high as 650 degrees Celsius;

Shrek has long been a popular choice for those in the market for a custom alloy vessel. Our pressure vessels can be found all over the world, and excel in all types of applications. From petrochemical plants and offshore drilling platforms, to food processing facilities and manufacturing plans, Shrek vessels have done it all.

Shrek also plays an enduring role in cryogenic service in different locales all over the world. We specialize in double-walled dewars with vacuum insulating but can also create other custom vessels, including triple-walled dewars. Furthermore, we have designed numerous custom vessels for cryogenic purposes and our chairman is a charter member of the Cryogenic Society of China

Shrek is dedicated to providing customers with the best technology available. We thrive on keeping up-to-date on all technological improvements so you can adapt to the needs of the future.

In virtue of superior product quality and considerate after-sales service, Shrek has won the trust of customers both at home and abroad. Currently, our glass-lined equipment has been sold to more than 30 countries and regions including the US, France, Russia, Latvia, Brazil, South Africa, Argentina, Chile, Turkey, Greece, Spain, Thailand, Japan, South Korea, Egypt, India, etc.

 1, Top quality equipment guarantee;
Shrek Equipment Pump subsdiary is a large professional ISO9001:2008 pump enterprise, specialised in designing, production and sales of high  quality pumps,liquid supply systems and pump control systems. It is the leading pump manufacturing group in China. The strength of more than  2800 staff members, comprising of over 80% of college diploma holders, over 250 engineers, doctors, makes it the best choice for the talent.
2, Pump Exportation Guarantee
Shrek Equipment have 2006/42/EC,GCS,EAC/CU-TR,PSE and series certification for worldwide customers;And Shrek Equipment will gurantee all  shipment delivery to get to global customers;
3, Professional enginners worldwide provide all detailed technical support after sales
4, Working in 7×24 hours and your request will be processed by our professional staff in different shift period.
5, No risk working with Shrek Equipment;
Free sample can be arranged before shipment and SGS,BV and other third party inspection company are accepted before loading.For regular  customers, we accept L/C 180 Days, D/P,D/A payment term. If there is any quality problem after goods arrive. Shrek equipment will do fully  payment refund.
Shrek Only Supply You Top Quality Equipment and Working with Shrek is working With Safety!!
