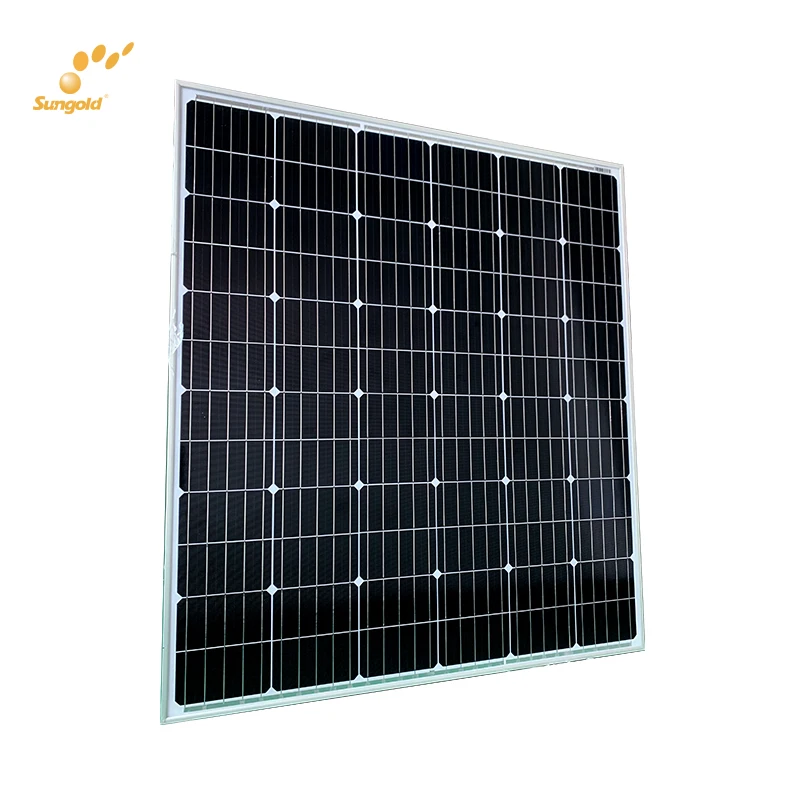

Model | Cell | Module size | Cell layout | Cell Effiency | Voc(V) | Vmp(V) | Isc(A) | ImplA) |
SGM-30w | Mono | 560*360*25mm | 2x18 | 22.42% | 23.3 | 19.8 | 1.64 | 1.52 |
SGM-40w | Mono | 650*360*25mm | 2x18 | 22.42% | 23.3 | 19.8 | 2.18 | 2.02 |
SGM-50w | Mono | 550*520*25mm | 3x12 | 22.42% | 23.3 | 19.8 | 2.73 | 2.53 |
SGM-100w | Mono | 780*680*30mm | 4x9 | 22.42% | 23.3 | 19.8 | 5.45 | 5.05 |
SGM-400w | Mono | 1980*1000*40mm | 6x12 | 22.42% | 46.6 | 39.6 | 10.91 | 10.10 |
SGP-50w | Poly | 680x540x25mm | 4x9 | 18.70% | 22.0 | 18.7 | 2.83 | 2.67 |
SGP-80w | Poly | 780x680x30mm | 4x9 | 18.70% | 22.0 | 18.7 | 4.53 | 4.28 |
SGP-160w | Poly | 1500x680x35mm | 4x9 | 18.70% | 22.0 | 18.7 | 9.07 | 8.56 |
SGP-270w | Poly | 1660x1000x40mm | 6x10 | 18.70% | 36.7 | 31.2 | 9.17 | 8.65 |
GP-320w | Poly | 1980x1000x40mm | 6x12 | 18.70% | 43.8 | 37.2 | 9.12 | 8.60 |
General parameters | Temperature Rating | ||||
Solar Cells | Mono & Poly | Power temperature coefficient | -0.43%/℃ | ||
Life | 25 years | Voltage temperature coefficient | -0.34%/℃ | ||
Warranty | 10 years | Current temperature coefficient | ± 0.05%/℃ | ||
Maximum system voltage | 1000V DC | Output power tolerance | ± 3% | ||
Junction box | IP65 or IP67 rated | Operating Temperature | -40℃~80℃ |
