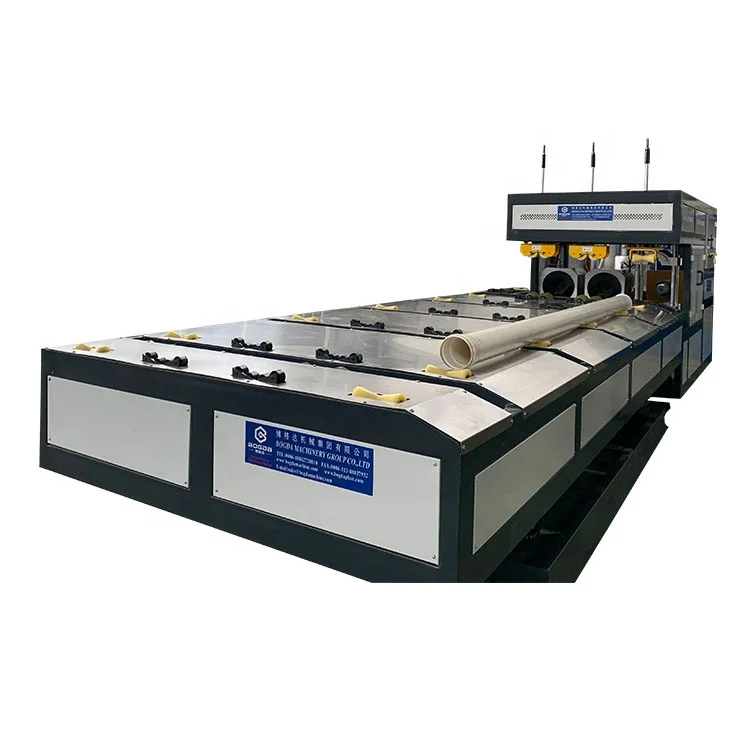

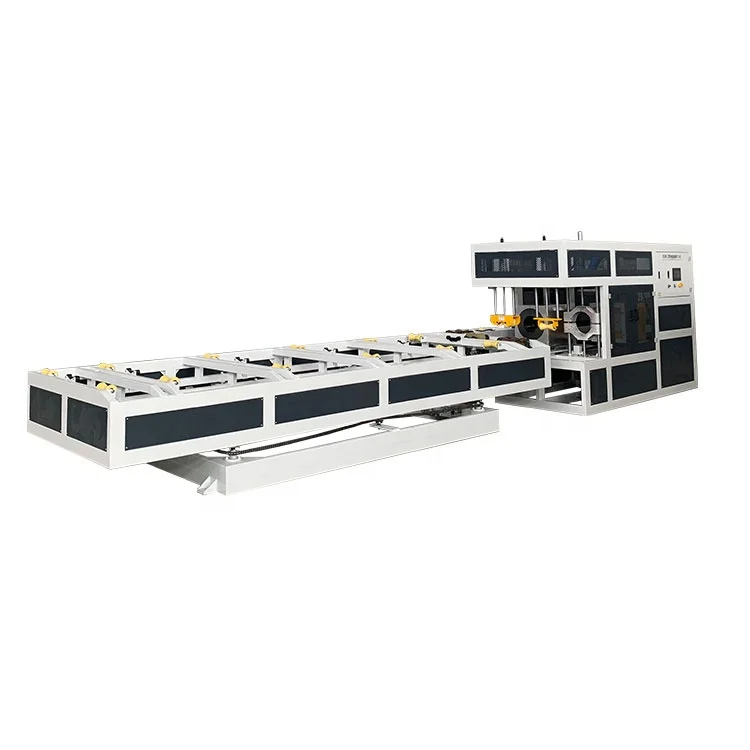

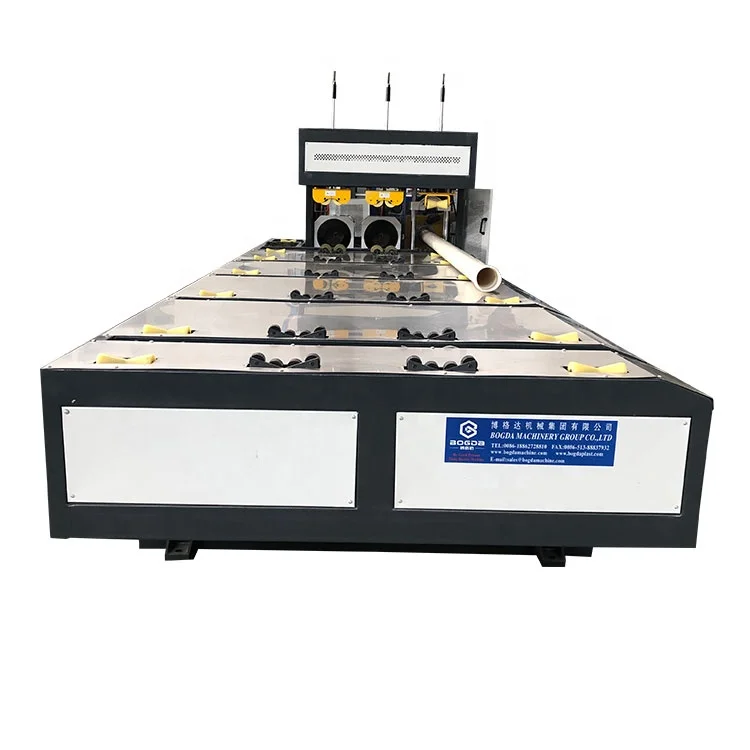

PVC pipe belling machine is a semi-automatic machine, which can be used as a single machine. The machine USES infrared heating; The forming methods are all shaped by expanding pipe head, and the forming size of pipe mouth is accurate. The control panel of this machine is equipped with a switch of expanding solvent socket (straight port) and expanding elastic sealing ring socket (R port). Mainly electrical control components are imported components, the system performance is stable and reliable.
Suitable for the R type ,U type and Rectangle plastic pipe
Product Description
Main Features
1)The equipment has high degree of automation and stable and reliable performance.
2)The air duct material is made of stainless steel, which can ensure no high temperature iron oxide falling off in the process of drying the pipe and cause the pipe head scar spot.
3)The frame is made of cold-drawn rectangular steel pipe welded with high rigidity and reasonable structure.
4)Cooling by air pressure cooling, no damage to the mold and no pollution.
Functional specification

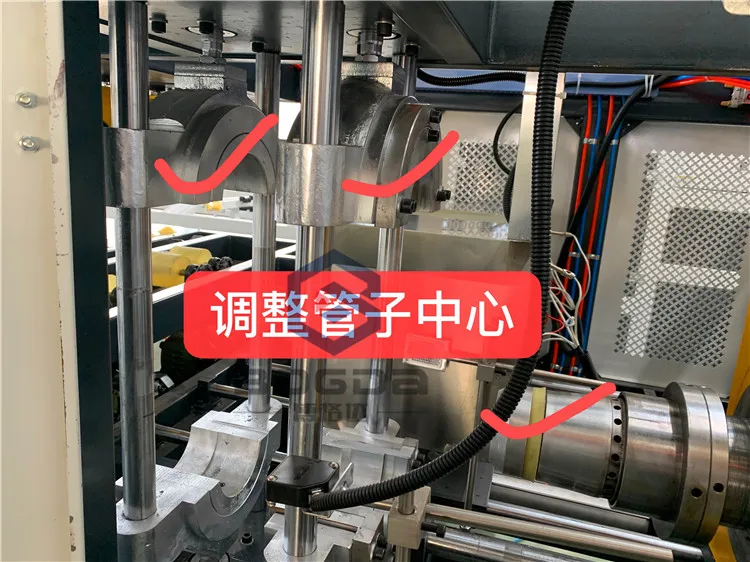

1. Pneumatic propulsion heating furnace, heating furnace can be fine-tuned high and low and feed limit, electric heat pipe semi-open indirect heating, rotating speed by the manufacturer design (timing positive and negative). 2. The center of the machine is adjusted as a point-moving electric chain drive lifting, with a high center of about 1 meter 3. The hosting rack is 4.8m, and the fitting pipe length is 4-6m
Technical Parameter
Model
Pipe Diameter
Heating Method
Belling Method
Heating power
Dimension
SGK110
50-110mm
Electric heating
Mould physical expansion
10.5kw
7500x1400x1750mm
SGK160
50-160mm
Electric heating
Mould physical expansion
10.5kw
7500x1400x1750mm
SGK200
50-200mm
Electric heating
Mould physical expansion
10.5kw
7855x1350x1900mm
SGK250
110-250mm
Electric heating
Mould physical expansion
10.5kw
7830x1620x1700mm

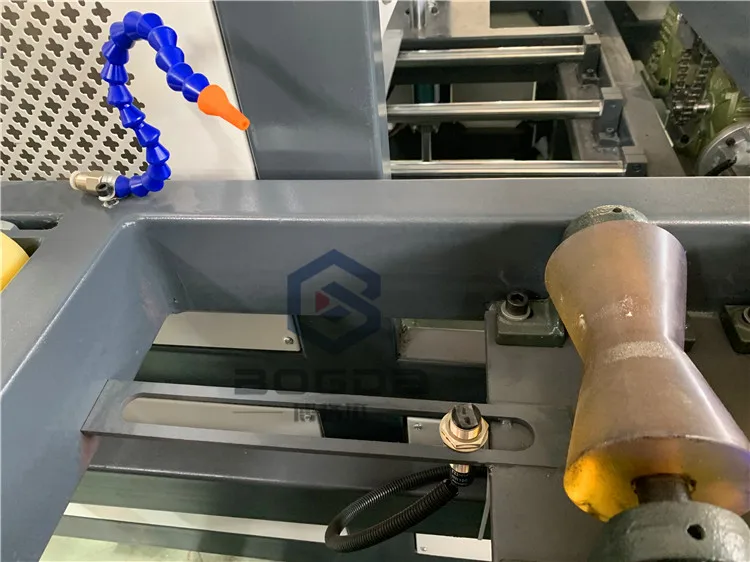

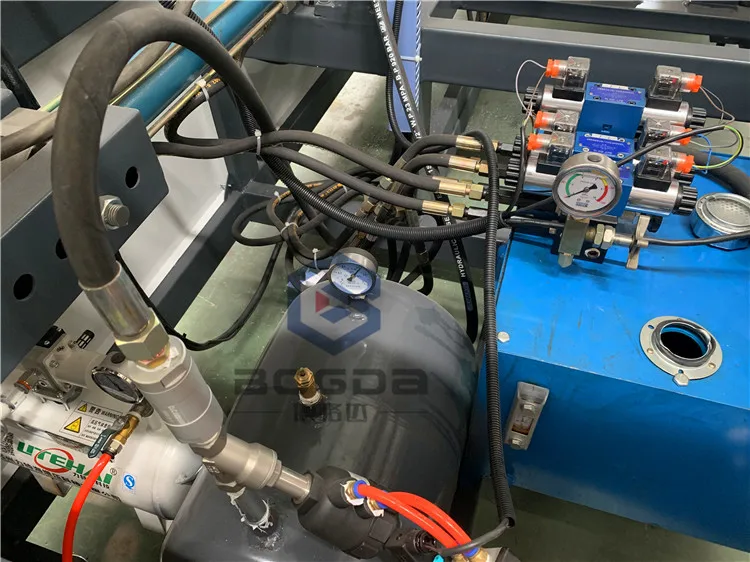

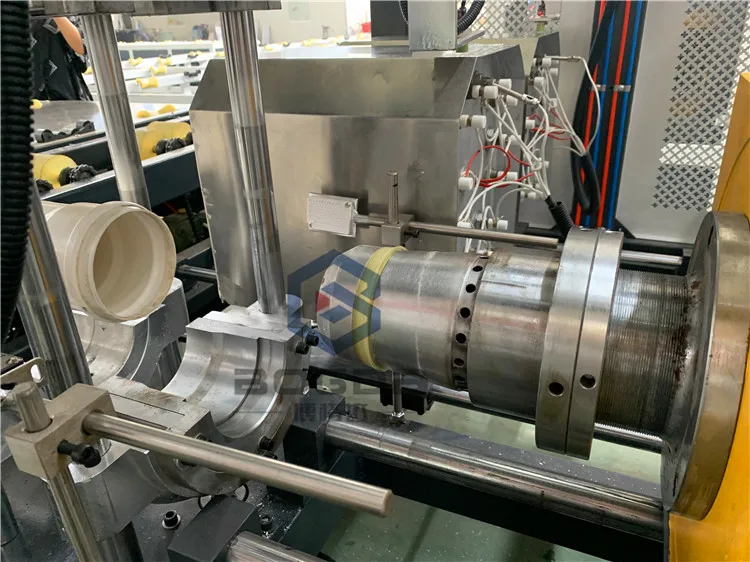

The length of the flaring part is positioned with the photoelectric switch, so that the length of the flaring is basically the same. The flaring mold base can be fine-adjusted into a limited amount, and the flaring can be used in the mechanical oil before and after the flaring pressure, hydraulic source equipment.

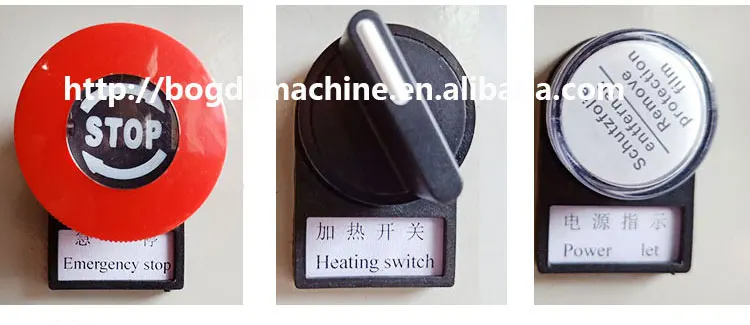

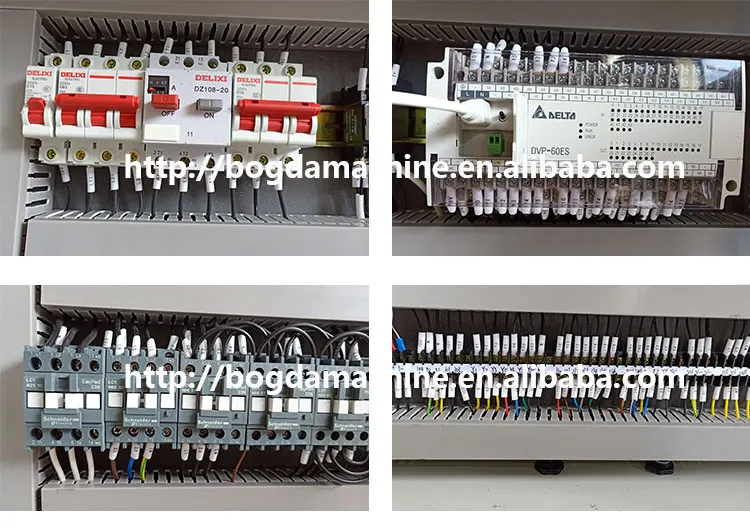

1. The control system adopts man-machine interface, Chinese and English menu touch screen, Siemens. And PLC automatic programming system, to achieve automatic control 2. The machine is equipped with automatic stripping equipment

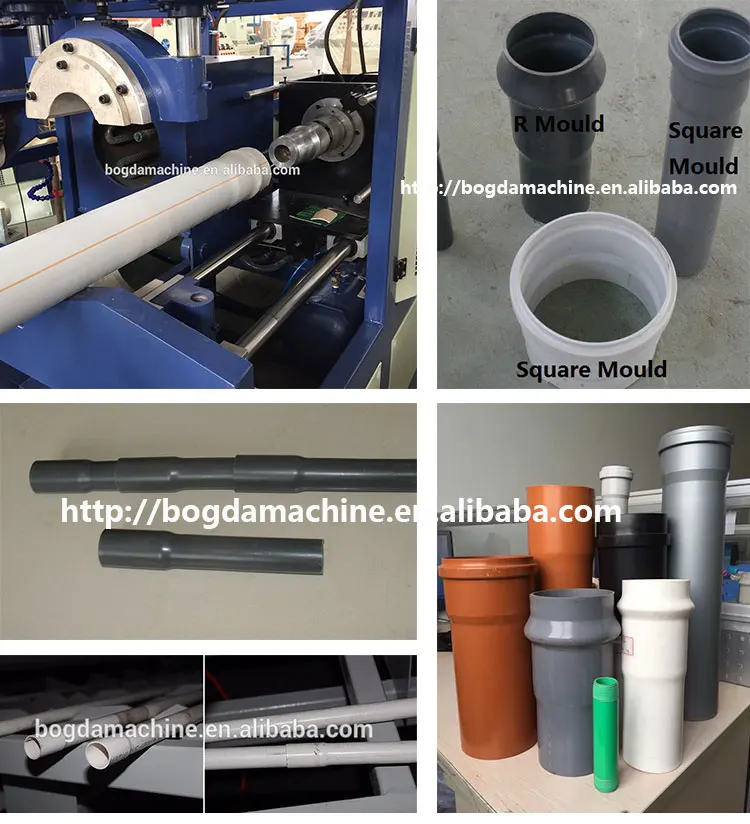

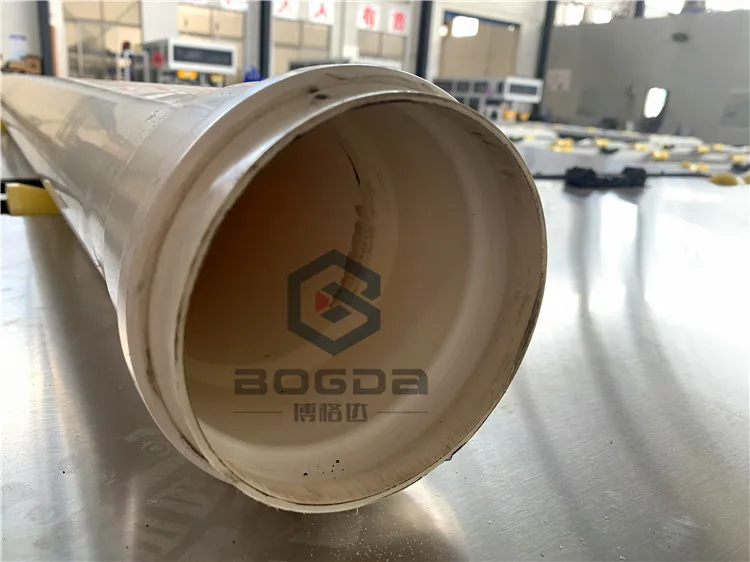

Final pipes
Related Products
Please click the following machines related pvc pipe production line.
Packing & Delivery
Our Services
Pre-sale services:
Based on the clients' request and budget, we will offer equipment pictures, working site videos, plant processing diagram, assemble drawings, foundation drawings, and plant layout. Clients are welcome to visit our factory, also our equipment working site from former clients.
Sale services:
Our experienced technicians are available on the phone also the Internet, clients can get instance guidance by telephone, email, online service anytime and anywhere.
After-sale services:
Normally, the equipment warranty is 12 months since installation. To establish long term cooperation, we will regularly call and email our clients to check the equipment working condition and offer suggestions for maintenance.
FAQ

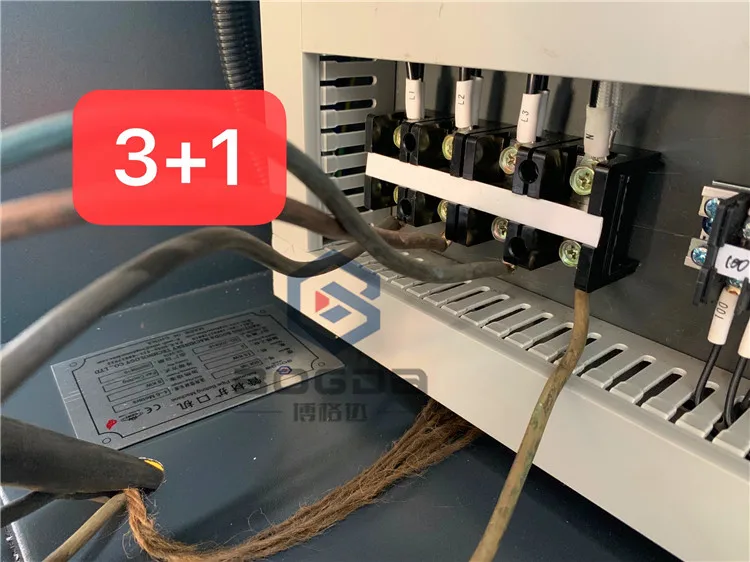

How many electric, water, air need for the machines?
BOGDA: technical department supply the whole layout for workshop details.
Can I operate machine if don’t have experienced engineers?
BOGDA: (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements
Any quality checking before shipment?
BOGDA: 100% confirm, run and test machines before shipment with quality certificate.
How long is the guarantee?
BOGDA: 12 months since the first day customer operates (except wear parts)
How can u help us when face some technical problem?
BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.
Where can we get spare part?
BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
