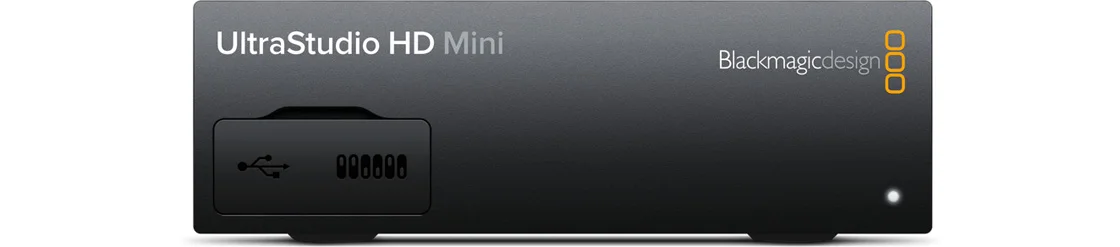

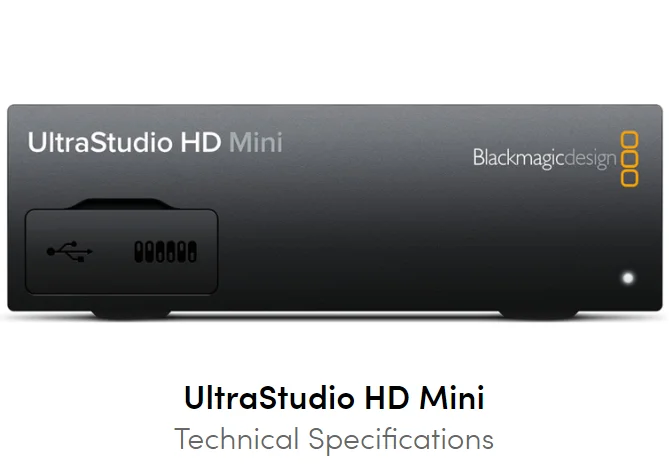

Blackmagic Design UltraStudio HD Mini 3G SDI analog YUV NTSC/PAL Inputs dual link 3G SDI Output broadcast video capture device
- Category: >>>
- Supplier: Shenzhen Yide Photographic Equipment Technology Co. Ltd.
Share on (1600095536614):
Product Overview
Description
Product Description
Description

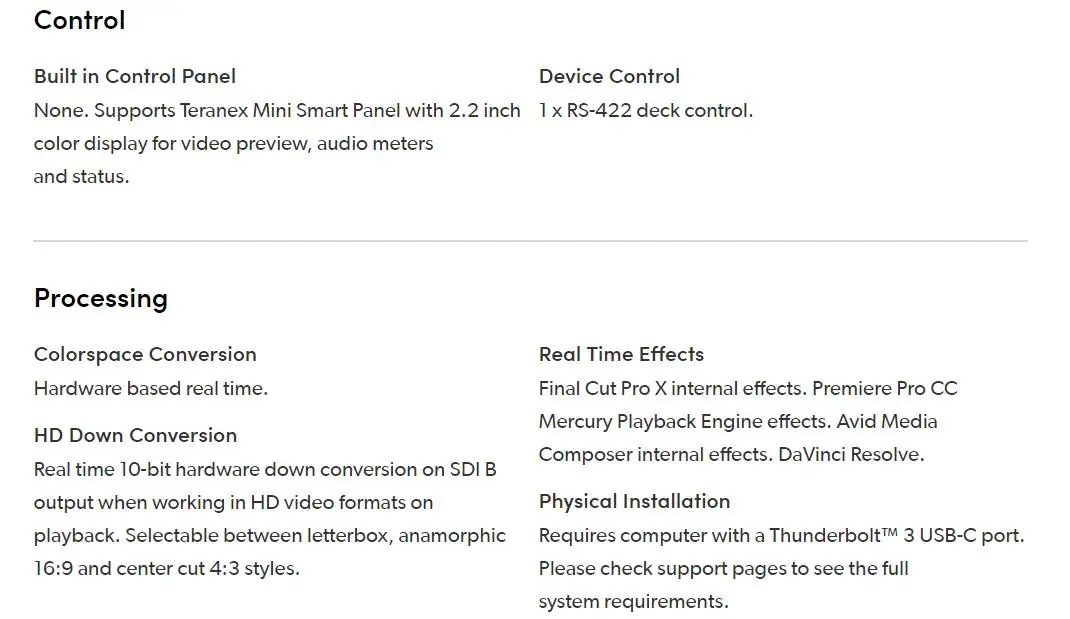

UltraStudio HD Mini features professional broadcast quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two ¼” audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television!

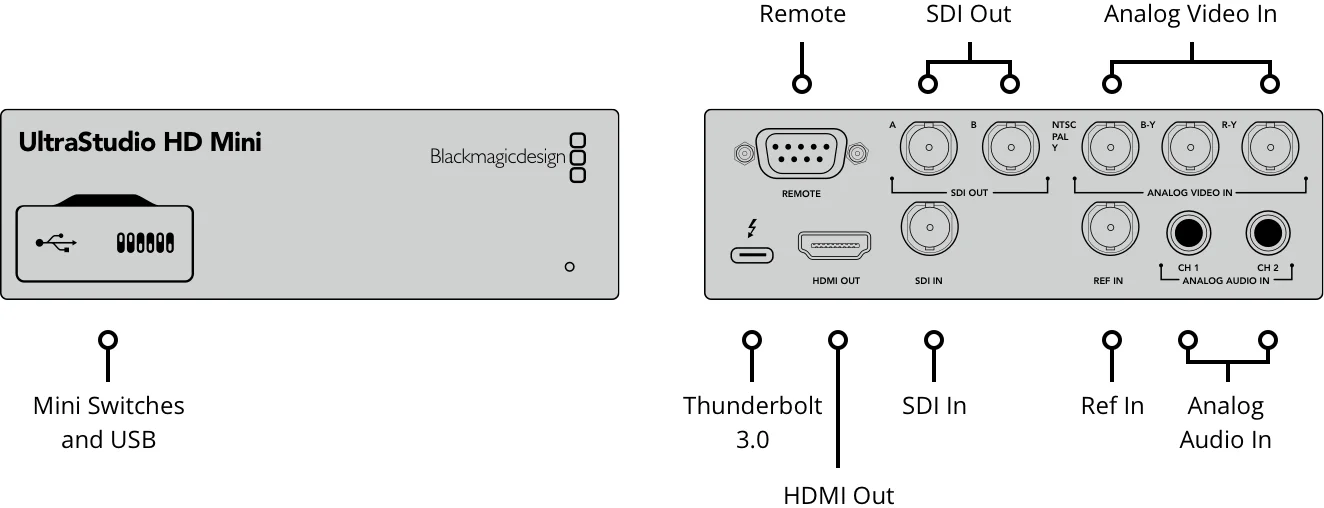

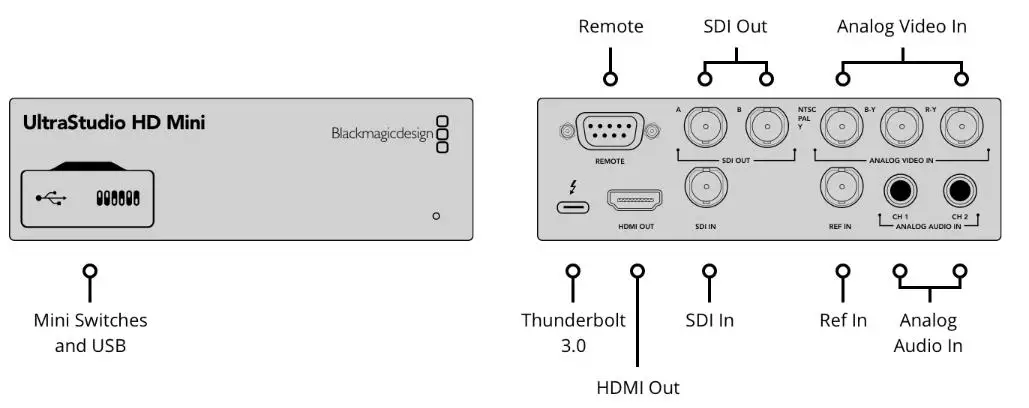

Connections
SDI Video Inputs
1 x 3Gb/s SD/HD switchable.
SDI Video Outputs
2 x 3Gb/s SD/HD switchable, supports fill and key.

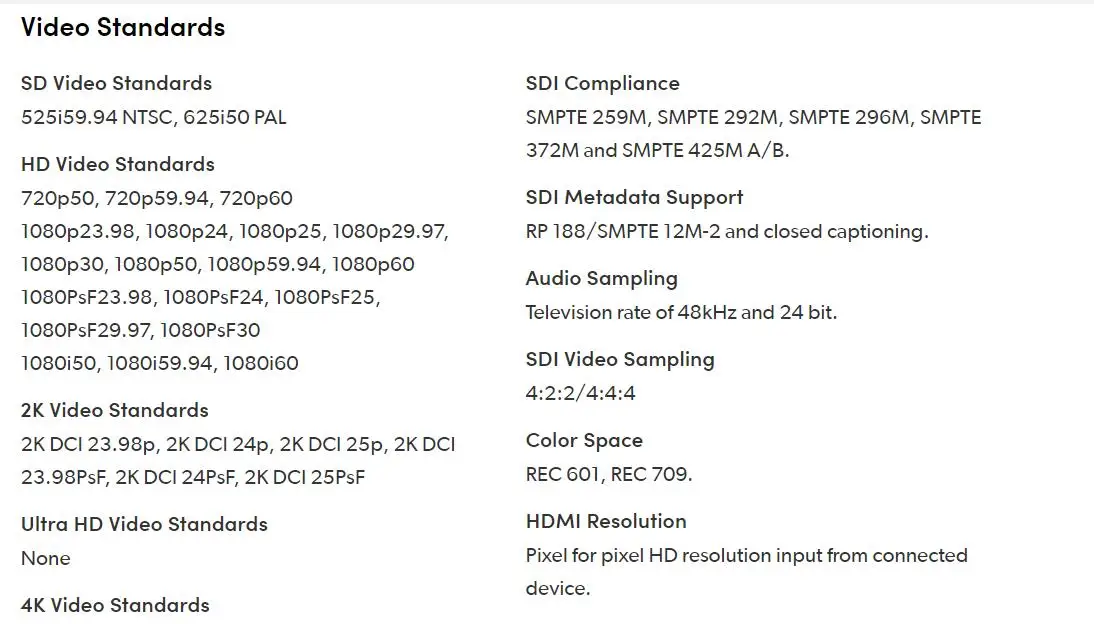

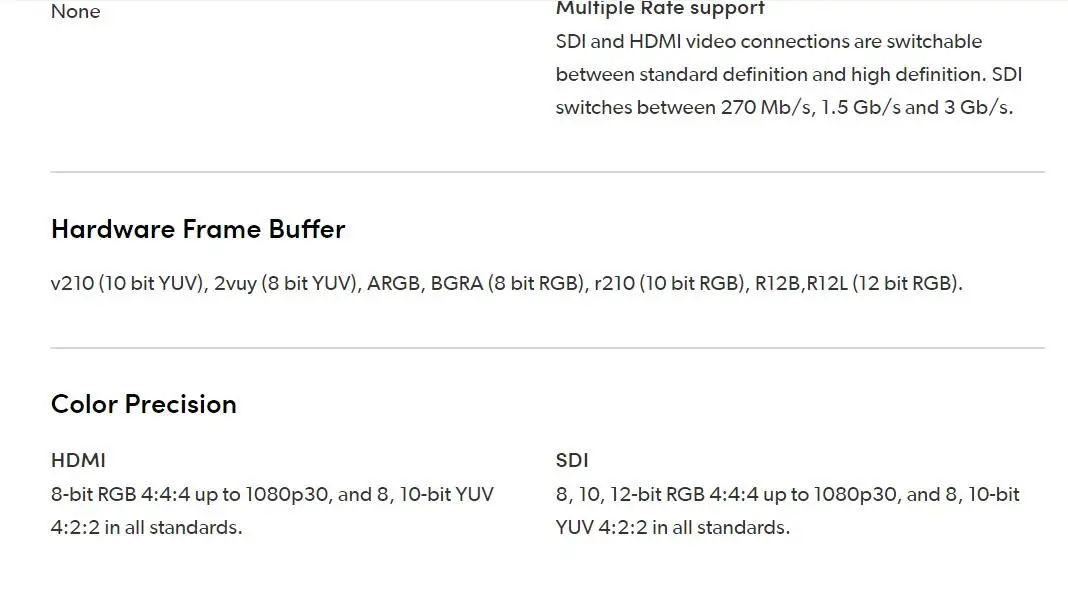

SDI Rates
270Mb, 1.5G, 3G
Optical SDI
None
HDMI Video Inputs
None
HDMI Video Outputs
1 x HDMI 1.4b type A connector.
Analog Video Inputs
Y, B-Y, R-Y/NTSC/PAL.
Analog Video Outputs
None
Analog Audio Inputs
2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.
Analog Audio Outputs
None, embedded audio only.
SDI Audio Inputs
16 Channels embedded in SD and HD.
SDI Audio Outputs
16 Channels embedded in SD and HD.
HDMI Audio Outputs
2 Channels embedded in SD and HD.
Timecode Connection
None. RP-188 only.
Reference Input
Tri-Sync or Black Burst.
Supported Codecs
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV NTSC, DV PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10 bit 4:2:2.
Software
Software Included

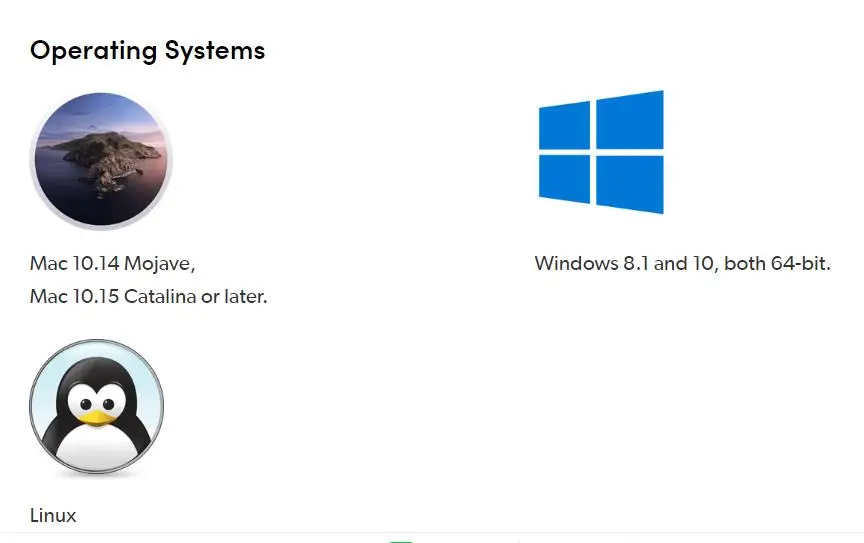

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software
Other supported applications include:
The Foundry Nuke, Grass Valley Edius, Sony Catalyst Production Suite, Tools On Air Just: Play & Live & In, Softron MovieRecorder & MReplay, Adobe Flash Media Live Encoder, Telestream Wirecast, Livestream Producer, Resolume Arena, Magix Vegas Pro & Movie Edit Pro Premium, Corel VideoStudio Pro, CyberLink PowerDirector, Vidblaster X & Studio & Broadcast, Uniplay One & CG, CasparCG Server, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster, DevTek Easy Media Suite, Metus Ingest, Boinx Software MimoLive, Cinegy Capture Pro, vMix Live, Renewed Vision ProPresenter, Ventuz Director, Class X Liveboard & Coral CG, Glookast Capturer, Open Broadcaster Software Studio, Nautilus NEMO3D, Burst Video Webclip2Go & [REC]Marker, Autodesk Flame, Zoom.
