Product Overview
Description
Introduction of PB Series Scraper Bucket Rock Loader
PB Series Scraper Bucket Rock Loader is widely used for mining tunnel, mainly used to work together with the tramcar or bucket during shaft scraper not only can be used in laneway below 30°, but also be used for horizontal operation during shaft scraper, and can help to make the scraper faster. PB Scraper Bucket Rock Loader is a main equipment of the shaft scraper mechanization.zmwm07

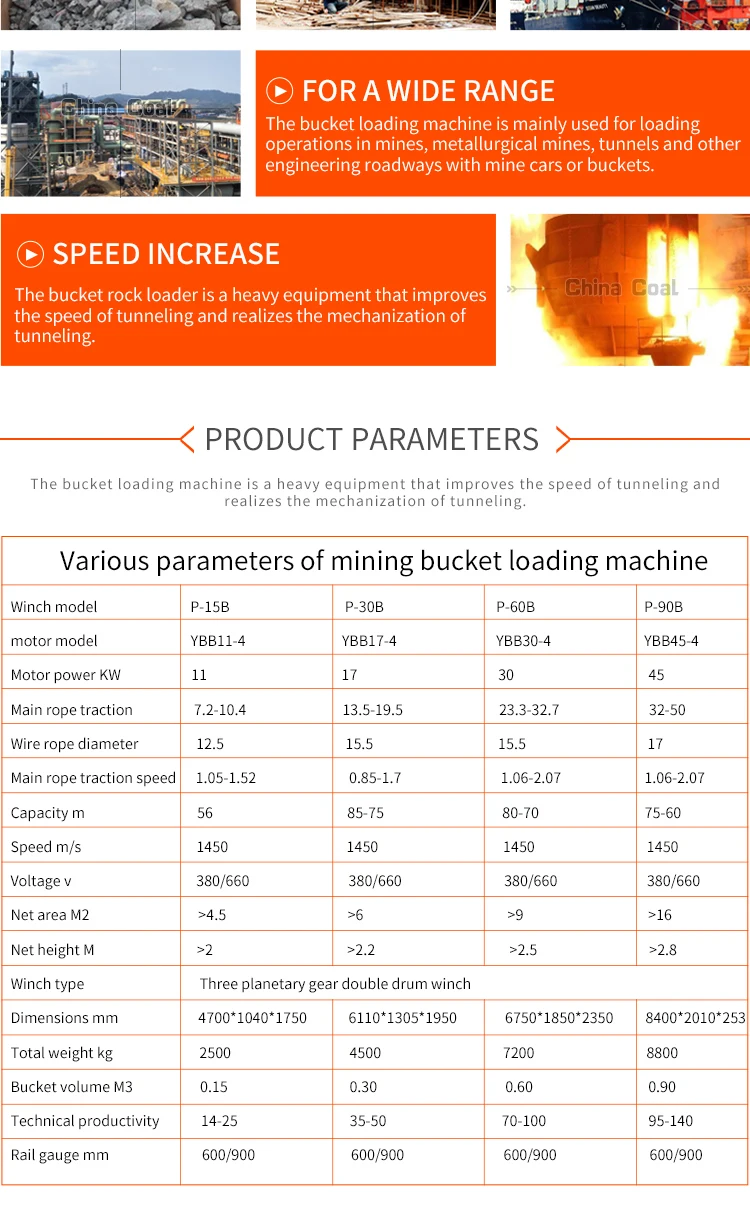

Technical Parameters of PB Series Scraper Bucket Rock Loader
Model | P15B (A) | P30B(A) | P60B | P90B | P120B | P150B | |
scraper bucket volume (m3) | 0.15 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | |
Production Capacity (m3/h) | 15-25 | 35-50 | 70-100 | 95-140 | 120-180 | 150-220 | |
Rail Gauge (mm) | 600 | 600/900 | 600/900 | 600/900 | 600/900/1500 | 1500 | |
Wire rope pulling force (KN) | 7.2-10.4 | 12.3-18.5 | 20-28 | 31-50 | 37-55 | 52-72 | |
Wire Rope Diameter (mm) | 12.5 | 12.5-15.5 | 15.5 | 17 | 18.5 | 20 | |
Motor | Power (kw) | YBB11-4 11KW | YBB17-4 17KW | YBB30-4 30KW | YBB45-4A 45KW | 55KW | 75KW |
| voltage (V) | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 | 380/660 |
Overall size (mm) | Length | 5500 | 6110 | 6800 | 8610 | 1055 | 11000 |
| Width | 1170 | 1305 | 1850 | 2050 | 2250 | 2400 |
| Height | 1800 | 2000 | 2350 | 2745 | 2870 | 3000 |
Weight (kg) | 2500 | 4750 | 6500 | 9800 | 12500 | 15000 | |

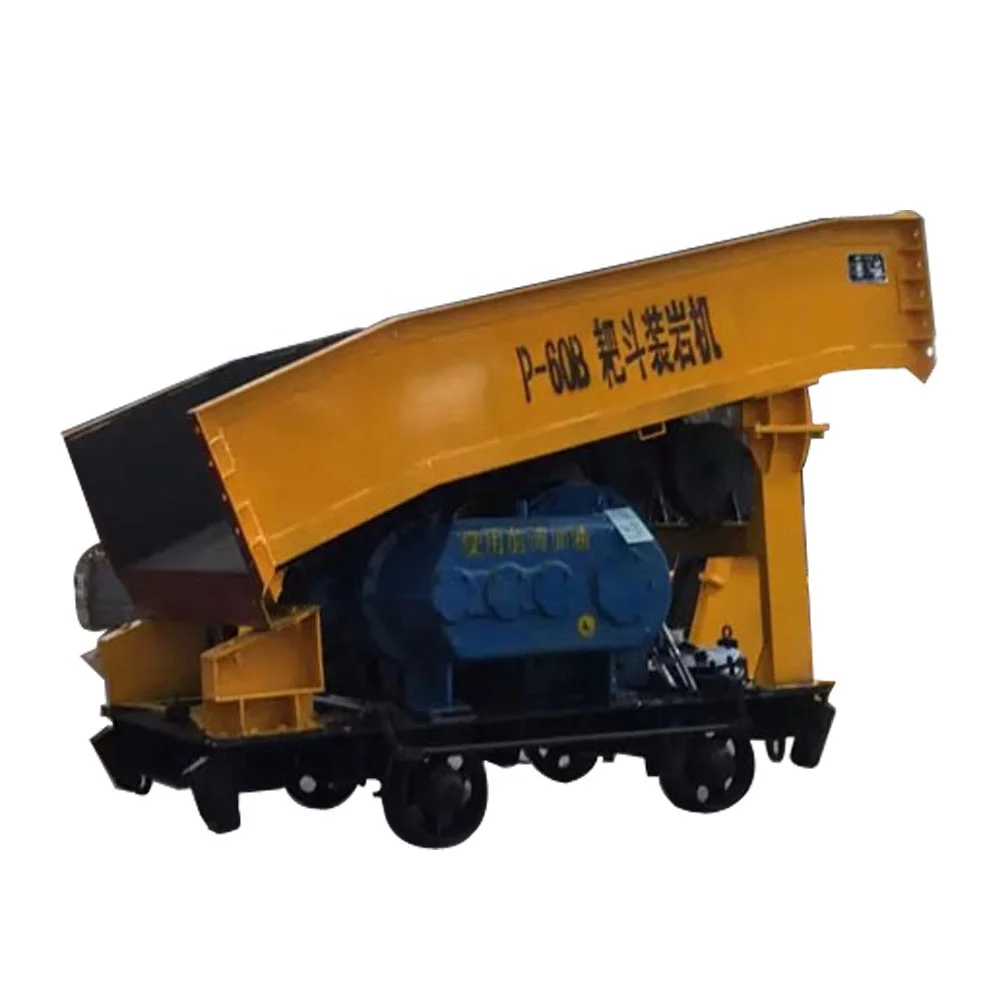

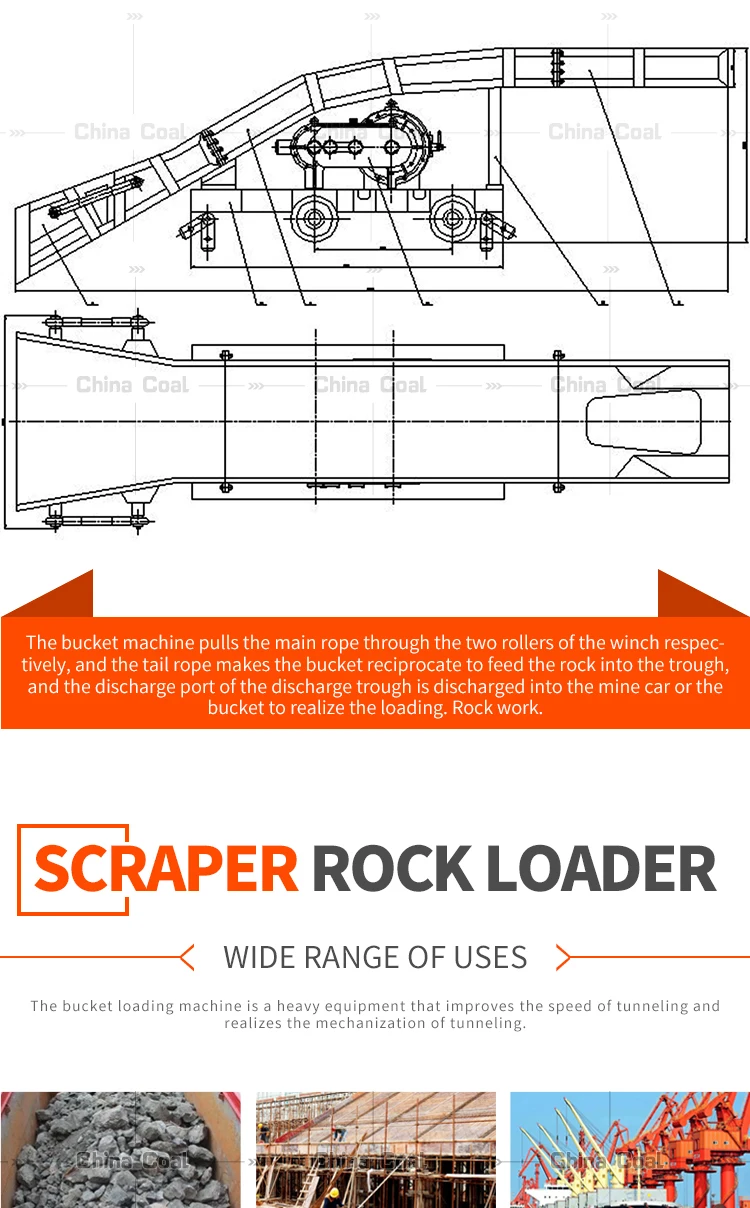

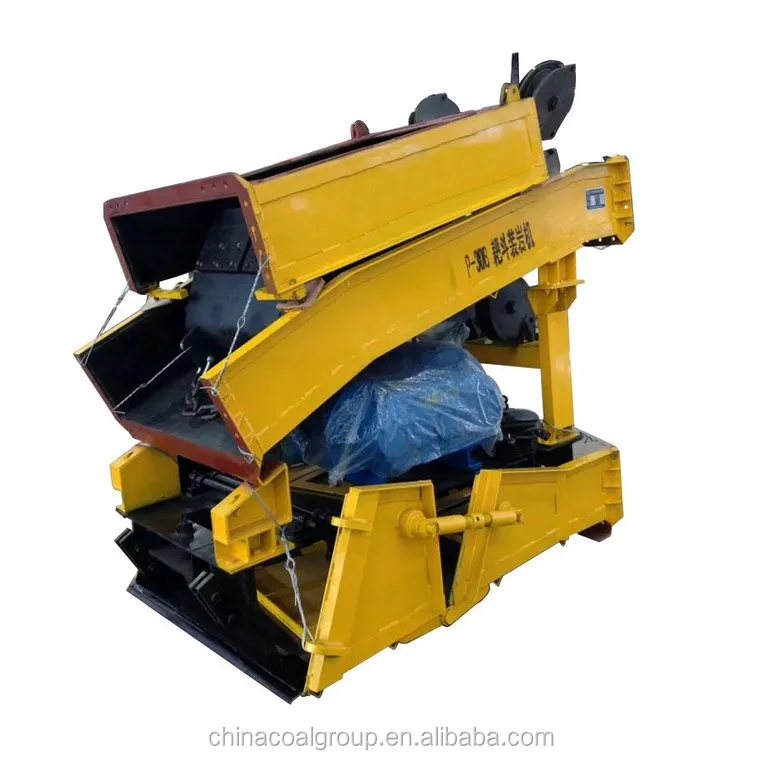

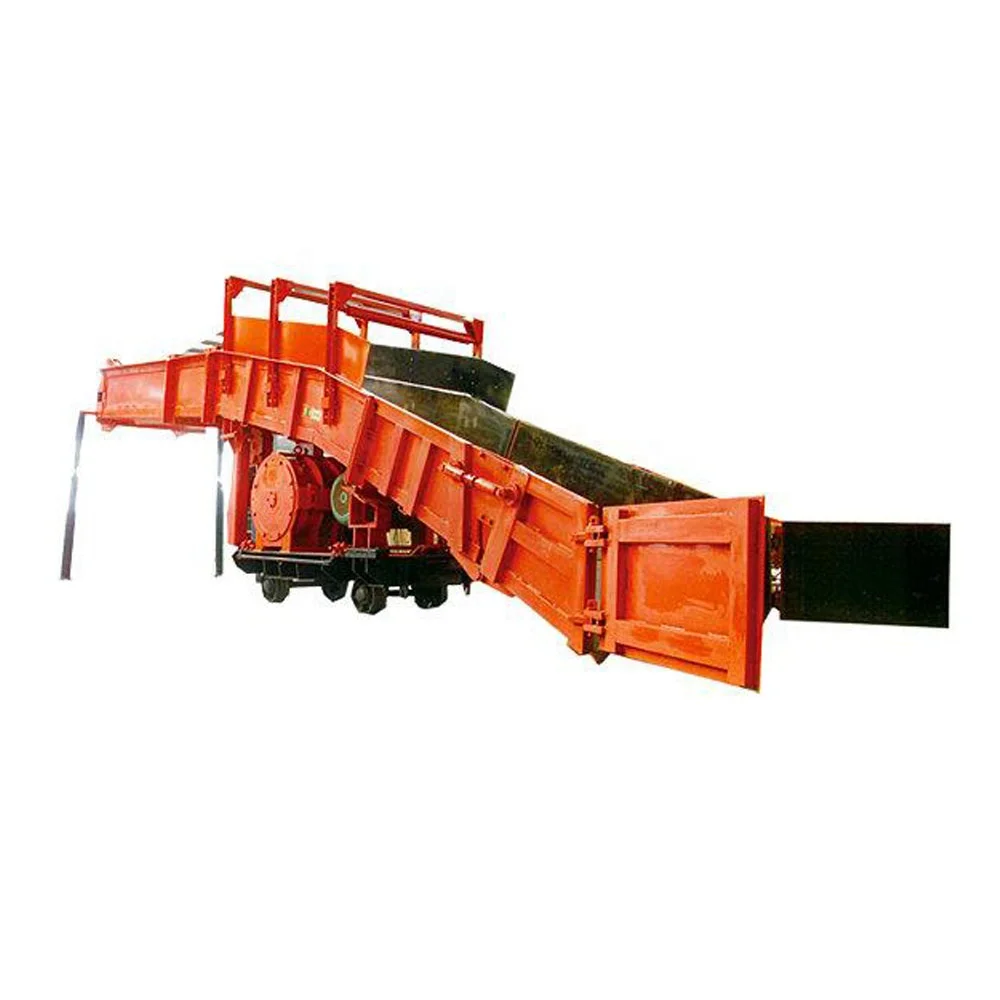

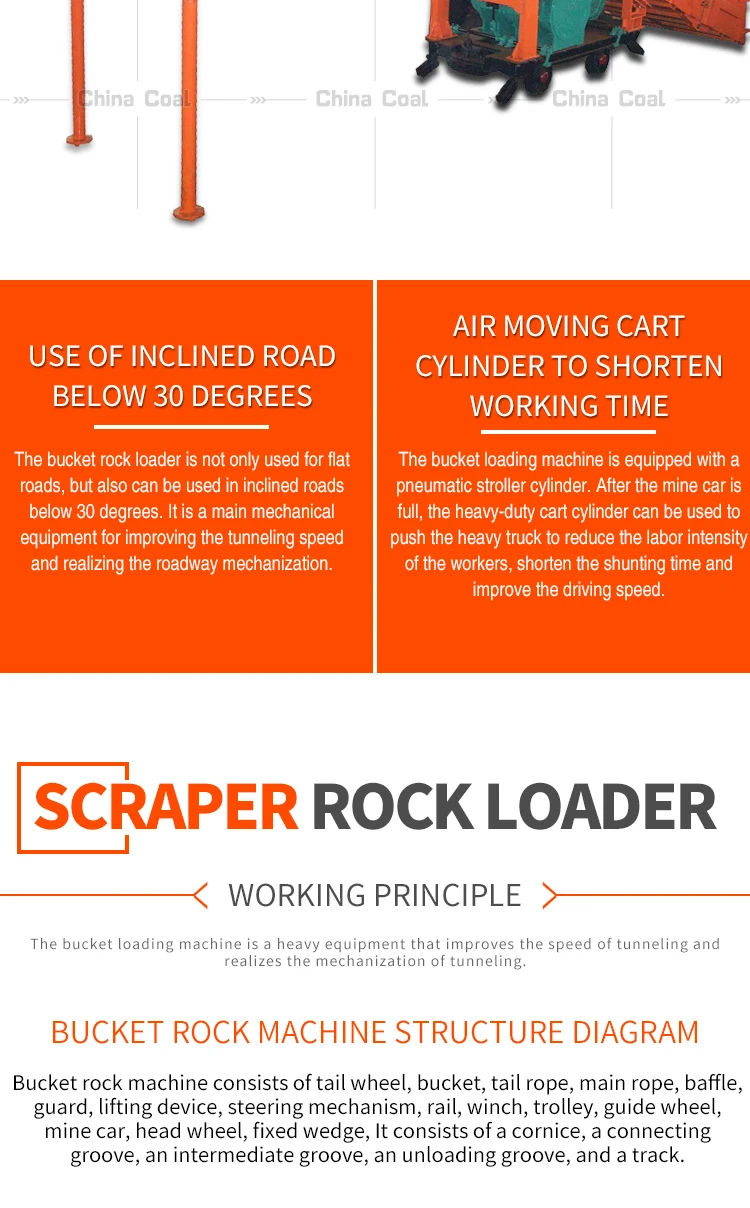

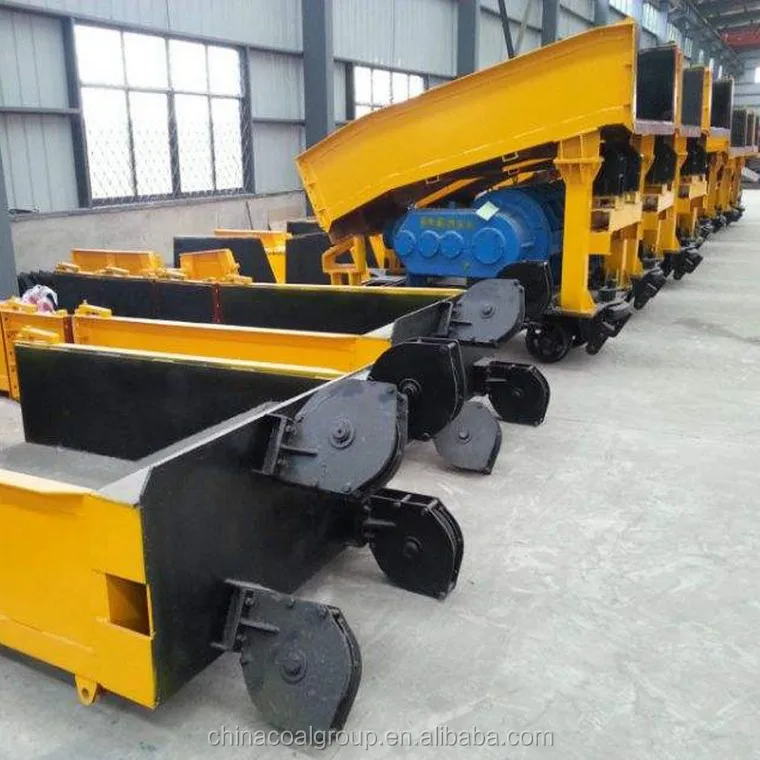

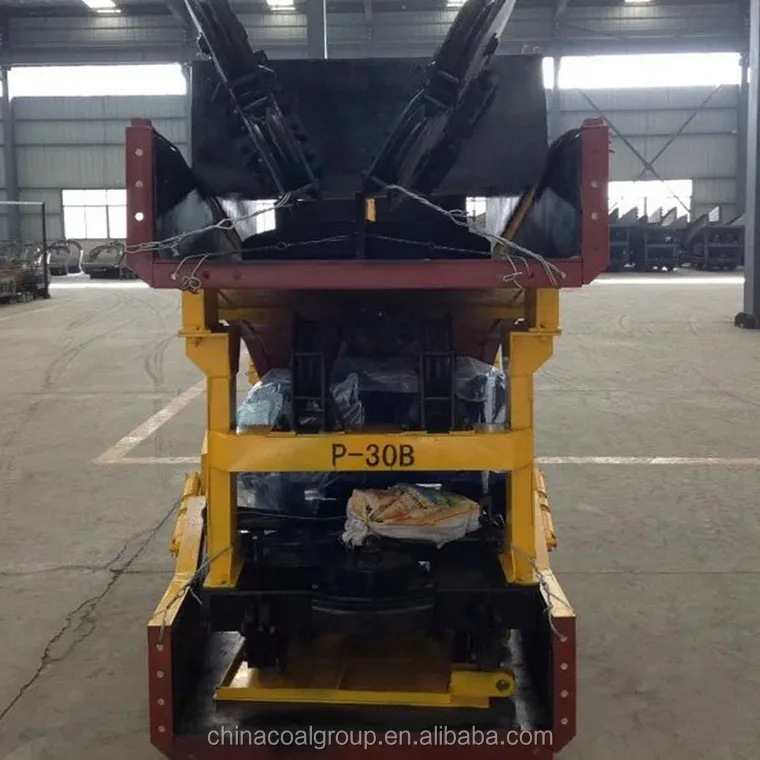

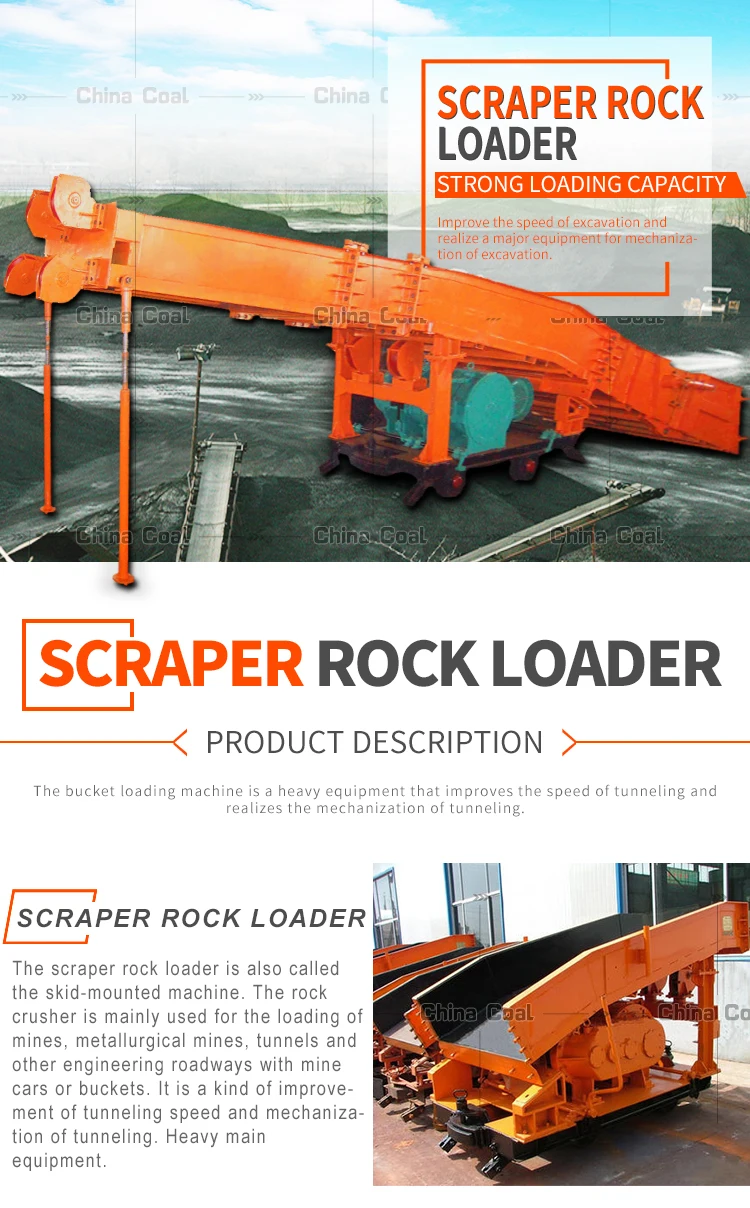

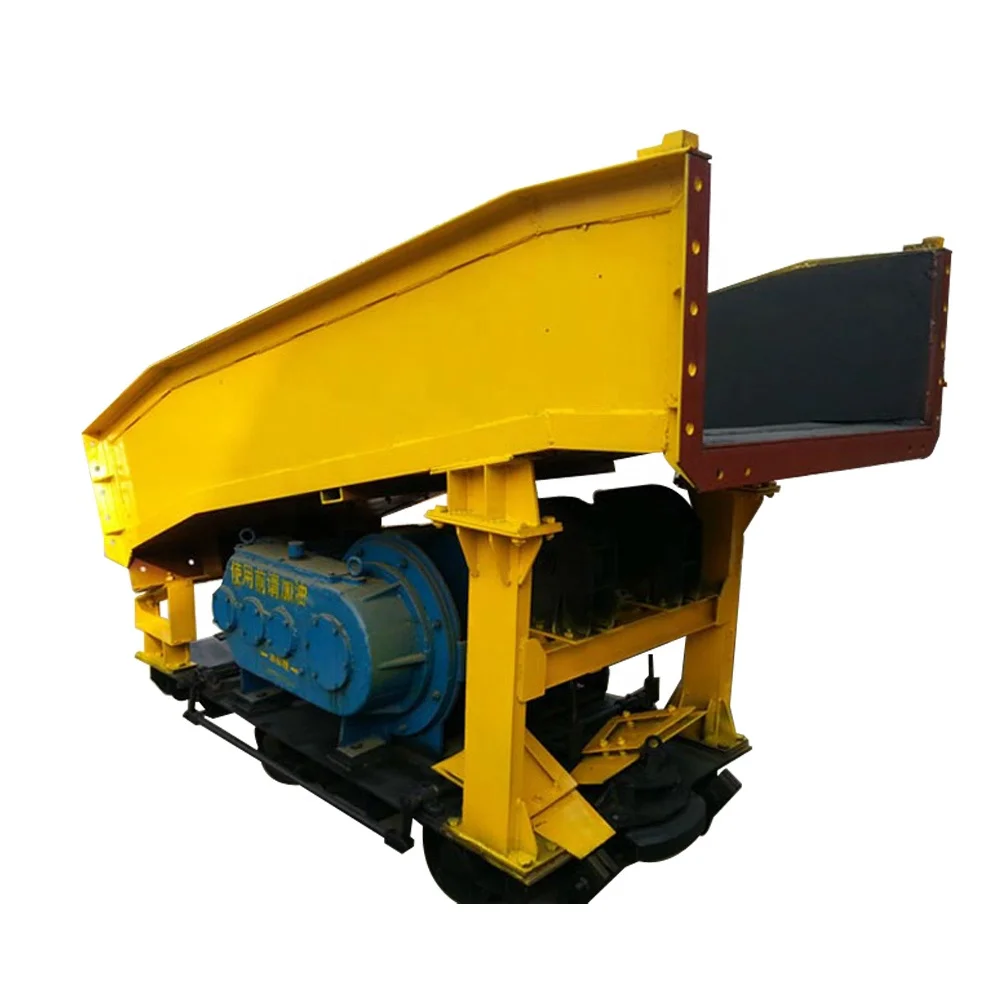

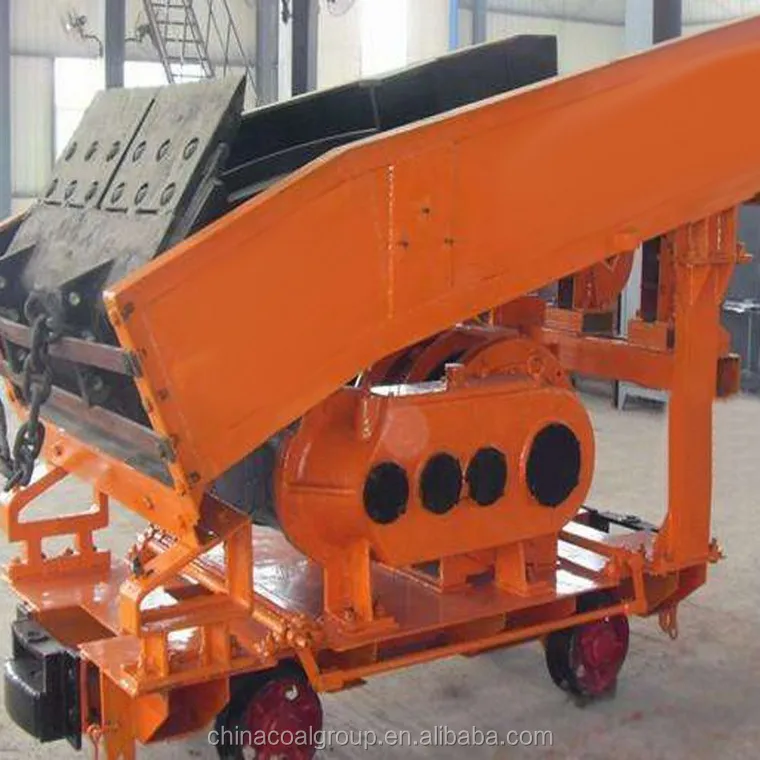

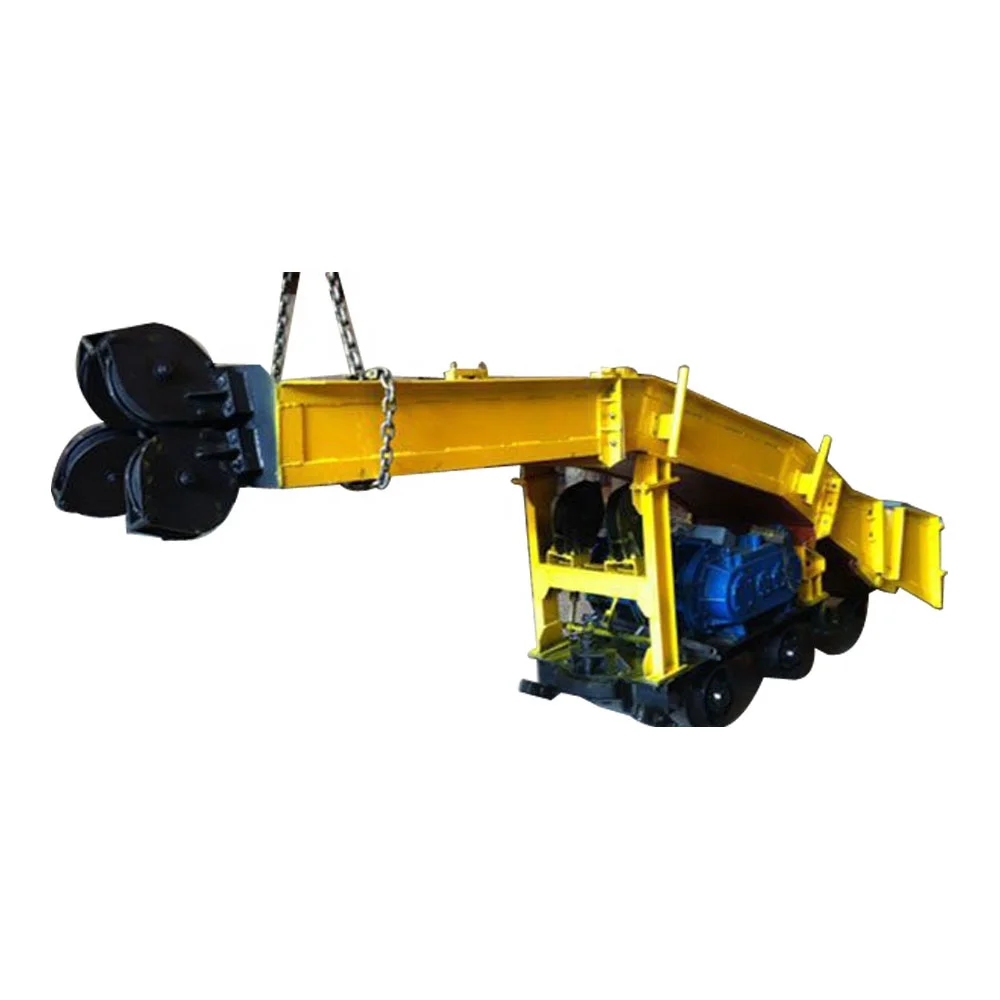

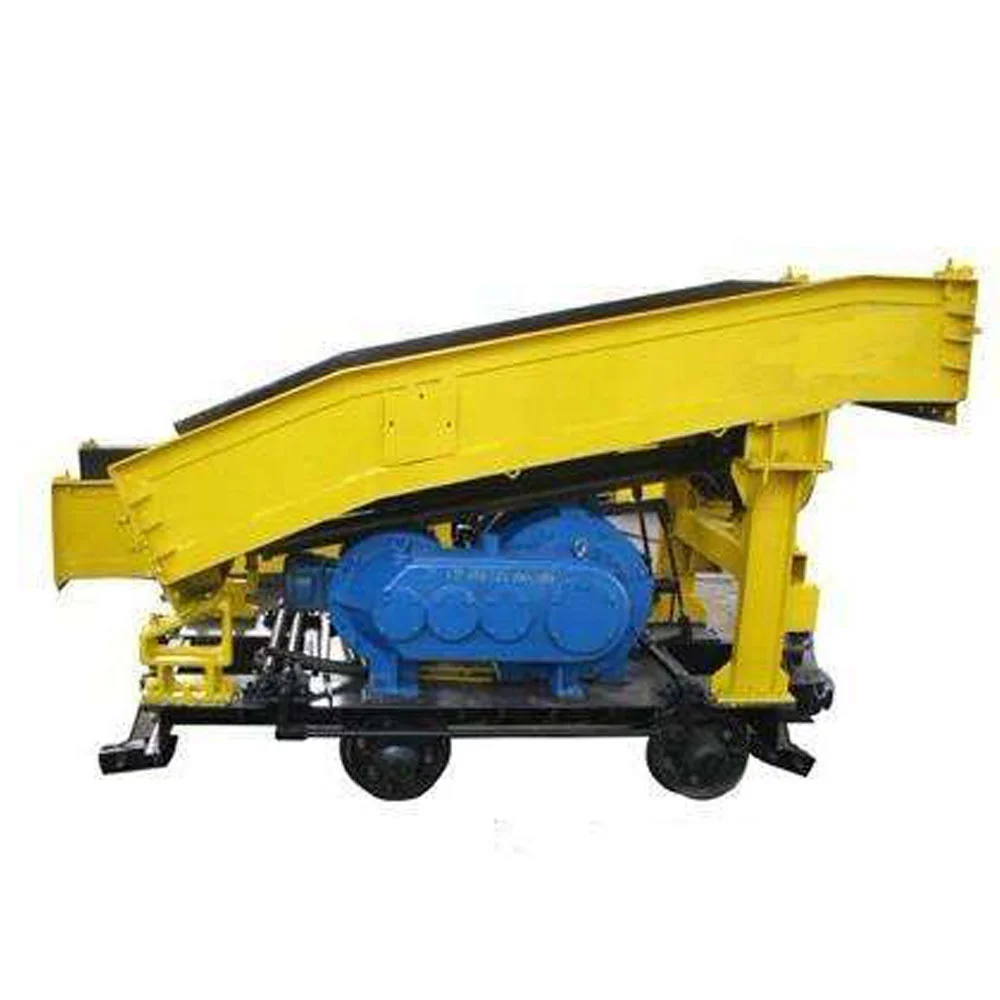

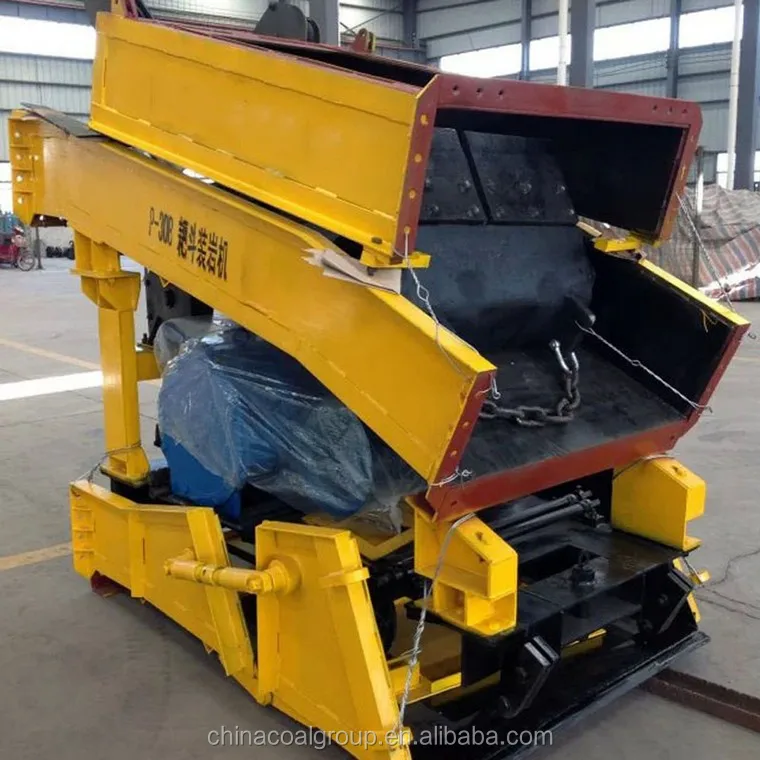

Images of PB Series Scraper Bucket Rock Loader
