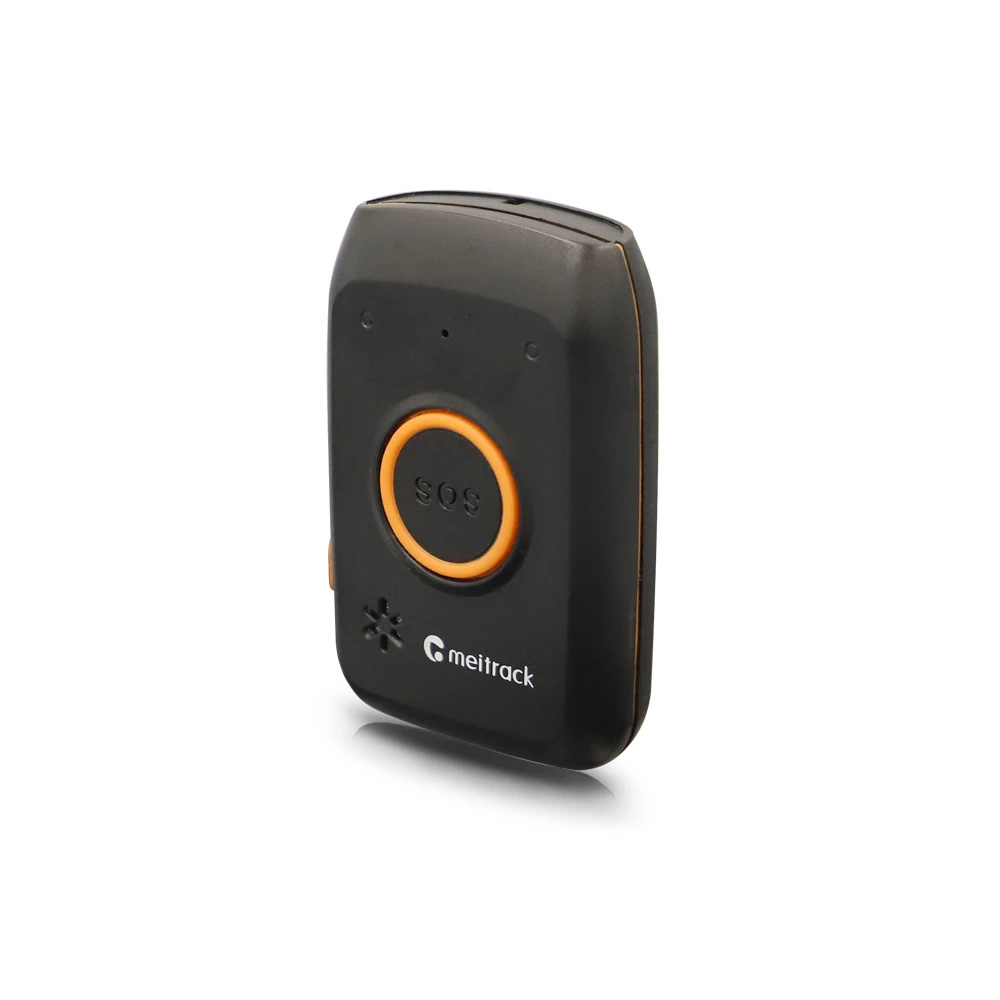

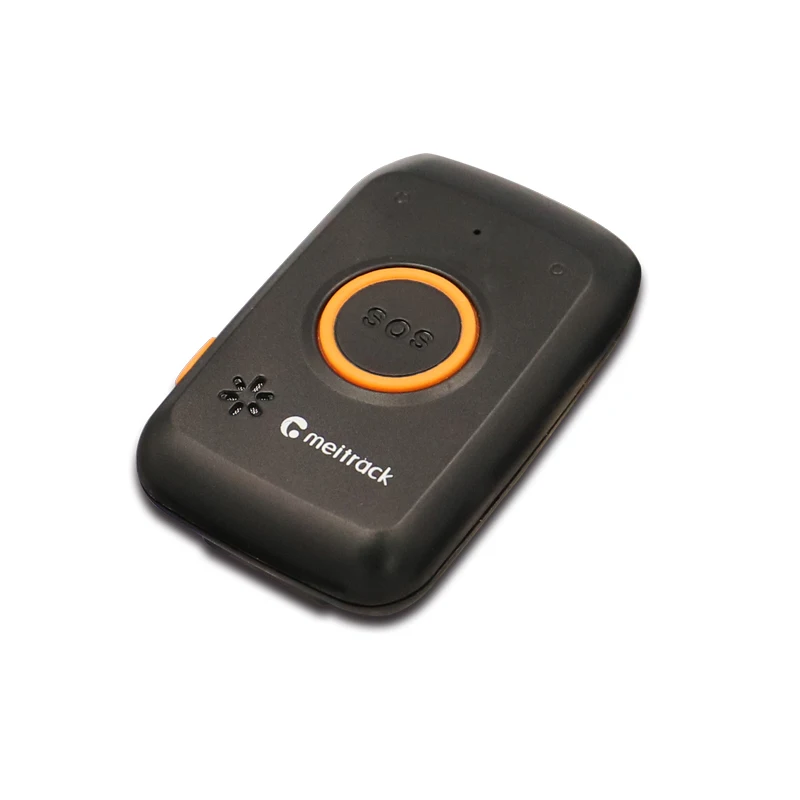

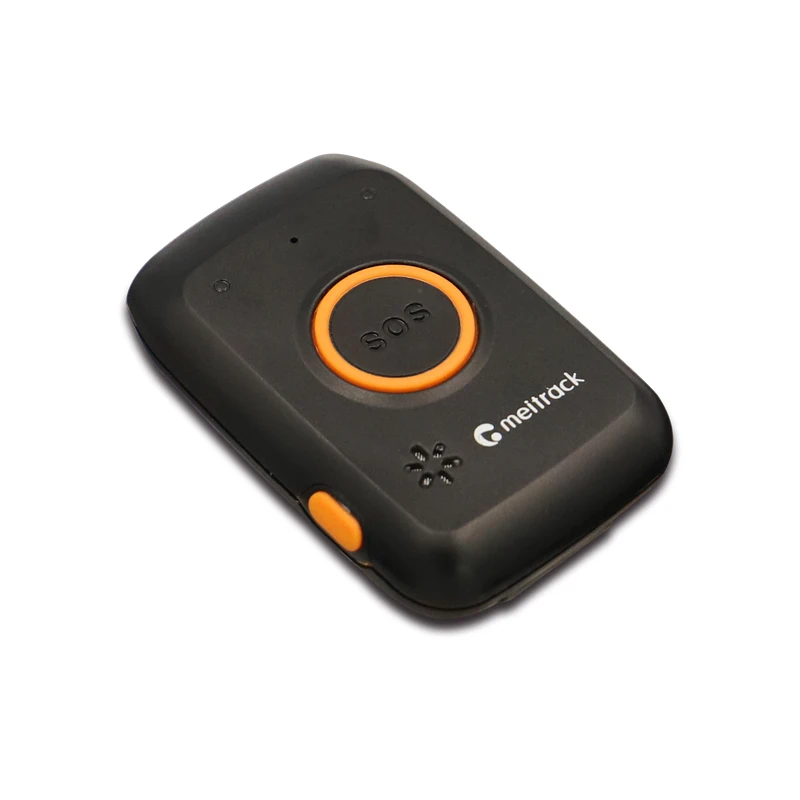

4G беспроводное умное мини микро устройство для слежения со спутником и GPS для детей
- Category: >>>
- Supplier: Meitrack Group (Shenzhen)
Share on (1600095899786):
Product Overview
Description
Product Overview
Specifications

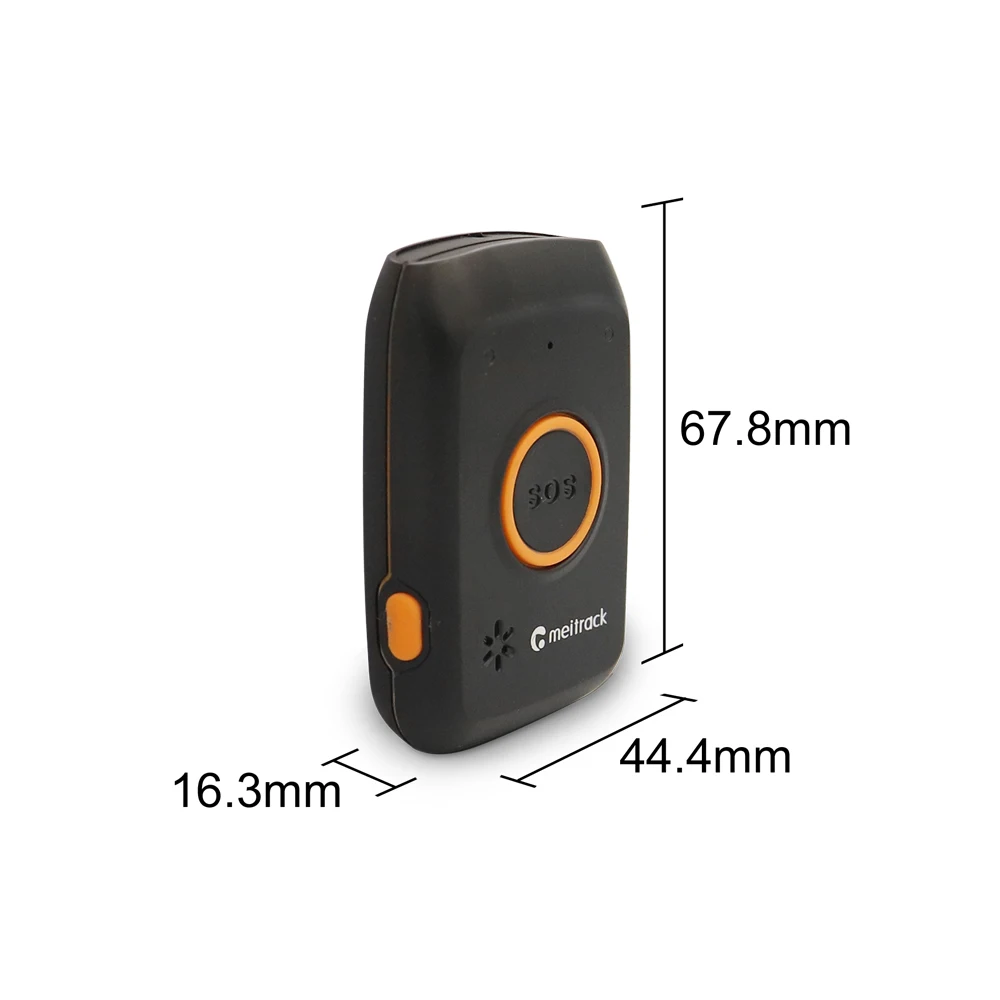

Dimension | 67.8 mm x 44.4 mm x 16.3 mm |
Weight | 60g |
Power input | DC 5V/2A |
Battery capacity | 1000 mAh/3.7V |
Power consumption (standby) | 5 mA (average current; 3.8 V; GPS off or WiFi off; don’t upload data) 200 hours of battery hours |
Charging | Fast magnetic charging (standard): 1800 mA (charging time: about 1.5 hour) |
Operating temperature | -10°C to 55°C |
Operating humidity | 5% to 95% |
LED indicator | Green, blue, and red LED indicators showing the GSM, GPS, and power status respectively |
Button/Switch | 1 SOS button (used for sending SMS/GPRS alerts and calling) 1 switch on the side |
SIM card | Nano SIM card. Before installing the card, users need to remove the outer case of the device. |
Memory | 8 MB buffer |
Microphone/Speaker | Internal microphone and speaker |
Sensor | 3-axis accelerometer |
Reminder function | Built-in buzzer and vibration motor |
Wi-Fi positioning (optional) | WiFi@2.4 GHz, 802.11 b/g/n |
Bluetooth (optional) | BLE 2.4G. Configure device parameters by Bluetooth. Support the Bluetooth anti-lost function. |
Frequency band | P88L-ER: LTE-FDD: B1/B3/B5/B7/B8/B20/B28 GSM: B2/B3/B5/B8 P88L-AUR: LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66 GSM: 850/900/1800/1900MHz P88L-A: LTE-FDD: B2/B4/B12/B13/B25/B26 WCDMA: B2/B4/B5 P88L-JE: LTE-FDD: B1/B3/B8 P88L-JC: LTE-FDD: B1/B18/B19/B26 |
GPS positioning accuracy | 2.5 meters |
Water-resistance rating | IP67 |

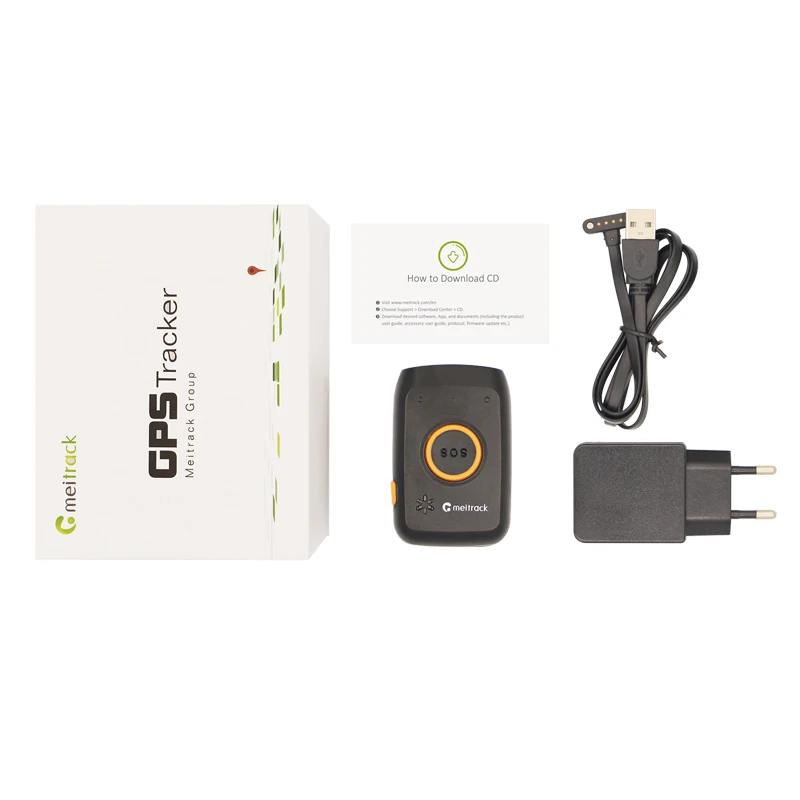

Accessories
P88L tracker | Magnetic USB cable | Charger |
Lanyard | CD download card |
Certificates: CE, FCC, IP67
Meitrack MS03
Advanced GPS Tracking Software
MS03 is the newest GPS tracking innovation from Meitrack Group. Extensive programming combined with an esthetically designed user interface (UI), giving the MS03 platform a much more user friendly experience. The platform consists of an extendable database, which ultimately can meet various functional requirements and needs.
Case Study
LAW ENFORCEMENT AGENCY
P88L | China
P88L | China
With the implementation of the Meitrack’s GPS tracking system, police officers are provided with an opportunity to be monitored for quality and safety measures that will position them to complete their duties adequately. With access to SOS, speakers, and high-power microphone, law enforcement will be equipped with high quality technology to make their jobs not only more seamless but safer as well without interference.
HEALTH CARE ORGANISATION
MT90G | Australia
Used by doctors and nurses who do house calls and in-home visits to mental patients. Clinicians carry the device for personal safety or in case of an emergency. If an incident were to occur, they simply could press the S.O.S. button which sends out an alert and exact location to the healthcare organization.
DUBAI WORLD CUP HORSE RACING EVENT
P99G | United Arab Emirates
P99G | United Arab Emirates
The P99G was selected to track either the riders or the horses for the entire duration of the race. The device provides real time
locations, which monitored the whereabouts and relayed the information to the management staff.
locations, which monitored the whereabouts and relayed the information to the management staff.
WATER SPORT
P99L Australia
The P99 series feature water resistance ratings, long battery life, and is one of the ideal choices for water sports. It can pinpoint real-time locations of outdoor enthusiasts and provide reassurance for participants.
In addition, the tracking unit can keep a comprehensive log of their sporting performances that can be later viewed from Meitrack MS03 tracking system on a computer or smartphone.
