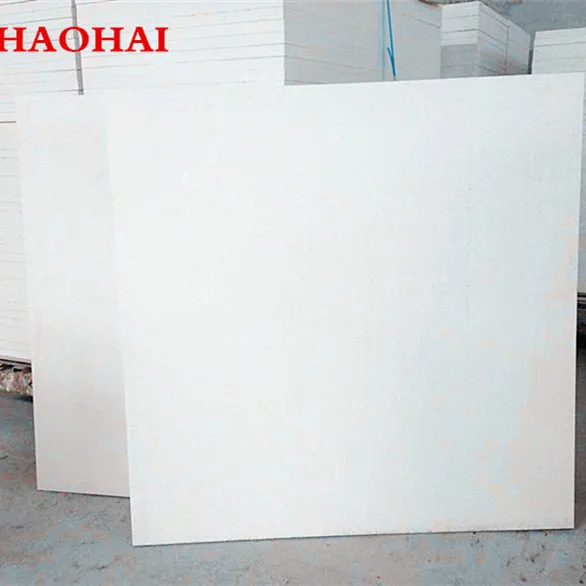

fire rated calcium silicate insulation board 1000 degree heat insulation
- Category: >>>
- Supplier: Yantai Haohai Insulation Materials Technology Co. Ltd.
Share on (1600096040604):
Product Overview
Description
Product Description
Product Name | Calcium silicate board |
Material | White, Grey |
Function | heat insulation, fire resistant, fireproof, waterproof, sound proof |
Certificate | CE, ISO9001 |
Product performance description
* Product performance description
* Haohai Insulation Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous high
operating temperatures.
It is a light weight, low thermal conductive, high strength, easy to install, reliable and durable product.
* A1 fire rating classification, thermal conductivity coefficient can reach to 0.032w/m.k.
* Haohai Insulation Calcium silicate board is an asbestos-free thermal insulation product that can withstand continuous high
operating temperatures.
It is a light weight, low thermal conductive, high strength, easy to install, reliable and durable product.
* A1 fire rating classification, thermal conductivity coefficient can reach to 0.032w/m.k.
Details Images
Our company is the first company in China use the "glue twice in high temperature and high pressure" new technology to produce the calcium silicate board. Our company use the new technology and use higher than 400 ℃ high temperature high pressure steam to produce the calcium silicate board, so that the limited temperature and the compressive strength highly improved. The maximum temperature limit can reach to 1150 ℃, 200 ℃ higher than other factories which use ordinary technology.
Light weight high strength calcium silicate board
Product density is 200-300 kg/m³, compressive strength is 2-3.5mpa, flexural strength 0.9-1.5 mpa, thermal conductivity is 0.055-0.087 w/m.k. Mainly used in the cell, smelting furnance, steel mills, petrochemical cooperation, the building insulation fire and other industries, the product has been national patented.
High strength calcium silicate board
Our company use a special formula for high temperature and pressure to produce , the compressive strength could reach 21mpa, flexural strength could reach more than 10mpa, density 500-800kg/m³. Products are mainly used in the construction field fire insulation and military equipment, fire insulation of ship, the product has been recognized by the industry in Japan.
High strength low thermal conductivity calcium silicate board
Low thermal conductivity calcium silicate board density is 130-200kg/m³， compressive strength 0.5mpa-1.5mpa,, flexural strength is 0.3mpa-0.7mpa, it has been recognized by Europe standard.
Product Usage
Product usage introduction
1. Fireproof insulation patition
2. Interior wall insulation board
3. Cable fire protection slot
4. Building fire prevention ventilation pipeline
5. Core board of fire door
6. Fire protection for building tunnel
7.Fire protection for steel structure
8. External wall heat insulation board
9. Heat insulation for electrolytic cell
PRODUCT PARAMETER LIST
Company Introduction
We are a big calcium silicate insulation board manufacturer in China, the annual production capacity can reach to 50000cubic meters.
We produce fireproof calcium silicate board from density 130kg/m³ to 900kg/m³，we are the only factory that supply super high strength and super low thermal conductivity type calcium silicate board in China, fireproof limit 1100°C (2012°F).
All the products are CE and ISO 9001 certificated, have been exported to Germany, Italy, UK, Poland, Denmark, Japan, Russia and other countries. Our boss also product supervisor has been in calcium silicate board producing area for more than 30 years, so our product quality is very trustworthy and famous in China.
If you are in need of fireproof. waterproof and heat protecting material for fire door core, construction field、military equipment、ship、smelting furnace、pit、steel mills、petrochemical cooperation and other industries, then our product is perfect.
If you are in need of fireproof. waterproof and heat protecting material for fire door core, construction field、military equipment、ship、smelting furnace、pit、steel mills、petrochemical cooperation and other industries, then our product is perfect.
Our Services & Strength
We are committed to providing the best products and services to customers around the world. If there is any quality problem after receiving the products, please timely feedback to our company. We will timely provide after-sales solutions to your satisfaction, including but not limited to damage compensation and order preference.
FAQ
How packing
We strictly packing the board according to GB/T10699-1998&Q/JN001
JN calcium silicate board’s packing:
1.shrink wrapping with best wooden pallet separated package
2.plastic bag with paper box package
3.according to customers' requirements
JN calcium silicate board’s packing:
1.shrink wrapping with best wooden pallet separated package
2.plastic bag with paper box package
3.according to customers' requirements
Do you supply sample
Yes, of course.
In order to promote the long time cooperation, we glad to offer free samples, but hope the customers could bear the samples express fee to show the purchasing sincerity.
