pneumatic driven gas booster pump system for liquefied gas transfer
- Category: >>>
- Supplier: Shandong Hailaitaide Machinery Co. Ltd.
Share on (1600096046259):
Product Overview
Description
Pneumatic gas booster system for pressurized various gas
ODMT Gas Booster system is a complete gas booster units , It provided maximum operating pressures up to 160MPa. It’s pressurizing medium is pure gas fluid.
High pressure output pressure is produced by pneumatic gas booster pump. Therefore, No electrical connection is required.
To operate this system, The drive gas from the air compressor is required to start the ODMT booster pump. The pressure of the driven gas can be adjusted by valves and pressure gauges, and the output gas pressure can be adjusted
The expected working pressure can be achieved by adjusting the pressure of the drive inlet.When the driving air pressure and the output pressure are balance, the pump stops filling pressure and the output pressure remains at the preset value.
Constant gas outlet pressure can be obtained by MGS series gas booster system
The standard gas booster pumps system including following parts:

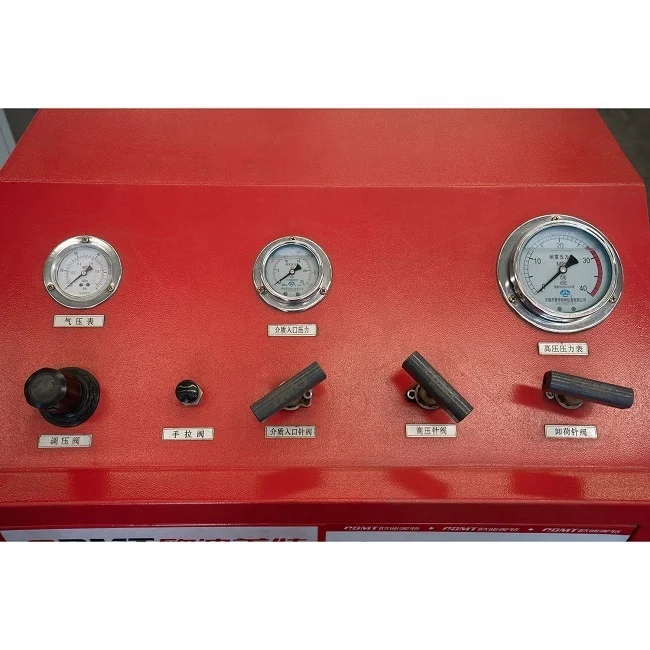

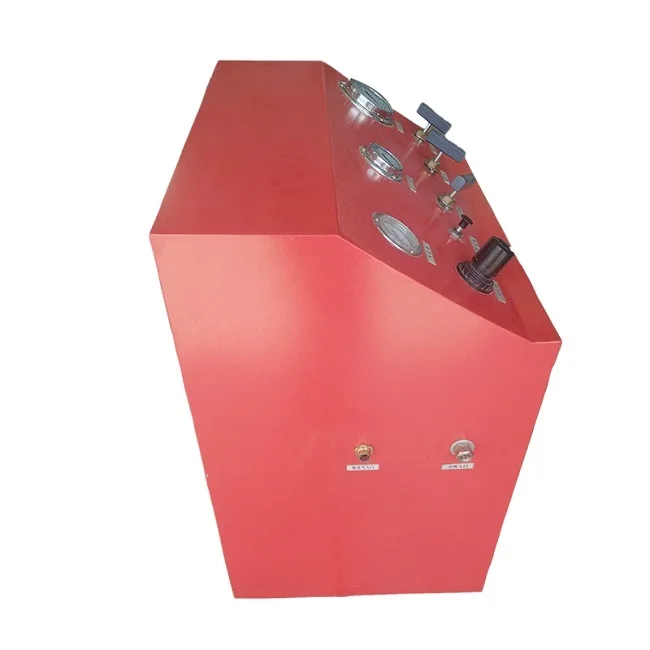

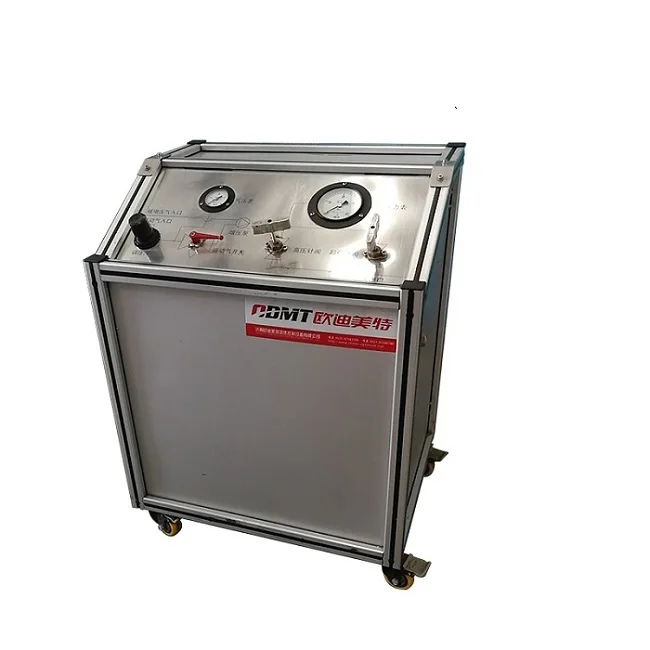

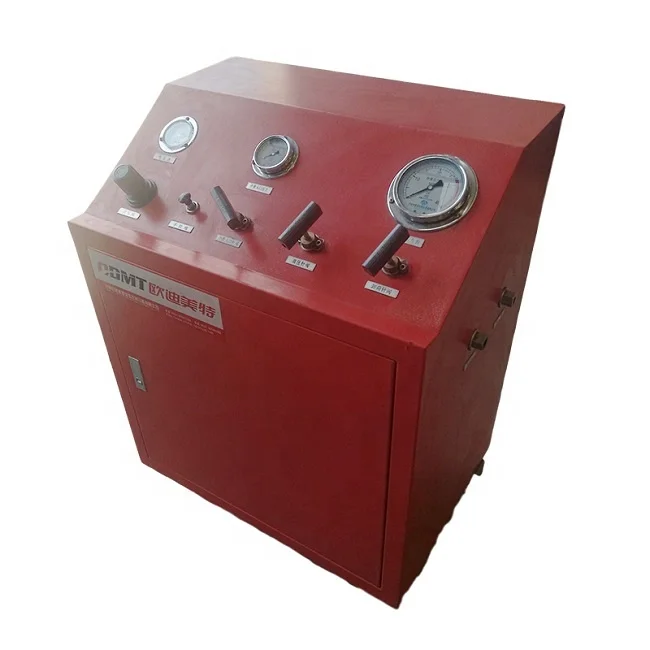

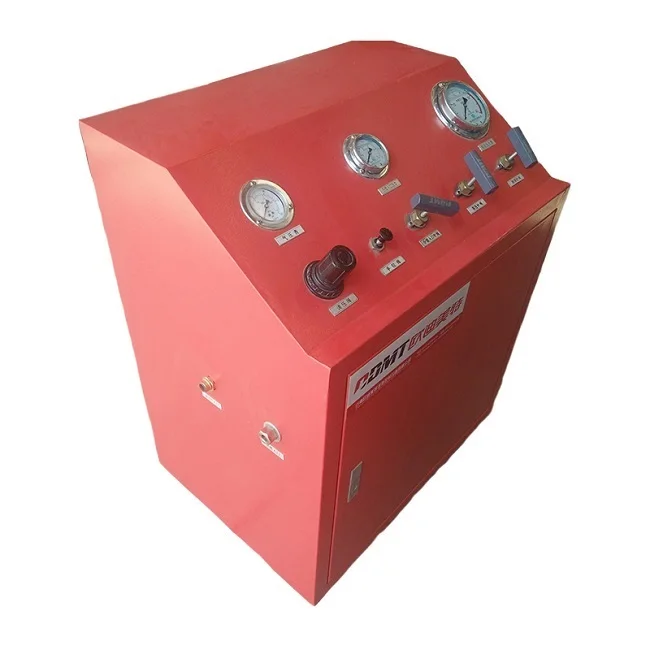

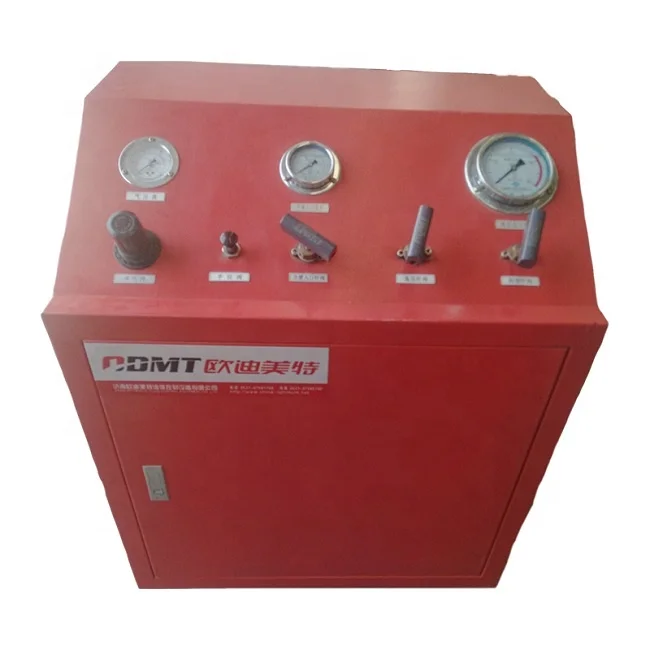

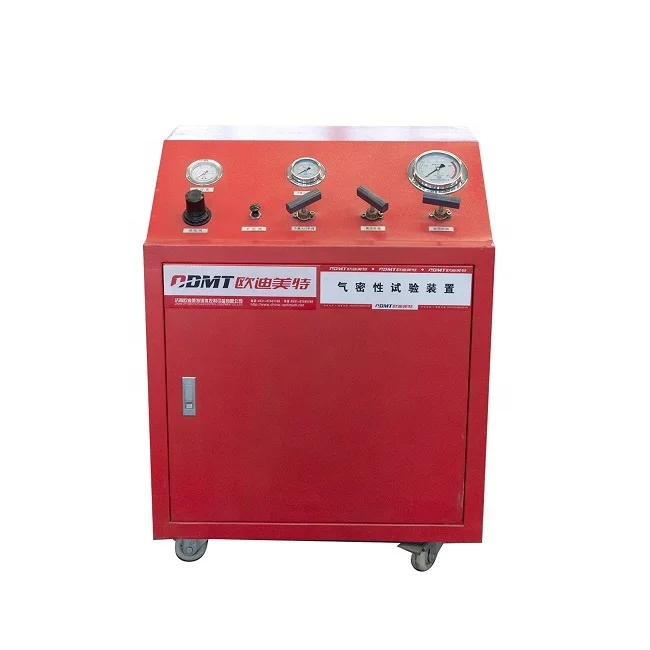

Air -driven gas booster pump
Stainless steel (carbon steel) material cabinet
F.R.L combination for driven air (adjusts air pressure, add lubricating oil and water filter)
Driven air switch (Pump starting switch), driven air pressure gauge
Gas inlet switch, Gas inlet pressure gauge
Gas outlet switch, Gas outlet pressure gauge, unloading valve, interconnecting pipes etc.
And we can also customize it according to clients' special requirement.
Technical specification for OMD Series:
(Note: PL: driven air pressure PA: gas inlet pressure PB: gas outlet pressure)
Model | Pressure boost ratio | Min. gas | Max.gas | Max. gas | Driven air pressure PL | Formula to | Connection: | Max. flow at driven air pressure of 6bar (L/min) |
OMD10 | 10:1 | 5 | 80 | 80 | 2bar-8 bar | 10PL+ PA | ZG1/4/1/4 | 372(at PA of 6 bar ) |
OMD25 | 25:1 | 10 | 200 | 200 | 2bar-8 bar | 25PL+ PA | ZG1/4/1/4 | 154(at PA of 20 bar ) |
OMD40 | 40:1 | 15 | 320 | 320 | 2bar-8 bar | 40PL+ PA | ZG1/4/1/4 | 92(at PA of 20 bar ) |
OMD60 | 60:1 | 25 | 480 | 480 | 2bar-8 bar | 60PL+ PA | ZG1/4/1/4 | 115(at PA of 40 bar ) |
OMD100 | 100:1 | 35 | 800 | 800 | 2bar-8 bar | 100PL+ PA | ZG1/4/1/4 | 74(at PA of 40 bar ) |
Application Fields
1.Pressure test with gas
2.Gas transfer and filling(Argon/Helium/Hydrogen/Oxygen/Nitrogen/CO2/NO2/CH4/LNG/LPG/CNG/FM200 etc.)
3.Charging of gas cylinder and accumulator with nitrogen
4.Supply for isolating gas systems
5.High pressure gas injection system for various industries
6.Transfer of oxygen cylinders
7.Charging of breathing air bottles
8.Leak test
9.Hydrostatic Testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, gas bottles and air craft components
10.Safety valve adjusting
Advantages
- Standstill of the pump when reaching the set final pressure
- No energy consumption in case of long pressure holding times
- Substitute of leakage by automatic re-delivery through the pump
- Regulator to control inlet air supply
- High pressure bleed valve and high pressure outlet
- Simple air-driven pump
- Simple installation, operationally reliable, easy to maintain
