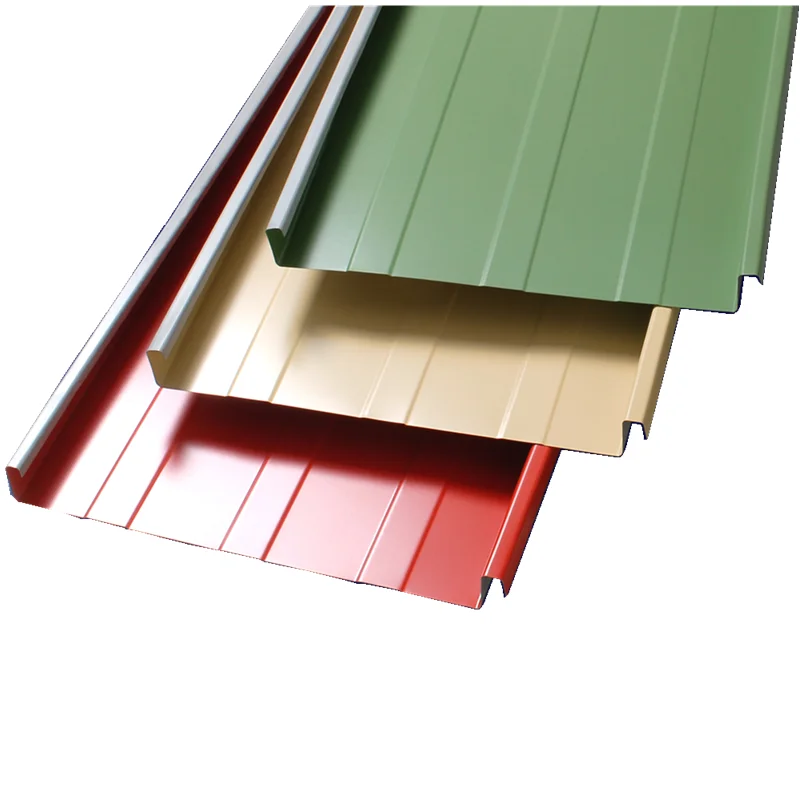

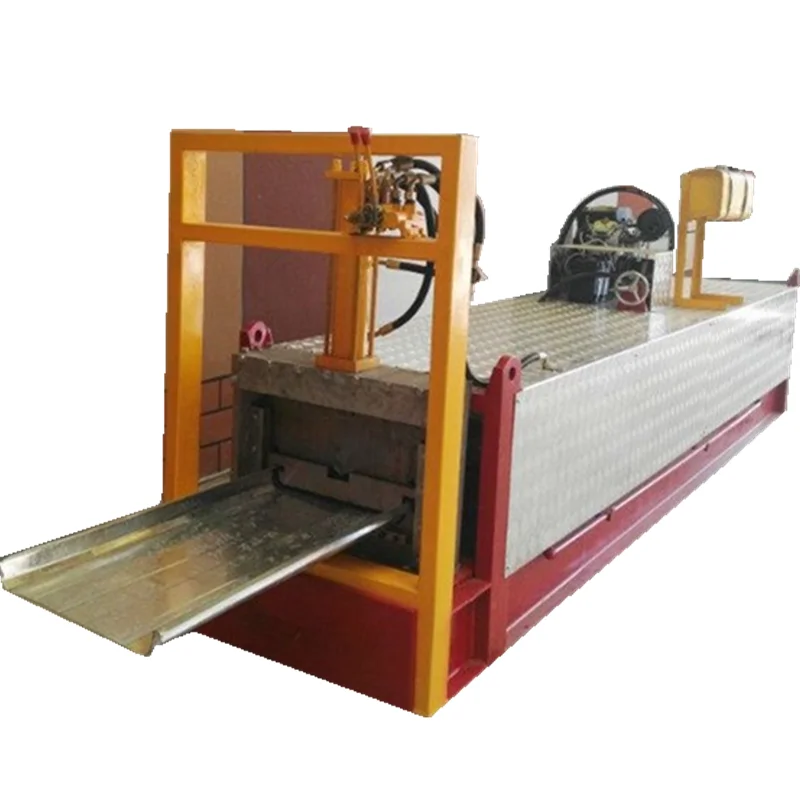

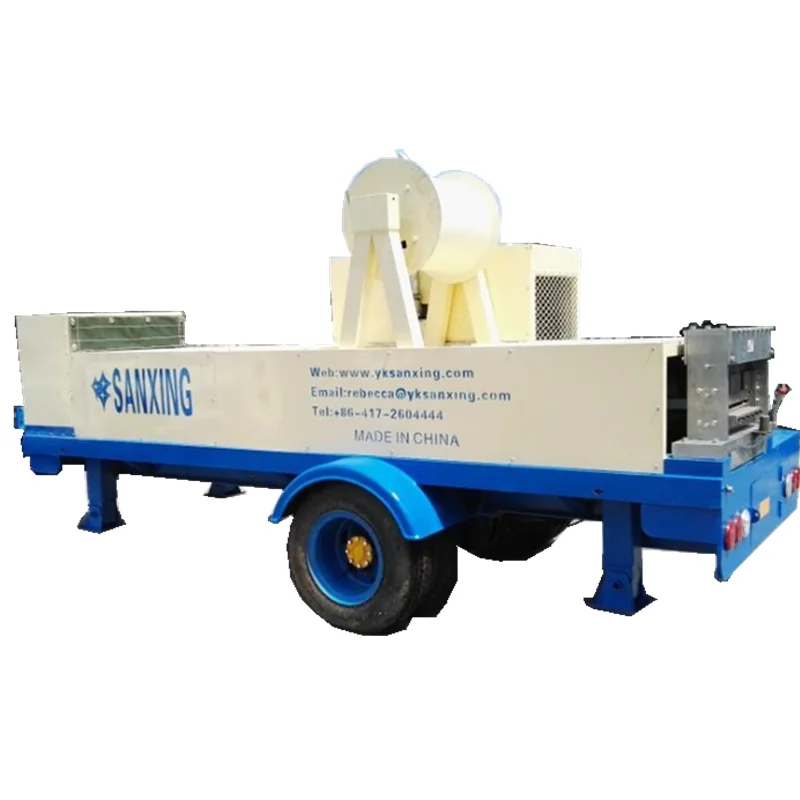

SX KR 18 standing seam metal roof tile zinc plate steel coil workroom roof construction machine

Share on (1600096213680):


Price:

Quantity:


Product Overview

Description



Product Description
































































size6000mm × 1300mm × 1400mm
Weight5000KG
Feeding width600mm
hydraulic cutting power3.0kw
Working Speed8-10m/min
Material of rollers Good 45# steel, rigid chrome coated
Material of roller shafts 45# steel, quenched HRC 58-62
Material of cutting bladeCr12 steel
Thickness of the coil0.42mm-0.48mm
Electric Standard380V / 50 HZ / 3 PHASE
Forming station11 steps
Electronic controlling system Japan Omron PLC
Type of cuttingRoll-formed and quantity-set and length-set cutting
Ship Container20GP*1

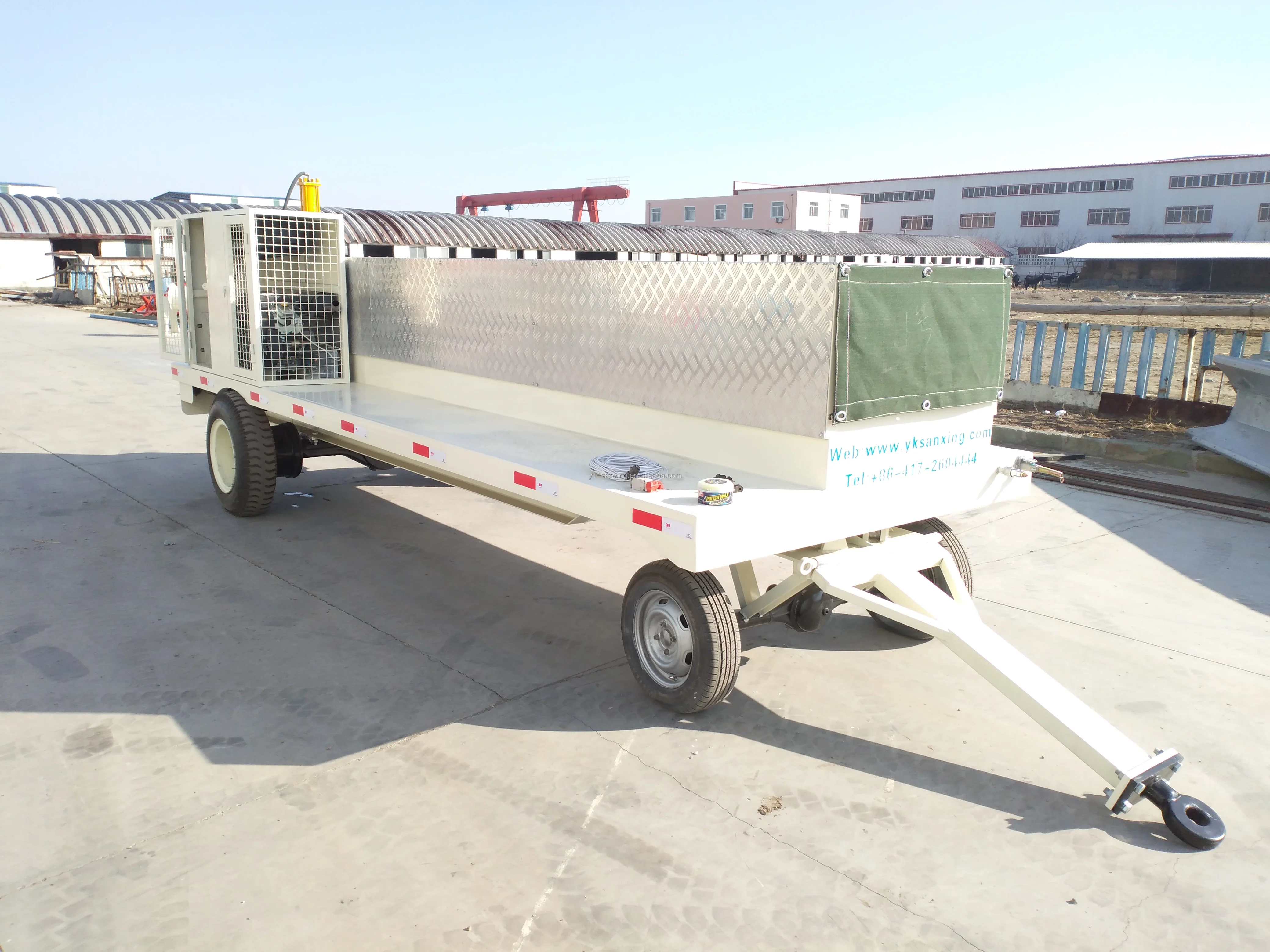

EFUV00PHUHL0SKLDGW`MJS.jpgSFF23CN}VW68S_GUK2LD240.jpg0}X538YDT9D15FH950T}WN.jpgD2W[{US1{Z$]OHMWSPR[TXU.jpgZA}KNXQ%XI{K`U}_D%E72PG.jpgW4TOX1FEC7_T9]VC}V5IGBV.jpg





















Packaging & Shipping


    We can put the machine in a 40 feet high container, and transport to the port which you designated by sea.








Our Services


About Guarantee


    We provide 10 years guarantee for some parts of machine.





About Design


    We can design projects for free according to your requirements, and provide drawings.





About Training


    If you send the technicians to our factory to study, we will provide training, accommodation, meals and local traffic expense.


    If you need technicians we send to your country to train, you should provide expenses of visa, accommodation, meals, round-trip tickets, local traffic and 100 dollars wages per day for everyone.





Recent Customers







Company Information


    Yingkou Sanxing Group is located in Yingkou city, Liaoning province, China since 1992. We are a manufacturer which design and manufacture various kinds of cold roll forming machine, we are also a supplier for lots of Chinese trading company and manufacturer.


    Our main products include ultimate construction machine, automatic construction machine, screw joint roll forming machine, spiral steel silo roll forming machine, KR standing seam roll forming machine, flat steel sheet roll forming machine, deck floor roll forming machine, sandwich panel roll forming machine, C/Z shape steel purlin roll forming machine, light steel frame roll forming machine, rolling door roll forming machine, etc.


    Our products have sold to various countries in the world. We warm welcome customers from all over the world to visit our company.
