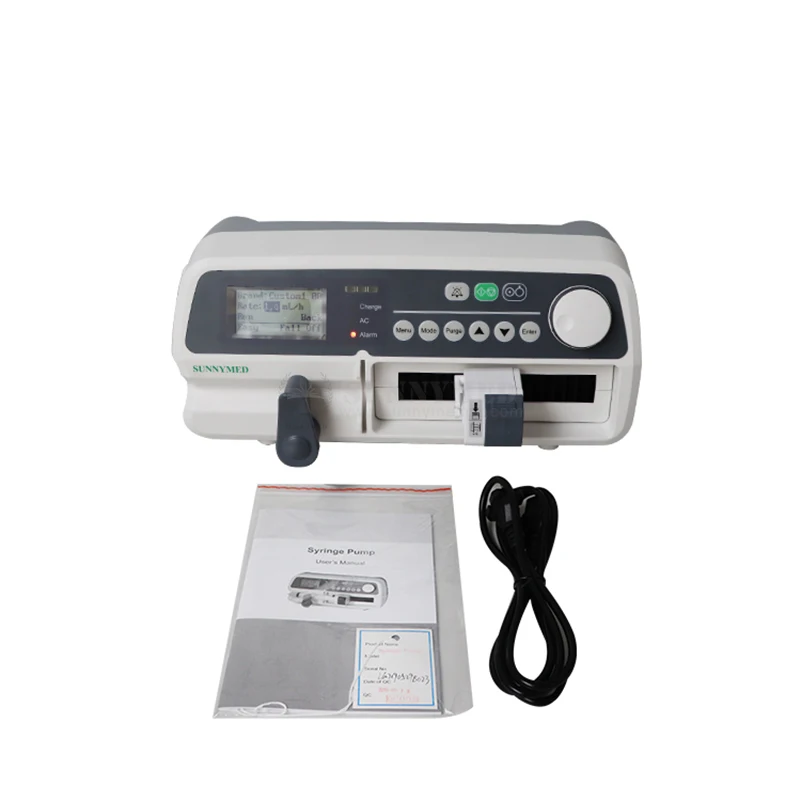

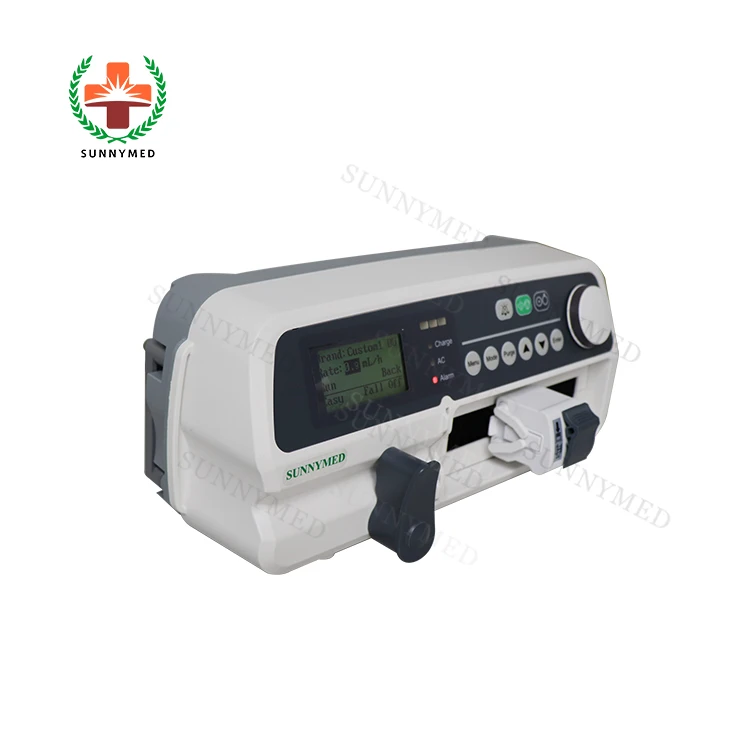

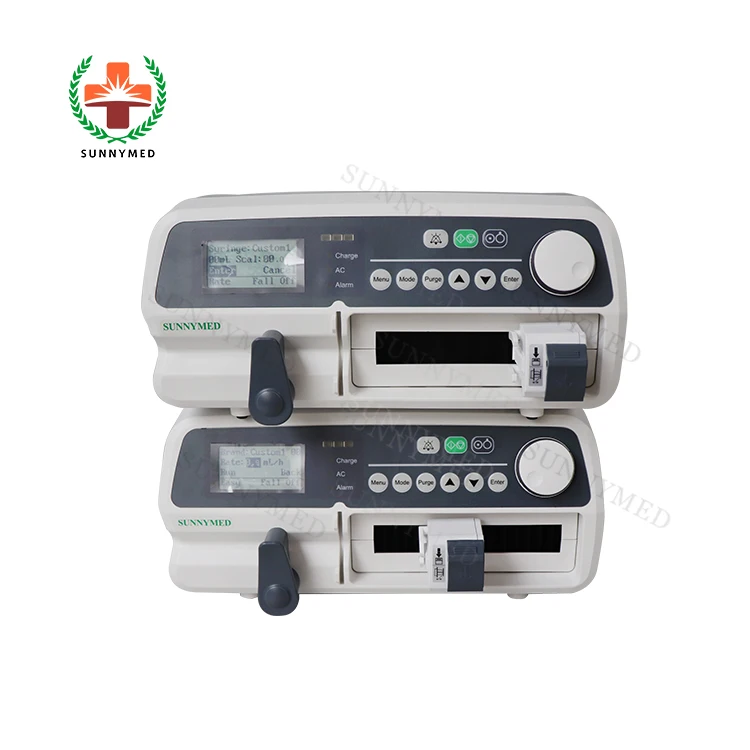

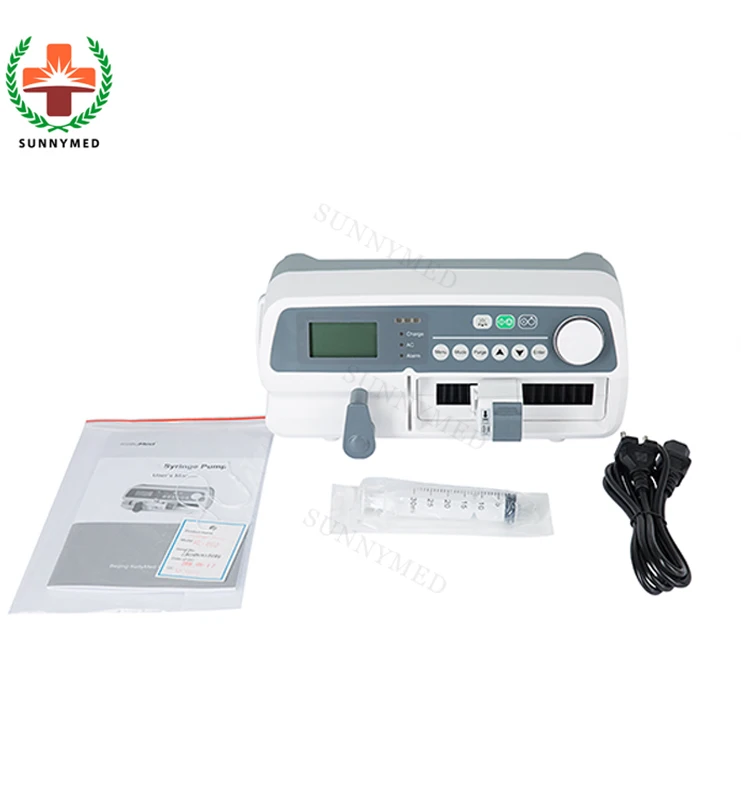

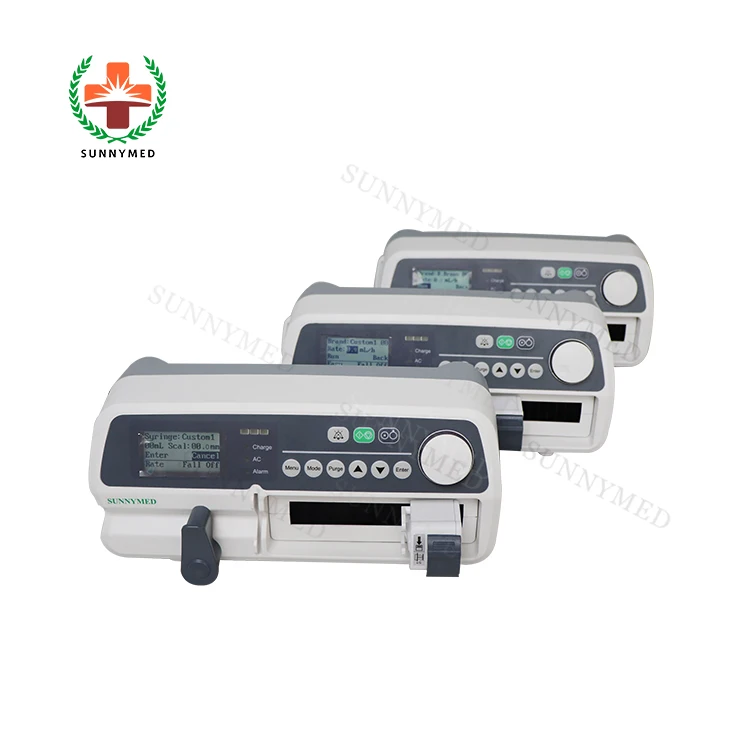

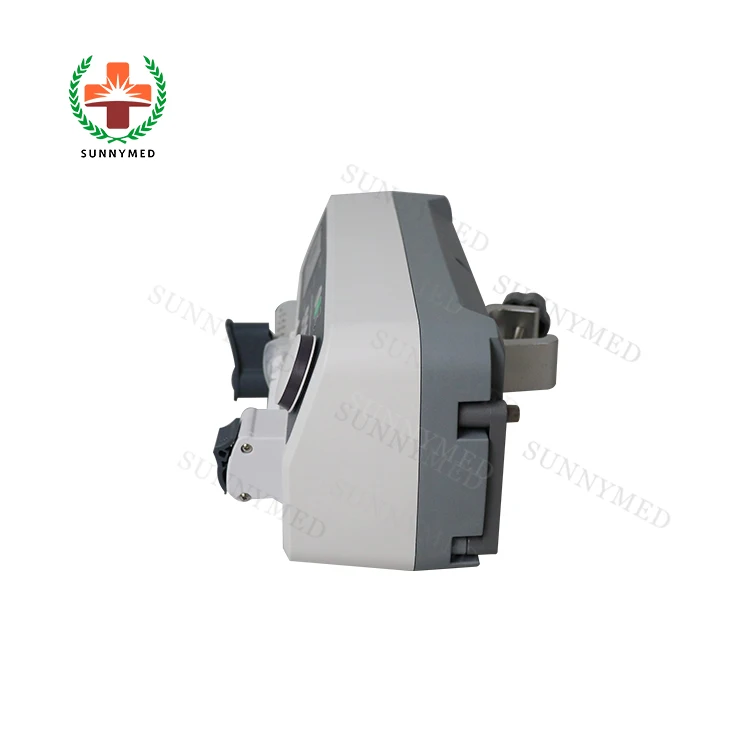

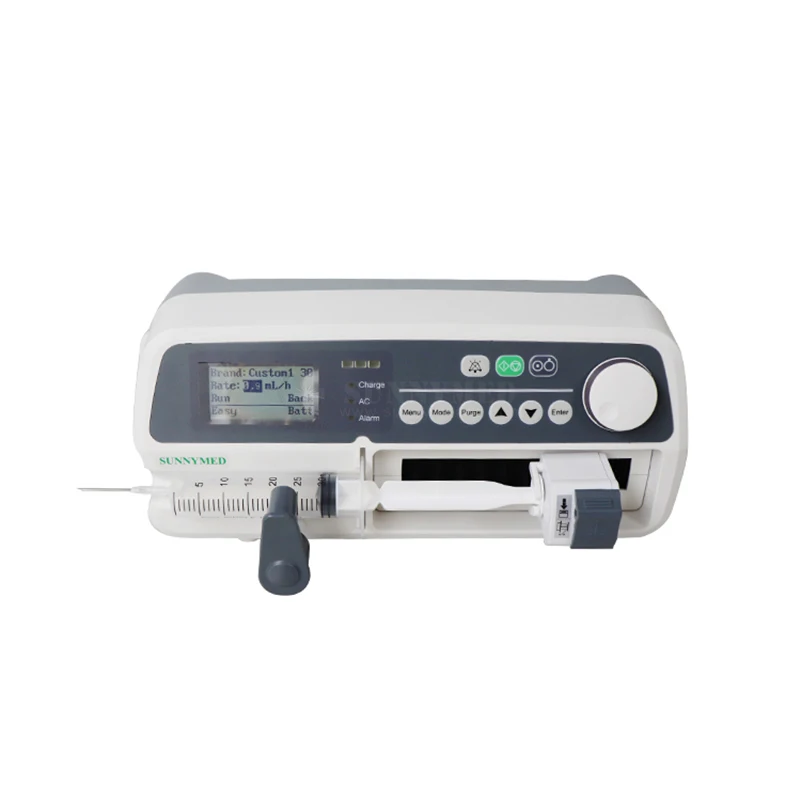

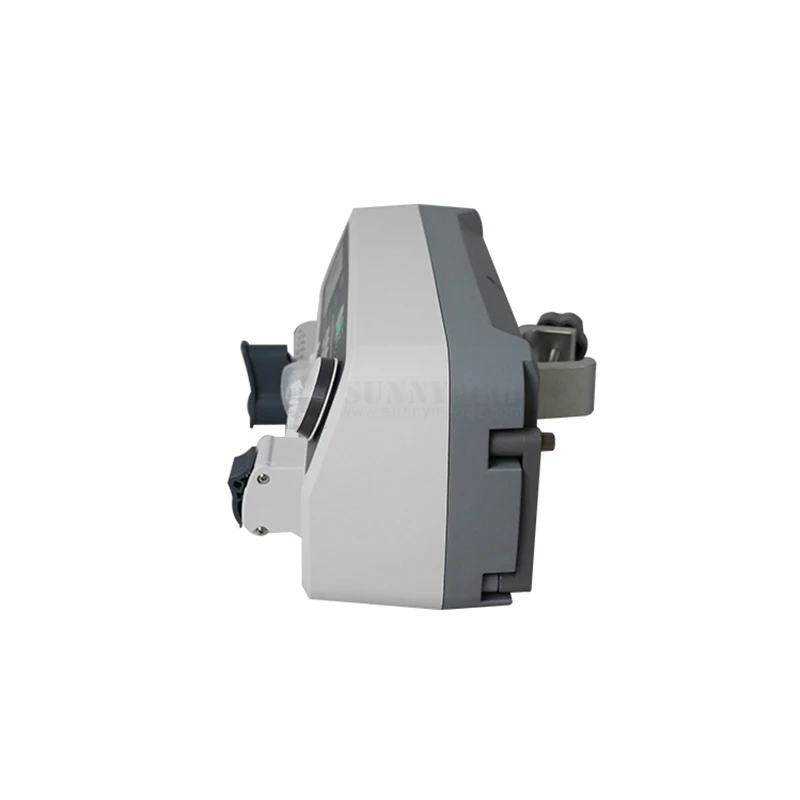

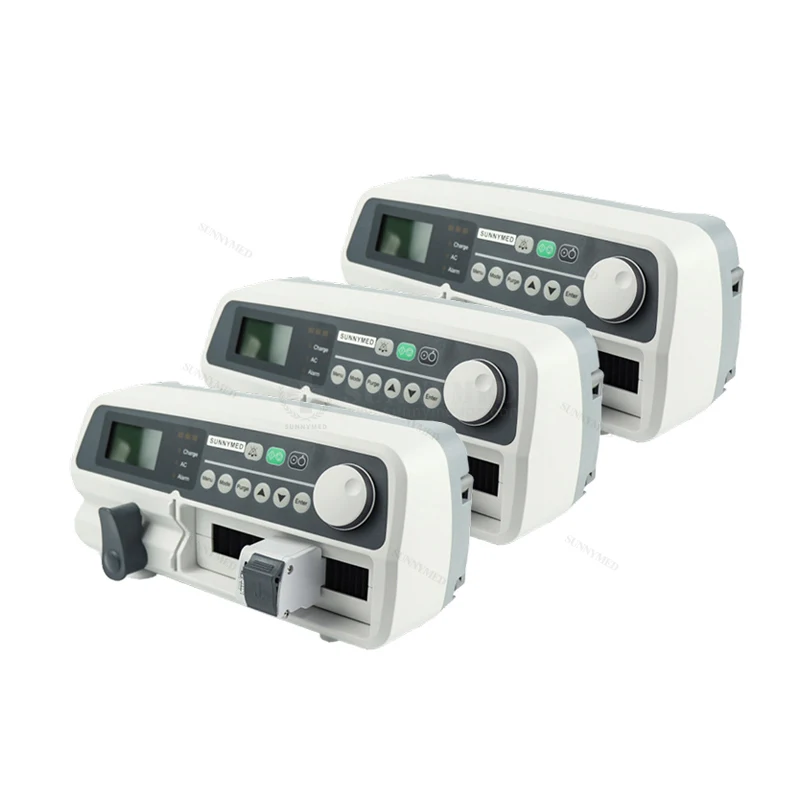

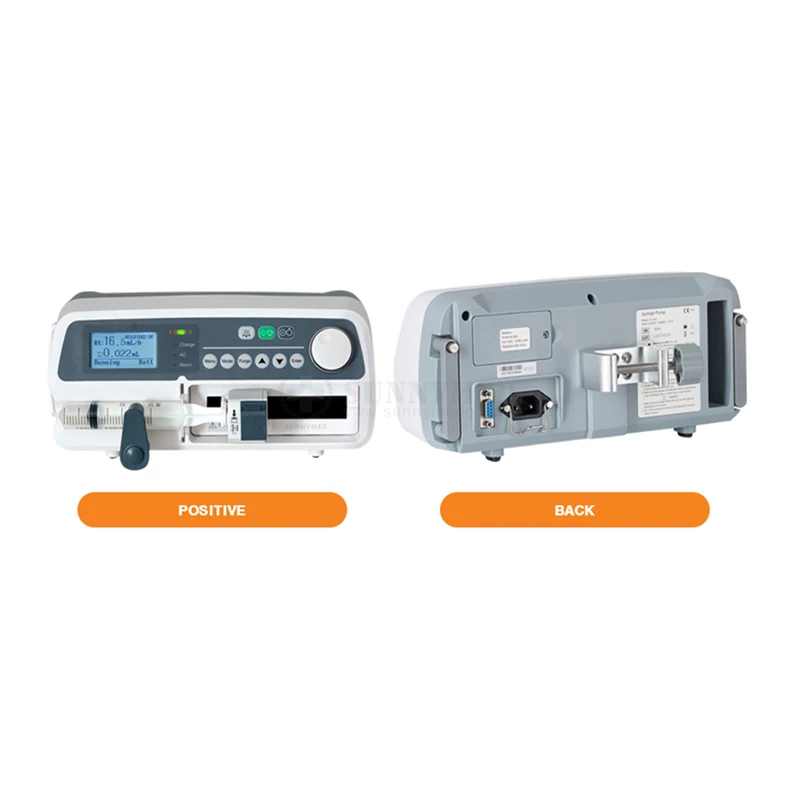

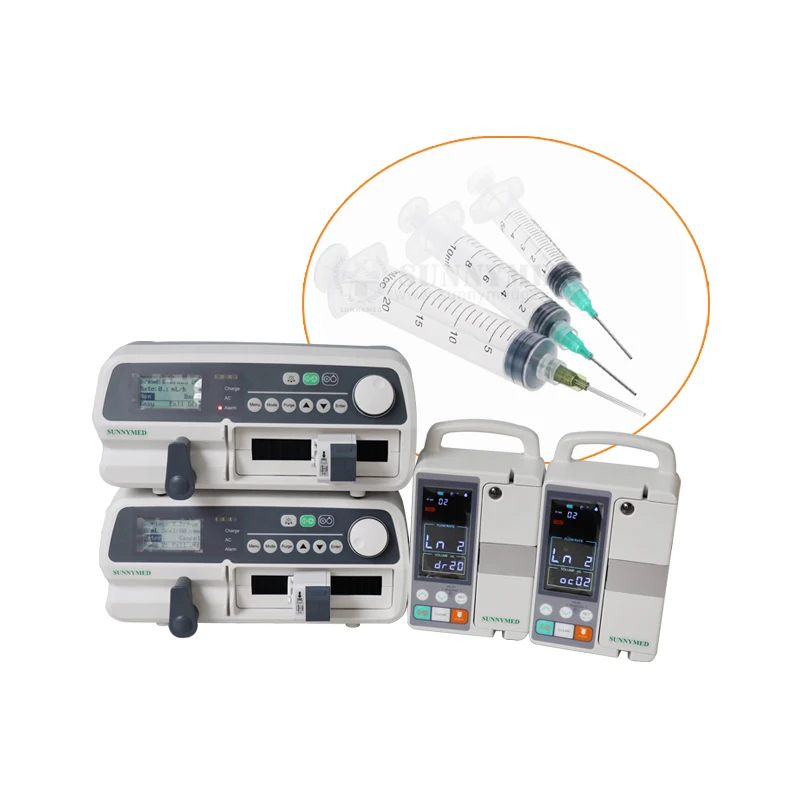

Sy G079 2 Clinic Syringe Pump Time Based Infusion Portable Syringe Pump for Hospital

Model

SY-G079-2 Syringe Pump

Syringe Size

10, 20, 30, 50 ml

Applicable Syringe

2 brands built-in (BD, B. Braun), 10 brands for user-defined

Volume

0.1- 9999 ml

<1000 ml in 0.1 ml increments

≥1000 mL in 1 ml increments

Flow Rate

Syringe 10 ml: 0.1- 400 ml/h

Syringe 20 ml: 0.1- 600 ml/h

Syringe 30 ml: 0.1- 900 ml/h

Syringe 50 ml: 0.1-1300 ml/h

<100 ml/h in 0.1 ml/h increments or decrements

≥100 ml/h in 1 ml/h increments or decrements

Bolus Rate

Syringe 10 ml: 400 ml/h

Syringe 20 ml: 600 ml/h

Syringe 30 ml: 900 ml/h

Syringe 50 ml: 1300 ml/h

Accuracy

±2%

Infusion Mode

Flow rate: ml/min, ml/h

Time-based

Body weight: mg/kg/min, mg/kg/h, ug/kg/min, ug/kg/h

KVO Rate

0.1 -1ml/h in 0.1 ml/h increments or decrements, adjustable

Alarms

Occlusion, syringe drop off, near empty, end program, low pressure, end battery, AC power off, motor malfunction, unattended pump, syringe moved accidently, pressure sensor error

Additional Features

Syringe identification, bolus, real-time shift totals, occlusion pressure release, mute, automatic power switching, residue reminder, system memory

Occlusion Sensitivity

High: 0.02-0.06 Mpa

Medium: 0.06-0.09 Mpa

Low: 0.09-0.12 MPa

Power Supply, AC

110/230 V (optional), 50/60 Hz, 20 VA

Battery

9.6 ±1.6 V, rechargeable

Battery Life

5 hours at 5 ml/h

Working Temperature

5- 40°C

Relative Humidity

20-90%

Atmospheric Pressure

860-1060 hpa

Size

314*167*140 mm

Weight

2.5 kgs

Safety Classification

Class II, type CF
