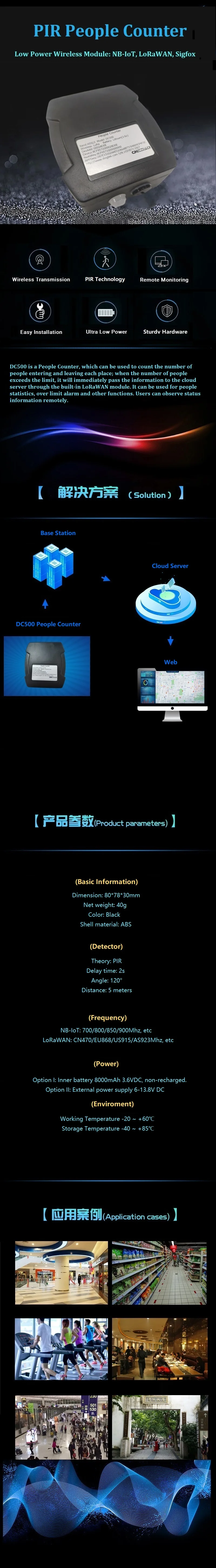

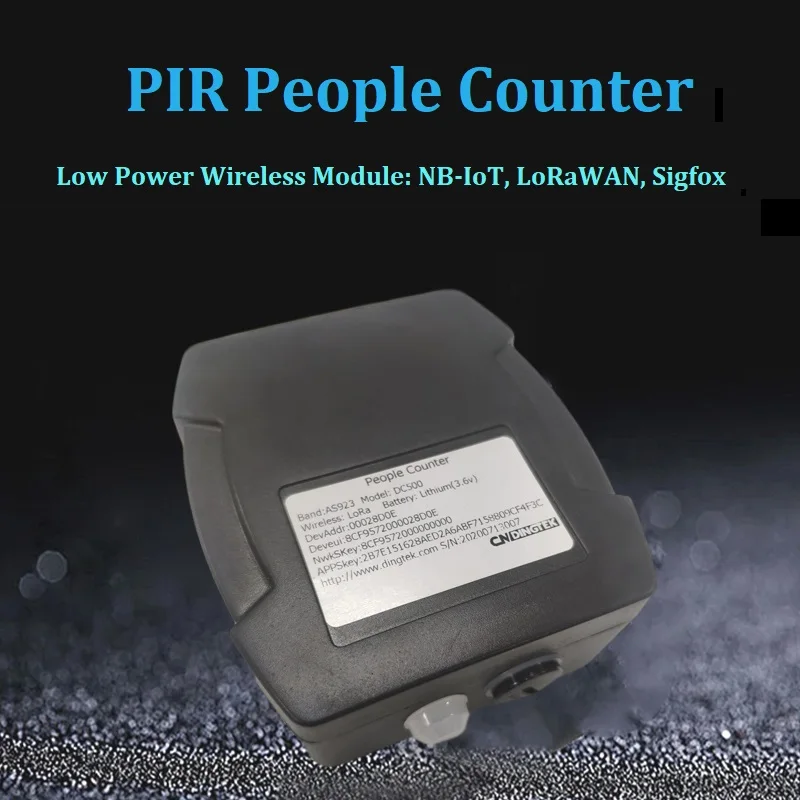

DC500 is a People Counter, which can be used to count the number of people entering and leaving each place; when the number of people exceeds the limit, it will immediately pass the information to the cloud server through the built-in LoRaWAN module. It can be used for people statistics, over limit alarm and other functions. Users can observe status information remotely. The device uses a built-in battery to transmit data through the LoRaWAN or NB-IoT method, with high real-time performance and low power consumption.
Specification
Overview
Dimension
80*78*30mm
Net Weight
150g
Color
Black
Shell Material
ABS
Detector
Principle
PIR
Detection distance
5m
Angle
120°
Delay time
2s
Wireless
Module
NB-IoT, Lorawan
Frequency
Lorawan frequency
Full frequency band(CN470,EU868,AS923,AU915,USS915,KR920,IN865, RU868)
NB-IoT Frequency
Full frequency band(B1,B3,B5,B8,B20) and B28
Battery
Inner Battery
Non-rechargedLithium Battery10500mAh @ 3.6V
Battery Life
More than 3 years
Environment
Operating Temperature
-20 ~ +70℃
Storage Temperature
-40 ~ +85℃
Protection Level
IP66
Network
