Wood cutting machine adopt 2000*3000*200mm working size with single 6.0kw air cooled spindle, professional for the wood cabinet furniture design.
Specification
Brand
PHILICAM®
Model
FLDM2030-1
Product name
Wood cutting machine
Working area
2000*3000*200mm
Table
Vacuum table 8 zones with switch
Pump
7.5 kw water pump
Spindle
6.0kw air cooled spindle
Speed
0-18000rpm/min
Collet
ER32
Tool setting method
Tool sensor
Drive system
Leadshine AC servo motor
Transmission
Gear box

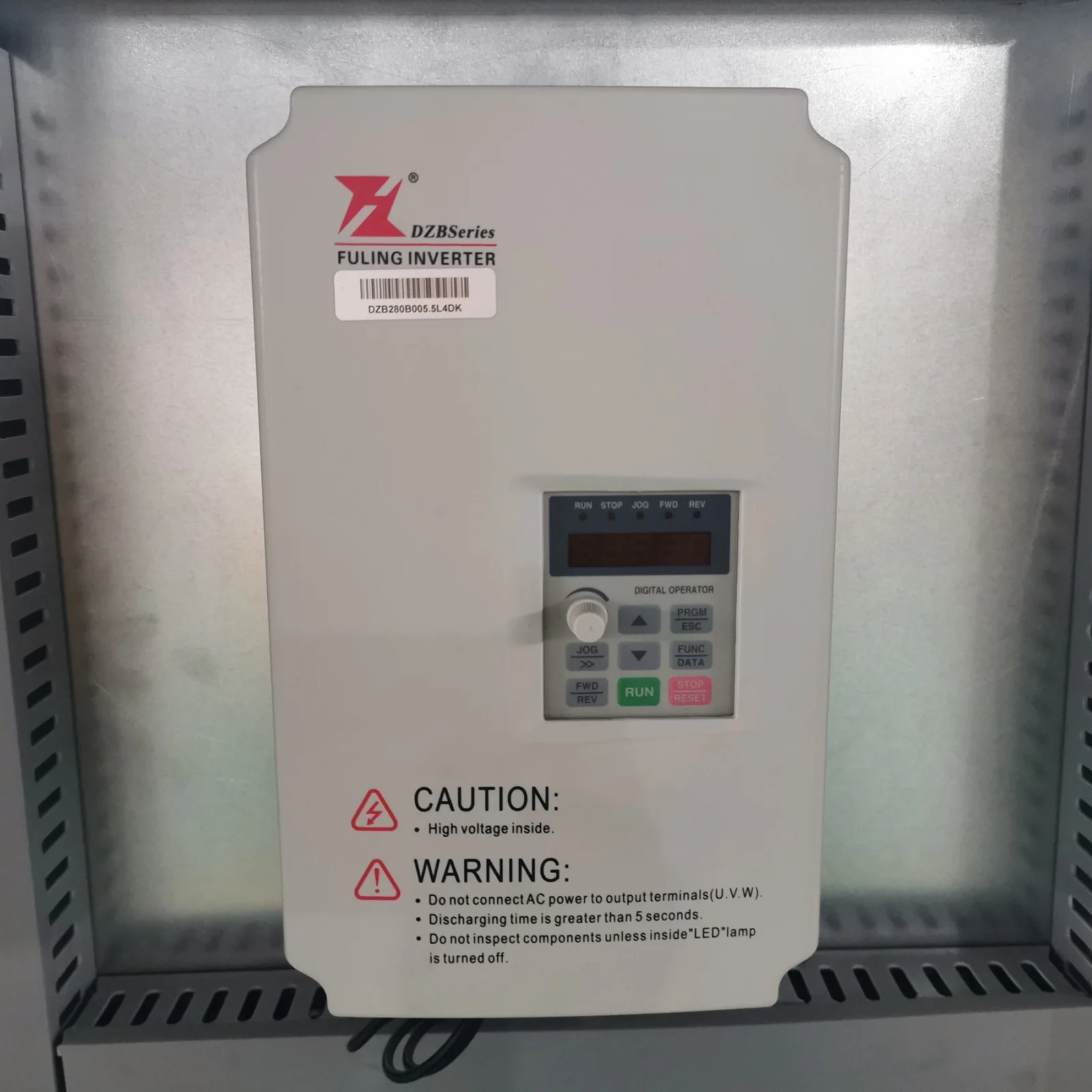

Inverter
Fuling original
Controller
DSP A11
Software
Artcam
Lubrication
Oil manual
Limit switch
Omron for X,Y,Z axis
Details
Filter, Transformer, Leakage protector
Package
Export standard wooden box
Package size
3680x2280x990mm
Package weight
1600kg
How to install the machine
Tool box
Dust brush
DSP A11
Glue strip
Wrench
Software
Tools
Wrench
Material holder
Cramp
Company Profile

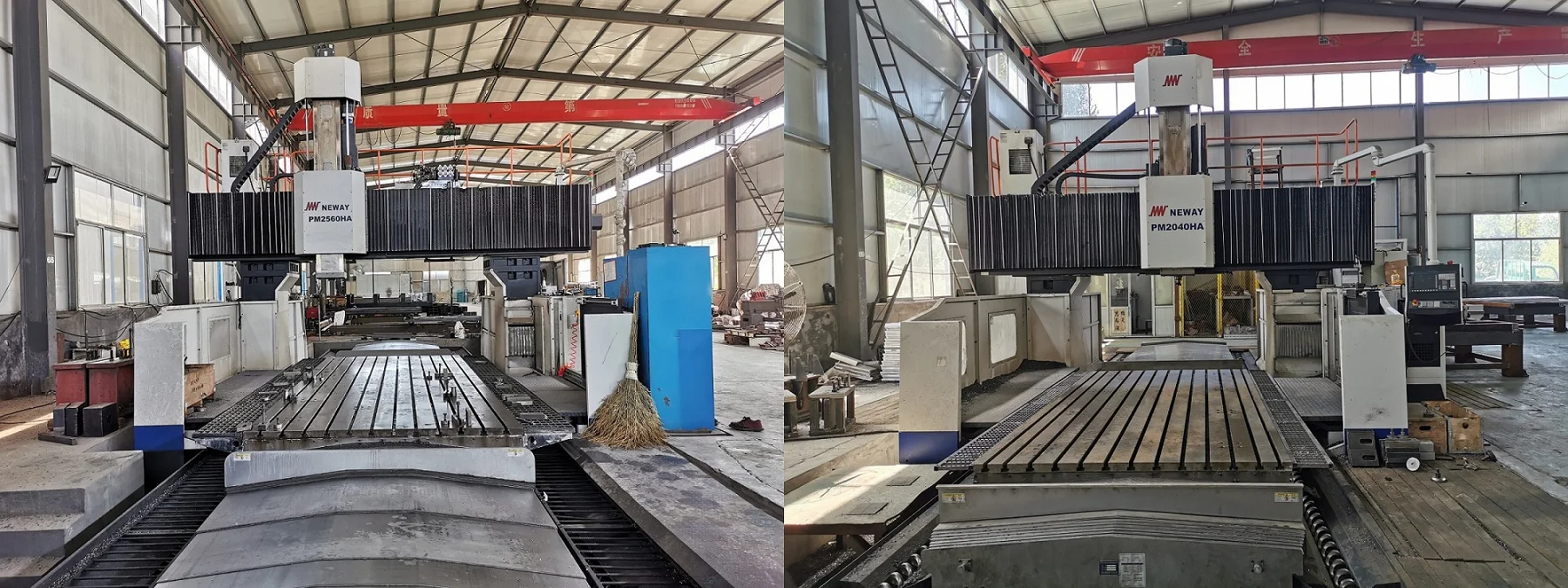

All Wood cutting machine structure were welded with five axis machining center, processed by five axis machining center, ensure accuracy and excellent stability, not easy to be deformed after long time using.
Philicam Group was established in 2003, which is a high-tech corporation with Wood cutting machines development, design, production, maintainance and marketing. Engaged in R&D of CAD/CAM technology with the cooperation of Shandong Mechanical Institute, Philicam enjoys fast development and has a high level Professionalism and service system.
Service
*1. 24 months quality guaranty, Wood cutting machine main parts (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
*2. Lifetime maintenance free of charge.
*3. Free training course at our plant
*4. We will provide Wood cutting machine consumable parts at an agency price when you need replacement.
*5. 24 hours on line service each day, free technical support.
*6. Wood cutting machine has been adjusted before delivery.
*7. Professional English speaking engineer can be send to your factory for install or adjust if necessary.
