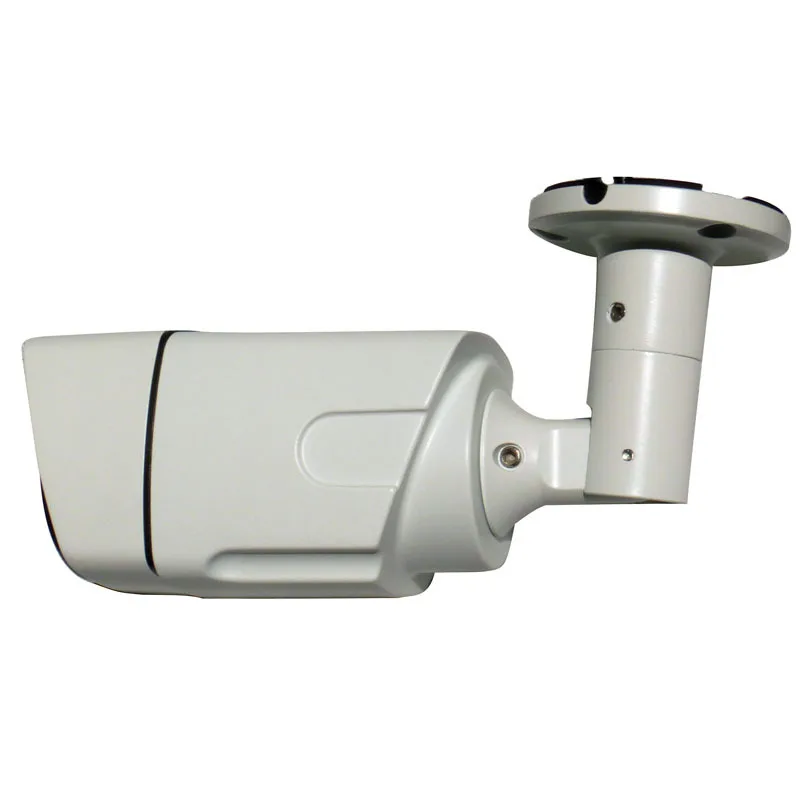

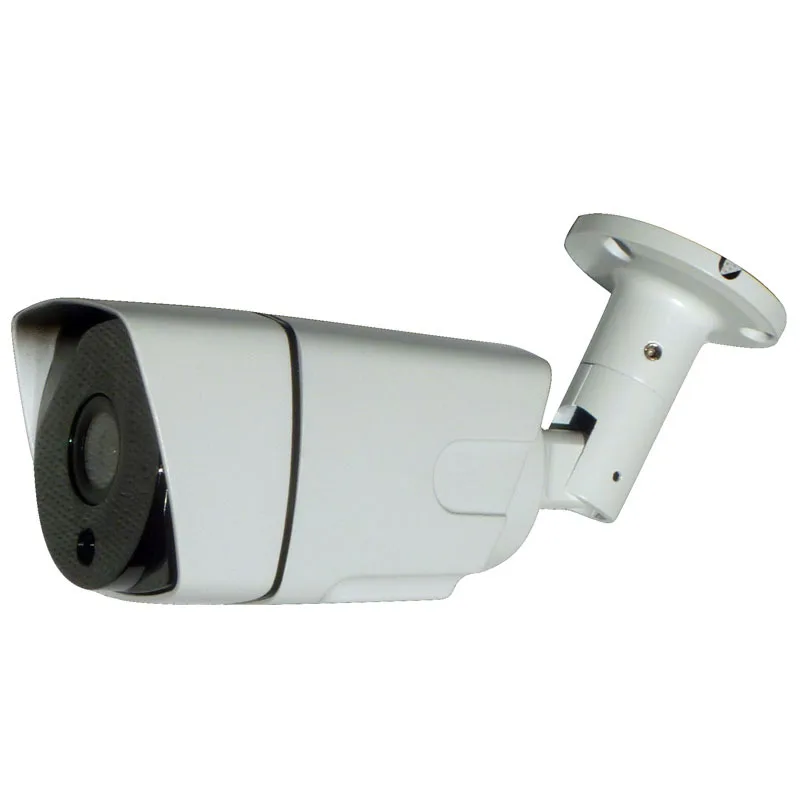

Waterproof Outdoor Bullet Camera CCTV Camera 5MP HD Security AHD Camera with 1/2.7" Low Illumination CMOS Sensor 36pcs IR LED
Features:
2MP 5MP 1/2.7" low illumination CMOS sensor;
HD2MP 5MP Resolution, Image clear, Delicate;
HD lens: 3.6mm, (6mm optional);
Day/ Night (Auto ICR);
Auto electronic shutter time;

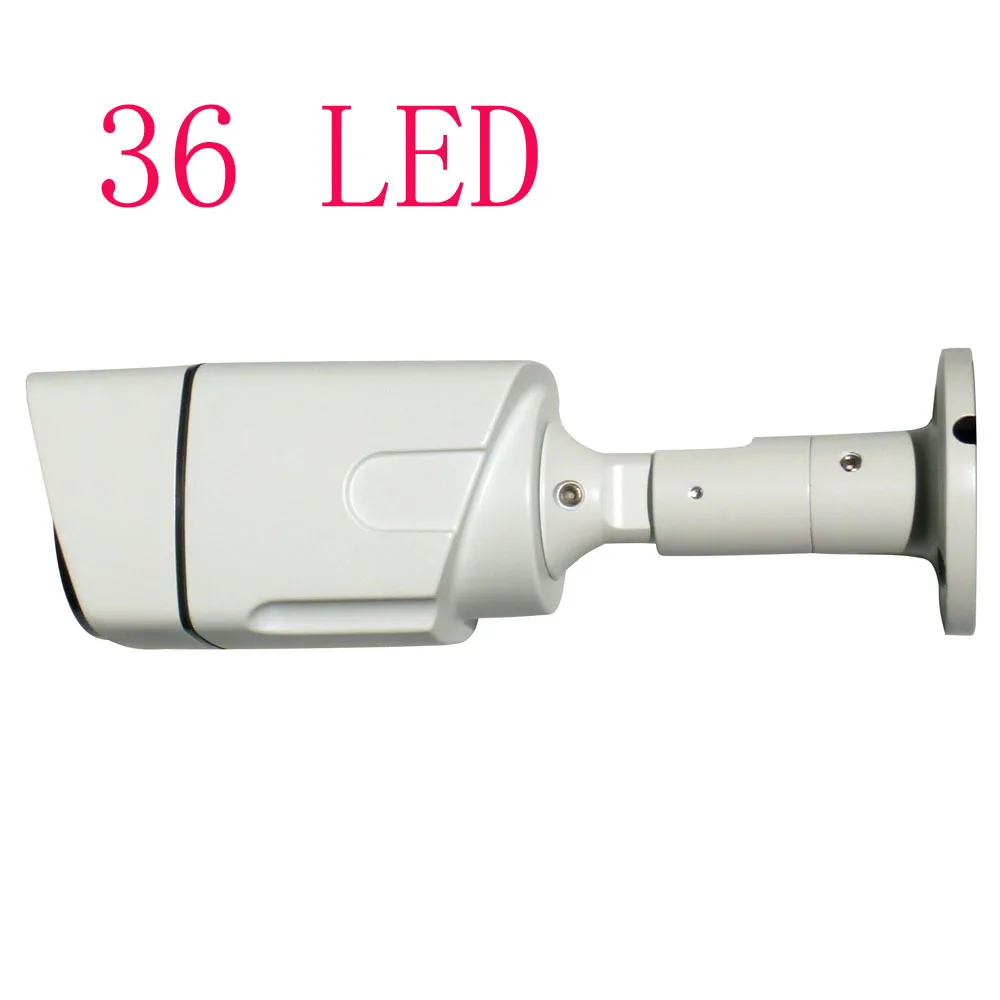

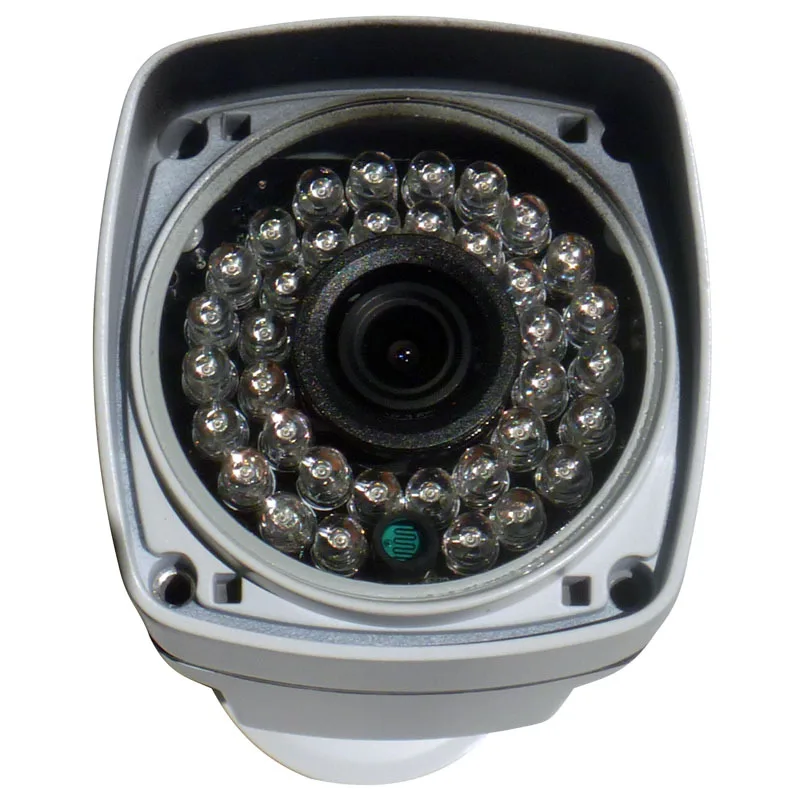

IR range: 36 LED lamps 20m-30m;
Ingress Protection: IP66;
500 m transmissions without delay;
Support XVI, AHD, CVBS
Standard coaxial control
Support XVI OSD menu control, PAL / NTSC setup on XVI menu by XM DVR. (Optional)
Parameters:
|
Camera |
DSP+ Sensor: 2MP |
2.0MP XM330+F37 1/2.7" low illumination CMOS sensor |
|
DSP+ Sensor: 5MP |
5.0MP XM350+SC5239 1/2.7" low illumination CMOS sensor |
|
|
Signal |
XVI 5MP;AHD 4MP.2MP;CVBS |
|
|
Min. illumination |
Color:0.01Lux (F1.2,AGC ON); 0 Lux with IR |
|
|
B/W: 0.001 Lux (F1.2,AGC ON),0 Lux with IR |
||
|
Shutter time |
1/50(1/60)s to 1/10,000 s |
|
|
Lens |
HD lens 3.6mm (6mm optional) |
|
|
Lens mount |
M12 |
|
|
Day& night |
IR cut filter with auto switch |
|
|
Max. image resolution |
2560*1920 & 1080P |
|
|
Interface |
Video output |
1Vp-p Composite Output(75Ω/BNC) |
|
Audio I/O |
N/A |
|
|
General |
temperature |
-30℃-+60℃ |
|
humidity |
10%-90% RH |
|
|
Power supply |
DC12V±10% |
|
|
IR range |
36 LED lamps "IR2":20-30 meters |
|
|
Consumption |
MAX 5W |
|
|
Material |
Aluminium alloy |
|
|
Ingress Protection |
IP66 |
|
|
Weight |
Around 400g |
|
|
Dimension |
φ63mm*200mm |






1. Lead time: 5days for 100pcs, 15days for 1000pcs after payment
2. Packing: 1pc/color box, 50pcs/ctn
How do I pay and what are your payment terms?
We accept all payment via Western Union, PayPal and T/T, if you payment online, you will get 100% guarantee .
What is Your Lead Time?
We can deliver you high quality products in the shortest amount of time. Almost all of our products have a lead time (the time from order to ship) of only 7 days for orders between 10 and 1000 units.
What is your MOQ for custom orders?
MOQ 1000pcs for custom Logo printing only; MOQ 2000pcs for LOGO printing and color box customized.
How Do You Add My Logo to the Camera?
The product type and material usually dictates the printing/branding methods used. We have in-house departments that specialize in each of the printing methods below to ensure the highest quality standards are maintained.
* Screen Printing - Screen printing is most suitable for logos with 1-4 colors that have no shading or color gradation. Before printing, inks are custom mixed to the match the Pantone® color references denoted on the Virtual Proof (A virtual proof is an electronic document that shows how your logo/details would look when branded on a given product). Screen printing works best on plastic device.
* Photo Printing - Photo printing is the best choice for logos with many colors or those with shading or gradation. Strict quality guidelines are followed to ensure your logo have a durable finish and highly resistant to scratches and bumps.
* Laser Engraving - Laser Engraving gives a very precise and clean finish and is ideal for logos with sharp and well defined borders.
