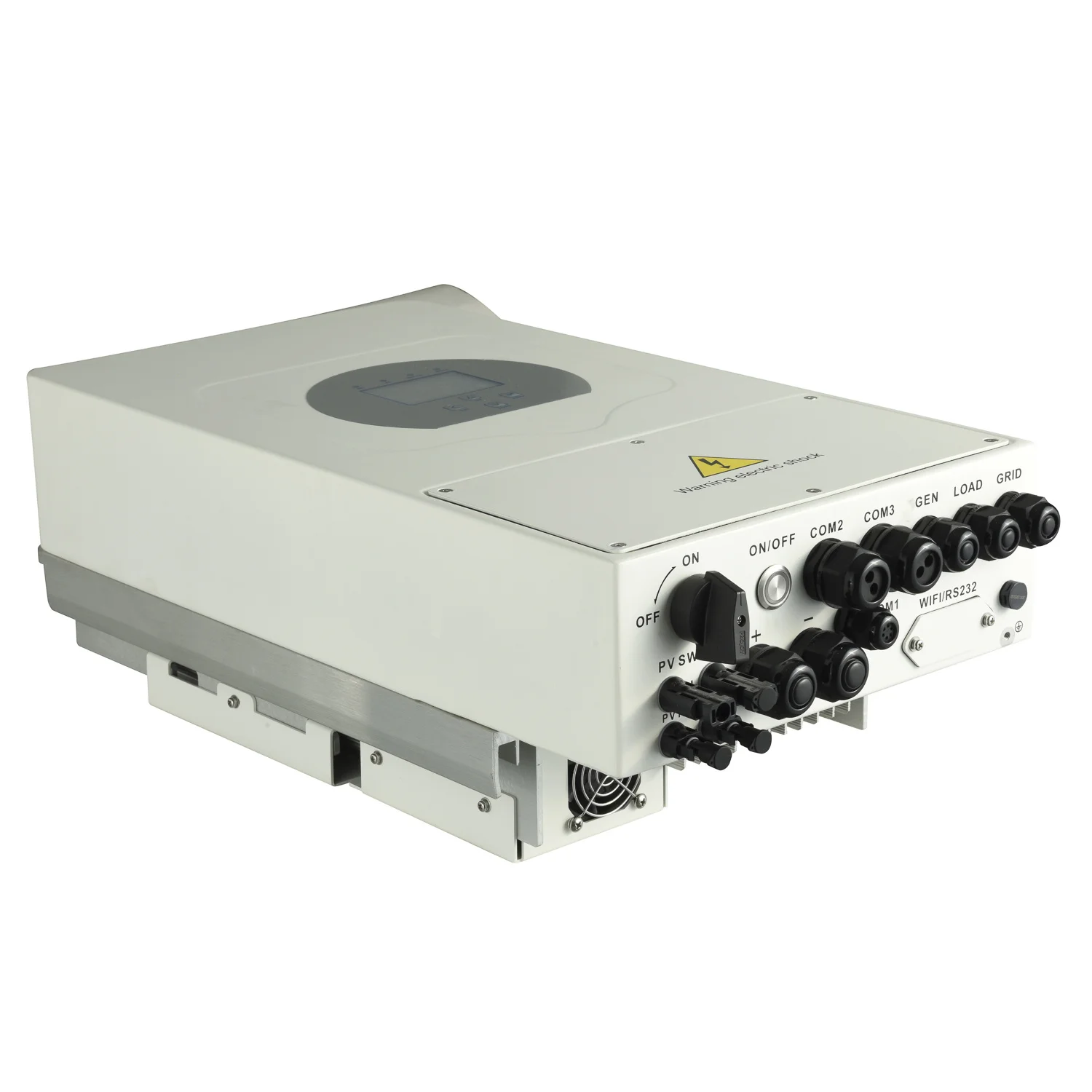

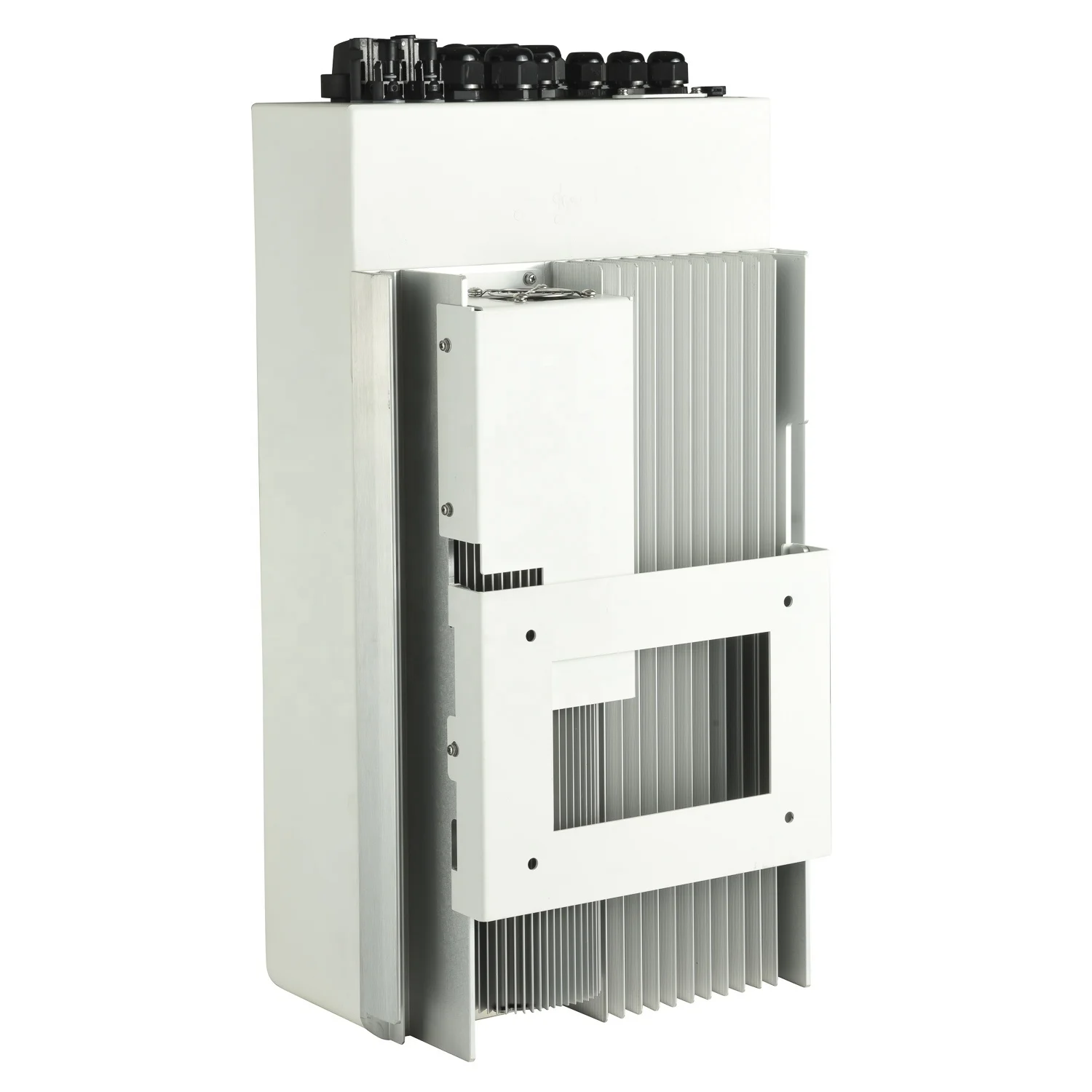

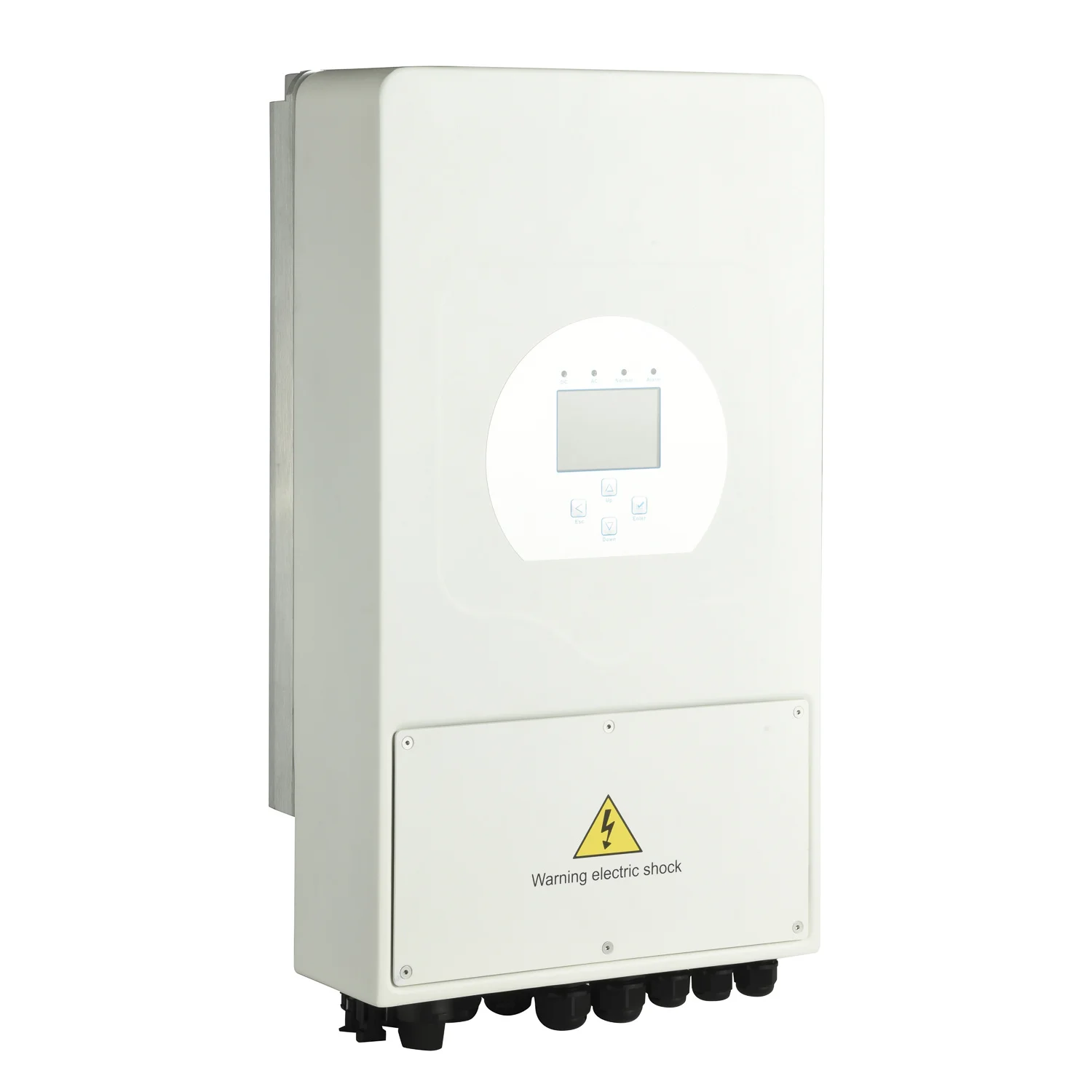

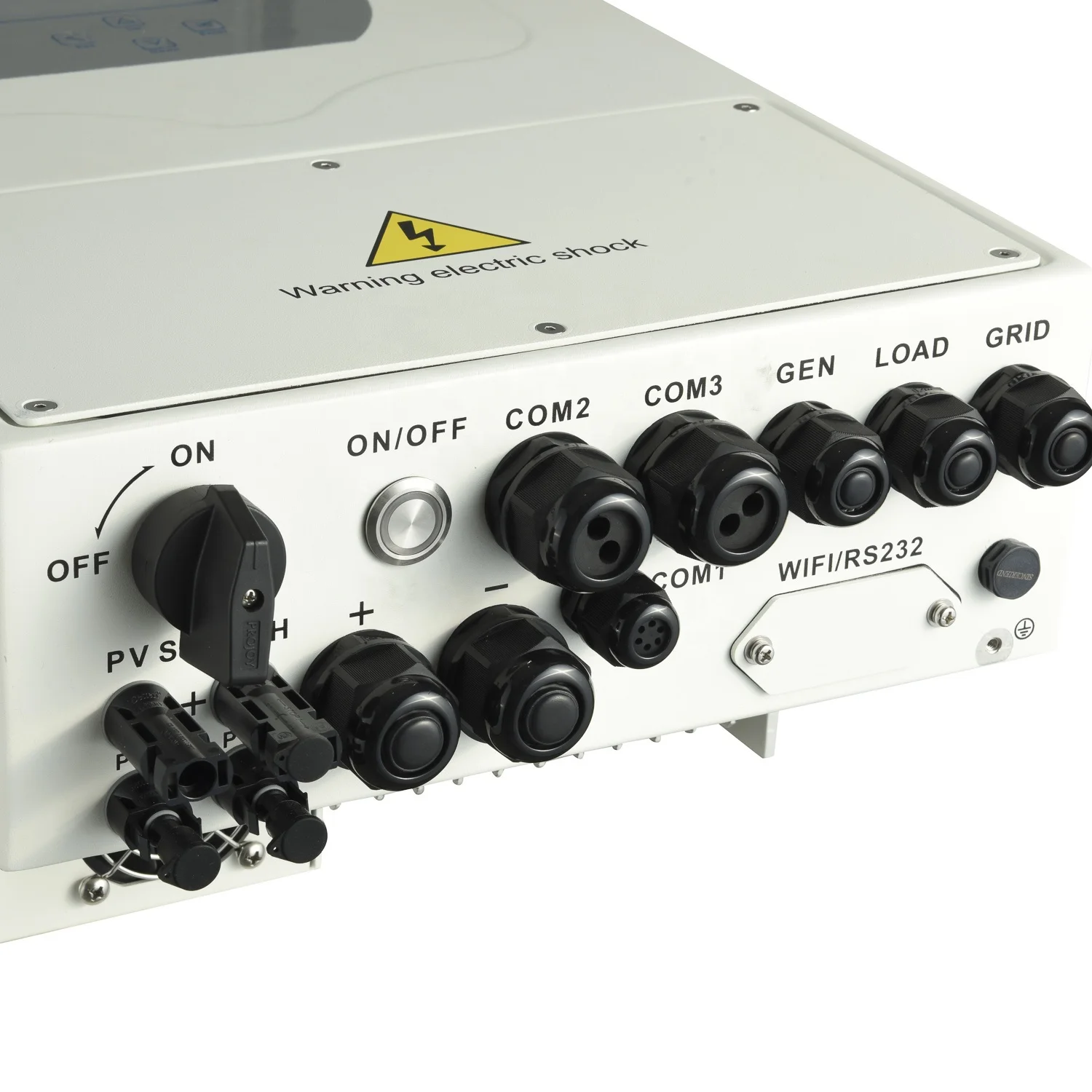

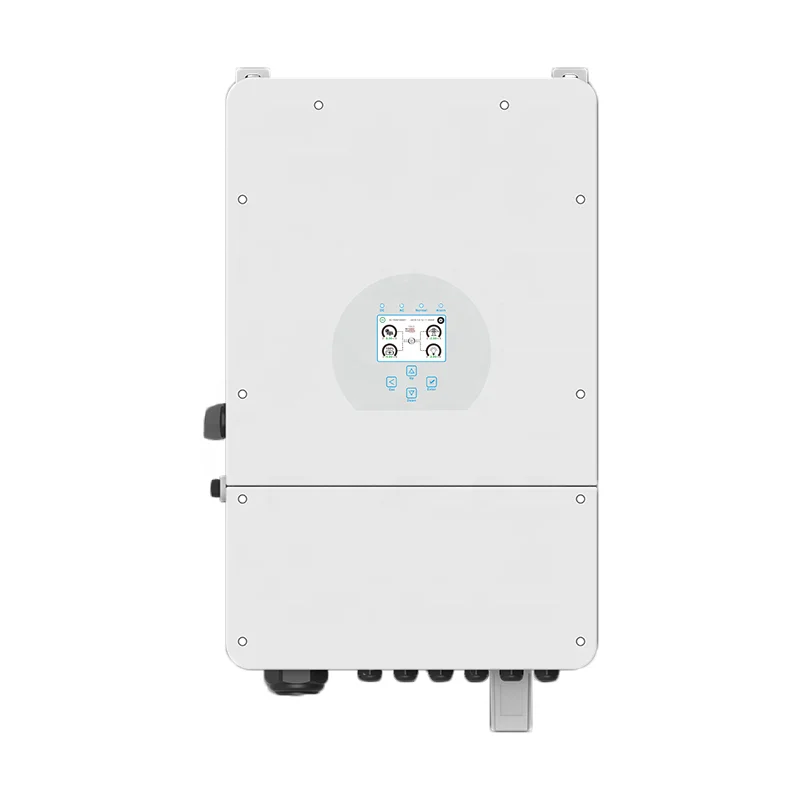

Features This is a multifunctional gridtiesolarinverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for grid tie backup power and self-consumption applications. The transformerless design provides reliable power conversion in compact size. The whole system also need other devices to achieve complete running such as PV modules, generator, or utilitygrid. Please consult with your system integrator for other possible system architectures depending on your requirements. The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor the status of the PV system from the mobile phone or from the website anytime anywhere.
Related Products
contact us
FAQ
1.Are there cell boards that have to be installed in addition to the BMS unit?
No. Everything is contained within the main BMS unit. Basically one wire per cell is installed from the battery pack to the central BMS.
2.If I have a battery pack with 15 cells in series, is this BMS right for me?
Yes, you only need to program the cell number to 15 in instead of 16
3.I have a battery pack with multiple cells in parallel and in series. What size BMS do I need?
The max quantity of cells is 16 for one BMS, this BMS could be parallelled to 8 pcs pack
4.Can I use any shunt current sensor with the Torphan BMS?
We have carefully selected a few high quality shunt that we support. Many cheaper sensors become very inaccurate at different
temperatures, and therefore we strongly recommend the use of the current sensors sold with the BMS to maintain the full accuracy.
5.What display options are available for the torphan BMS?
There are two displays that Torphan BMS works with.
One is common, we call it Tor-D which only display real time data and history record locally.
Another is smart, we call it Tor-S which could be connected to Wifi , User could see the real time data in web and APP.
6.What CANBUS speeds does the Torphan BMS support?
