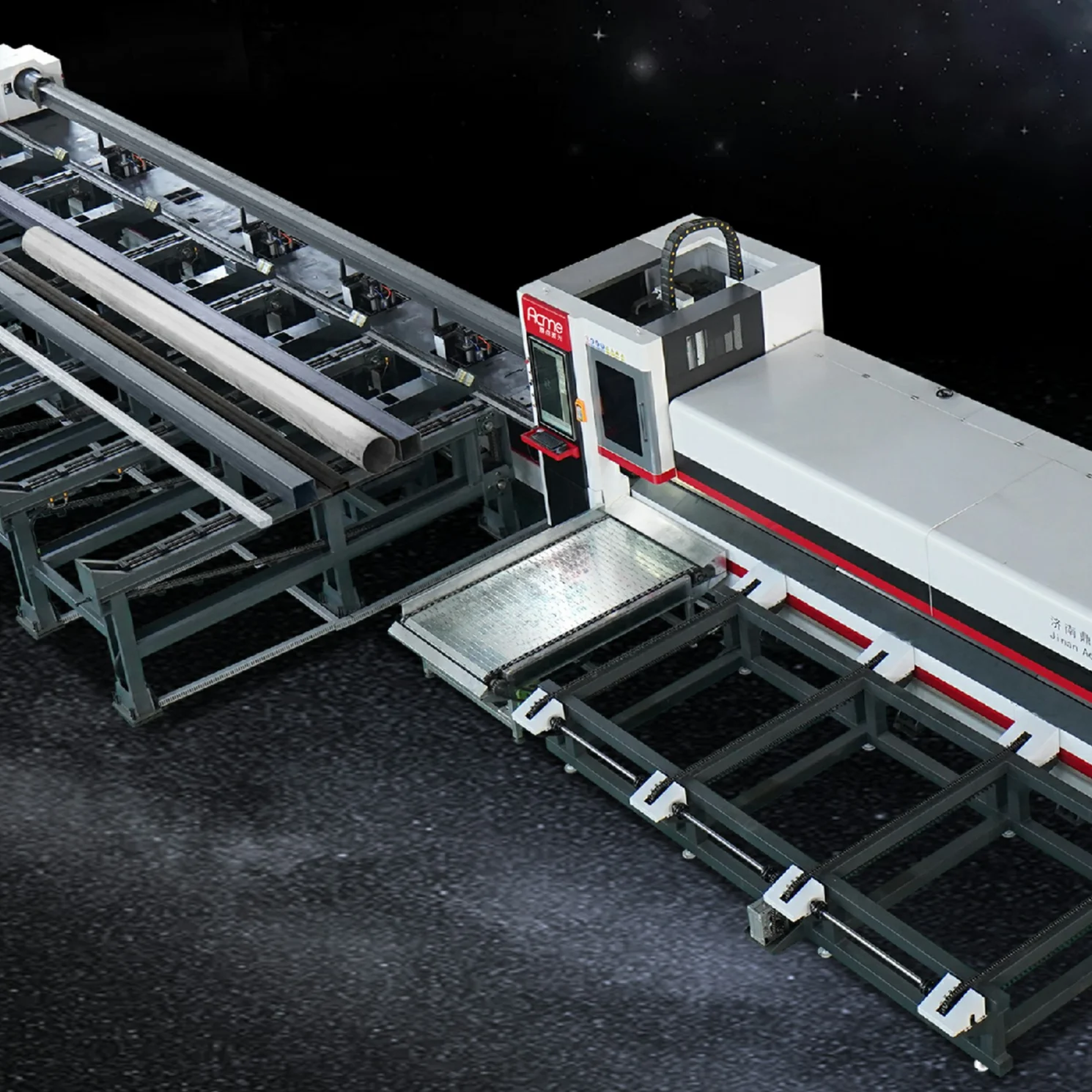

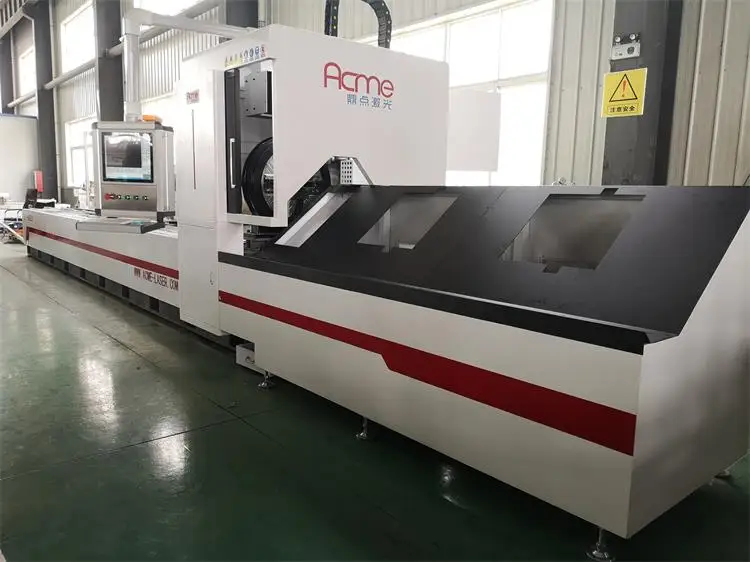

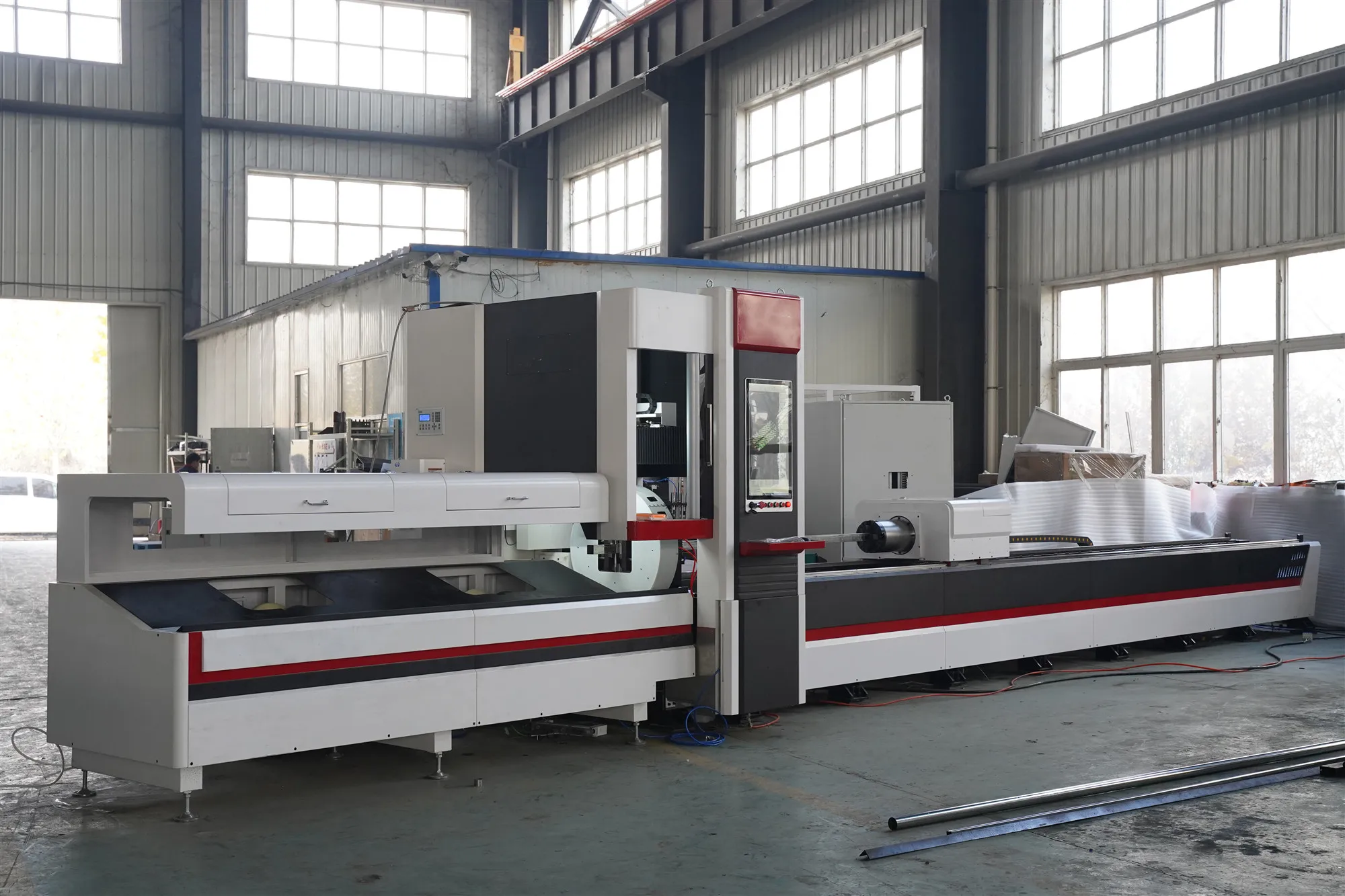

2021 New Technique Automatic H Beam Profile/ Angle Steel /Channel Steel Tube Pipe Fiber Laser Cutting Machine 2000w
- Category: >>>
- Supplier: Jinan Acme Cnc Equipment Co. Ltd
Share on (1600097565101):
Product Overview
Description
Product Description

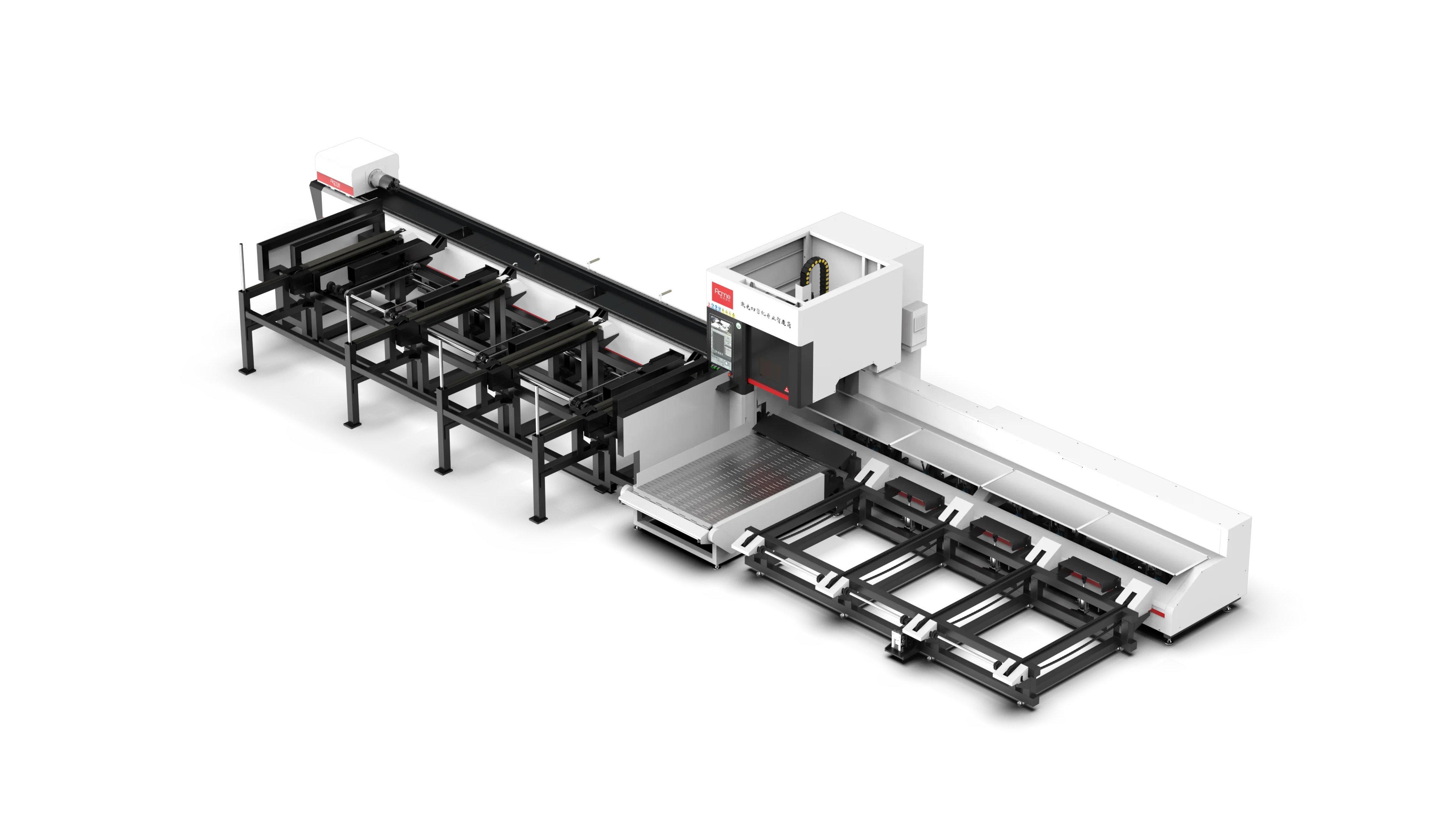

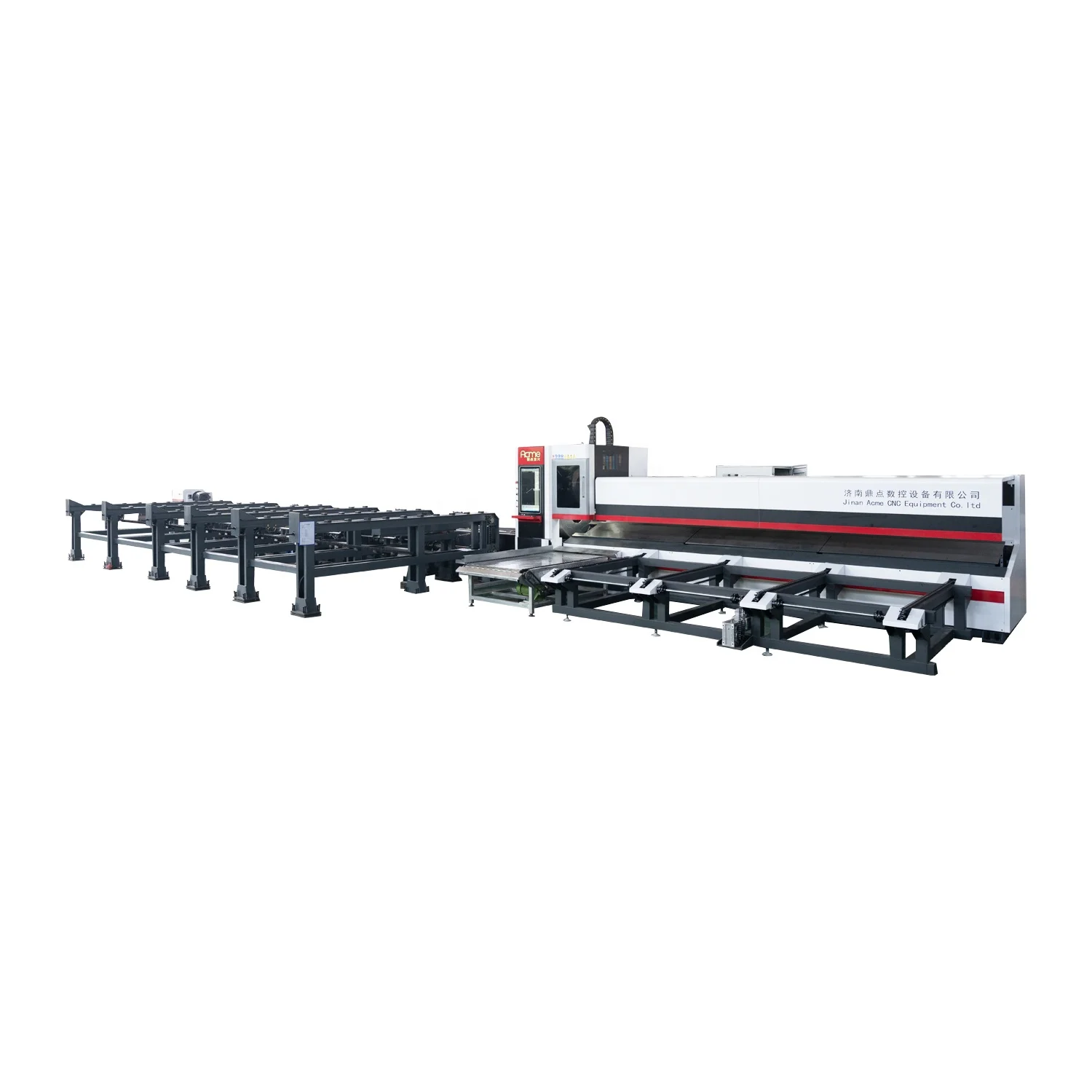

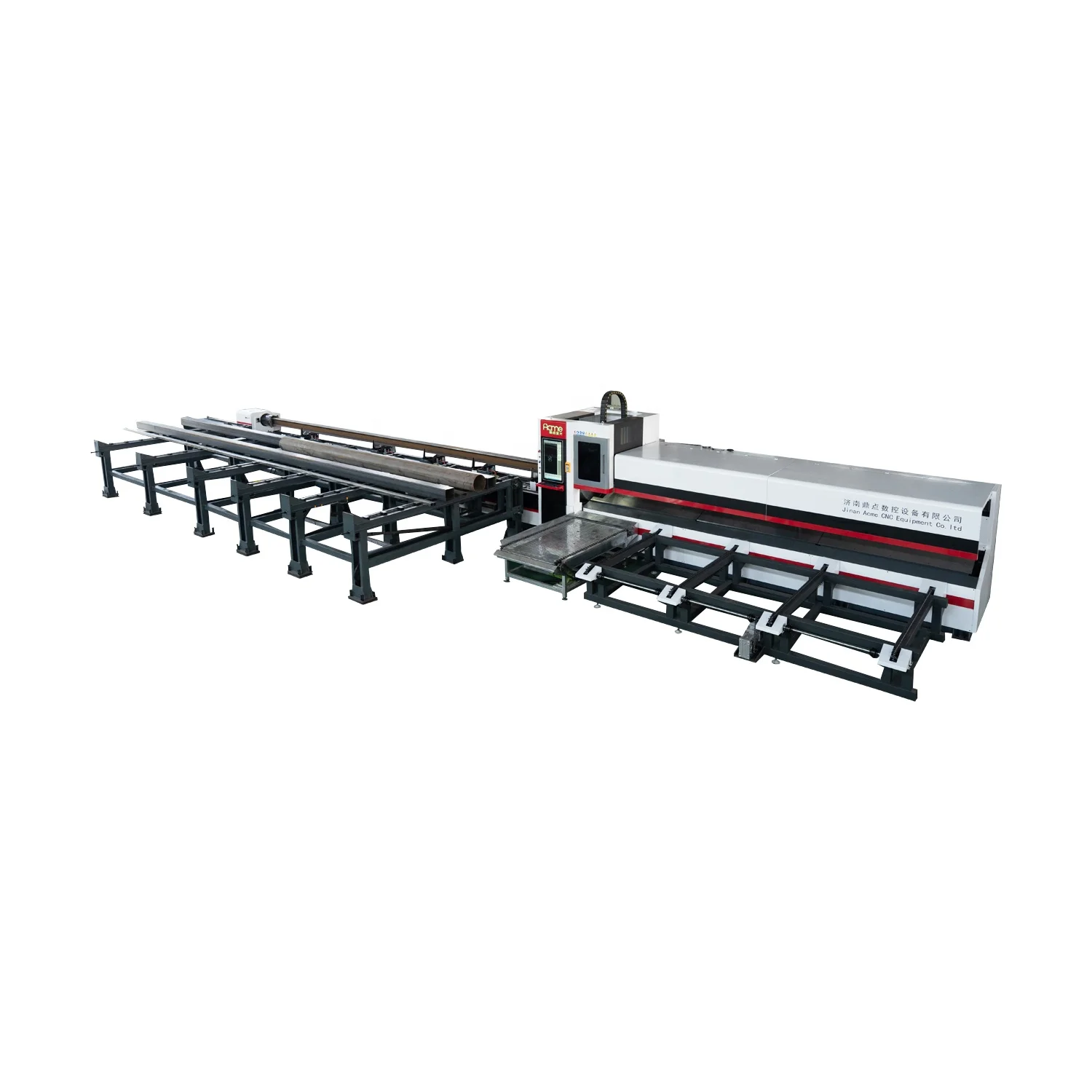

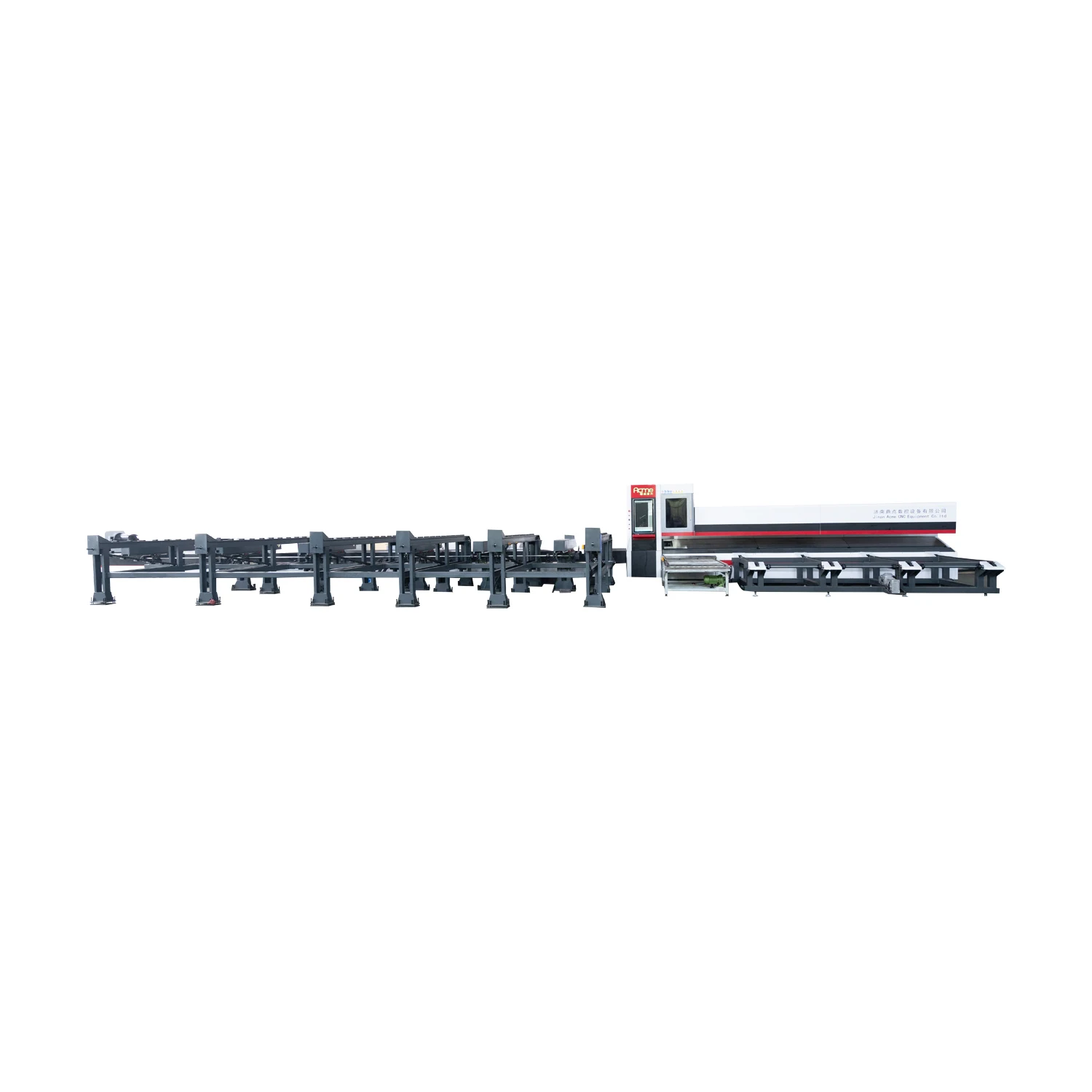

1.New Generation Upgrade ACME Metal Pipe Tube Fiber Laser Cutting Machine, designed for full automatic high precision fast tube processing.
2.It has all functions as a professional CNC laser pipe tube cutting machine but with economic price.
3.Patented fast full automatic loading and automatic unloading system and working stations.
4.High efficient processing of Round, Rectangular, Square, Oval, Triangle, D shape and many other shapes of metal tubes and pipes.
5.Even Angle steel,Channel steel, I-steel,H-steel,Special shaped steel also can be processed perfectly .
6.The integration of leading-brand components assures you of top performance and high reliability.
2.It has all functions as a professional CNC laser pipe tube cutting machine but with economic price.
3.Patented fast full automatic loading and automatic unloading system and working stations.
4.High efficient processing of Round, Rectangular, Square, Oval, Triangle, D shape and many other shapes of metal tubes and pipes.
5.Even Angle steel,Channel steel, I-steel,H-steel,Special shaped steel also can be processed perfectly .
6.The integration of leading-brand components assures you of top performance and high reliability.
Main Advantages
Acme Laser tube/pipe laser cutting machine applied in processing tube length 6m-12m, diameter 10-350mm.
1. FAST AUTOMATIC LOADING AND UNLOADING WORKING STATIONS AND SYSTEM .
2. 6M-12M PIPE LENGTH AND 350MM MAX DIAMETER (340MM*340MM SQUARE TUBE CUTTING IS AVAILABLE).
3. SERVO FLOATING SUPPORT,MORE ACCURATE CUTTING.

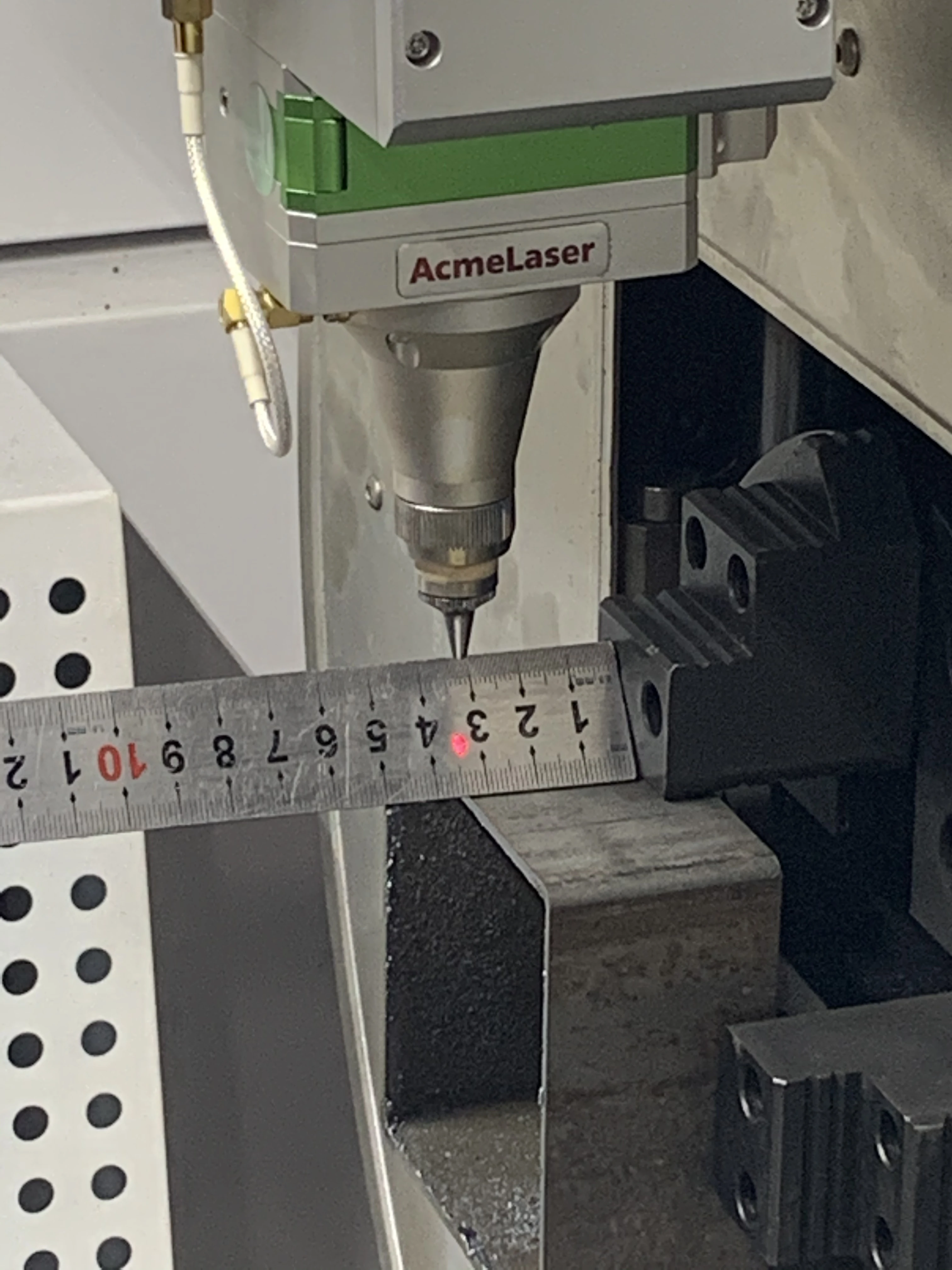

4. GERMANY PRECITEC LASER HEAD.
5. APPLICABLE MOST TYPES OF METAL PIPES AND TUBES( round,square, rectangle, waist round tube, oval tubes, H,L,I BEAMetc.)
2. 6M-12M PIPE LENGTH AND 350MM MAX DIAMETER (340MM*340MM SQUARE TUBE CUTTING IS AVAILABLE).
3. SERVO FLOATING SUPPORT,MORE ACCURATE CUTTING.
4. GERMANY PRECITEC LASER HEAD.
5. APPLICABLE MOST TYPES OF METAL PIPES AND TUBES( round,square, rectangle, waist round tube, oval tubes, H,L,I BEAMetc.)
Applications
2. Electrical cabinet
3. Elevator
4. Automotive parts
5. Aviation & aerospace
6. Lighting lamps
7. Metal carfts & decoration
8. Hardware tools
9. Advertising
10. Furnitures
11. Kitchenware equipment
12. Fitness equipment
13. Medical equipment
14. Agricultural forestry machinery
9. Advertising
10. Furnitures
11. Kitchenware equipment
12. Fitness equipment
13. Medical equipment
14. Agricultural forestry machinery
Machine Details

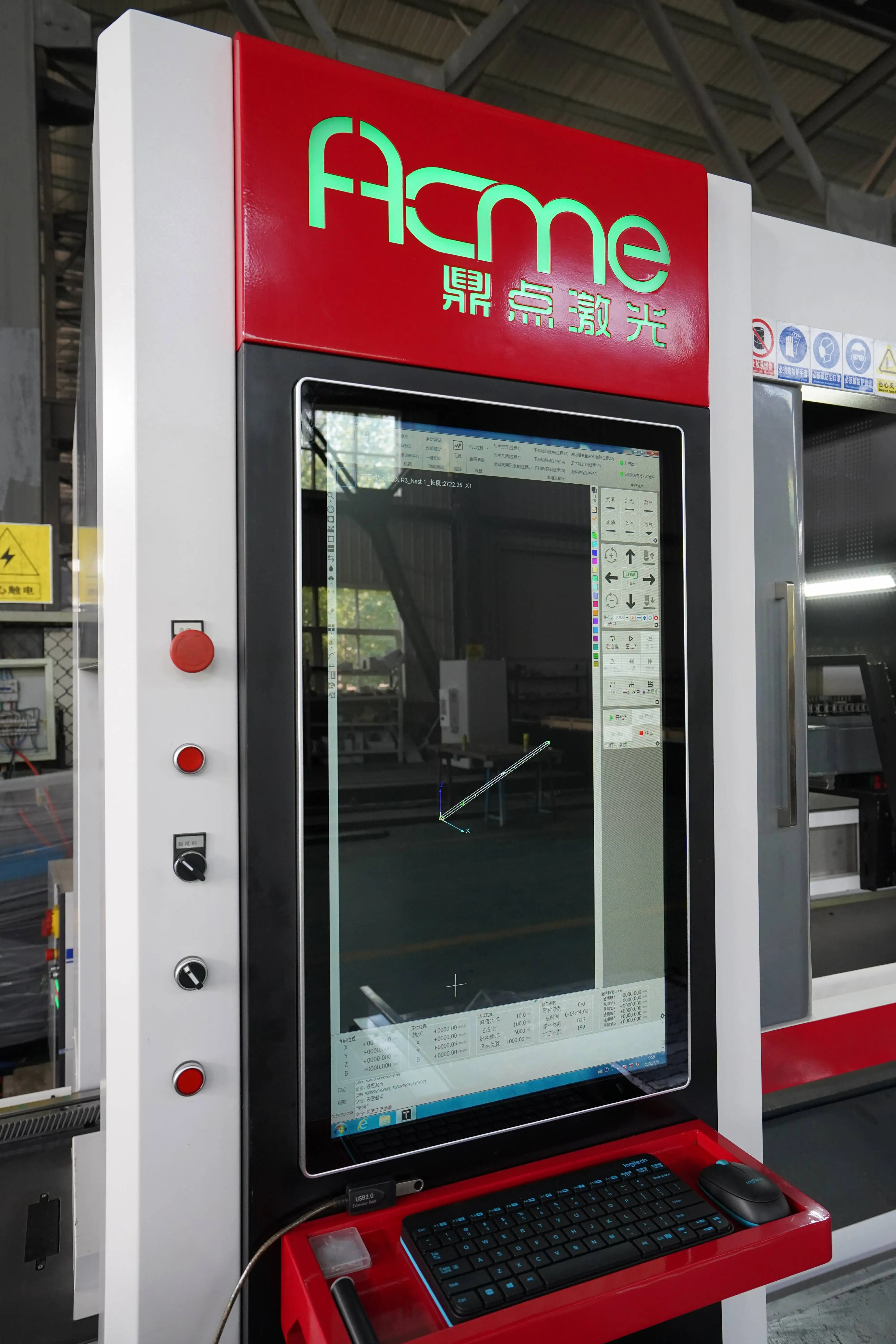

Large visual touch screen, clearer interface, soft light protection eyes,more convenient operation, let laser cutting bring you more fun.

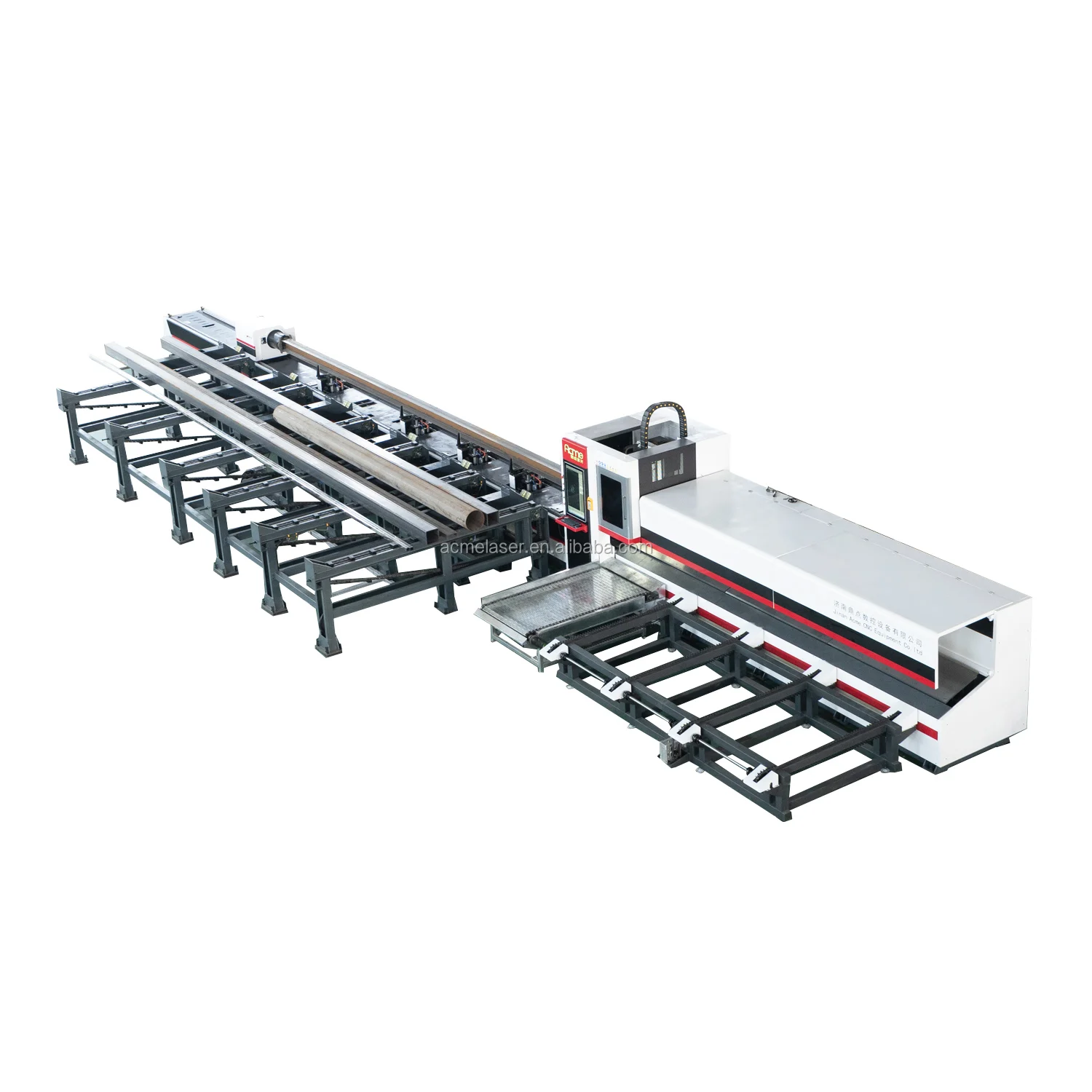

2022 new generation upgraded version of automatic loading and unloading device,more perfect details, feeding more stable, easier,more efficient,help you save labor and create more profits.
Patented Square hole pneumatic full stroke chuck.
Easy clamping of various tube types from 10mm to 340 mm in diameter.(340*340mm square tube is also available)The details are more optimized, the clamping pipe is more stable, and the failure rate is greatly reduced.
Exclusive patented technology design, the front chuck can be opened, and the rear chuck can be deep into the front chuck to
achieve ultra-short 50mm tail material cutting.
Servo support technology, the support wheel following the pipe up and down, rapid response, more stable and more accurate support,ensure fast and higher precision cutting.
All our machines are in line with SGS certification ,European CE certification and TUV certification.
Technical Parameters
NO. | ITEM | LT-6025E 8025E 12035E |
1 | Fiber Laser Source | Germany IPG/China Raycus / China MAX |
2 | Laser Cutting Head | Germany Precitec/Switzerland Raytools |
3 | Cnc Cutting System | Cypcut 5000C / Fuscut 5000C /CypCut TubePro China |
4 | Cutting Head Height Control System | CYPCUT BCS100 China |
5 | Nesting Software | CYPCUT TUBES T |
6 | Water Chiller | Tongfei China |
7 | Servo Motor System | YASKAWAx5 Japan |
8 | Chuck Type | Double Auto-centering Pneumatic Chucks Patented squared hole large chuck |
9 | Tube Diameters | 10mm-350mm |
10 | Chuck Bearing | 500kg |
11 | Round: φ10mm-φ340mm Square: 14x14mm--340x340mm Other shapes: φ10mm-φ340mm | |
12 | MIN. Tail Length | 50mm |
13 | Guide Rail | TAIWAN 35mm, 25mm |
14 | Transmission Gear and Rack | X-axis YYC Taiwan Helical Rack Y-axis YYC Taiwan Helical Rack Z-axis TBI Taiwan Ball Screw |
15 | Motor Reducer | SHIMPO japan |
16 | Positioning Accuracy | ±0.03/1000mm |
17 | Repeat Positioning Accuracy | ±0.015mm |
18 | Electrical Parts | SCHNEIDER France |
19 | Pneumatic Parts | SMC Japan |
20 | Tube Lifter | Servo Support or Large Variable-Diameter Wheel |
21 | Tube Feeding | Side feeding system |
22 | Fully Automatic Feeding System | Yes |
23 | Dust Removal and Filtration System | Yes |
24 | Machine Structure/Body | Heavy Type Structure |

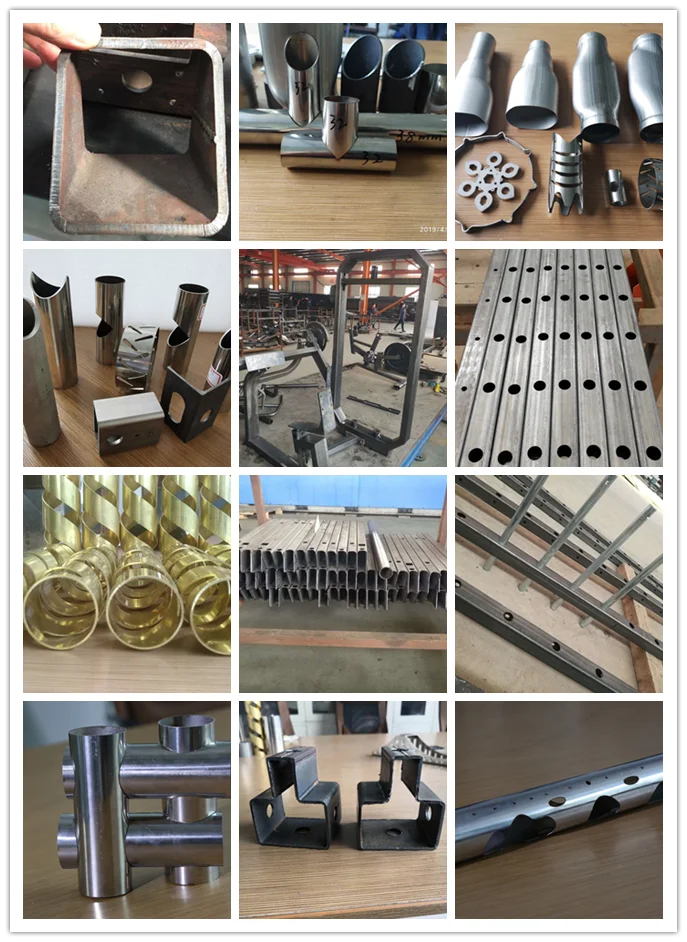

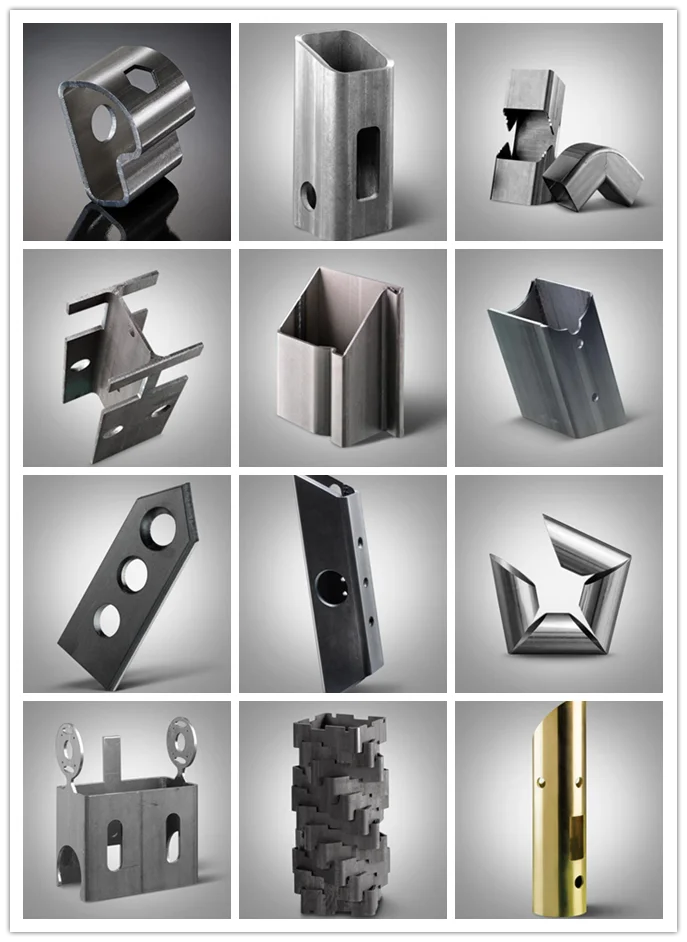

CUTTING SAMPLES SHOW
Customer Photos
After Sales Service
1. OEM&ODM services.
2. Two or Thrree years guarantee time.
3. Life-long free technical support.
4. Consumable parts continuous supply.
5. English Speaking Engineers available to overseas services.
6. Free Training on machine installation, commissioning, operation, maintenance, etc.
2. Two or Thrree years guarantee time.
3. Life-long free technical support.
4. Consumable parts continuous supply.
5. English Speaking Engineers available to overseas services.
6. Free Training on machine installation, commissioning, operation, maintenance, etc.
ABOUT CHINA ACEM LASER
OurFactory space over 50000 square meters. The United States Haas, Japan Mazak and Taiwan Ying-yuan and other high-precision CNC machining centers, together with Italy COLGAR large gantry milling center are deployed in the manufacturing of our laser equipment, all the core components of the machines are independently designed and manufactured with high-precision.
Fiber laser machine is the our core product. We have successfully developed semi-automatic metal tube laser cutting machine, automatic metal tube laser cutting machine, combined sheet&tube laser cutting machine and flat sheet laser cutting machine,etc. Product quality and customer service get the unanimous approval from the market. Self-developed tube laser cutting machine with automatic feeding system has gained a number of national patents, and all our products are in line with SGS certification ,European CE certification and TUV certification.
So far, our machines have sold to all over the world like American, Germany,UK,Australia, Mexico, Netherland,Hungary,Russia,Poland,Thainland,Vietnam etc. Our machine have won the recognition of the market with stable and good performance. We are looking for the partners and agent around the world. Let's work together to provide the best laser machine to all the customers.
FAQ
Why should We choose ACME Laser ?
* We have been manufacturer for 15 years.
* We offer maintenance-free and technology support.
* Most of our products have CE,SGS,TUV certifications.
* Our products have quality warranty.
* We have own research room ,workshop and design team.
* ACME LASER has been exporting to more than 32 countries around the world.
This is first time buying this machine,how to use it?
* We have free training for 7 days.It is easy to learn.
* The best way is that we offer prefessional engineer to taech you face to face.
* If you couldn't come to our company, we will give you menu and video, our engineer teach you online.
How to maintain the machine?
* The environment needs be clear.
* The temperture can not be high.
* Our guide needs lubricating oil for 2-3 drops about.
If I have some problems ,what should I do ?
* You can contact our salesman directly ,our engineer will check the problem.
* During the warranty, maintainance is free.
* Although over the warranty,we also offer life-long technology support in free.
* We have been manufacturer for 15 years.
* We offer maintenance-free and technology support.
* Most of our products have CE,SGS,TUV certifications.
* Our products have quality warranty.
* We have own research room ,workshop and design team.
* ACME LASER has been exporting to more than 32 countries around the world.
This is first time buying this machine,how to use it?
* We have free training for 7 days.It is easy to learn.
* The best way is that we offer prefessional engineer to taech you face to face.
* If you couldn't come to our company, we will give you menu and video, our engineer teach you online.
How to maintain the machine?
* The environment needs be clear.
* The temperture can not be high.
* Our guide needs lubricating oil for 2-3 drops about.
If I have some problems ,what should I do ?
* You can contact our salesman directly ,our engineer will check the problem.
* During the warranty, maintainance is free.
* Although over the warranty,we also offer life-long technology support in free.
