Good Price Agricultural Polycarbonate Plastic Board PC Sheet Greenhouse with Customized Hydroponic Design
- Category: >>>
- Supplier: Weifang Huayi Agriculture Technology Co. Ltd.
Share on (1600097670783):
Product Overview
Description
Agricultural Polycarbonate Plastic Board PC Sheet Greenhouse with Customized Hydroponic Design
Product Information

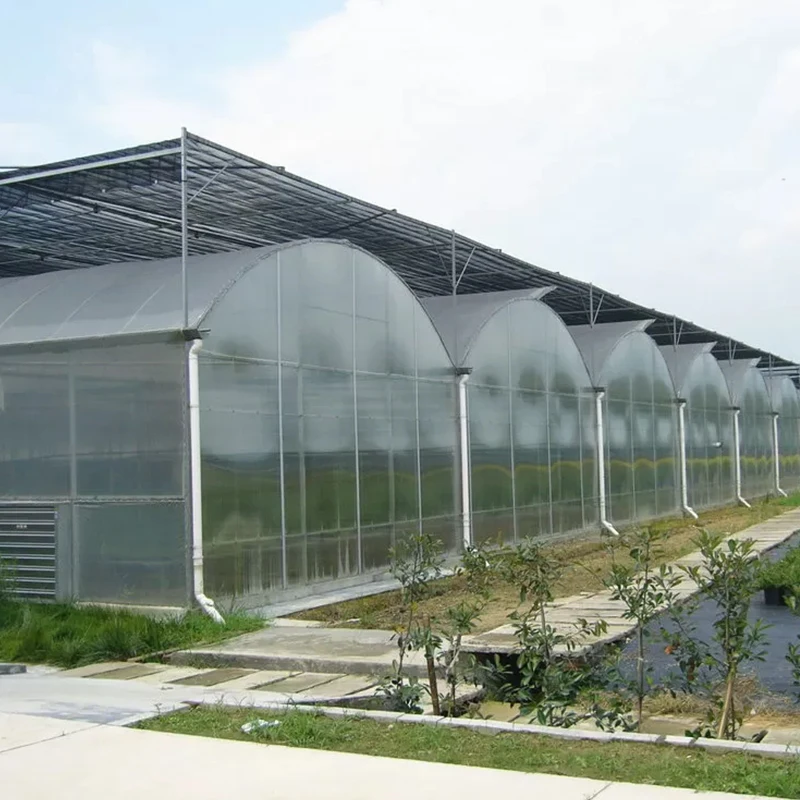

Hydroponics Polycarbonate Greenhouse Abstract
1. Polycarbonate greenhouse is a type of greenhouse that is covered by polycarbonate sheet. The polycarbonate greenhouse has the longest life, which is suitable for use in a variety of areas, and all kinds of climate conditions.
2. In the greenhouse industry, according to the size of the span and width, it is divided into many construction types, and it is divided into: vegetables polycarbonate greenhouse, flowers polycarbonate greenhouse, seedling polycarbonate greenhouse, ecological polycarbonate greenhouse, research polycarbonate greenhouse, three-dimensional polycarbonate greenhouse, special-shaped glass greenhouse, sightseeing greenhouse and on.
6/8/10mm polycarbonate hollow transparent sheet
Property | Unit | Index |
Light Transmission | % | 88 |
Impact Strength | J/m | 850 |
Heat Conductivity | W/(m.K) | 0.2 |
Coefficient of Thermal Expansion | mm/m. °C | 0.067 |
Range of temperature | °C | -40~+120 |
Supporting equipment and materials

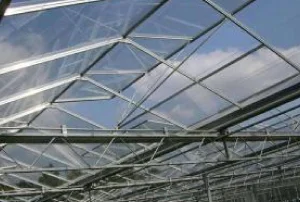

Hot Dip Galvanized Steel Structure
The steel structure is made of high quality carbon steel with inside and outside hot galvanized layer which will be not less than 200um. The warranty period of standard skeleton is 15 years, but the actual service life will be more than 20 years.
Cover Material Glass
Polycarbonate with life 10 years.
Outside Shadow System
Material: Black round-wire sunshade net
Advantage: Button control switch , reduce the internal temperature and avoid damages to plants caused by intense sunlight.
Inner shadow System
Material: Aluminum Sunshade Net
Advantage: Button control switch, reduce the internal temperature by cutting off excess solar radiation
Inner Quilt System
Material: EPE
Advantage: In cold night, the system can effectively prevent the escape of infrared, reduce surface radiation heat loss and heating energy consumption, usually used together with heating system.

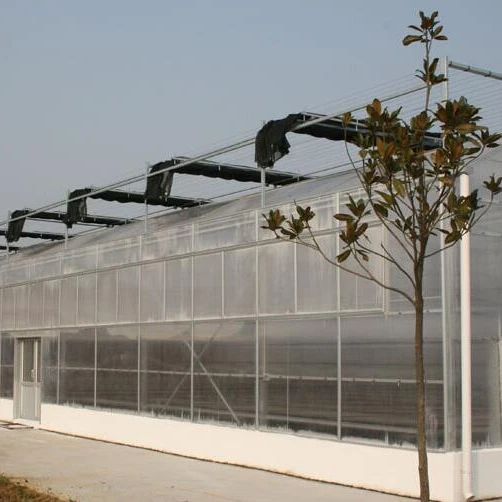

Ventilation System
Top ventilation:All the middle spans have two electric roll up motors and both of side spans have one electric roll up motor
Side ventilation: Both side have two electric roll up motors. Each motor is 60w with climber and cable film fixed parts, rolling up 60m plastic film.

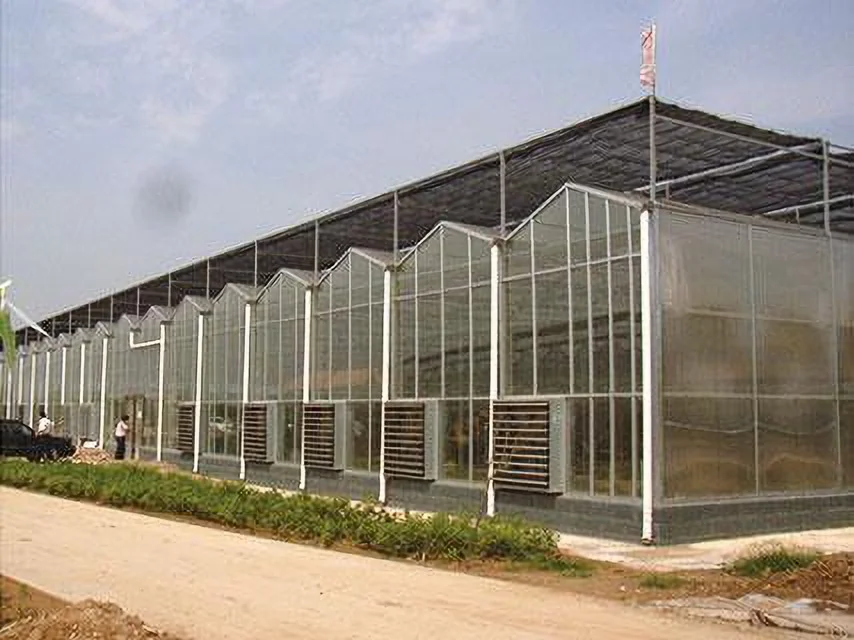

Cooling Fan
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.
Size: Exhaust Hammer Fans in 1380+1380*400 mm with wind volume 44000 m3/h.
Cooling Pad
Introduction: The pads and fans are used together to realize the functions of cooling and ventilation.
Size: Aluminum frame, height is 1.5 m with thickness 150 mm.
Company Profile
Weifang Huayi Agricultural Technology Co., Ltd. was established in December 2013 and is located in Xiashan District, Weifang City, Shandong Province. It is a comprehensive company that integrates agricultural technology R&D, hydroponic cultivation, greenhouse design and construction, hydroponics facilities R&D, design and production, agricultural materials supply, and agricultural technology services. Huayi is not only a greenhouse and hydroponic system manufacturer, but also a true grower, who has been operating 3000mu of commercial hydroponic greenhouses, and has its own agronomist team. Huayi understands very well what the growers need,and can provide you with cost-effective agriculture solutions.
Recommend Products
Tunnel Greenhouse
$13 - $ 20 /sqm
500sq.m. (MOQ)
Hemp Greenhouse
$15 - $ 20 /sqm
500sq.m. (MOQ)
Polycarbonate Greenhouse
$15 - $ 20 /sqm
500sq.m. (MOQ)
Hydroponic System
$5 - $ 15 /sqm
500sq.m. (MOQ)
Root Controller
$0.3/piece
500sq.m. (MOQ)
Greenhouse Equipment
$4.3 - $ 11.4 /sqm
500sq.m. (MOQ)
FAQ
1.Can supply greenhouse design?
Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
2. How long is the delivery time?Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.
According to the ordered quantity, the delivery time is usually 10-60 days.
3. How long is the warranty period?
Usually guarantee 1-3 years,
4. Is your company foreign trade company or manufacturer?
we are manufacturer and trade company.
5. How to install hydroponics system?
Usually the buyer installs it by himself. If they need our guidance, we can send suggestions.
6. What is the payment terms?
usually the deposit is 30%-50% of total value. Before loading, all the balance should be paid off. Or you can give your own
payment terms, then we can negotiate it.
Any Question, please contact me!
E-mail: sales003@huayiag.cn
Phone/WhatsApp: +86 18754416383
