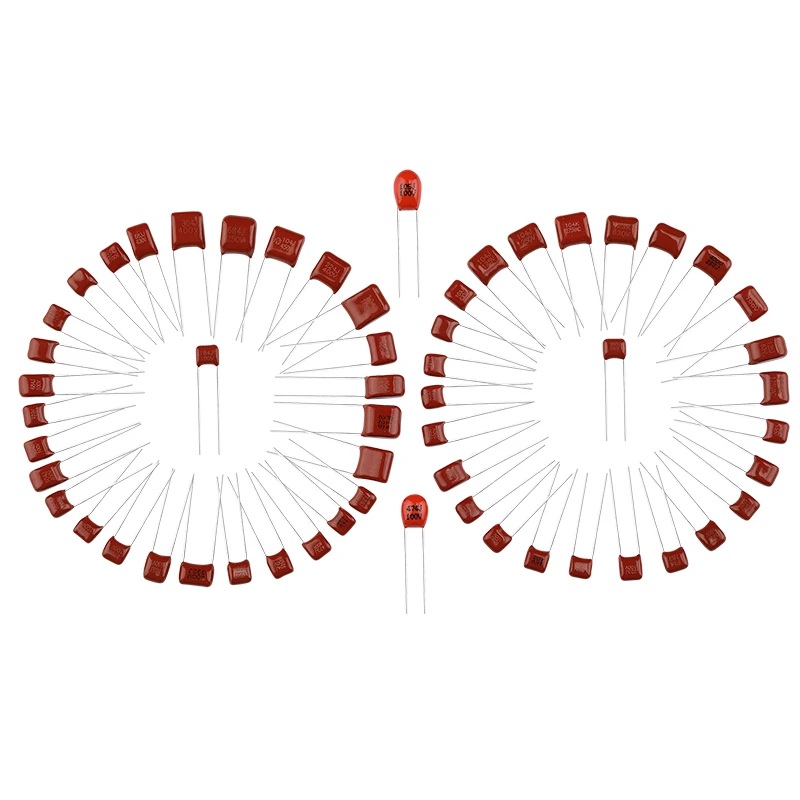

Polypropylene Film 1.5uf 155 155k Cl21 Capacitor Cl21x 682j 250v 0.0068uf
- Category: >>>
- Supplier: Guangzhou Zhongzheng Electronic Development Co. Ltd.
Share on (1600097693346):
Product Overview
Description
Our Services
The largest manufacturer of ultra small size film capacitors in china
Company Information
Product Description
CL21X(MSF)FEATURES
Ø Ultra-small, low noise, good appearance consistency.
Ø Metallized polyester film, small inherent temperature rise.
Ø High voltage resistance, high temperature wax sealed, flame retardant epoxy powder coating.
Ø Moisture-proof, flame retardant.
Ø Low dissipation factor.
Ø Good self-healing property, good stability and reliability.

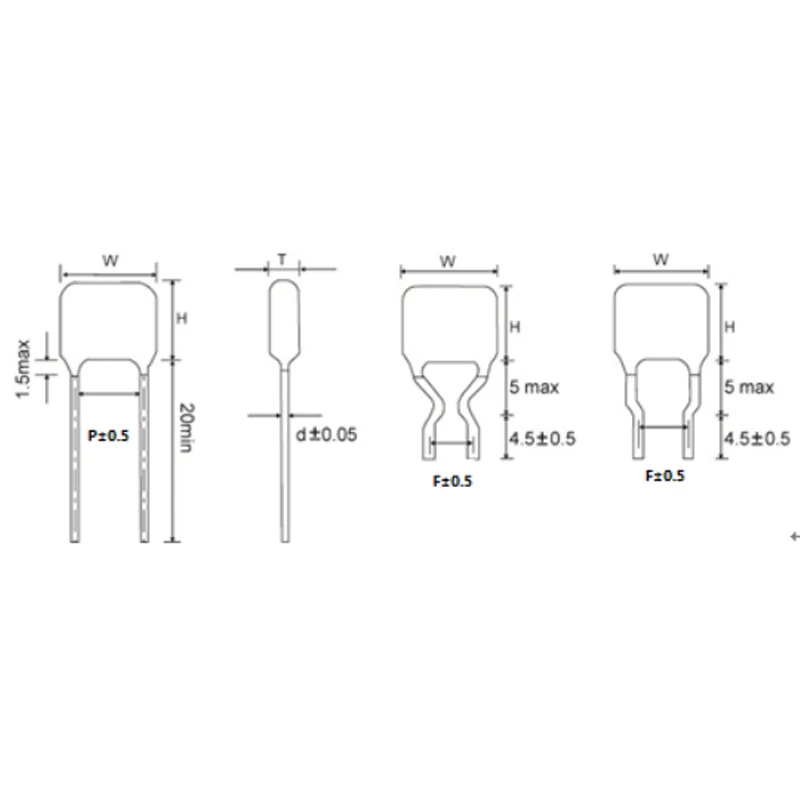

* Outline Drawing:
* Specification:
Climatic Category | 55/085/21 |
Rated Voltage | 63v 100v 250v 400v 630v |
Capacitance Range | 0.0010uf~5.6uf |
Voltage Proof | 1.6 UR |
Insulation Resistance | ≥3 000MΩ, CR≤0.33μF |
≥1000S, CR>0.33μF | |
(20℃, 1min) | |
Disspation Factor | ≤0.008(20℃, 1kHz) |
Capacitance Tolerance | ±5%(J), ±10%(K) |
* Usage:
Widely used in various DC and low pulse occasions, for the amplifier, TV, communications, power supply, LED drivers and other requirements of the small size of capacitors.

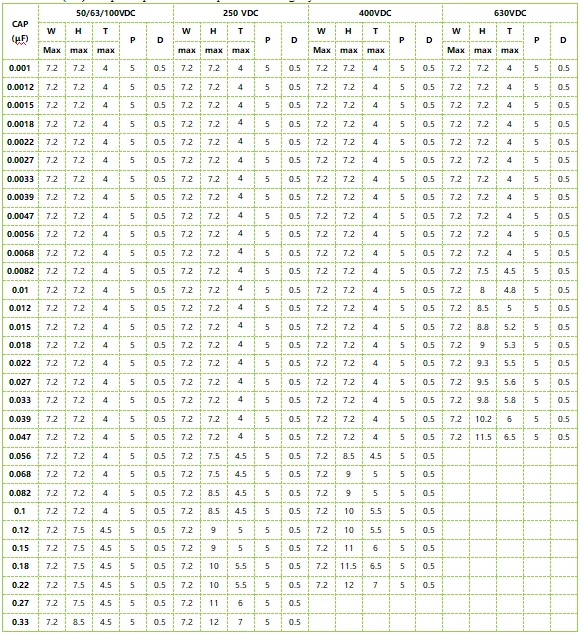

CL21X(MSF) Capacitor STANDARD SIZE
Dimensions(mm) and special specifications can product according to your demand.
FAQ
Q:Are you a trading company or a manufacturer?
A:This's GUANGZHOU ZZEC Electronic. It's a professional manufacturer in the field of Subminiature Metalized Polyester & Polypropylene Film Capacitor
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
Q:Delivery time?
A;7-15 working days
