dron de fumigacion de 15L/dron para fumigar with smart agriculture sensors/rc drone sprayer made in China
Sprayer drone Description
Tank capacity: 15L/ 15kgs
Spray width: 6 - 7 meters
Spray width: 6 - 7 meters
Coverage: 7-8 hectares/hour (1ha=2.5acres)
Highlights: Middle size with advanced configuration
Application:
sowing seeds → solid fertilizer scattering → herbicide/insecticide/bactericide/pesticide spraying → foliar fertilizer spraying
Application:
sowing seeds → solid fertilizer scattering → herbicide/insecticide/bactericide/pesticide spraying → foliar fertilizer spraying

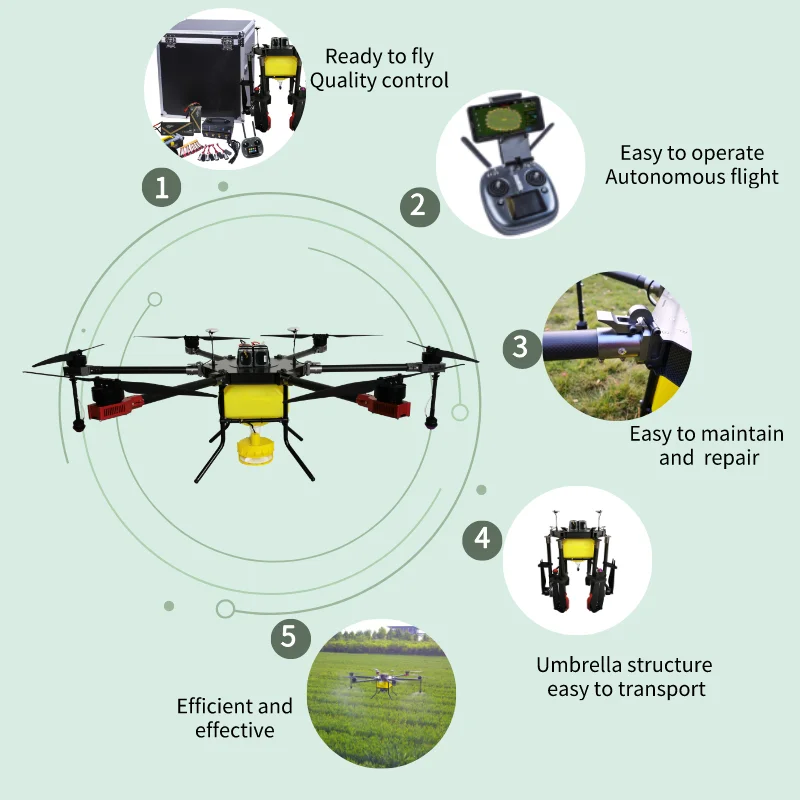

Basic Function of agricultural sprayer drone
Remote controlled and fully automatically operation in APP - JOYANCE Agriculture UAV Drone Crop Sprayer
1. One key take off and landing.(easy to operate)
2. Autonomous flying with APP.
3. Avoid re-spraying seedlings or missing spray with record and do break-point continue-spraying
4. Intelligent flow adjust control, intelligent spraying
5. APP maps, plans operating route and route will be saved automatically for next operation
6. Fail-safe self protection
7. Cloud service and team management
8. Dosage Monitor
9. Low Voltage & Volume Warning, drone back to site automatically

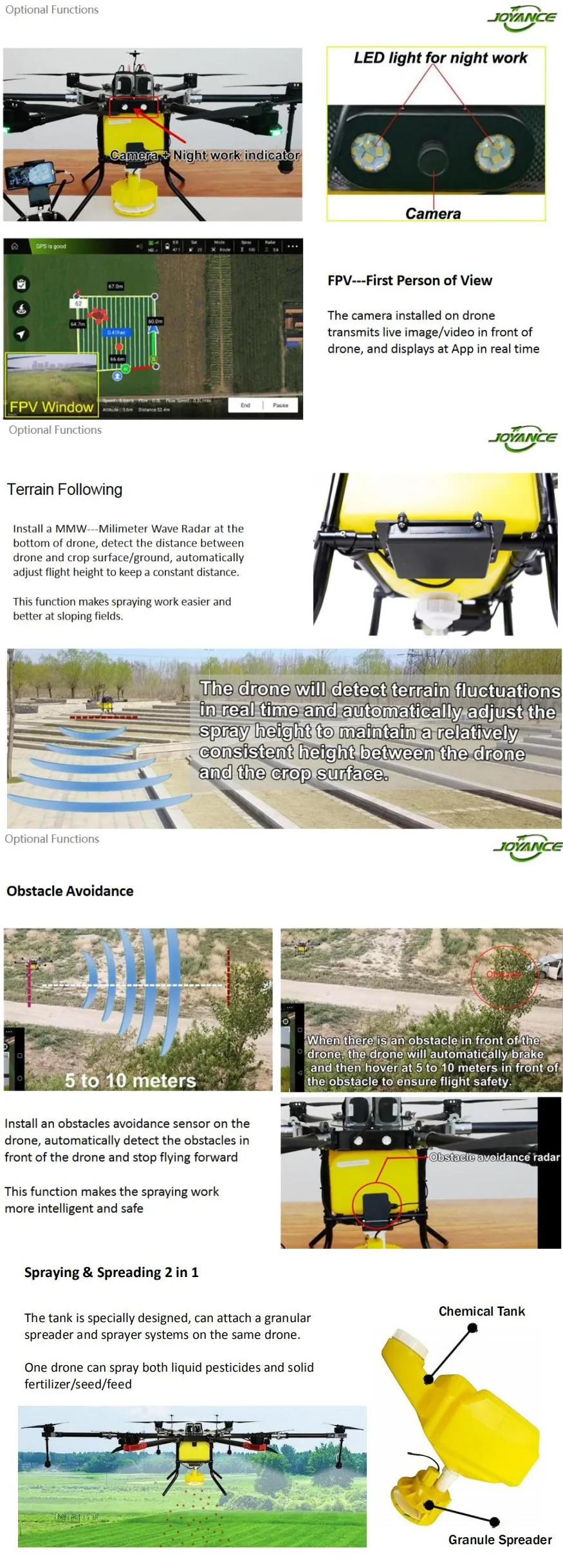

10. FPV camera with light transferring real image in front of drone
11. Terrain following radar(optional)
12. Obstacle avoidance radar(optional)
13. Granule spreader to scatter seeds fertilizer(optional)
1. One key take off and landing.(easy to operate)
2. Autonomous flying with APP.
3. Avoid re-spraying seedlings or missing spray with record and do break-point continue-spraying
4. Intelligent flow adjust control, intelligent spraying
5. APP maps, plans operating route and route will be saved automatically for next operation
6. Fail-safe self protection
7. Cloud service and team management
8. Dosage Monitor
9. Low Voltage & Volume Warning, drone back to site automatically
10. FPV camera with light transferring real image in front of drone
11. Terrain following radar(optional)
12. Obstacle avoidance radar(optional)
13. Granule spreader to scatter seeds fertilizer(optional)
Technical parameter | JT10L-606 | JT15L-606 | JT15L-608 Pro | JT20L-606 | |
1 | Pesticide load | 10 liters | 15 Liters | 15 liters | 20 liters |
2 | Self weight | 10.5 kg | 13.5 kg | 20 kg | 18.5 kg |
3 | Take-off weight | 23 kg | 31 kg | 39 kg | 44 kg |
4 | Fly time/flight | 10~15 min | 10~15 min | 10~15 min | 10~15 min |
5 | Spraying efficiency | 5~6hectares/hour | 7~8 hectares/hour | 8~10 hectares/hour | 9~11hectares/hour |
6 | Spray width | 4~6 m | 6~7 m | 8~10 m | 7~8 m |
7 | Spray speed | 0~8 m/s | 0~8 m/s | 0~10 m/s | 0~10 m/s |
8 | Nozzles | 2 centrifugal nozzles | 2 centrifugal nozzles | 4 centrifugal nozzles | 4 centrifugal nozzles |
9 | Battery | 2 pcs 6S 17000 mAh | 2 pcs 6S 17000 mAh | 2 pcs 6S 23000 mAh | 2 pcs 6S 23000 mAh |
10 | Flying radius | 1000 m | 1000 m | 1000 m | 1000 m |
11 | Spray flow | 1~1.5 L/min | 2~2.5 L/min | 2.5~3 L/min | 2.5~ 3 L/min |
12 | Flying height | 0~30 m | 0~30 m | 0~30 m | 0~30 m |
13 | Work temperature | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ | –10~70 ℃ |
14 | Work humidity conditions | 0~90% | 0~90% | 0~90% | 0~90% |
15 | Wind resistance | 10 m/s | 10 m/s | 10 m/s | 10 m/s |
16 | Spread size (m) | 1.3 * 1.3 * 0.45 m | 1.8 *1.8 * 0.48 m | 2.7 *1.55 * 0.5 m | 1.95 *1.95 * 0.57 m |
17 | Folded size (m) | 0.6 * 0.6 * 0.51 m | 0.7 * 0.7 * 0.63 m | 0.85 * 0.75 *0.7 m | 0.7 * 0.7 *0.8 m |
18 | Aluminum box size/weight | 73*67*65 cm / 50 kgs | 75*75*81 cm / 70kgs | 81*81*86 cm / 80 kgs | 75*85*95 cm / 80 kgs |

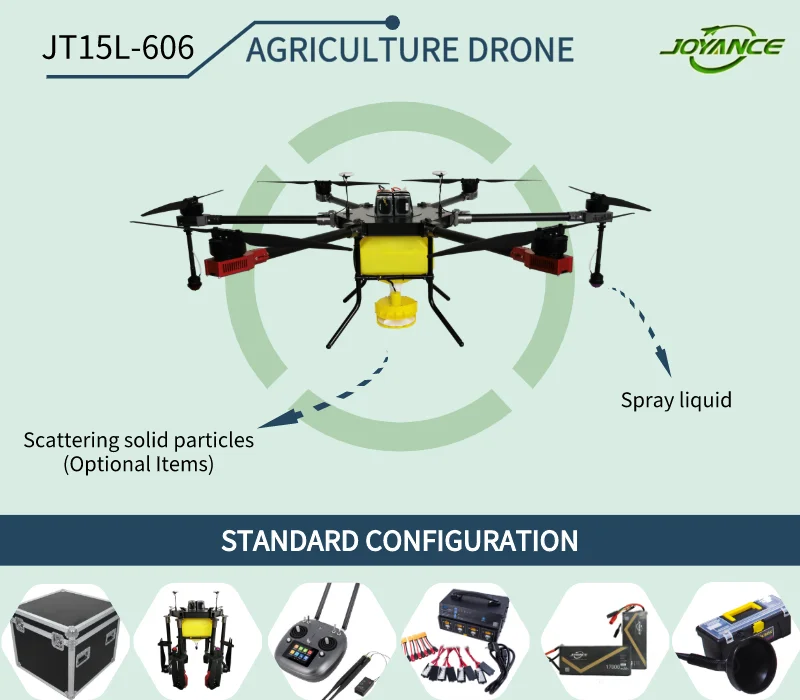

Standard price include:
-one completed sprayer drone.
-one remote controller
-2pcs 17000mAh Batteries
-1set 8-channel charger
-Maintenance/repair toolkit
-Aluminum transport case
-one remote controller
-2pcs 17000mAh Batteries
-1set 8-channel charger
-Maintenance/repair toolkit
-Aluminum transport case
Ready to fly.
Sprayer drone Details Images
① Heavy-duty brushless motor
FOC power system, more powerful, support more stable flight, waterproof;
working hours ≥2,000 hours with long service life
② Strongest drone frame
100% carbon fiber, lighter and stronger, with bigger size central plate make the drone fly more stable.
③ Aluminum folding jouint
Foldable, fasten and strong to bear heavy work, more stable flight and a longer life time.
④ Propellers
Foldable carbon fiber propellers
⑤ Water pump
Pumping water
⑥ Li-po batteries
6S 17,000/23,000mAh Li-po batteries
≥300 cycles service life

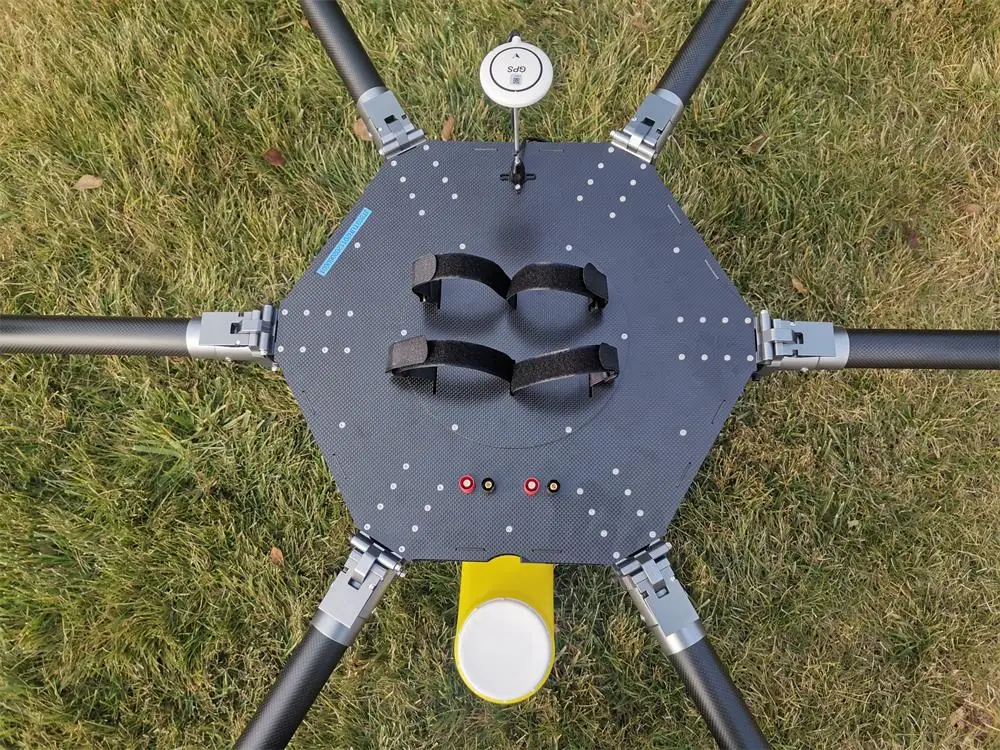

⑦ Bigger size central plate
Made of thicker carbon fiber;
Light, strong, highest quality
⑧ Remote controller
Simple pratical RC design to be easier operating
dustproof and waterproof
⑨ Agri assistant App
It can be installed on the phone or tablet to do automous flight.
Certrifugal nozzles-- one of advantages:
Have a better atomization effect and penetration.
50-200 um droplet diameter
Spray degree: 170
Not easy to block.
Suitable for spraying in orchards, vegetables, rice,corn, etc, all crops and fruit trees.
50-200 um droplet diameter
Spray degree: 170
Not easy to block.
Suitable for spraying in orchards, vegetables, rice,corn, etc, all crops and fruit trees.
Company Profile
Advantages of Joyance Drone Factory
● Agricultural Drones Manufacturer ● Get whole sale price order ≥3units in one time
● 9 years of R&D experience ● Overseas technical support
● 200 units per month output ● 24/7 lifetime after-sale service
● Shortest delivery time, sufficient spare parts in stock ● CE, FCC, RoHS, ISO 9001 certification
● Users in 72 countries & regions ● Top quality & Competitive price & Your reliable partner
Producing process
1.Certificates: Joyance sprayer drones have got CE, FCC, RoHS, ISO 9001 and 12 Patents.
2.Exhibition: Exhibitions in Ukraine, Australia, New Zealand, Argentina, Malaysia, Canton Fair, etc.
3.Customers in the word: JOYANCE agricultural drones have been sold to 65 countries and regions, such as Mexico, Brazil, Peru, Colombia, Ecuador, Turkey, Malaysia,Indonesia, Cambodia, Australia, New Zealand, Ghana, Nigeria, Poland, Ukraine, etc.
Service
● Warranty: 3 years for the agriculture drone frame; 12 months for main drone spare parts; 3 months for wearing spare parts.
● Ready to fly and Quality control: Before dispatch, every agriculture drone is 100% tested and has to pass through a rigorous quality control requirements. Ready to fly.
● Ready to fly and Quality control: Before dispatch, every agriculture drone is 100% tested and has to pass through a rigorous quality control requirements. Ready to fly.
● Lifelong after-sales service, operate manual and videos, timely video support is available.
● Free training in our factory, including operation and maintenance, takes 2-3 days.
● Offer operation manual & video in English and Spanish.....and online technical support.
● Free training in our factory, including operation and maintenance, takes 2-3 days.
● Offer operation manual & video in English and Spanish.....and online technical support.
FAQ
Q. What's your MOQ of the fumigation drone?
A:1 piece is our MOQ, Well we don't have quantity limitation, any quantity is ok for trial order.
A: Yes, we are a professional agricultural sprayer drone R & D and production:agricultural sprayer drones, spreader drones. thermal fogger drones. Agriculture Spraying Drone 10 kg Joyance factory price Agricultural sprayer nozzle farm drone for orchard agriculture purpose
Q.Is uav sprayer drone ready to fly?
A:Yes. Before dispatch, JOYANCE assembled all the parts and set all the parameters. every drone is 100% tested and confirm it meets the highest standards in performance and durability
Q: How long is your delivery time of sprayer drones ?
A:Generally it is 2-3 days if the goods are in stock. or it is 7-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 50% T/T deposit for sprayerdrone production, balance paid before shipment.
