BIPV mono 300 watt solar pv panels with CE TUV certification
- Category: >>>
- Supplier: Sunrise Energy Co. Ltd.
Share on (1600099729319):
Product Overview
Description
Type | SR-M660300L | SR-M660305L | SR-M660310L | SR-M660315L | |||
Efficiency(%) | 17.99 | 18.29 | 18.59 | 18.88 | |||
Cell Type(mm) | 158.75x158.75( 5BB Mono-Crystalline Silicon) | ||||||
Cells(pcs) | 60(6*10) | ||||||
Diode quantity | 3 | ||||||
Cable&Connector | 4mm2,MC4 or MC4 compatible，4mm2, EVO2 or EVO2 compatible | ||||||
Cable length | 1000mm or as customer's requirements | ||||||
BIPV mono 300 watt solar pv panels with CE TUV certification.
MONO has a complete IV curve cell;
G1 cell size 158.75*158.75mm;
MBB reduces power losses;
HALF CUT reduces hot pot losses;
BIPV/full black
1500v system voltage
Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.
G1 cell size 158.75*158.75mm;
MBB reduces power losses;
HALF CUT reduces hot pot losses;
BIPV/full black
1500v system voltage
Specially designed for industrial, commercial and centralized ground power plants, a full range of component products match market demand.
Directly produced by Chinese manufacturers, export quality, damaged replacement, 12 years product warranty.
EVA has highly transparency, highly adhesion, good durability resist high temperature, moisture, ultraviolet rays, etc.
Frames 35mm anodized aluminum alloy, black and silver could be selected;
The junction box is IP68 waterproof;
Compatible MC4, MC4 compatible/MC4, EV02;
OEM/ODM can provide standard silver waterproof label with your logo, customized carton with logo yourself.
Frames 35mm anodized aluminum alloy, black and silver could be selected;
The junction box is IP68 waterproof;
Compatible MC4, MC4 compatible/MC4, EV02;
OEM/ODM can provide standard silver waterproof label with your logo, customized carton with logo yourself.
Directly produced by Chinese manufacturers, export quality, damaged replacement, 12 years product warranty.
EVA has highly transparency, highly adhesion, good durability resist high temperature, moisture, ultraviolet rays, etc.
Frames 35mm anodized aluminum alloy, black and silver could be selected;
The junction box is IP68 waterproof;
Compatible MC4, MC4 compatible/MC4, EV02;
OEM/ODM can provide standard silver waterproof label with your logo, customized carton with logo yourself.
Frames 35mm anodized aluminum alloy, black and silver could be selected;
The junction box is IP68 waterproof;
Compatible MC4, MC4 compatible/MC4, EV02;
OEM/ODM can provide standard silver waterproof label with your logo, customized carton with logo yourself.
Product Description
Automation Product Process

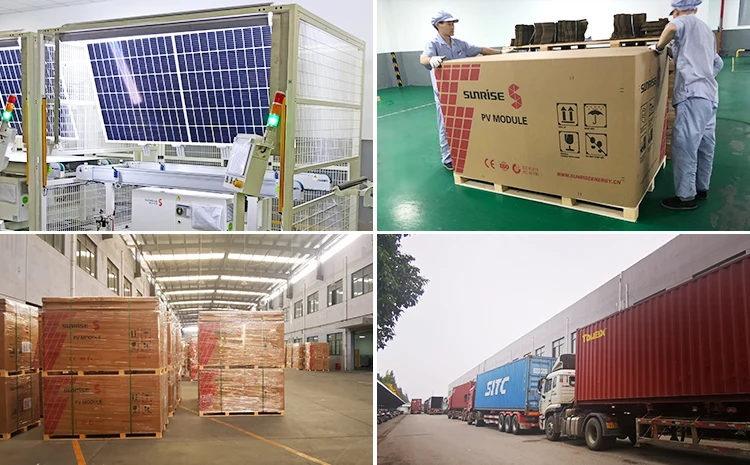

Packaging and Shipping
5 or 7-ply corrugated boxes, reinforced wooden cases with pallets;
Custom made wooden cases are optional;
Ensure safety of all solar modules.
Protect your products in all aspects during transportation;
PACKING DETAILS | ||||||||

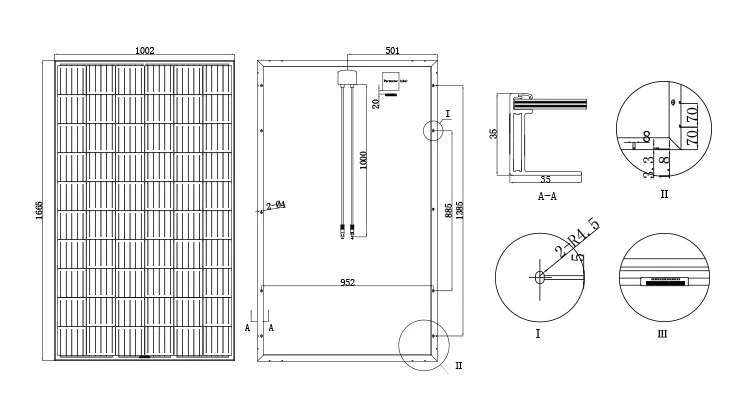

Dimension(mm) | 1665*1002*35 | |||||||
Weight(kg) | 19 | |||||||
Packing(pcs/pallet) | 30 | |||||||
Loading Capacity | 348pcs/20'GP 924pcs/40'HC | |||||||
Our Project Reference
Delivery Mode
The transportation
According your demand and the quantity of products ,we’ll choose safe and economic transportation for you,including sea,air ,land and express.
Company Profile
Intelligent Manufacturing | System Integration | Customization Project
Established in 2006,Sunrise Energy located in Zhonglou Economic Development District, Changzhou, China.Sunrise has 35000m² automatic workshop with 1GW annual capacity. Sunrise suppied high efficient and customized green solar power solution over 50 countries.
14+ Years
Photovoltaic field experience
6+ GW
Solar modules output
50+ Cases
Germany,America,Vietnam
80+ Partners
Around the world
100+ Patnents
Main business , technologies
Certifications
Exhibition
FAQ
Q: What is payment term?
A:T/T 30 days, L/C 30 days.
Q: What is the lead time?
A:Generally it will take about 20 days for production on receipt of advance payment.
Q: What is your monthly capacity？
A:Monthly capacity is about 80MW.
Q: How long is the warranty of your products?
A:year Product Warranty and 25-year Warranty for Extra Linear Power Output.
A:T/T 30 days, L/C 30 days.
Q: What is the lead time?
A:Generally it will take about 20 days for production on receipt of advance payment.
Q: What is your monthly capacity？
A:Monthly capacity is about 80MW.
Q: How long is the warranty of your products?
A:year Product Warranty and 25-year Warranty for Extra Linear Power Output.
