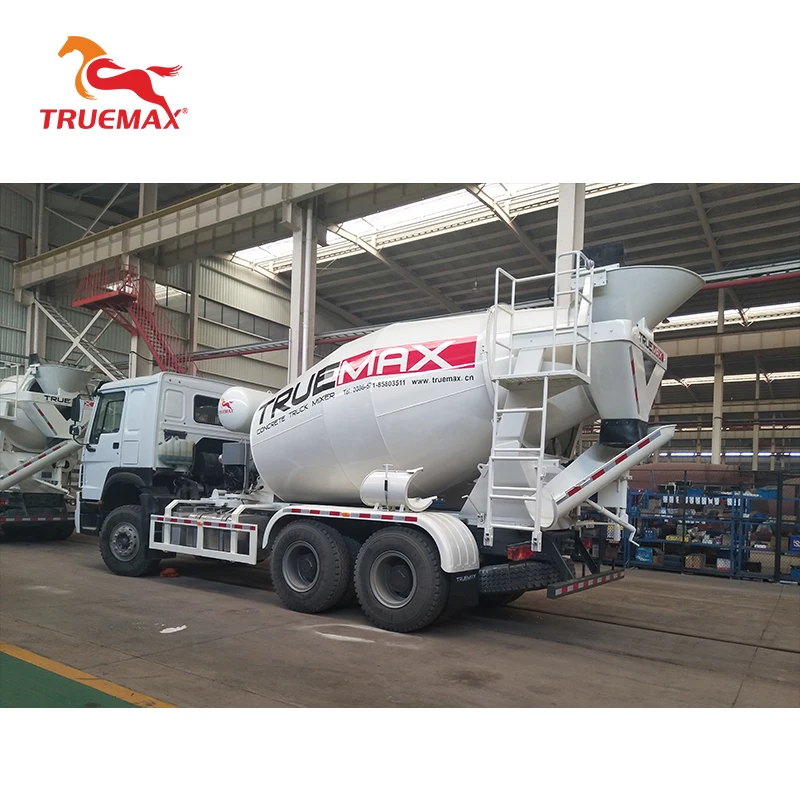

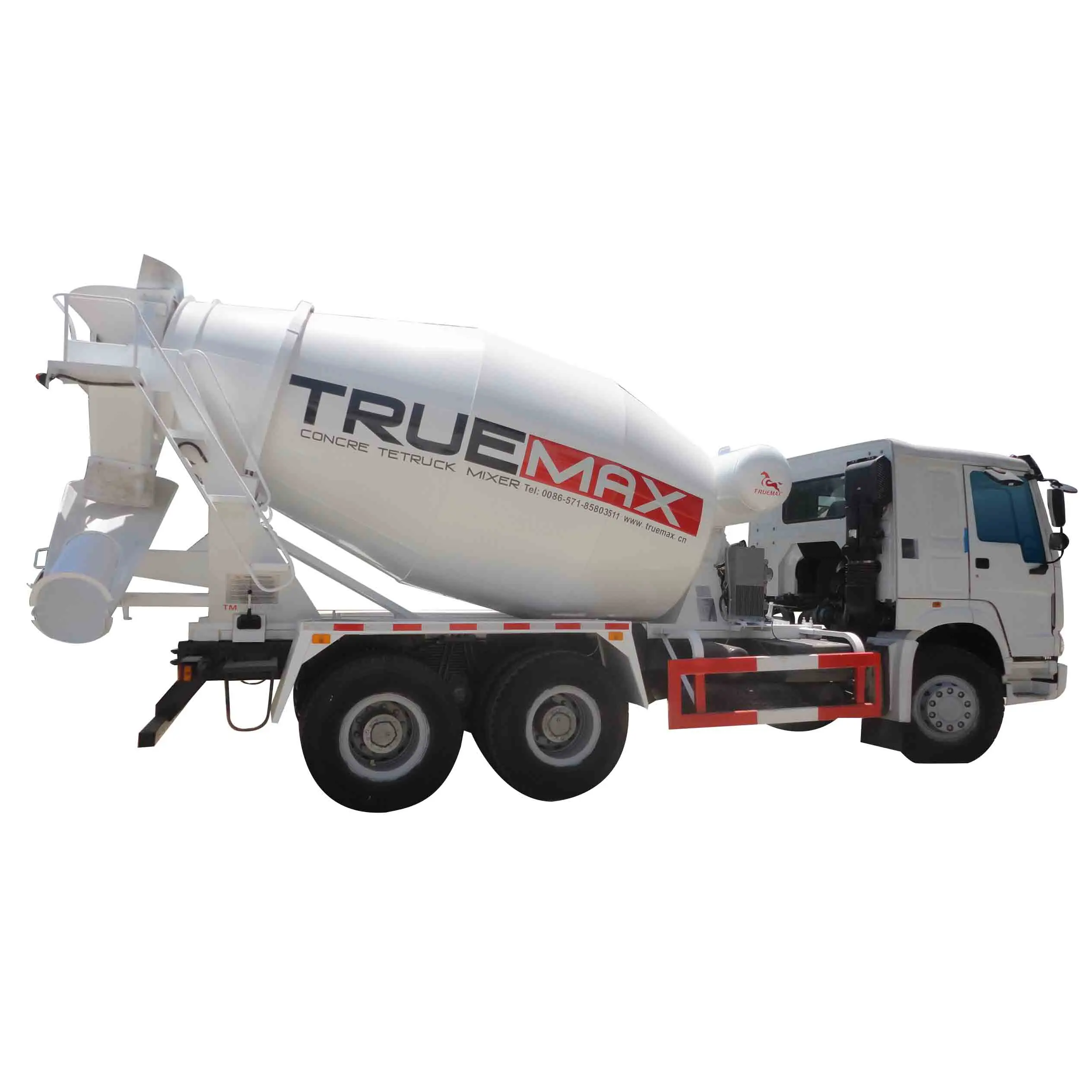

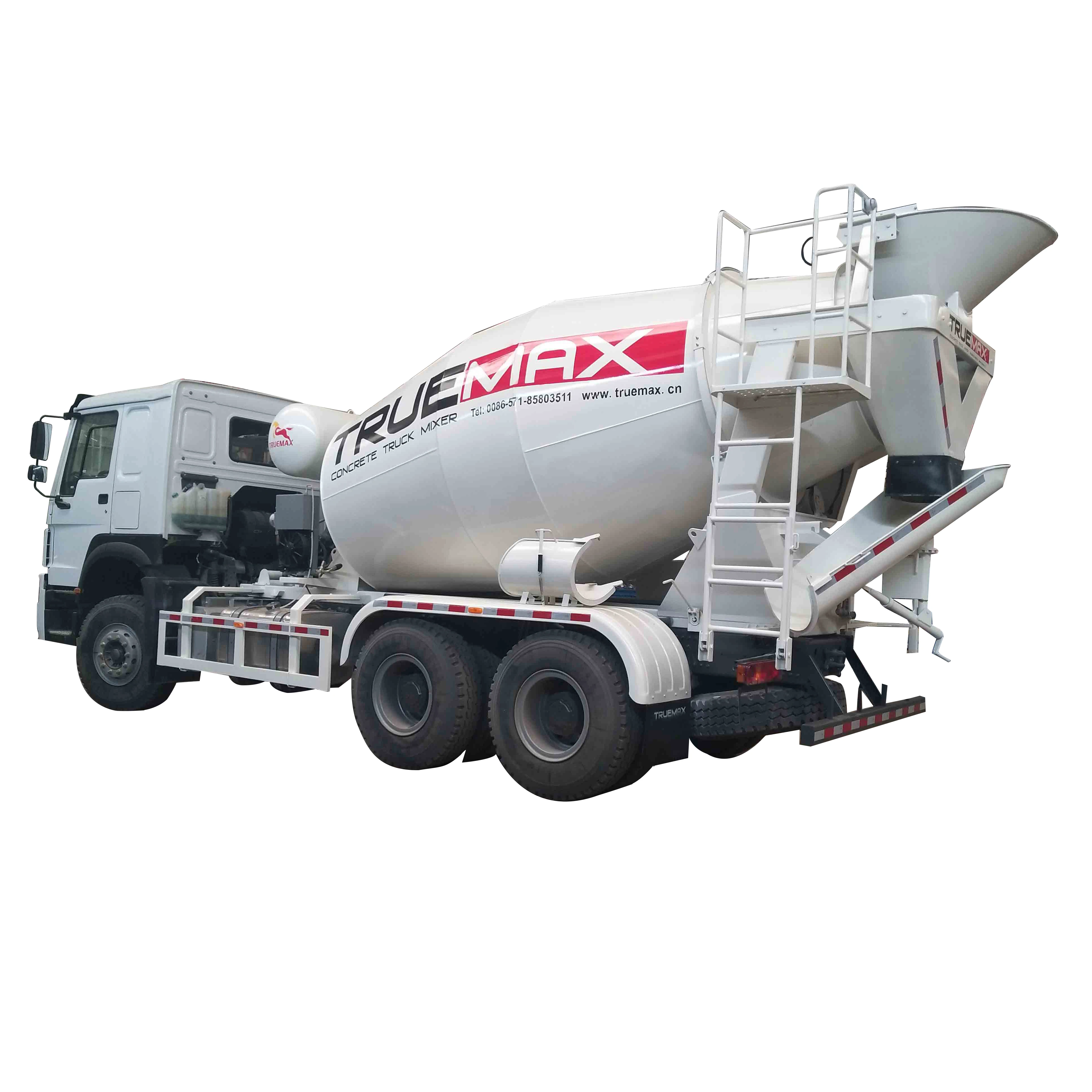

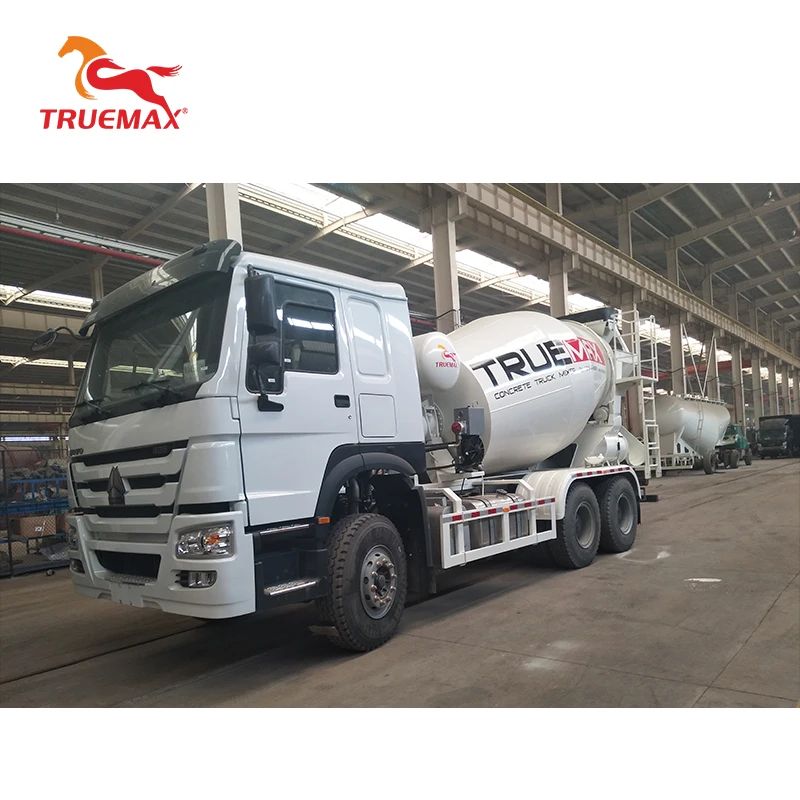

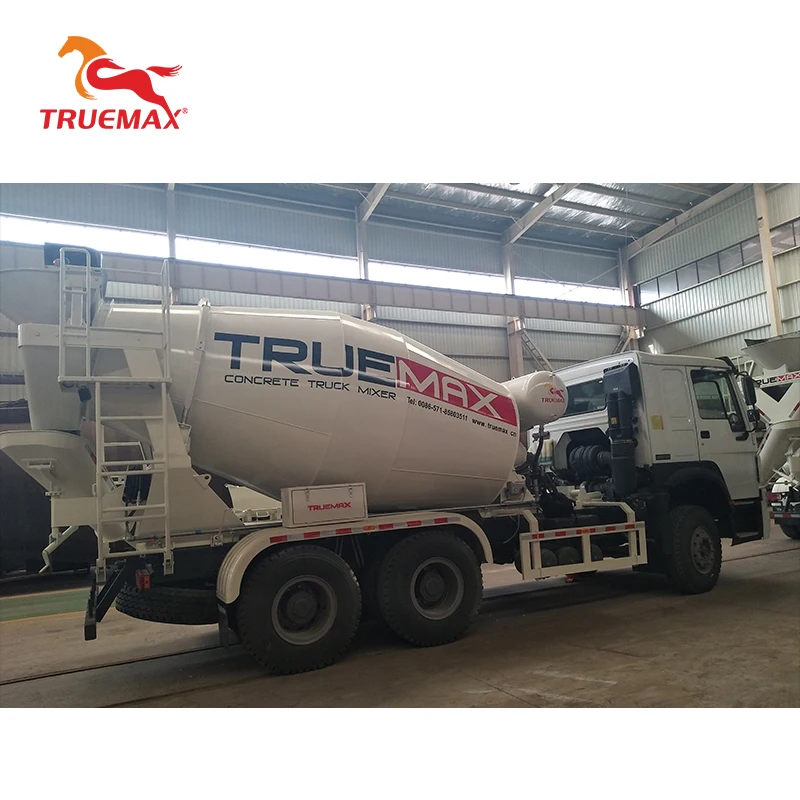

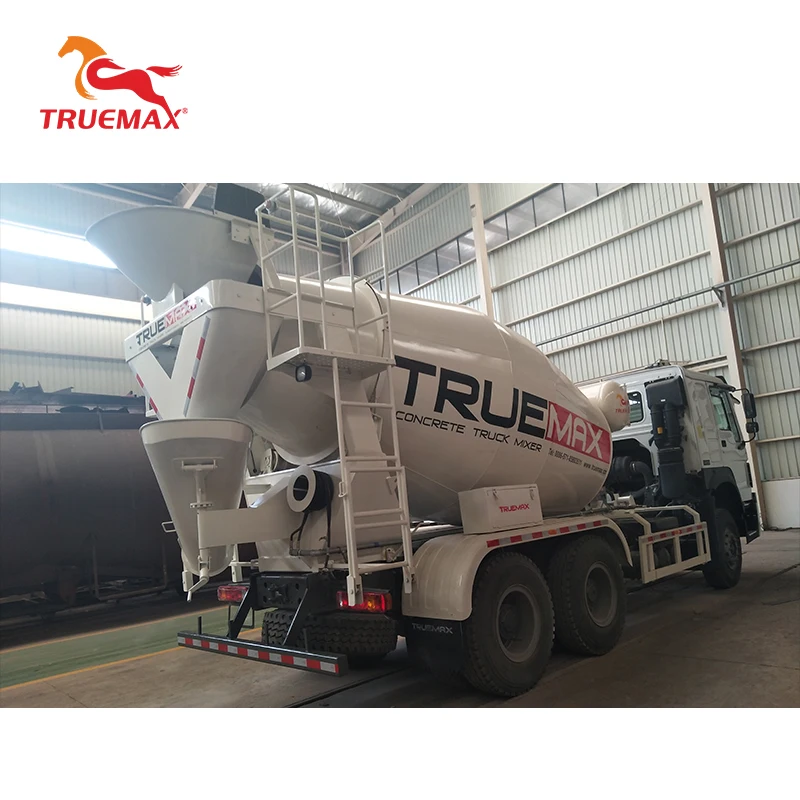

SINOTRUK chassis motor howo 6x4 self loading cement hydraulic concrete truck mixer for truck supplier sales
- Category: >>>
- Supplier: Hangzhou Truemax Machinery & Equipment Co. Ltd.
Share on (1600099760745):
Product Overview
Description
Product Information
Main Features
1.Blade’s unique wear-resistance design: Use the samewear-resistant materialas drum body to improve wear resistance; Added wearing strip in the end to extend service life; Using advanced blade design, the filling rate is higher, and the drum body loading capacity is increased by 5%.
2.Advanced drum body production technology and efficient mixing technology: The slump of concrete varies by ≤5% at each stage, and the residual rate is as low as 0.2%.
3.Multi-layer wear-resistant liners are used in the feeding and discharging chutes, which increase the service life by 50%.

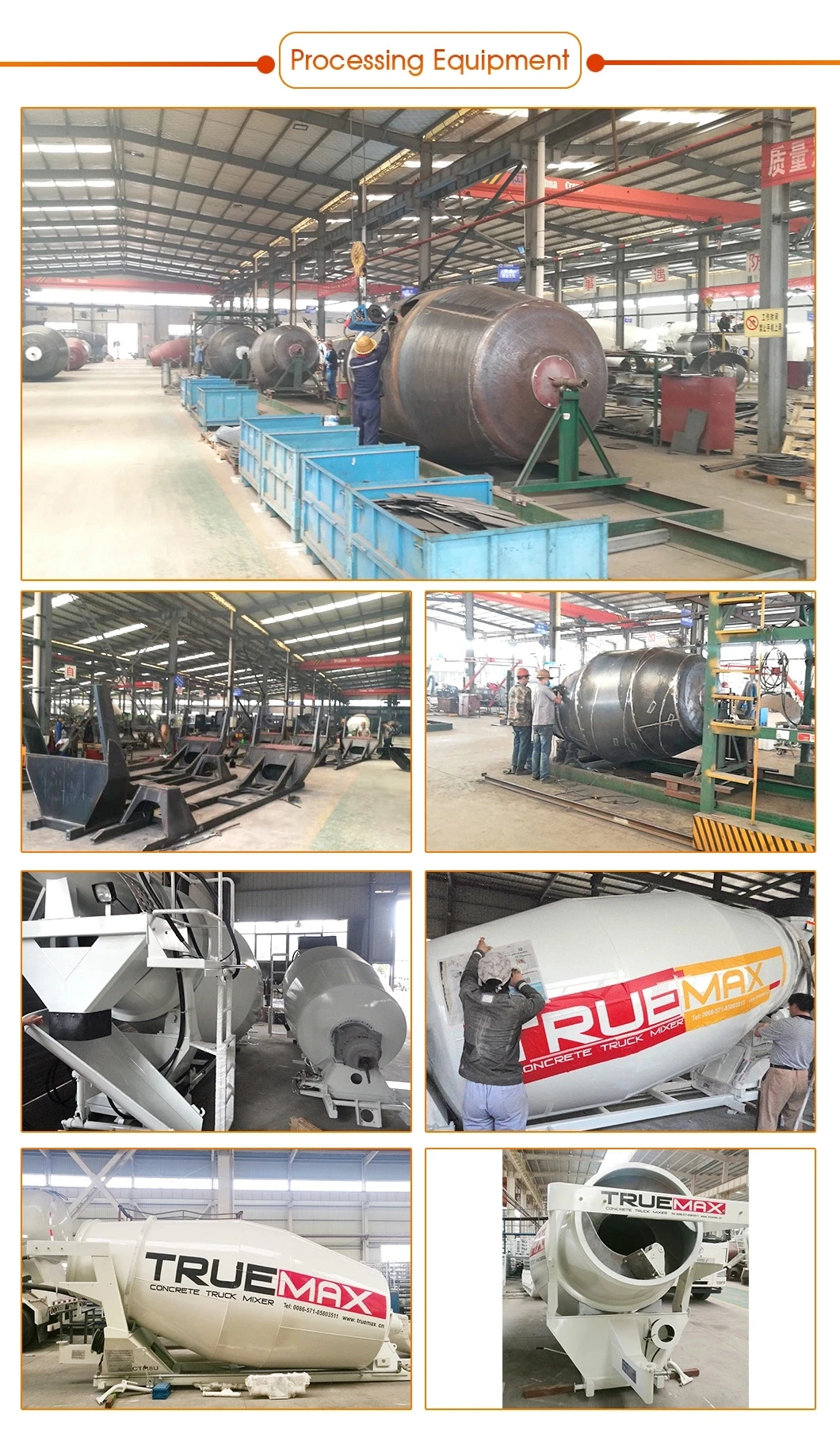

4.The key parts been produced by plasma cutting technology: High precision and productivity.
5.Overall shot blasting derusting technology: Improve painted adhesive force and anti-corrosion.
SINOTRUK chassis motor howo 6x4 self loading cement hydraulic concrete truck mixer for truck supplier sales | ||||||||||||||||
Model | UNIT | 3m³ | 6m³ | 8m³ | 9m³ | 10m³ | 12m³ | 14m³ | ||||||||
Mixer Type | / | Dry/Wet | ||||||||||||||
Geometric Volume of Drum | m³ | 4.45 | 9.6 | 11.8 | 14.4 | 14.4 | 18.4 | 20.4 | ||||||||
Material of Drum&Blades | / | Q345 | ||||||||||||||
Inclination Angle for Drum | / | 16 | 15 | 16 | 13 | 13.5 | 12 | 12 | ||||||||
Padding Rate | % | 67.4 | 63.8 | 67.8 | 62.5 | 69.4 | 65.2 | 68.6 | ||||||||
Residual Rate | % | <0.2 | ||||||||||||||
Charging Speed | m³/min | ≧3 | ||||||||||||||
Discharging Speed | m³/min | >1 | ||||||||||||||
Mixing Speed | r/min | 0-14 | 2-14 | |||||||||||||
Hydraulic Pump | / | Interpump | Rexroth | |||||||||||||
Hydraulic Motor | / | Interpump | Rexroth | |||||||||||||
Reducer | / | Lead374 | ZFP4300 | ZFP5300 | ||||||||||||
Radiator | / | KT18 | ||||||||||||||
Capacity for Water Tank | L | 240 | 350 | 450 | ||||||||||||
Water Supply | / | Air/Elecrtical Pump | ||||||||||||||
Slump Range | mm | 50-210 | ||||||||||||||
Water Supply Pressure | Mpa | 0.2 | 0.3 | |||||||||||||
Overall Dimension(L*W*H) | mm | 3968*1920*2065 | 5414*2400*2446 | 5800*2500*2816 | 6640*2495*2652 | 6190*2600*2696 | 7500*2600*2870 | 8000*2450*2906 | ||||||||
Chassis of concrete truck mixer | ||||||
Vehicle Model | Sinotruk | Sinotruk | Sinotruk | |||
Chassis Model | ZZ5128F3915 | ZZ1257N3841W | ZZ1317N3261W | |||
Tail Gas Exhaust Standard | Euro III - Euro V | Euro II - Euro V | ||||
Engine Model | YC4D140-33 | WD615.69 | WD615.47 | |||
Engine Power (KW) | 102 | 247 | 273 | |||
Rated Load (kg) | 7500-12500 | 15000-35000 | ||||
Drive Type | 4*2 | 6*4 | 8*4 | |||
Max. Travel Speed (km/h) | 90 | |||||
Typre Type | 9.00R20*7 | 11.00-12.00R20 | ||||
Wheelbase (mm) | 3900 | 3825+1350 | 1800+3200+1350 | |||
Applicable to Concrere Truck Mixer (m³) | 3-5 | 6-10 | 10-14 | |||
Overall Dimension (L*W*H) (mm) | 6755*2440*2800 | 9020*2496*3835 | 10611*2496*3990 | |||
Total Weight (kg) | 8755-11500 | 12500-16500 | ||||
Others | Seat with air bag; Air conditioner; Other chassis can be customized | |||||
Company Profile
Founded in 2003, Zhejang TRUEMAX Engineering Co., Ltd. is a construction machinery manufacturer and high-tech enterprise specializing in concrete machinery industry, integrating research, development, design, manufacture and marketing of concrete machinery products.The company has advanced technology and equipment, high-quality and efficient management team and perfect management system.The company has passed ISO9001:2015 quality management system certification, and we are constantly working on the research and application of new technologies for concrete machinery.The company actively responds to the national "Made in China 2025" plan and the call for energy conservation and environmental protection. With the helo of the national "Belt and Road" strategy, the company continues to introduce professional talents and advanced technologies. Through unremitting efforts and rapid and sustainable.development, environmental protection products have been covered: Pumping machinery, placing machinery, mixing machinery three series, truck mounted line pump, stationary pump, truck mounted boom pump, placing boom, concrete batching plant, concrete truck mixer and other six types of construction machinerv. With reliable product quality and first-class after-sales service, we provide customers with a package of concrete solutions for concrete production, transportation, pumping and placing. They have won high praises in maior projects around the world, and have won the trust and support of customers in more than 120 countries and regions.
Related Product
FAQ
Q : Are you a factory or trading company?
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.
Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.
Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
Address: No.118 Haifeng Road, Jianshan New Zone, Haining City, Zhejiang Province China.
A: We are the company which is the joint of trade and industry. We have our own factory which has been manufacturing concrete machineries along with spare parts for 14 years offline.
Q: How about the quality control of your productions?
A: All our productions are matured with technology, and have passed CE, CCC, ISO9001, ISO14001, OHSAS18001, and ect.
And we have strict inspection before the goods shipped.
Q: What do you think is the most competitive advantages when comparing with other suppliers?
A: We are TUREMAX, and we always present true info to our client. And most of our clients are reglar customers, and also new buyers would like to repeat orders from us since we are not only sell goods but also servies. And the most important is that we take all customers as our friends.
Q: Can we go to your factory have a look?
A: Of cause yes! You are welcome, and it is our honors.
Address: No.118 Haifeng Road, Jianshan New Zone, Haining City, Zhejiang Province China.
