90 degree ms bend pipe elbow pipe asme b16.9 90 degree bend dimensions

Porduct Name

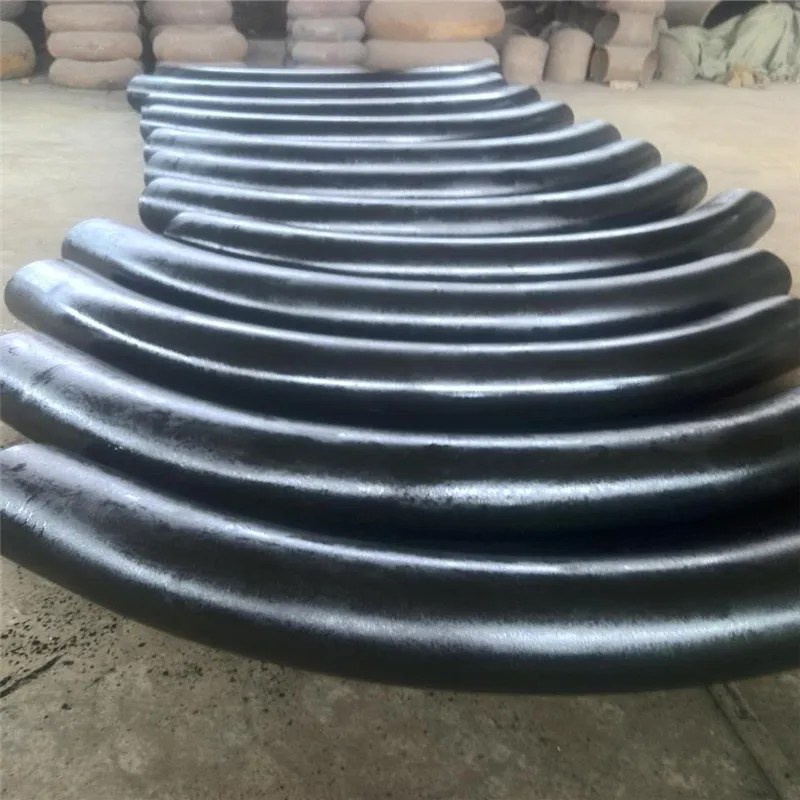

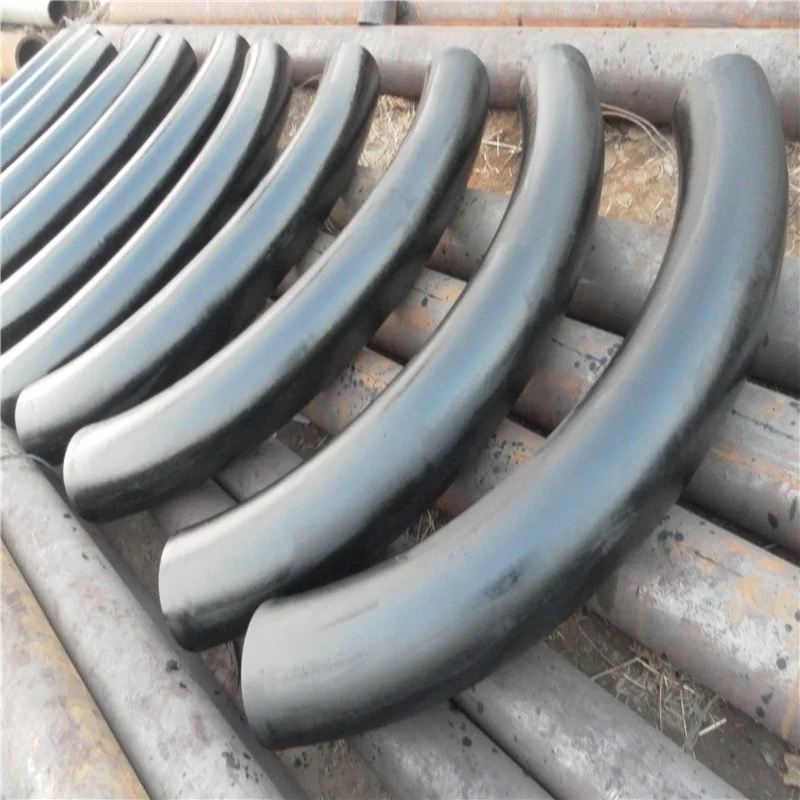

  Carbon steel Pipe elbow/bend

Size

1/2"-24" seamless, 26"-110" welded

Standard

ANSI B16.9, EN10253-2, DIN2605, GOST17375-2001, JIS B2313, MSS SP 75, etc.

Wall thickness

STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.

Elbow

30° 45° 60° 90° 180°,etc

Radius

LR/long radius/R=1.5D,SR/Shrot radius/R=1D, Various radius:2.5D,3D,5D

10D, 20D etc.

End

Bevel end/BE/buttweld

Surface

nature color, varnished, black painting, anti-rust oil etc.

Material

Carbon steel: A234WPB, A420WPL6 St37,St45, E24, A42CP, 16Mn, Q345, P245GH,

P235GH, P265GH, P280GH,P295GH,P355GH etc.

Pipeline steel: WPHY42, WPHY52, WPHY60, WPHY65,WPHY70, WPHY80 and etc.

Cr-Mo alloy steel: P11,P22,P5, P9,P91, 10CrMo9-10, 16Mo3 etc.

Application

Petrochemical industy;avation and aerospace industry;pharmaceutical industry;

gas exhaust;power plant;ship buliding;water treament,etc.

Advantages

ready stock,faster delivery time;available in all sizes,austomized;high quality
