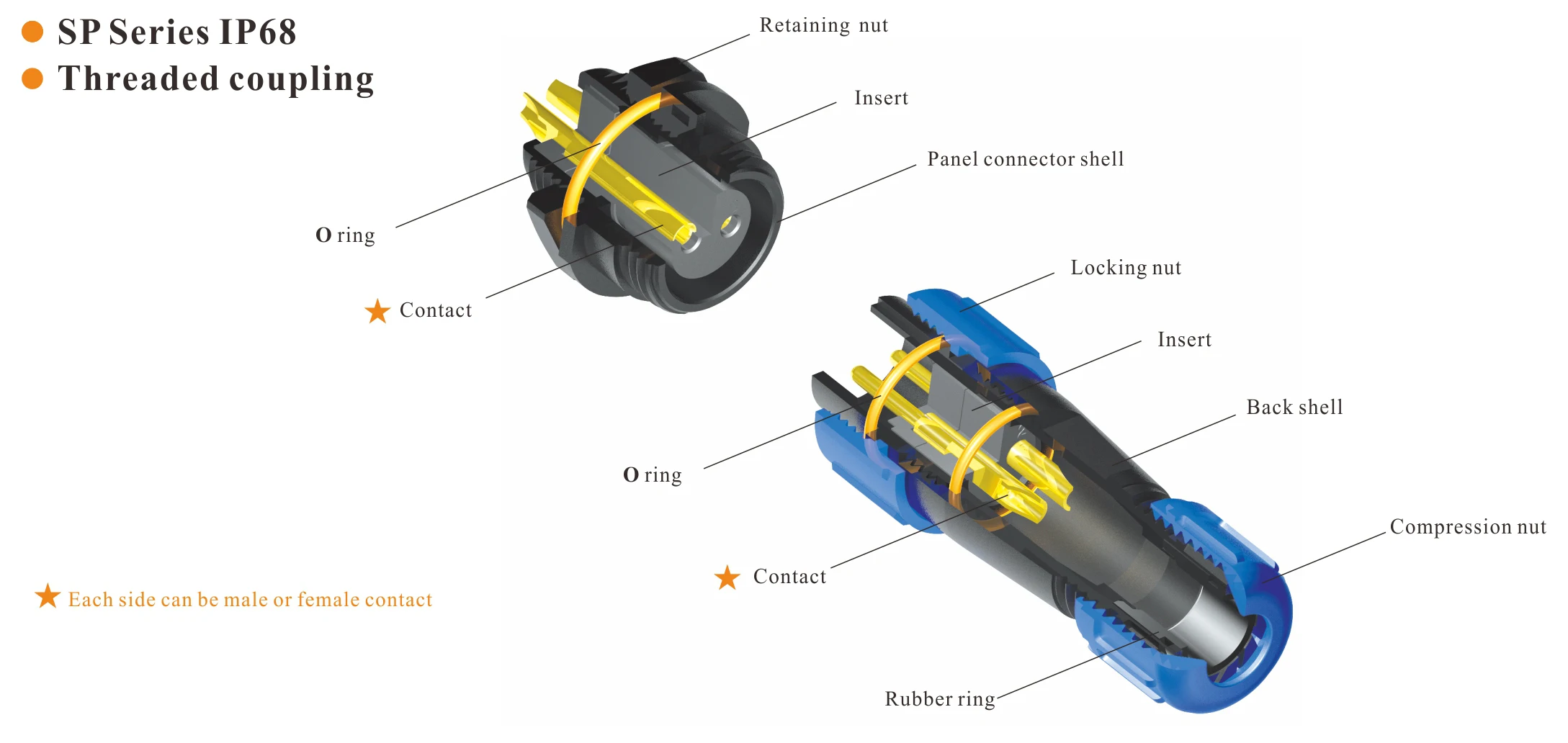

SP21 Series with multi-core(2-15 core) design to fit with different industrial needs within below key features:
△The shell is made of PC Nylon66, compressive, anti-explosive and anti-deformation properties.
△Gold-plated contacts, high-strength corrosion resistance and electrical conductivity,can electively cope with changes in temperature rise that caused by current;
△Threaded is easy to operate and easy to install;
△Current rating: 5A/10A/15A/20A/25A/30A
△The product is IP68 rated in the connected condition.

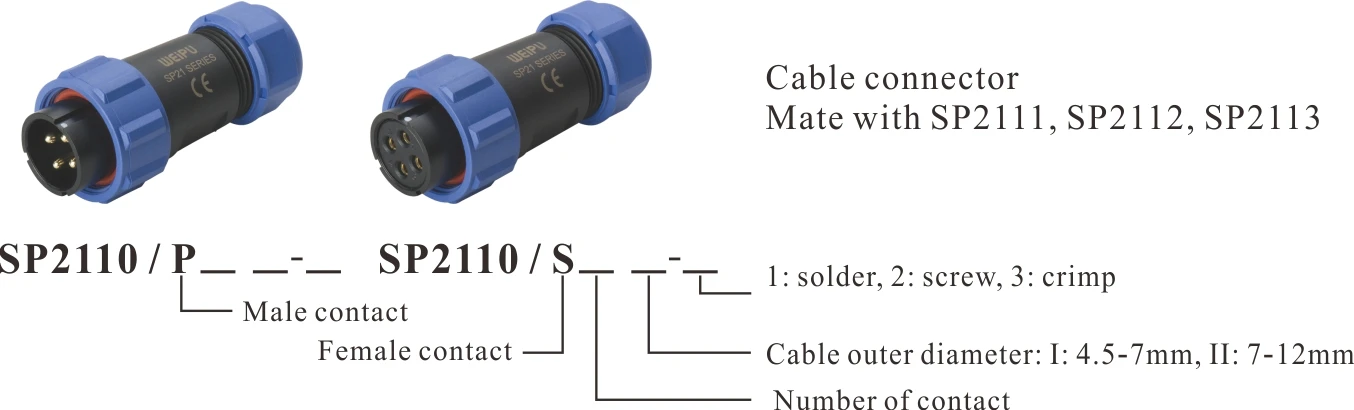

Model No.
SP2110/P(S)
Product name
SP29 Cable connector
Coupling
Threaded
Shell material
PC, Nylon66, fire resistance: V-0
Insert material
PPS, max temperature 260℃
Contact material
Brass with gold plating
Termination
Solder
IP rating
IP67
Mating cycle
500
Temperature range
-40℃~+85℃
Insulation resistance
2000MΩ

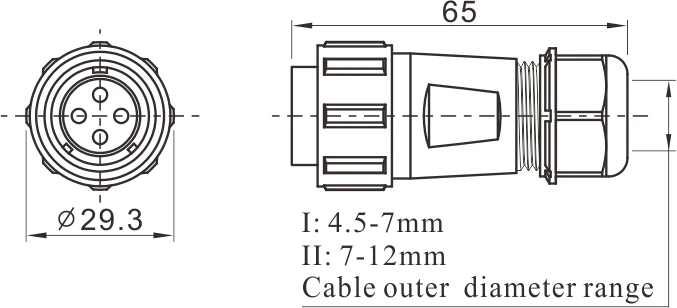

Contact spec
Production Process
Application scenarios
Application scenarios
The machine with good efficiency is base on the effectively stable running. The connectors produced by WEIPU can work effectively and stably even under extreme conditions.
The products of WEIPU refer to rail transit, new energy vehicles, industrial automation, energy, photovoltaics, stage lighting, exhibitions, 3C products, medical, agriculture and other fields.
Related Products
Our Company
Guangzhou Weipu Mechanical And Electrical Co., Ltd.
WEPU was established in 1996 specializes in producing the industrial connector devices to ensure safe and reliable power supply solution.
We are the member of"Naional Electrical Appliances Standardization Technical Committees and one of the members to draft the national standard for industrial connectors GB/T11918-2014.
Weipu has strong R& D capacity, can develop various connectors according to customers' special request.
As a leader with 24 years of experience in the connector industry, we consistently pursue high quality and develop new products to meet the needs of our customers from different industries.
FAQ
Q1. Are you a manufacturer or trading company?
Weipu:We are a professional manufacturer of waterproof connectors with our own factory and Marketing Department.
Q2. What is the lead time?
Weipu:Normally speaking, it asks for 5-20 days for mass production except during observed holidays.
Q3.What certification do you have?
Weipu:he electrical connector have got CE Rohs2.0 certification for our products.
Q4: Where is the Distribution of product's industrial base?
Weipu:Zhongshan, Guangdong, China
Q5.Where can be used this kind of connector
Weipu:Weipu Industrial connector now widely used in the fields of measurement,medical,audio-video,military,navigation,security,aviation,industrial control,automo-tive and power etc.
