1U 12port Intelligent Power Distribution Unit Metered Rack PDU for KVM console switch
- Category: >>>
- Supplier: Ningbo Aze Imp & Exp Co. Ltd.
Share on (1600100412294):
Product Overview
Description
1U 12port Intelligent Power Distribution Unit Metered Rack PDU for KVM console switch
AZE Intelligent Rack Power Distribution Unit (PDU) is a kind of power distribution sockets product designed for rack-mounted electrical equipments,it has various series of specifications with different functions, installation options and plug combinations and can provide a suitable rack power distribution solutions for different power environment.Using power distribution inside the cabinet can make more tidy, reliable, safe, professional and to maintain the cabinet's power is more convenient and reliable.
- Rack-Mountable
- 0U,1U,2U Available
- Remote Individual Outlet Control
- Metering-by-Outlet capability
- Alarm Thresholds
- Network Management Capabilities
- Wide range of input and output connections
AZE Metered-by-outlet with switching Rack Power Distribution Units (PDUs) provide real-time remote monitoring of each individual outlet combined with remote on/off switching control of individual outlets to provide IT professionals the necessary tools for advanced data center energy management.

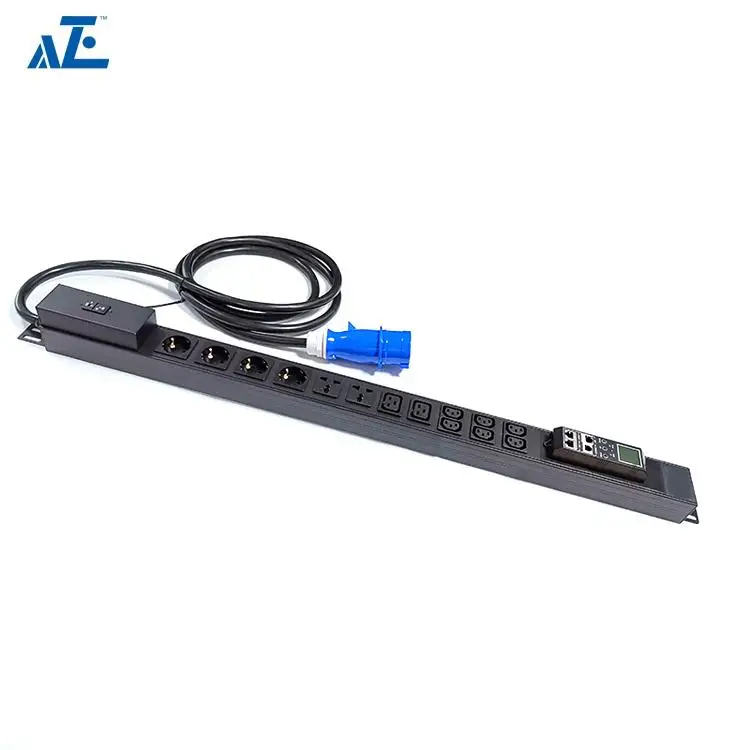

0U Vertical Intelligent Rack PDU, 1 Phase,Input Metered, 32A, (6) C13 Outlet , (2) C19 Outlet, (2) Universal Outlet and (4) Germany Outlet, 2 Meter Power Cord with IEC60309 Industry Plug,with branch circuit breaker (x1)
| Technical Specifications | |
| Model | RPMEV13-06C1302C1902UN04GER-CB |
| Physical Characteristics | |
| PDU Mounting Option | Mounting Bracket or Tool-less Mounting Button |
| Mounting Length/Direction | 0U, Vertical |
| Housing Case,Color | Aluminum Alloy,Black |
| Plastic Flame Retardant Rating | UL94V-0 Grade |
| Input Parameters | |
| Rated Input Voltage | 380/415VAC, 50/60Hz |
| Power Cable | 5*6 mm²x 3M |
| Plug Style | IEC60309 Industrial Type |
| Max.Input Current | 32A |
| Output Parameters | |
| Socket Style | IEC320 C13 + IEC320 C19 + GB2099.3 + DIN49440 |
| Output Socket Quantity | 6 + 2 + 2 + 4 |
| Rated Output Voltage | 380/415VAC |
| Max. Output Current | 32A |
| Max. Output Power | 21000W |
| Functional Modules | |
| Control | Input Metered |
| Protection | Branch Circuit Breaker |
| Testing Items & Certifications | |
| Hi-Pot Test | Pass |
| Ground Bond Test | Pass |
| IR Test | Pass |
| Certifications | CE |
| Approval | RoHS |
| What's Included | |
| 1,PDU x 1pc ; 2,Mounting Hardware | |
| Model | Description |
| RPMEV13-36C1306C19-CBX2 | 0U Vertical Intelligent Rack PDU, 1 Phase,Input Metered, 32A, (36) C13 Outlet and (6) C19 Outlet |
| RPMEV33-24C1312C19-P2X3 | 0U Vertical Intelligent Rack PDU, 3 Phase,Input Metered, 32A, (24) C13 Outlet and (12) C19 Outlet |
| RPMEV13-06C1302C1902UN04GER-CB | 0U Vertical Intelligent Rack PDU, 1 Phase,Input Metered, 32A, (6) C13 Outlet , (2) C19 Outlet, (2) Universal Outlet and (4) Germany Outlet |
| RPMEV13-16GER | 0U Vertical Intelligent Rack PDU, 1 Phase,Input Metered, 32A, (16) Germany Outlet |
| RPMEV33-30C1303C19 | 0U Vertical Intelligent Rack PDU, 3 Phase,Input Metered, 32A, (30) C13 Outlet and (3) C19 Outlet |
| RPMEV11-21C19 | 0U Vertical Intelligent Rack PDU, 1 Phase,Input Metered, 16A, (21) C19 Outlet |
| RPMEV11-18GER | 0U Vertical Intelligent Rack PDU, 1 Phase,Input Metered, 16A, (18) Germany Outlet |
| RPMEH11-08C13-CB | 1U Horizontal Intelligent Rack PDU, Input Metered, 10A, (8) C13 Outlet |
