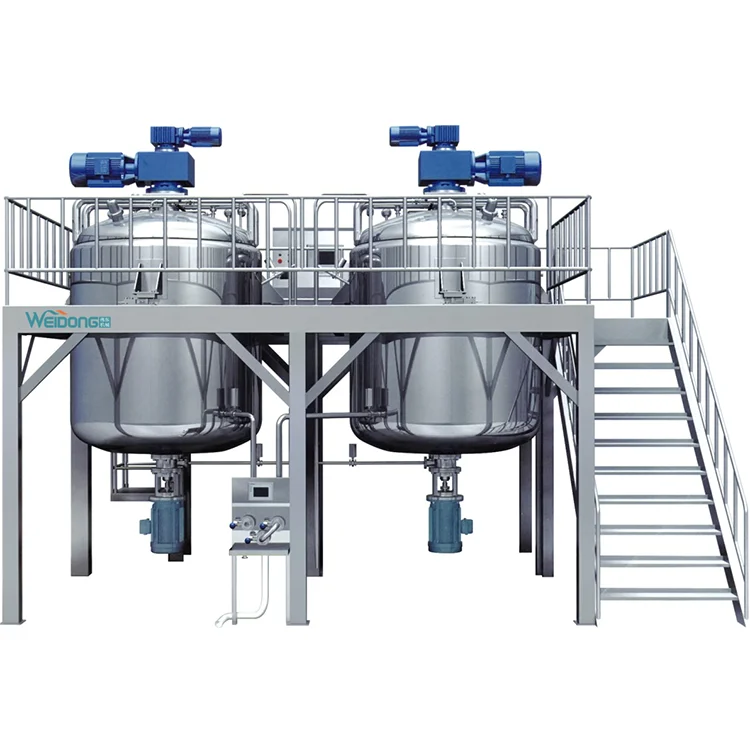

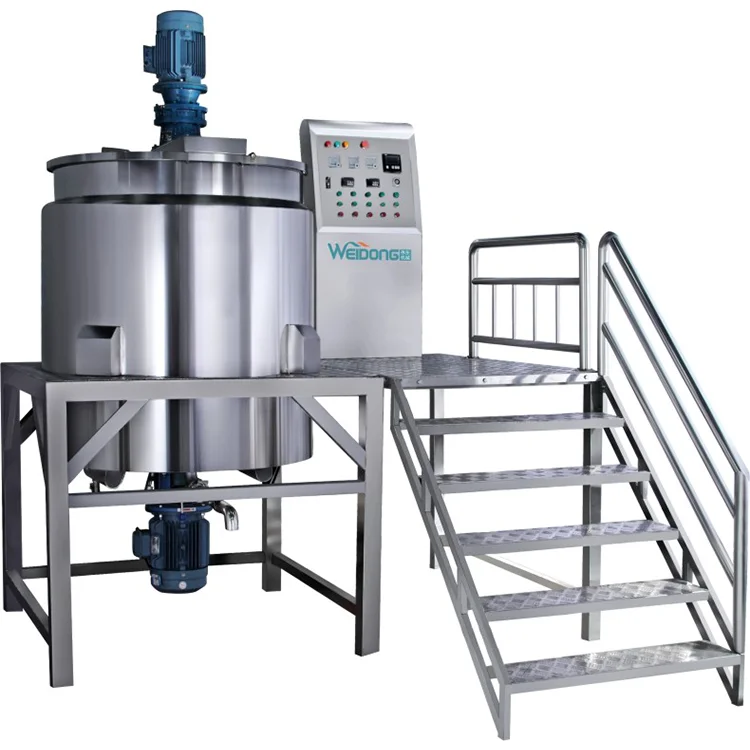

Liquid Soap Mixer Liquid Detergent Mixing Tank

Product Overview

Description

Features and Advantages

1: Blending system adopts single-direction or double-direction wall scraping blending to satisfy different technological requirement
2: Frequency conversion speed adjustment.
3:Material can be heated or cooled according to your formula.(technological requirements)
4: Electric heating or steam heating
5: Various forms of blending vanes are suitable for production of different types of products.
6: Made of imported SUS304 or SUS316L stainless steel. The tank body and pipe are subjected to mirror polishing

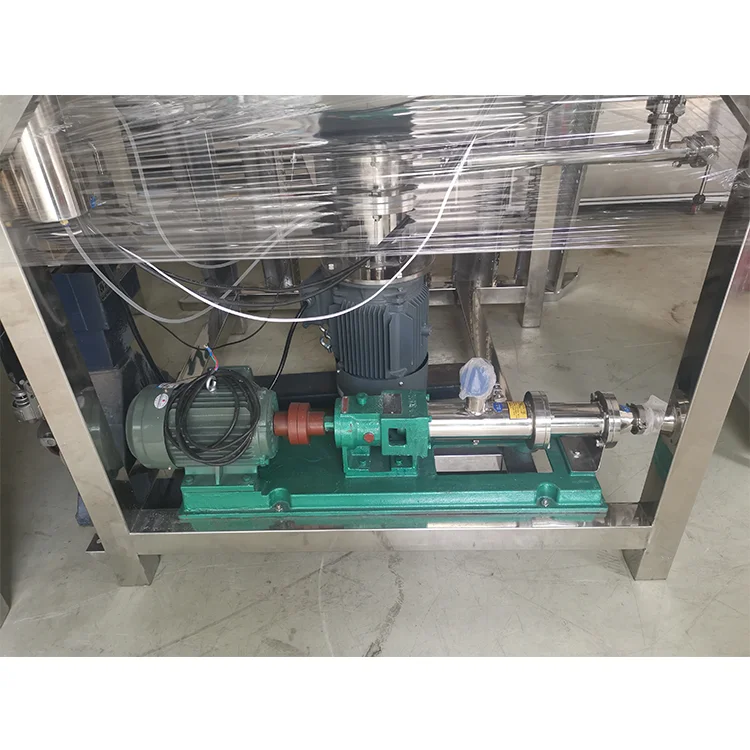

7: Bottom installation type dispersing head and FLUKO pipeline type emulsifying head are optional to speed up dissolution and emulsification of materials.
8: The stainless steel electric control cabinet can completely supervise the operation of equipment, and display such data as temperature and blending rotation speed, etc
9: High-speed disperse (homogenizer) strongly mixed decentralized thick, solid, liquid.

10:50L,100L,150L,200L,300L,400L,500L,600L,1000L,1500L,2000L,3000L,5000L,10T etc, can be customized.



Introduction

1	Products name	Liquid washing machine
2	Inner layer	Thickness:5 mm	SUS 316L, mirror polishing
3	Middle layer	Thickness:5mm	SUS304
4	Outer layer	Thickness:3 mm (Insulation: Aluminum Silicate Fiber Cotton )	SUS 304, mirror polishing
5	Heating type	steam heating Tap water cooling
6	Sealing process	Double metal water circulation seal	Germany Berkman
7	Mixing type	anchor type mixer with PTFE Scraper	Paddle: SUS316L Scraper: PTFE
8	Mixing power	5.5kw	ABB motor
9	Mixing speed	0-63 rpm

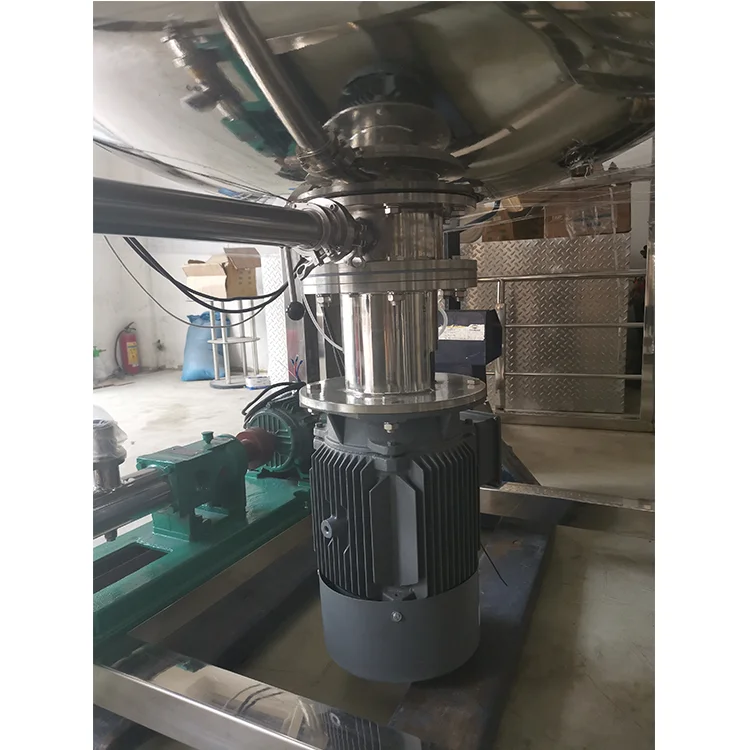

10	Homogenizing mode	Bottom homogenizing
11	Thickness of high shear head	8mm
12	Homogenizing motor	11 kw	Panasonic inverter, ABB motor
13	Homogenizing speed	3000 rpm
14	Type of opening	Lift type
15	Discharging method	Bottom valve discharging
16	Temperature display	Digital mode
17	Working pressure	≤0.4Mpa



Technical parameter



Model	Capacity(L)	mixing power(kw)	Mixing Speed(r/min)	Homogenizing power(kw)	Homogenizing speed(r/min)	Heating method
WD-200	200	0.75	0-65	2.2-4	3000	Steam Heating or Electric Heating (optional)
WD-300	300	0.75	0-65	2.2-4	3000
WD-500	500	2.2.	0-65	5.5-7.5	3000
WD-1000	1000	4	0-65	7.5-11	3000
WD-2000	2000	5.5	0-53	11-15	3000
WD-3200	3000	7.5	0-53	18	3000
WD-5000	5000	11	0-42	22	3000
