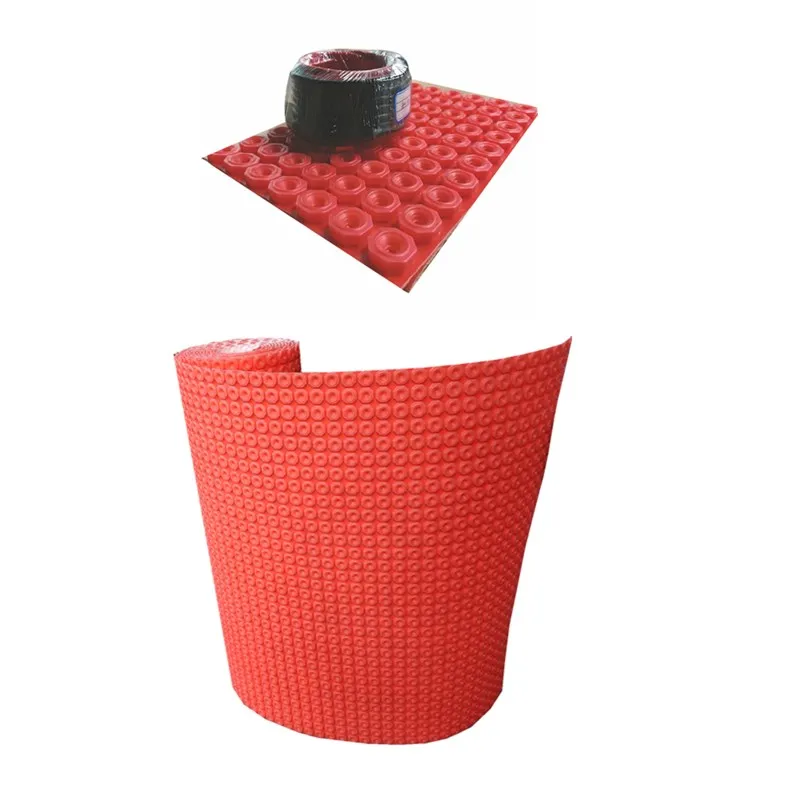

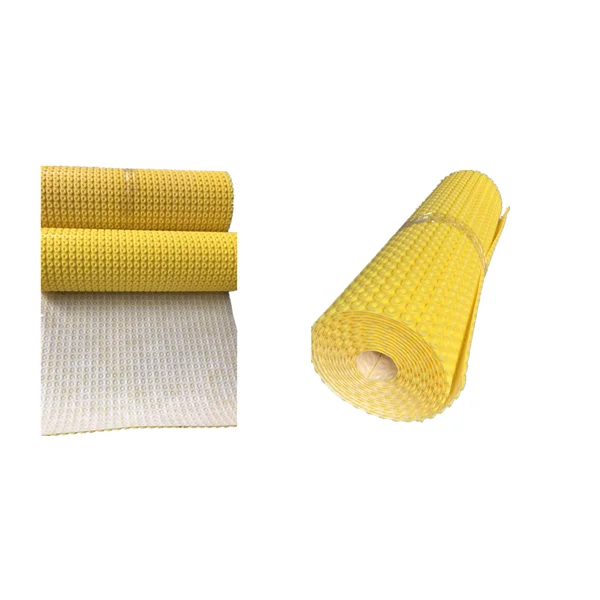

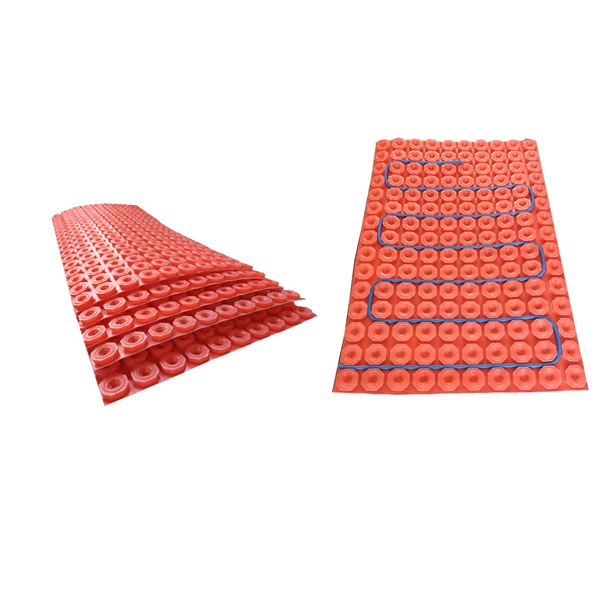

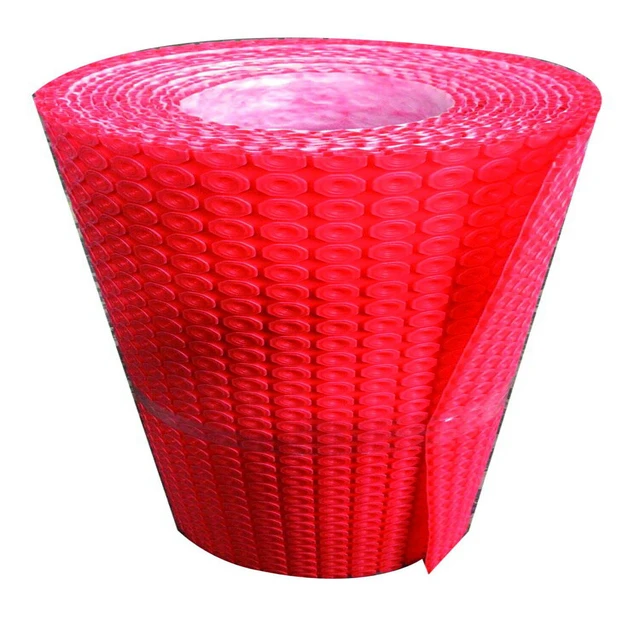

Product Description | Floor Heating membrane |
Material | polyethylene(PE)film; polypropylene (PP) nonwoven (Material:HDPE membrane+pp textile) |
Roll Size | 1mx10m ;1mx5m |
Weight | 1000g/sqm |
Thickness | 5.6mm |
Film thick: | 0.45mm |

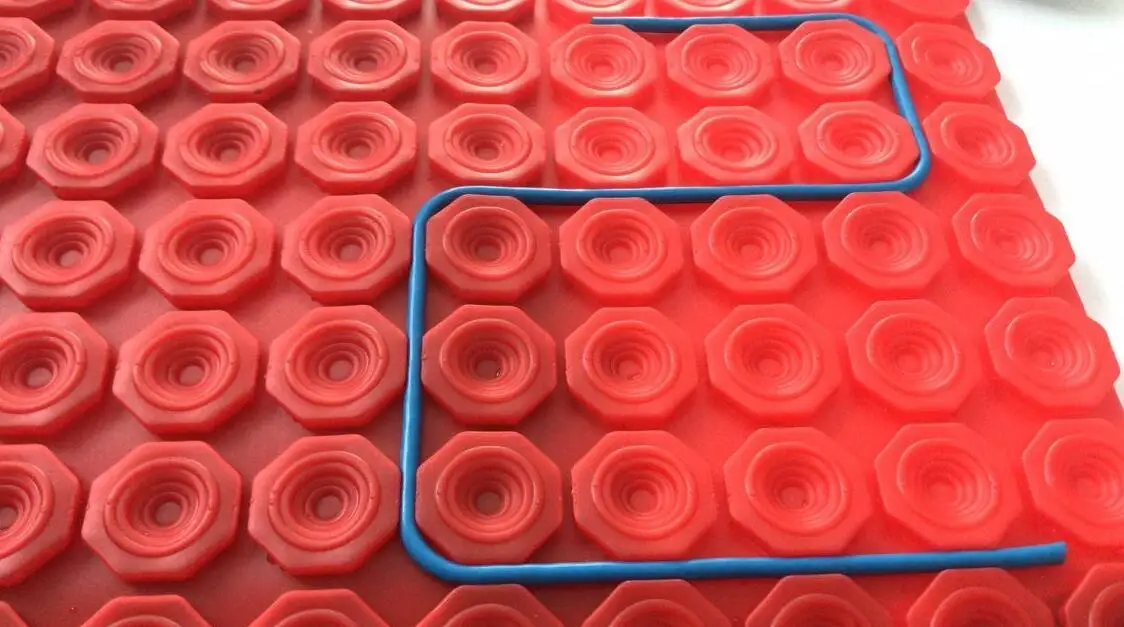

Wire cable diameter | 3.8mm ,4.0mm,4.2m,4.5mm |
Packing | wrapped in plastic film |

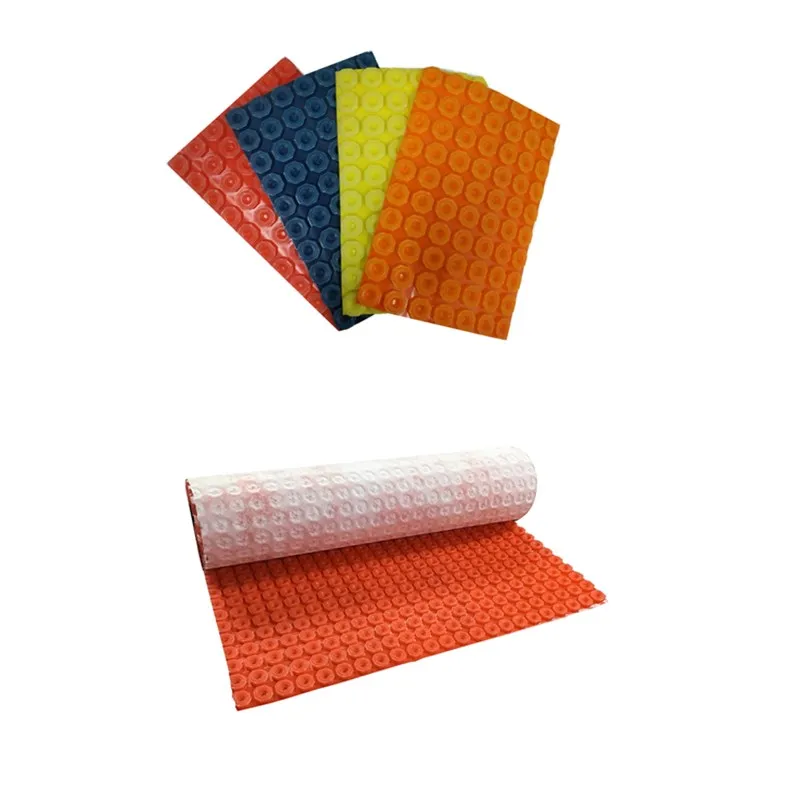

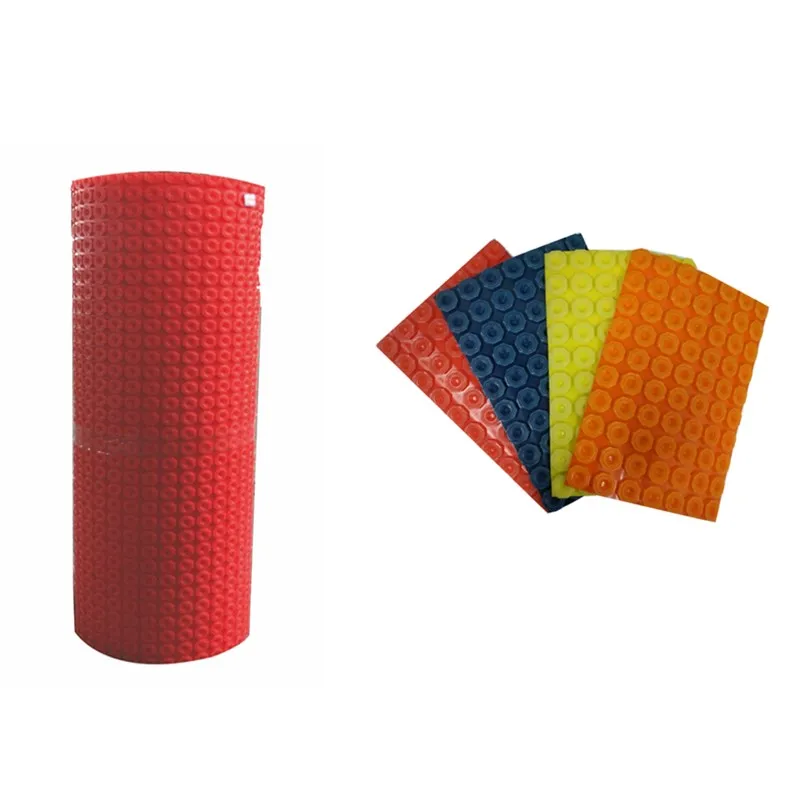

Color | Red, Green, Orange, blue or others |
Data Sheet: USA orange Underfloor Heating Membrane with cable | ||||||
Waterproof Membrane for Thin-set Ceramic Tile and Dimension Stone Installation complying with ANSI108.10 of USA. | ||||||
Property | Test method | Requirement | Performance | |||
Fungus and micro-organism resistance | The membrane shall not support mold growth | Pass | ||||
Seam strength | ASTM D751 | 16 lb/2 in width | 36 lb/2 in width | |||
Breaking strength | ASTM D751 | 170 psi | 1084 psi | |||
Dimensional stability | ASTM D1204 | 0.7% maximum length change | Pass | |||
Waterproofness | ASTM D4068 | No moisture penetration | Pass | |||
7-day shear strength | ASTM C482 | 50 psi | 87 psi | |||
7-day water immersion shear strength | ASTM C482 | 50 psi | 77 psi | |||
4-week shear strength | ASTM C482 | 50 psi | 96 psi | |||
12-week shear strength | ASTM C482 | 50 psi | 90 psi | |||
100-day water immersion shear strength | ASTM C482 | 50 psi | 120 psi | |||
Water vapor permeance | ASTM E96 | 0.75 perms | ||||
