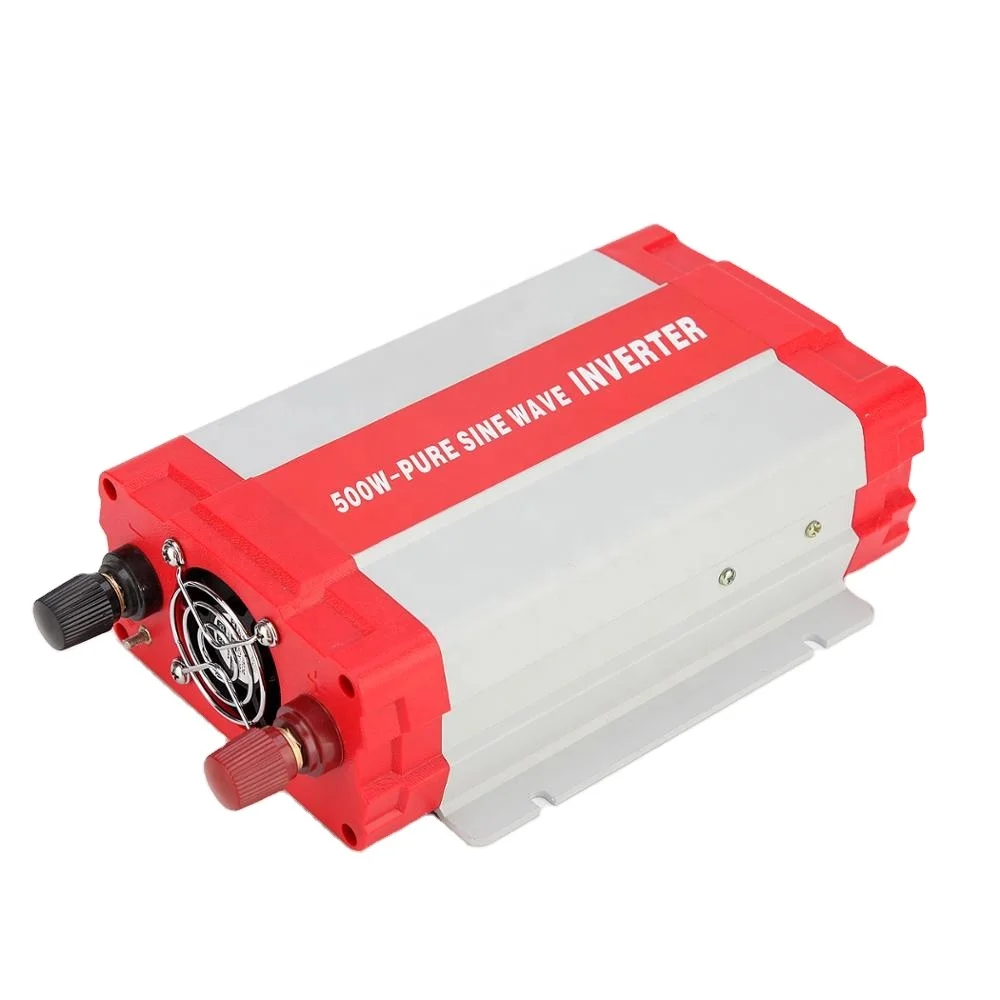

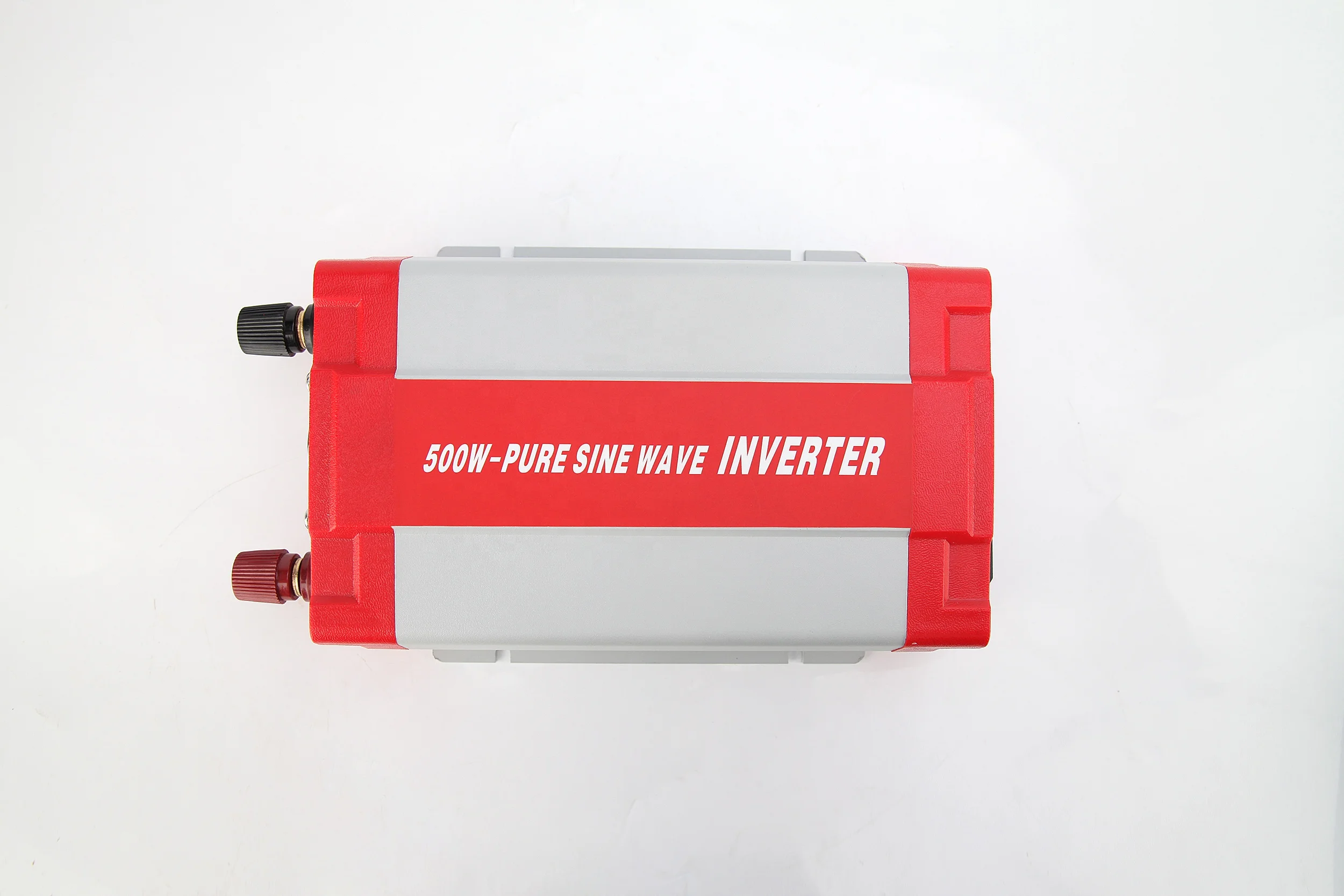

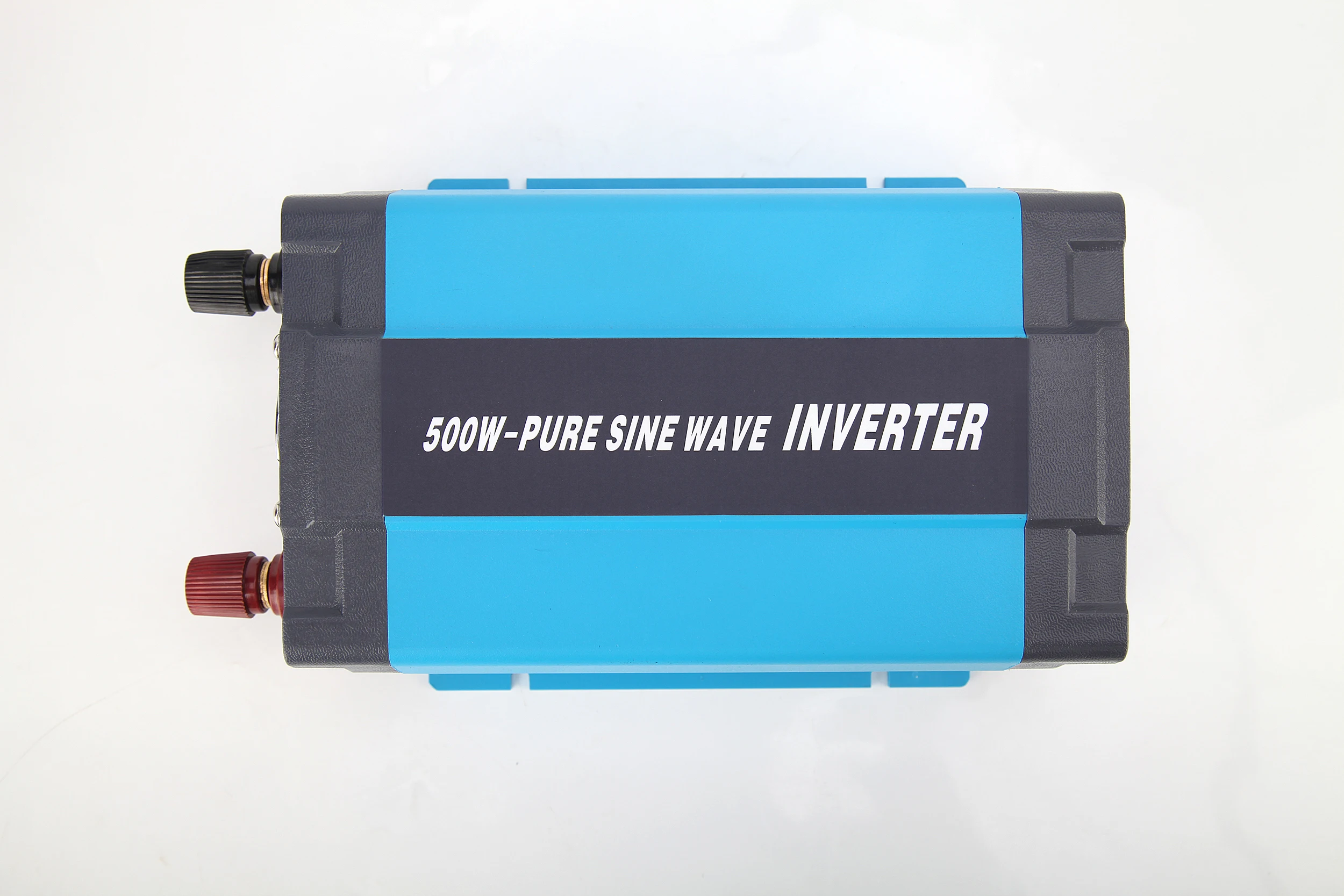

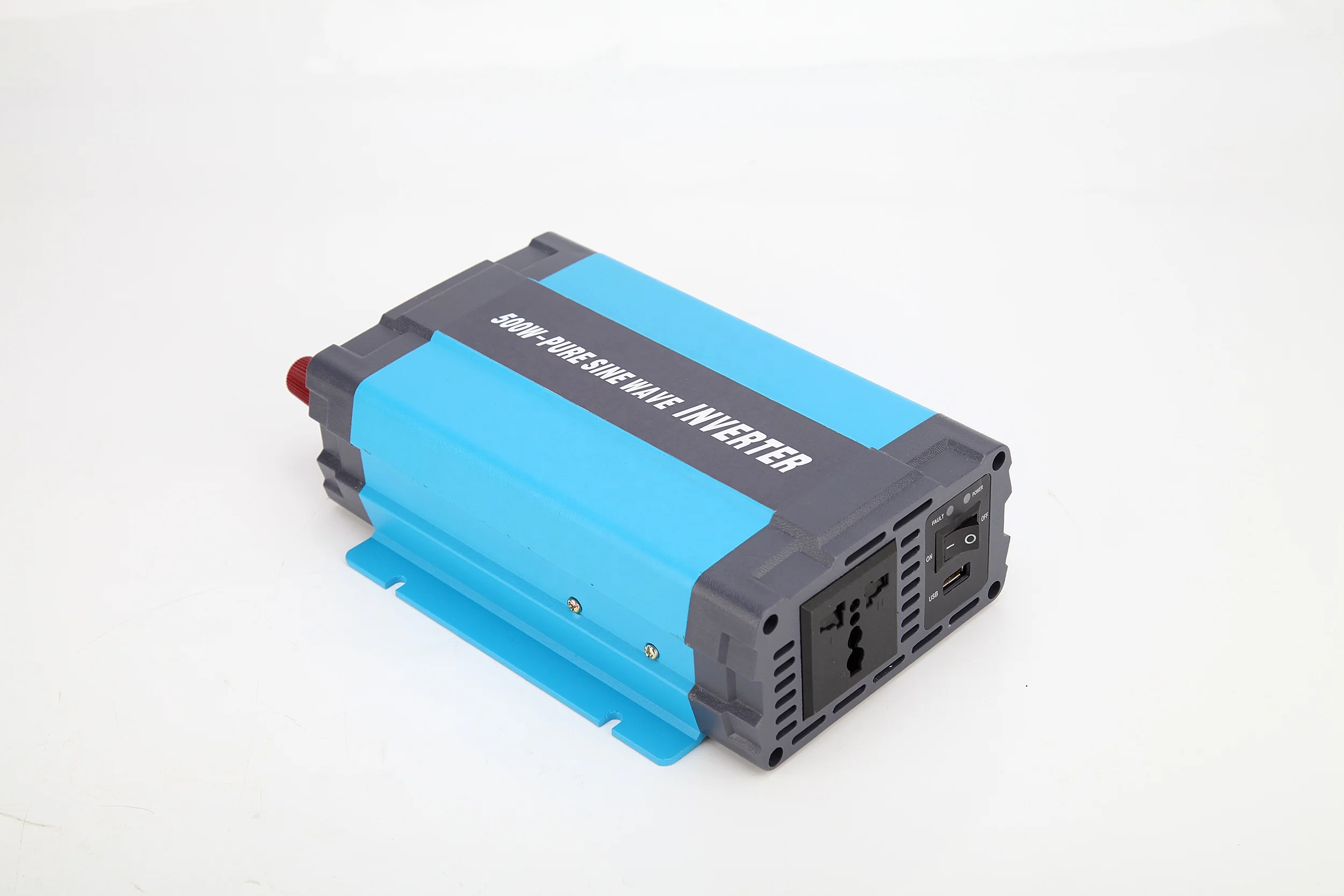

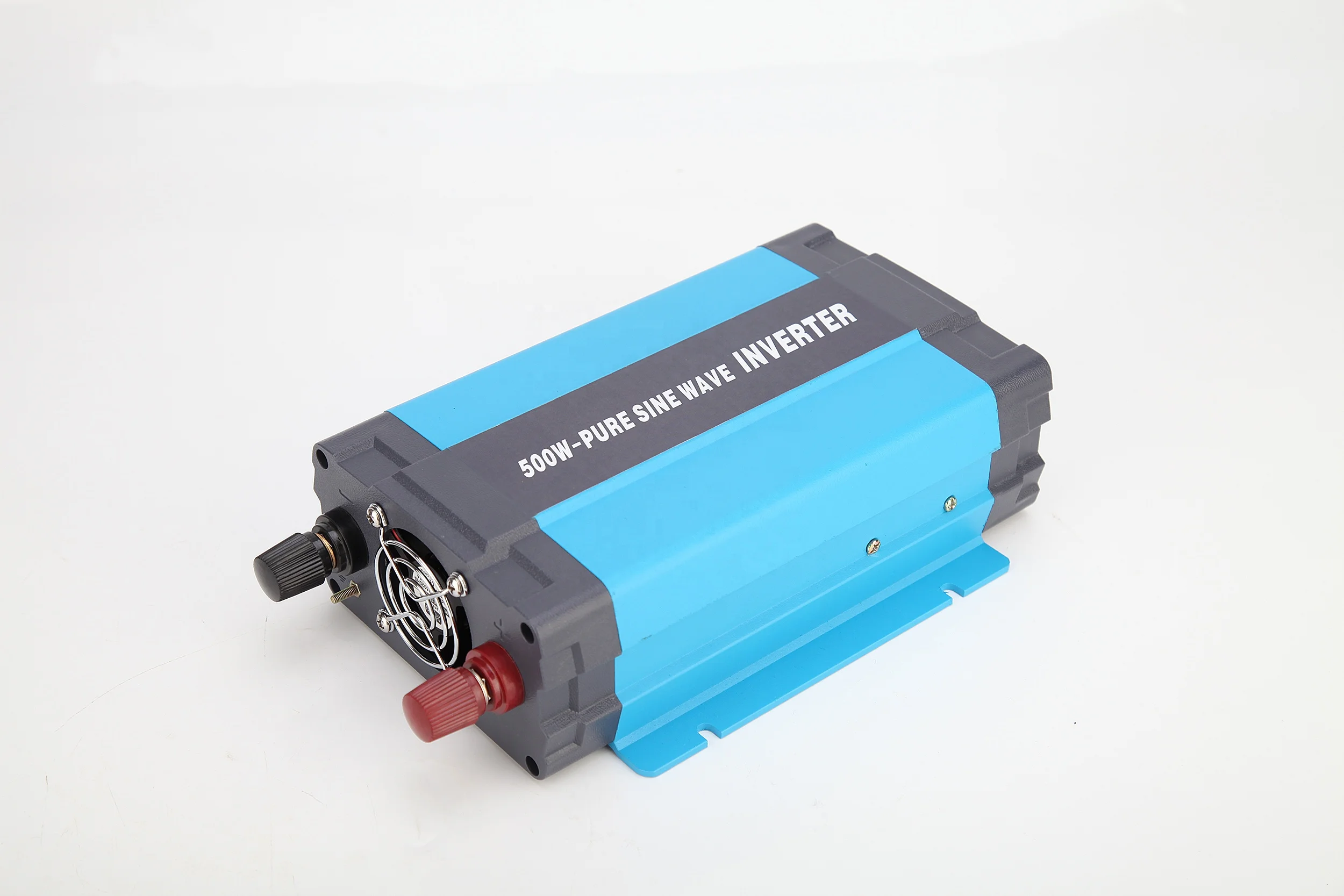

Higher efficiency off grid solar inverter 500W pure sine wave off grid inverter dc 12V,24V, 48V 96V 110V to ac 110V 220V
- Category: >>>
- Supplier: Raygleam New Energy Technologies Co. Ltd.
Share on (1600100596641):
Product Overview
Description
Product Description
CZ-P series is a kind of pure sine wave inverter which can convert. 12/24/48V/96V/110VDC to 220/230VAC(or 110/120VAC). Industrial design, compared with the civil design, has a wider operating temperature, easy installation and operation. The wide input voltage range is ideal for solar system application. The inverter can be applied in many fields, such as household emergency lighting system, vehicle mounted system and small field power supply etc.
Key Features
★ Safe design with input and output electrical isolation
★ Adopt advanced CPU intelligent control
★ Optional output voltage 220/230VAC(or 110/120VAC), choosing by DIP switch
★ LED indicators for fault status and working status Lower No-load consumption
★ Max. efficiency up to 93%
★ Input protection: Over voltage protection, low voltage protection
★ Output protection: Over load protection, short circuit protection

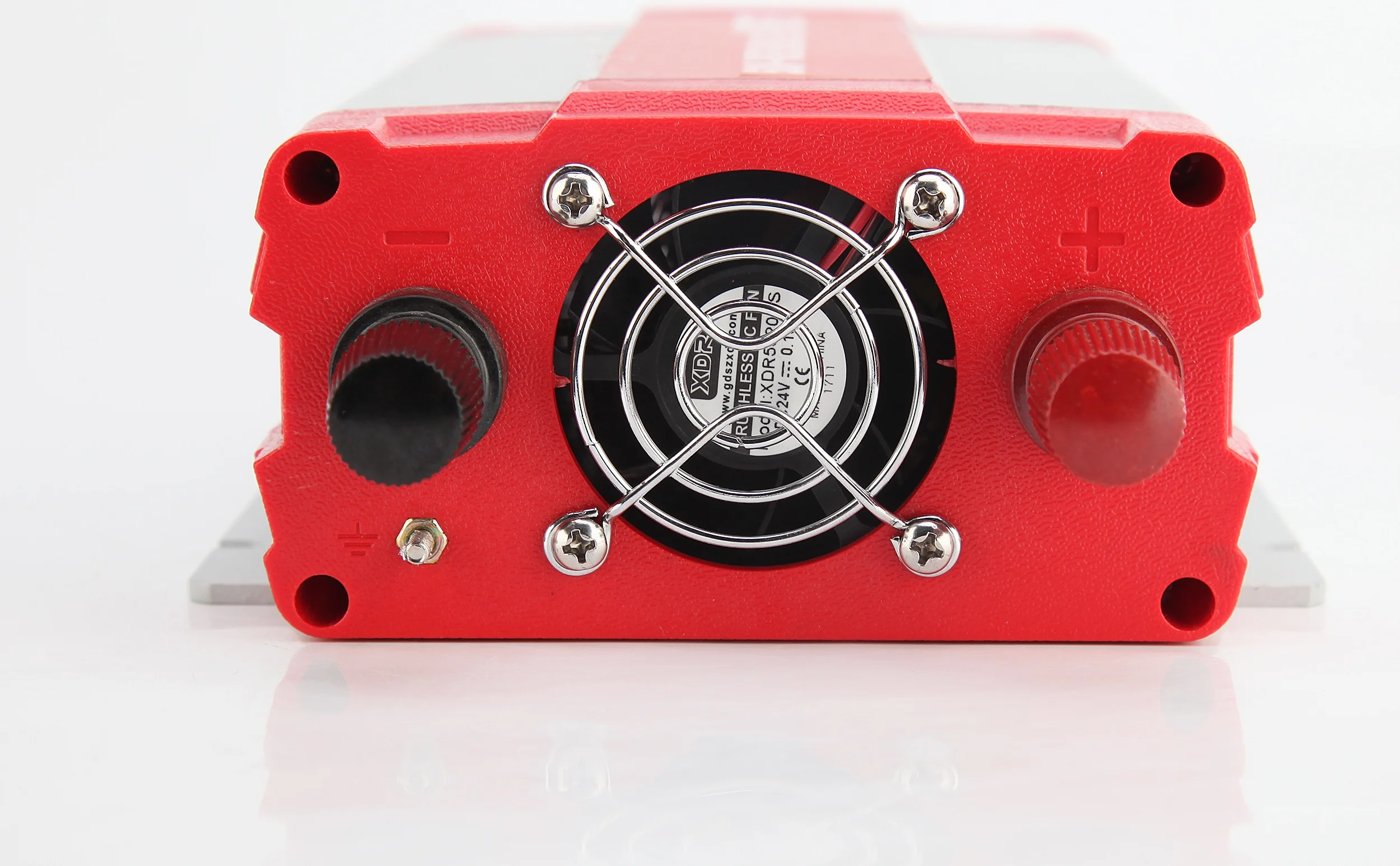

★ Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when overheating
Specification
Model | CZ-500P | ||||||||||
Input | DC voltage | 12V | 24V | 48V | 96V | 110V | |||||
Voltage range | 10-15.5VDC | 20-30VDC | 40-60VDC | 80-120VDC | 90-135VDC | ||||||
No load current draw | 0.58A | 0.35A | 0.18A | 0.1 | 0.1 | ||||||
Efficiency | > 90% | ||||||||||
DC connection | Cables With Clips or Car Adaptor | ||||||||||
Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | |||||||||
Continuous power | 500W | ||||||||||
Surge power | 1000W | ||||||||||
Waveform | Pure sine wave | ||||||||||
Frequency | 50Hz or 60Hz | ||||||||||
AC regulation | 3% | ||||||||||
Protection | Low voltage alarm | 10.5DC±0.5V | 21DC±0.5V | 42VDC±1V | 84DC±2V | 96VDC±2V | |||||
Low voltage shut down | 10DC±0.5V | 20DC±0.5V | 40VDC±1V | 80DC±2V | 90VDC±2V | ||||||
Short circuit | Shut off output automatically | ||||||||||
Over load | Shut off output | ||||||||||
Over voltage shut down | 15.5±1V | 30±1V | 60±2V | 120±3V | 135±3V | ||||||
Over thermal | Shut off output automatically | ||||||||||
Environment | Working temperature | -10℃ and +50℃ | |||||||||
Working humidity | 20%～90%RH | ||||||||||
Storage temperature | -30℃ ～ +70℃ | ||||||||||
Package | Machine size(L*W*H)mm | 230*142.2*65 | |||||||||
Net weight (KG) | 1.01 | ||||||||||
Gross weight (KG) | 1.28 | ||||||||||
Packing size (mm) | 280*170*110 | ||||||||||
Product Details

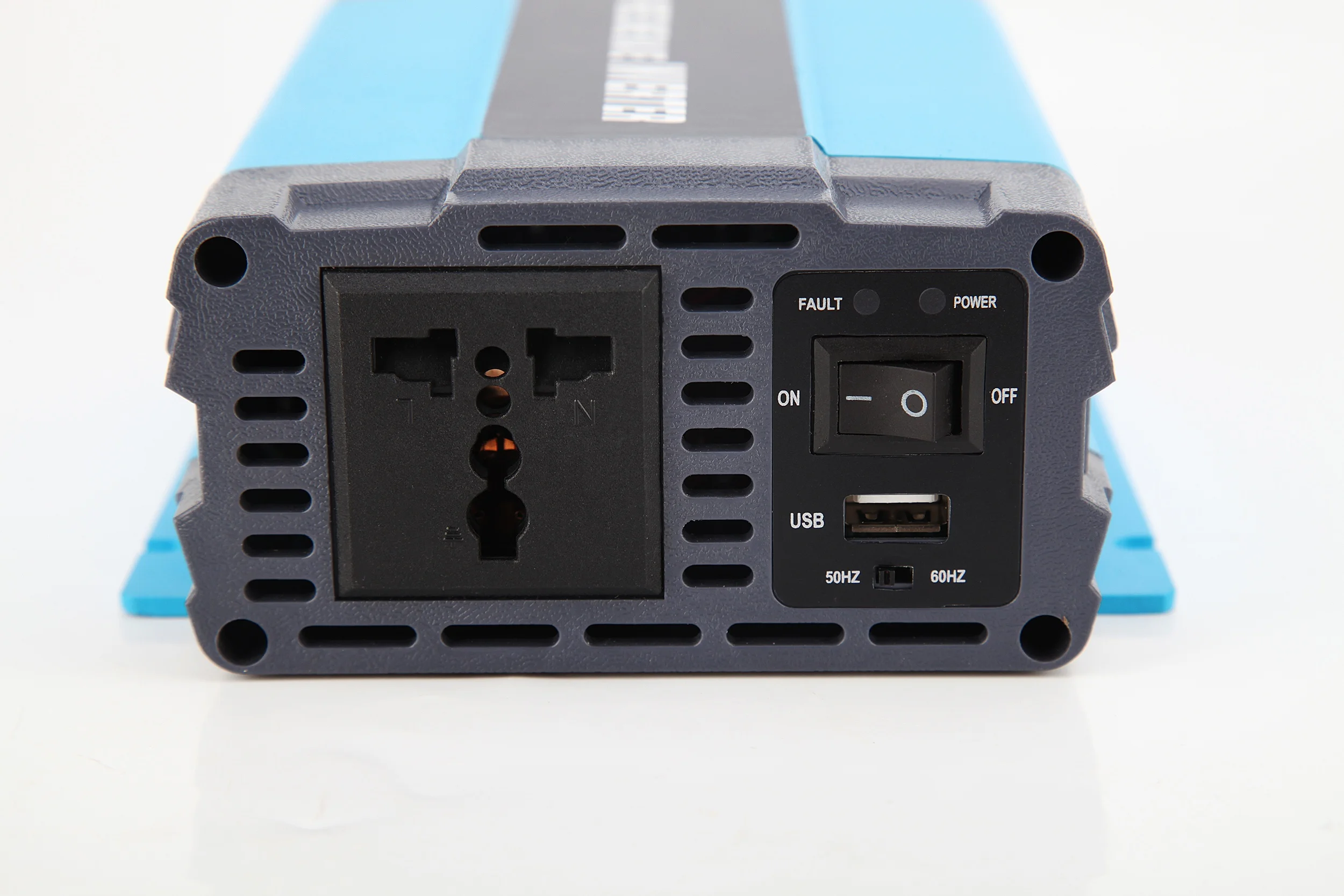

OPTIONAL OUTLET
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
