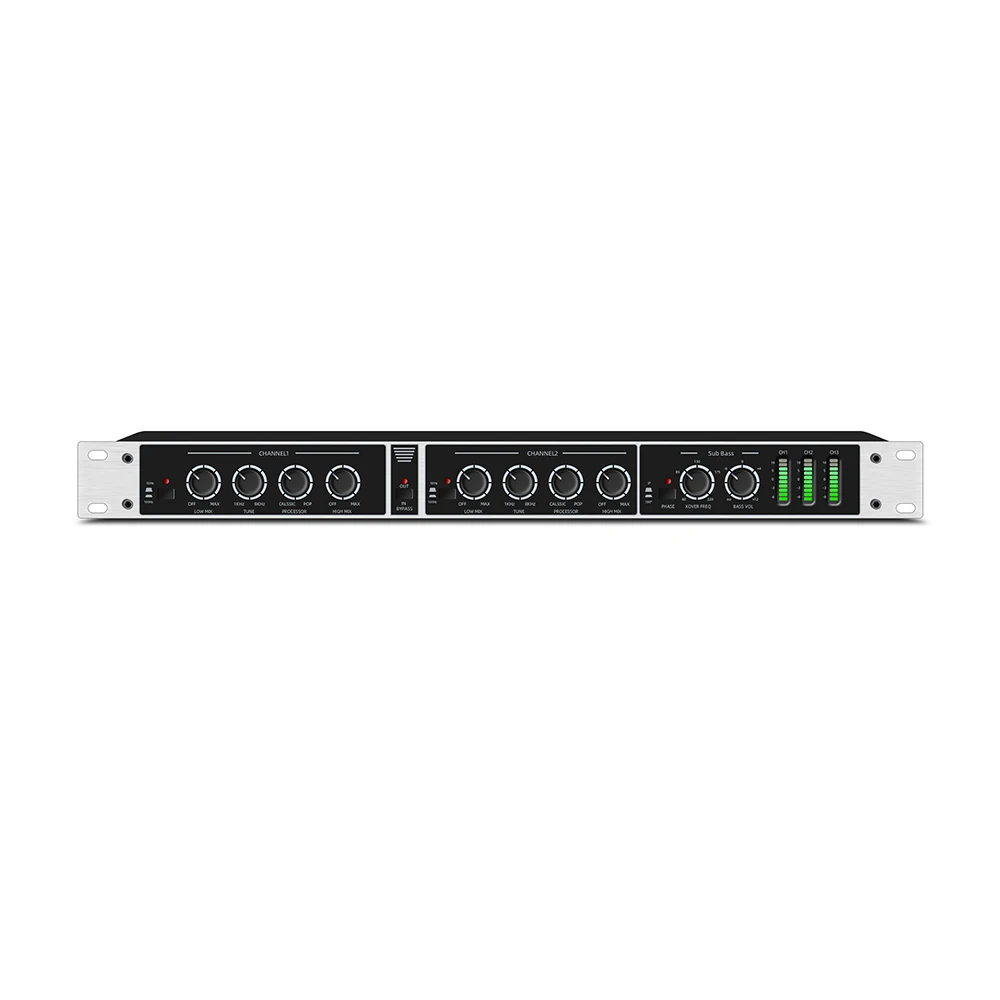

X12 Plus KTV processor karaoke digital audio processor with led light
- Category: >>>
- Supplier: Enping Saiyang Audio Equipment Factory
Share on (1600100634853):
Product Overview
Description
Product Description
Product Name | Audio processor |
Color | Black |
Function | Easy |
Use | KTV |
Product performance description:
X12-PLUS Technical parameters:
3 sets of output are equipped with 3 sets of spectrum jump indicators.

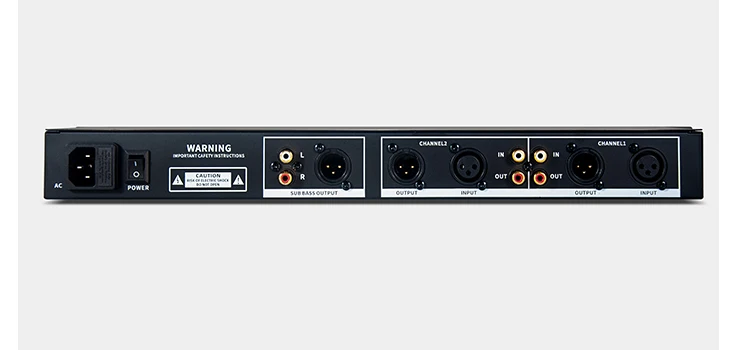

Each channel corresponds to the input and output, the input uses a new multi-function socket, including (CANNON) XLR and RCA lotus connectors
Type： RF filter,servo-balanced input
Input impedance： 40kΩ balance
Norminal operating： 40dB to -2dB
Maximum input ： +20 dBu unbalance
OUTPUT
Type： DC-decoupled balance output stage
Output impedance： 40Ω balance
Maximum output： +20 dBu unbalance
Bandwidth： 10Hz-50kHz (+0.-dB)
Total harmonic distortion(+4 dBu)： 0.005%
MONO BASS OUTPUT
Type： DC-decoupled balance output stage
Output impedance ： 40Ω balance
Maximum output ： +20 dBu unbalance
Bandwidth ： 10Hz 250Hz(+0,-1 dB)
Total harmonic distortion(+4 dBu) ： 0.005%
LOW BAND PROCESSOR
Shift switch ： change 50Hz or 100Hz
Low mix ：variable from off to max
HIGH BAND PROCESSOR
Turn： variable from 1 kHz to 8kHz
Prosess variable from classic (heavy) to pop (thin)
High mix： variable from offto max
MONO LOW-FREQUENCY SIGNAL PROCESSOR
Phase switch ： change 0° or 180°
Xover frequency： variable from 100Hz to 250 Hz
Output ： variable from-zto+ 12dB
POWER SUPPLY
Main voltage: :AC 220V 50-60Hz
Power comsumption :10W
3 sets of output are equipped with 3 sets of spectrum jump indicators.
Each channel corresponds to the input and output, the input uses a new multi-function socket, including (CANNON) XLR and RCA lotus connectors
Type： RF filter,servo-balanced input
Input impedance： 40kΩ balance
Norminal operating： 40dB to -2dB
Maximum input ： +20 dBu unbalance
OUTPUT
Type： DC-decoupled balance output stage
Output impedance： 40Ω balance
Maximum output： +20 dBu unbalance
Bandwidth： 10Hz-50kHz (+0.-dB)
Total harmonic distortion(+4 dBu)： 0.005%
MONO BASS OUTPUT
Type： DC-decoupled balance output stage
Output impedance ： 40Ω balance
Maximum output ： +20 dBu unbalance
Bandwidth ： 10Hz 250Hz(+0,-1 dB)
Total harmonic distortion(+4 dBu) ： 0.005%
LOW BAND PROCESSOR
Shift switch ： change 50Hz or 100Hz
Low mix ：variable from off to max
HIGH BAND PROCESSOR
Turn： variable from 1 kHz to 8kHz
Prosess variable from classic (heavy) to pop (thin)
High mix： variable from offto max
MONO LOW-FREQUENCY SIGNAL PROCESSOR
Phase switch ： change 0° or 180°
Xover frequency： variable from 100Hz to 250 Hz
Output ： variable from-zto+ 12dB
POWER SUPPLY
Main voltage: :AC 220V 50-60Hz
Power comsumption :10W
