Vertical Telescopic Mast Lighting Tower with Hydraulic Mast 9m
- Category: >>>
- Supplier: Fujian Robust Power Co. Ltd.
Share on (1600100680705):
Product Overview
Description

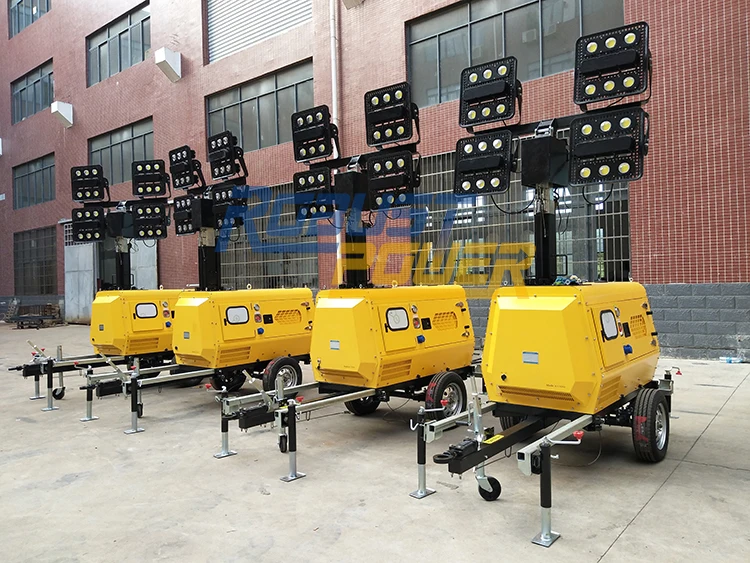

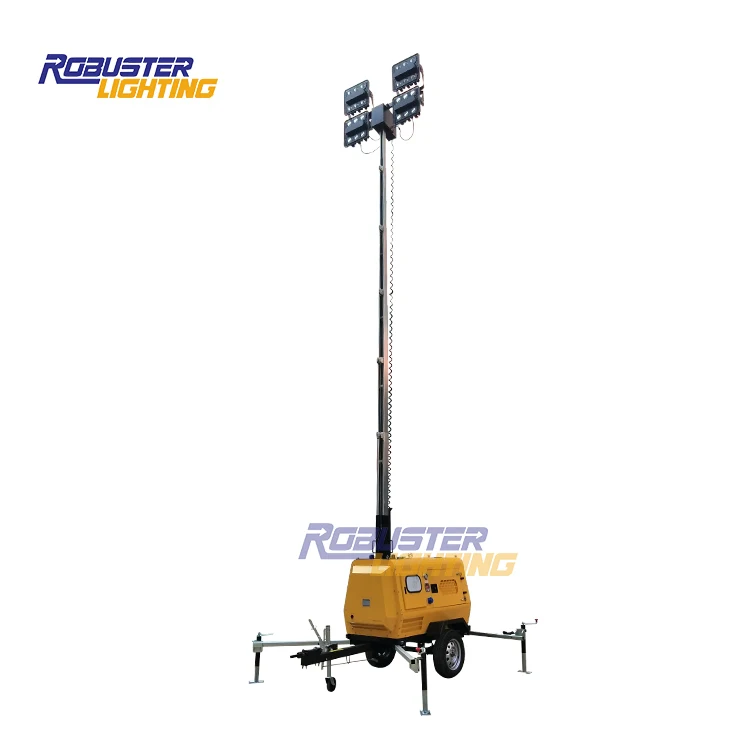

Vertical Telescopic Mast Lighting Tower with Hydraulic Mast 9m
Product Description
Key Features Include:
8m hydraulically operated telescopic mast
360 mast rotation
Available in 4x1000W or 4x1500W metal halide lamps
Galvanized mast and powder coated canopy
Electronic controlled hydraulic system with sustaining valves and hydraulic locks
Fault protection
Heavy-duty, weather-protective enclosure
Fully bunded
Technical Data:
| Light | |
| Housing Material | Aluminium die cast |
| Type of lights | LED Lamp |
| Power of lights | 4*480W LED lamps 4*1000W Metal Halide Lamp |
| Lumen Output | 4*67,200lm/ 4*110,000lm/ 4*150,000lm ( total ) |
| Voltage | AC 110V-240V, DC 48V |
| Frequency | 50/60Hz |
| Longevity | 3 years |
| Waterproof grade | IP65 |
| Color temperature | 2100K-5700K |
| Mast | |
| Material of mast | Galvanized iron |
| Mast lifting type | Hydraulic mast |
| Mast section | 3-section telescopic |
| Mast rotation system | 320° manual operation |
| Max. height of mast | 8.6meters |
| Engine | |
| Engine model | KUBOTA D1105 3 cylinder, in-line, water cooled |
| Start system | Electric (Battery start) |
| Alternator | Sinocox |
| Engine speed | 2200rmp |
| Rated power | 4kW continuous |
| Insulation | H |
| Fuel tank capacity | 100L |
| Fuel consumption | 2.0L/hr |
| Maximum Working Hours | 50H |
| Controller system | Digital control panel |
| Waterproof grade | IP54 |
| Engine shutdown protection | Low oil pressure, over speed, over current, high-temperature detection, low fuel level |
| Trailer | |
| Stabiliser Supports | Optional 4*Manual or 4*Hydraulic |
| Tow Hitch | Ring/ball hitch |
| Tire Size | 13 inch |
| Brakes | Manual |
| Packing | |
| Net weight | 930/890 kg |
| Dimention | 4500X1350X1700 MM |
Factory Catalogue
Robust Power Models:
More Mobile Light Tower Please Click On Our Factory Website
Factory Introduction
Brief Introduction:
Fujian Robust Power Co., Ltd. was established in 2007. During 10 years, with a strong research and development team, strictly quality control system and high manufacturing capability, as well as in-depth knowledge of customer requirements, we become one of the favorite suppliers in the market.
Our main products include Mobile Lighting Tower, Generator Set, LED Light. All steps from raw materials to procurement, production, testing, sales and after-sales service are under a very strict quality monitoring system.
Our Company occupies an area of 23,000 square meters. Have more than 100 staffs. There are 3 advanced production lines in the working shop.
See below what we can offer:
1. Strong R&D team, package, and graphics design.
2. Certifications: ISO9002:2000,CE,SGS,SAA,anti-wind testing,46 patients.
Verified on site by world-leading inspection company, TüV Rheinland.
3. 10 QC staff and a line of advanced testing equipment to further ensure quality.
4. Production capacity: 300 unit products per month.
5. Australia branch: Set up a branch, stock and supply spare parts in Australia in 2004.
6. Responses within 12 hours for all your inquiries.

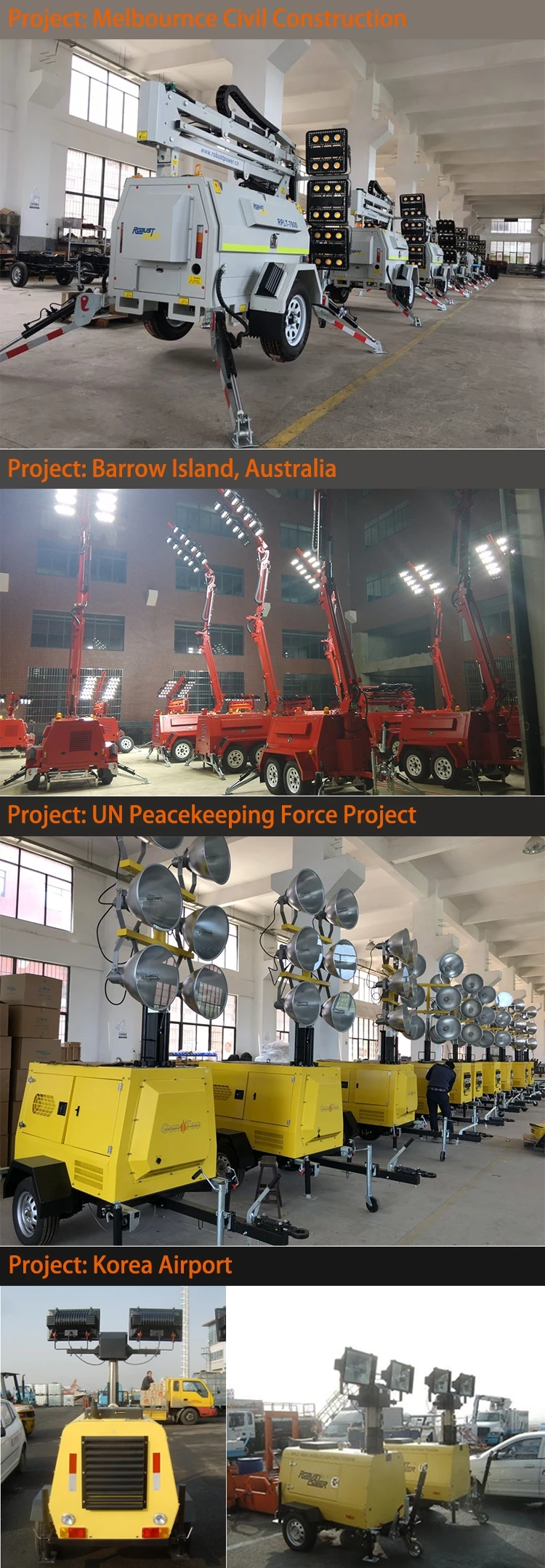

Project
