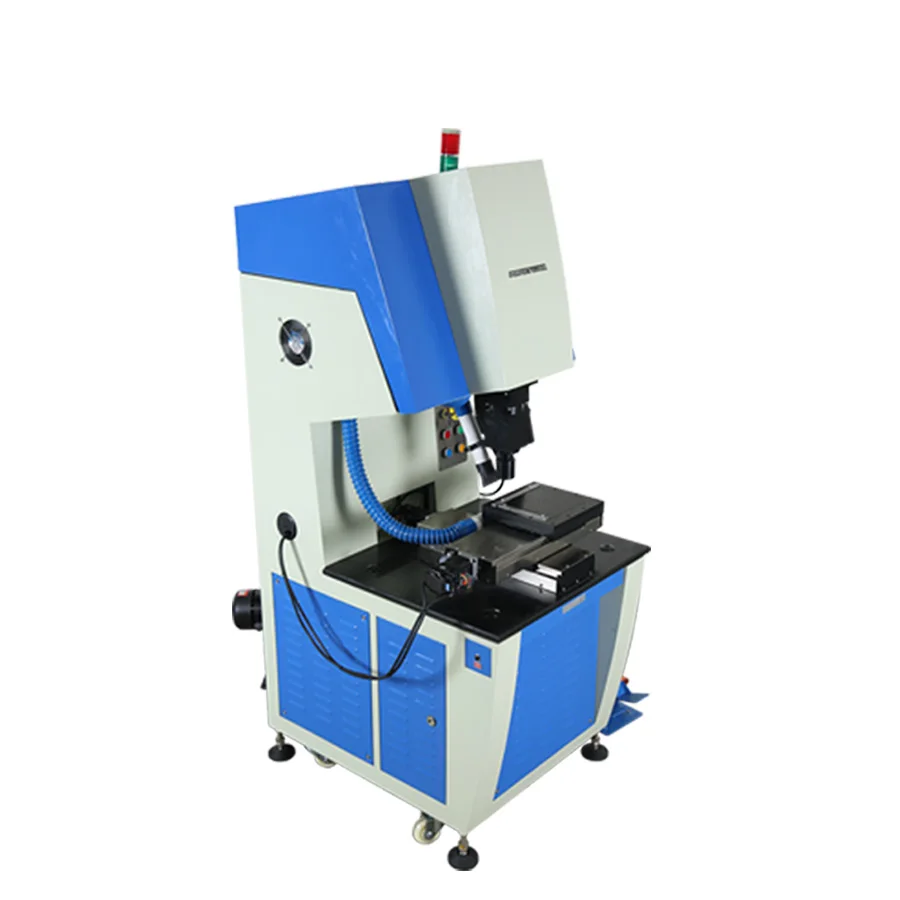

Perfect Laser-Cheap Price Good Quality Silicon Wafer Solar Fiber Laser Cutter
( Model: PE-20W/PE-50W)
Contact: Betty Wechat/Whatsapp: +8618171115546
Email: sales36(@)perfectlaser.net
Product Description
Fiber Laser Scribing solar cutter Machine is mainly used on Solar photovoltaic industry, monocrystalline silicon and polycrystalline silicon solar battery (cell) and silicon (wafer) of scribing processing (cutting section).
For Fiber Laser Scribing solar cutter Machine, Adopting fiber laser source as work light source, The two-dimensional work table is controlled by computer,and could do kinds of movement according to what graphics be input in. High output power, high precision scribing, fast speed and could cut curve and straight line graph.
Technical Parameters
Model specification
PE-20W/PE-50W solar cutter
Laser wavelength
1064nm
Laser power
20W/50W
Scribing line width
50um
Scribing speed
240mm/s
Scribing precision
±10um
Workbench wide
200×200mm
Temperature control
precision
0.5℃
Working power supply
220V/50Hhz/1.5KVA
Workbench
Cell automatic adsorption, dust removal
Cooling way
Air cooling
Detailed Images

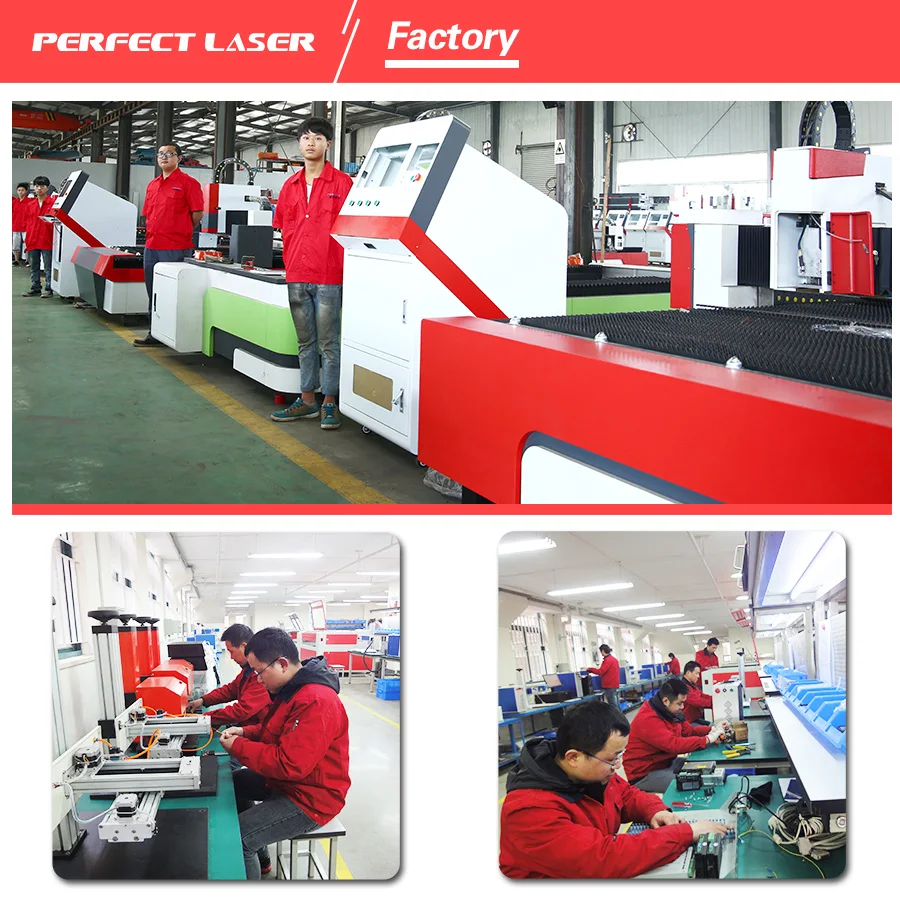

Company Profile
Our Services
After-sales Services 1. 2 year guarantee for main machine (People damaged are charged). 2. Full technical support\ by e-mail, call and video 3. Lifelong maintenance and spare parts supply. 4. Free design of fixtures as customers required. 5. Free training installation and operation for the staffs.
