Product Overview
Description
Product Description

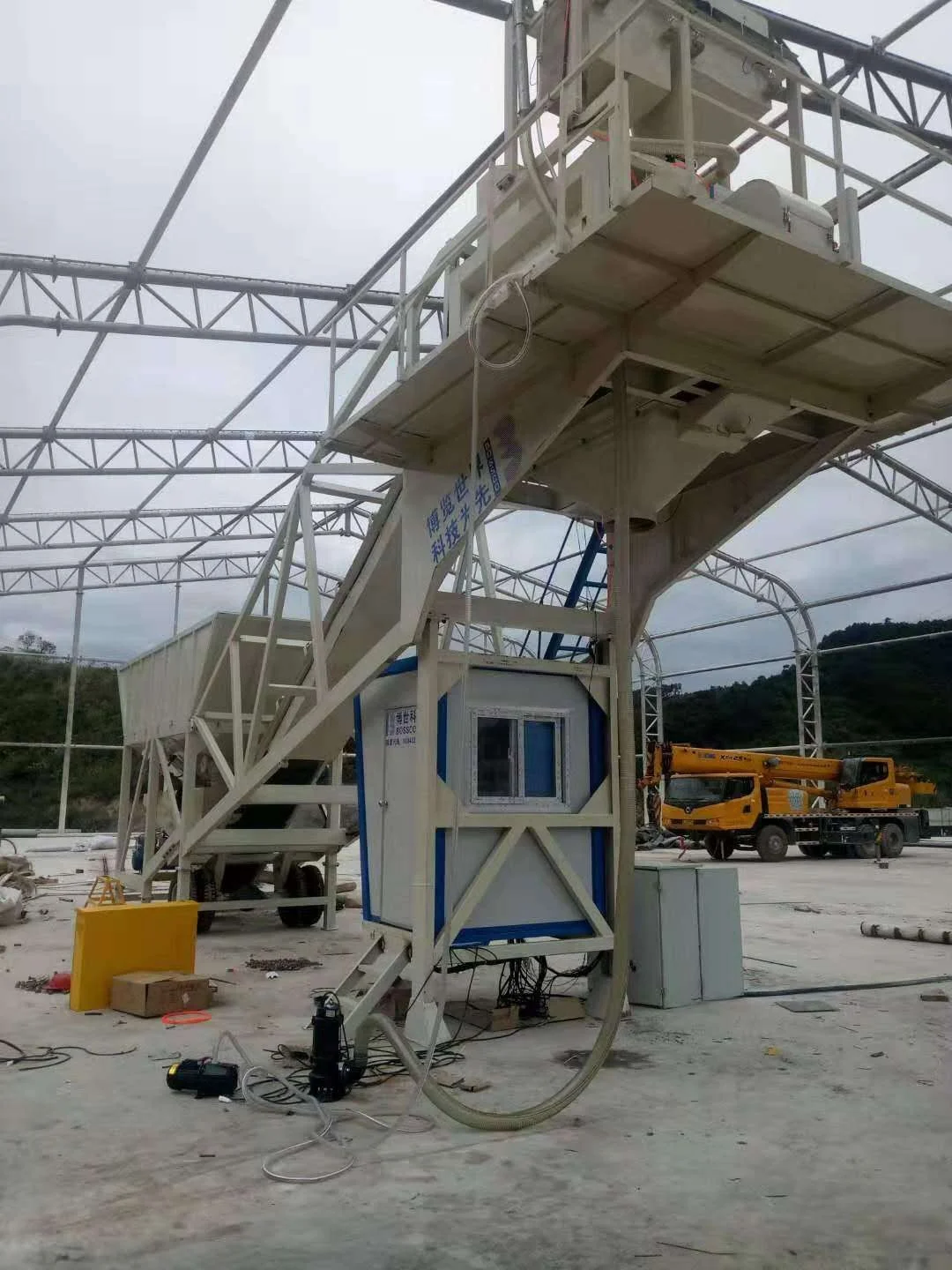

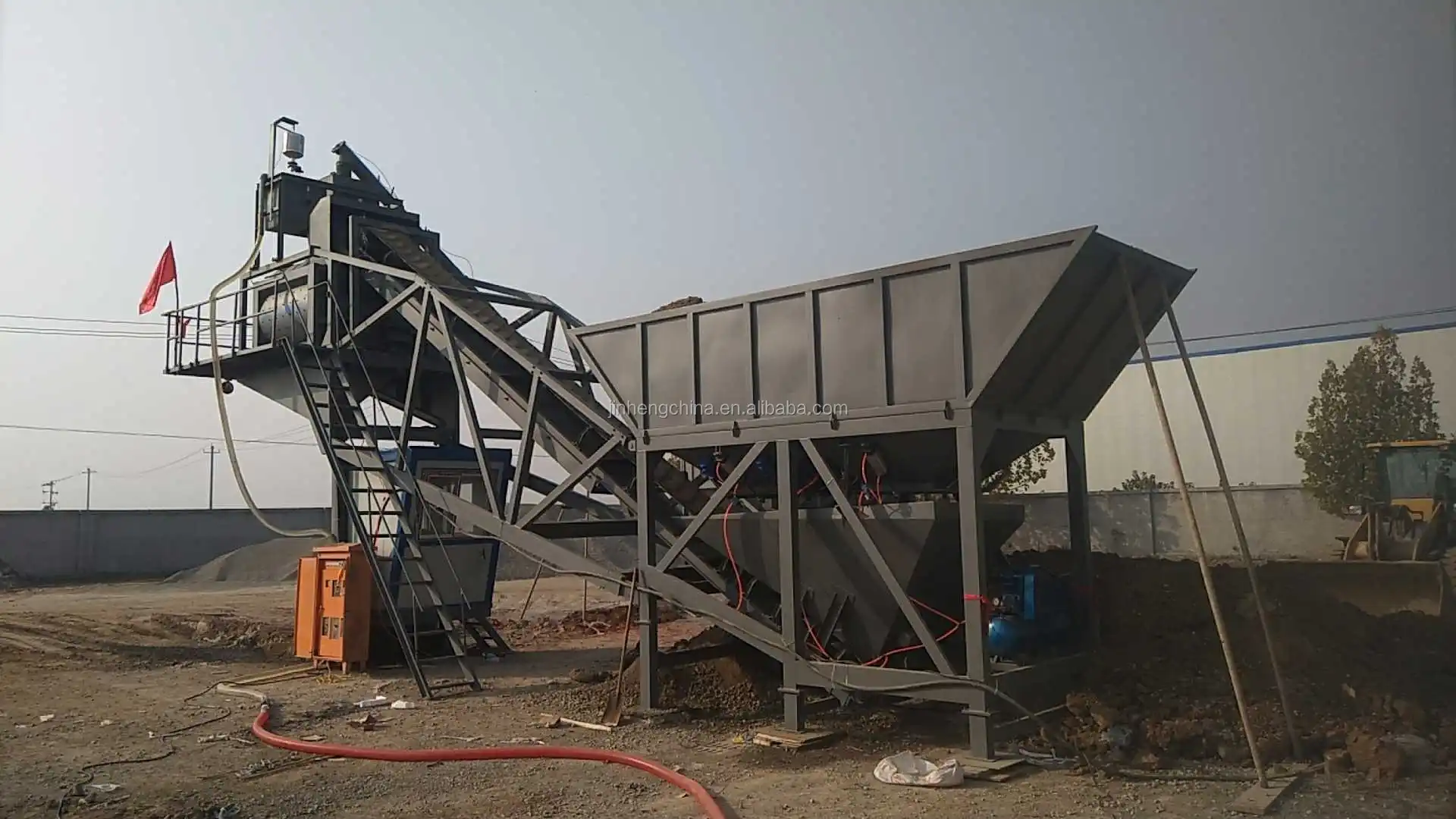

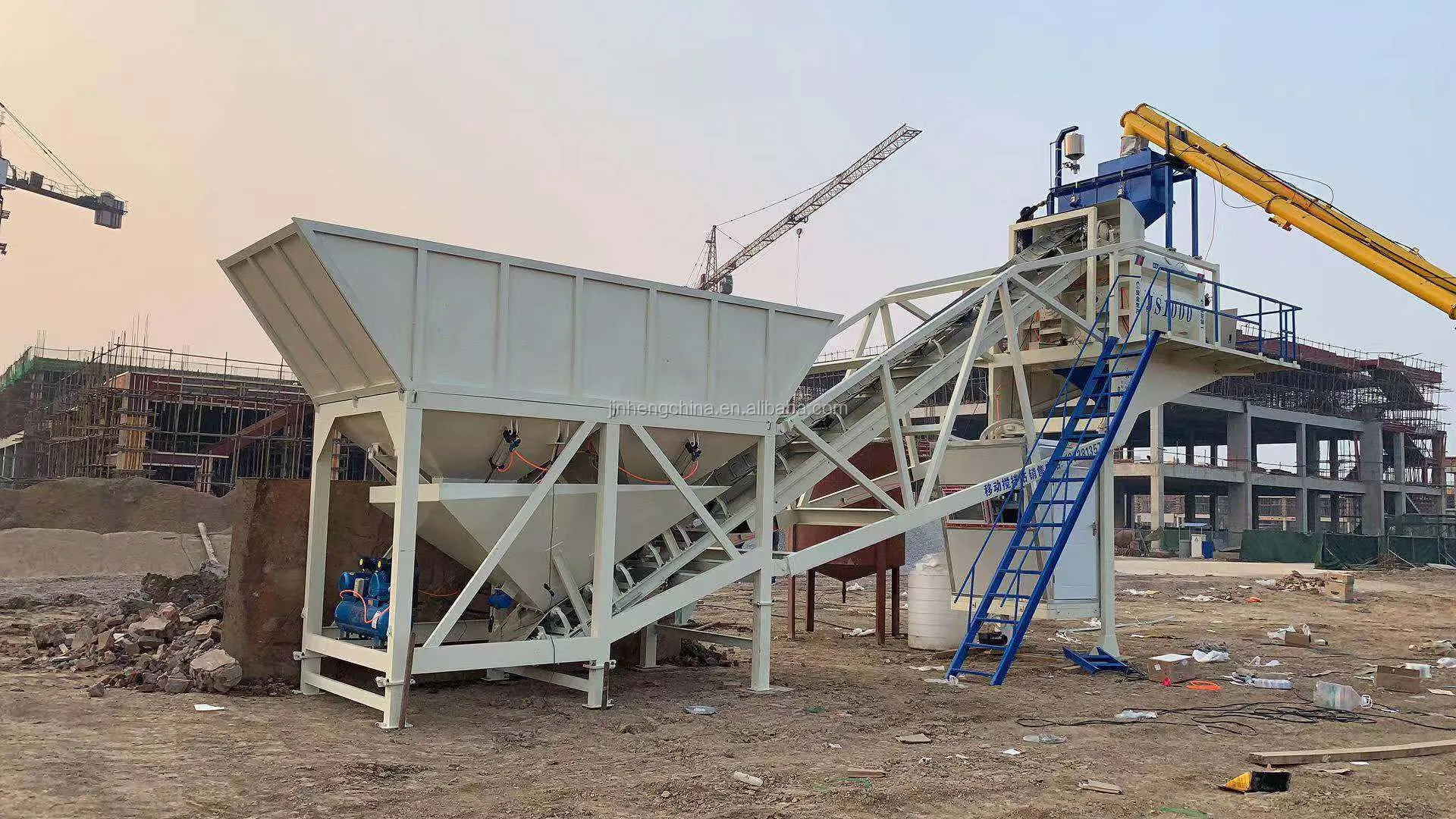

HZS series stationary concrete baching plant is widely used in big or medium building projects, road and bridages projects,
precast concrete plants,etc. It is an ideal choice for producing commercial commercial concrete. It has two feeding methods. One
is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is usually used for higher
than 60m3 per hour output production. For export, we adopt full automatic control system for our stationary concrete mixing plant,
It is industrial computer control, which can vividly display the production process on the screen, so that the operator can
monitor at real time.
precast concrete plants,etc. It is an ideal choice for producing commercial commercial concrete. It has two feeding methods. One
is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is usually used for higher
than 60m3 per hour output production. For export, we adopt full automatic control system for our stationary concrete mixing plant,
It is industrial computer control, which can vividly display the production process on the screen, so that the operator can
monitor at real time.
Model | HZS25 | HZS35 | HZS50 | HZS60 | HZS75 | HZS90 | HZS120 | HZS180 |
Output (m3/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 |
Mixer Capacity (m3) | 0.5 | 0.75 | 1 | 1 | 1.5 | 1.5 | 2 | 3 |
Discharging Height | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 | 4100 |
Mixer | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | JS2000 | JS2000 |
Aggregate Batcher | PLD800 | PLD1200 | PLD1600 | PLD1600 | PLD2400 | PLD2400 | PLD3200 | PLD4800 |

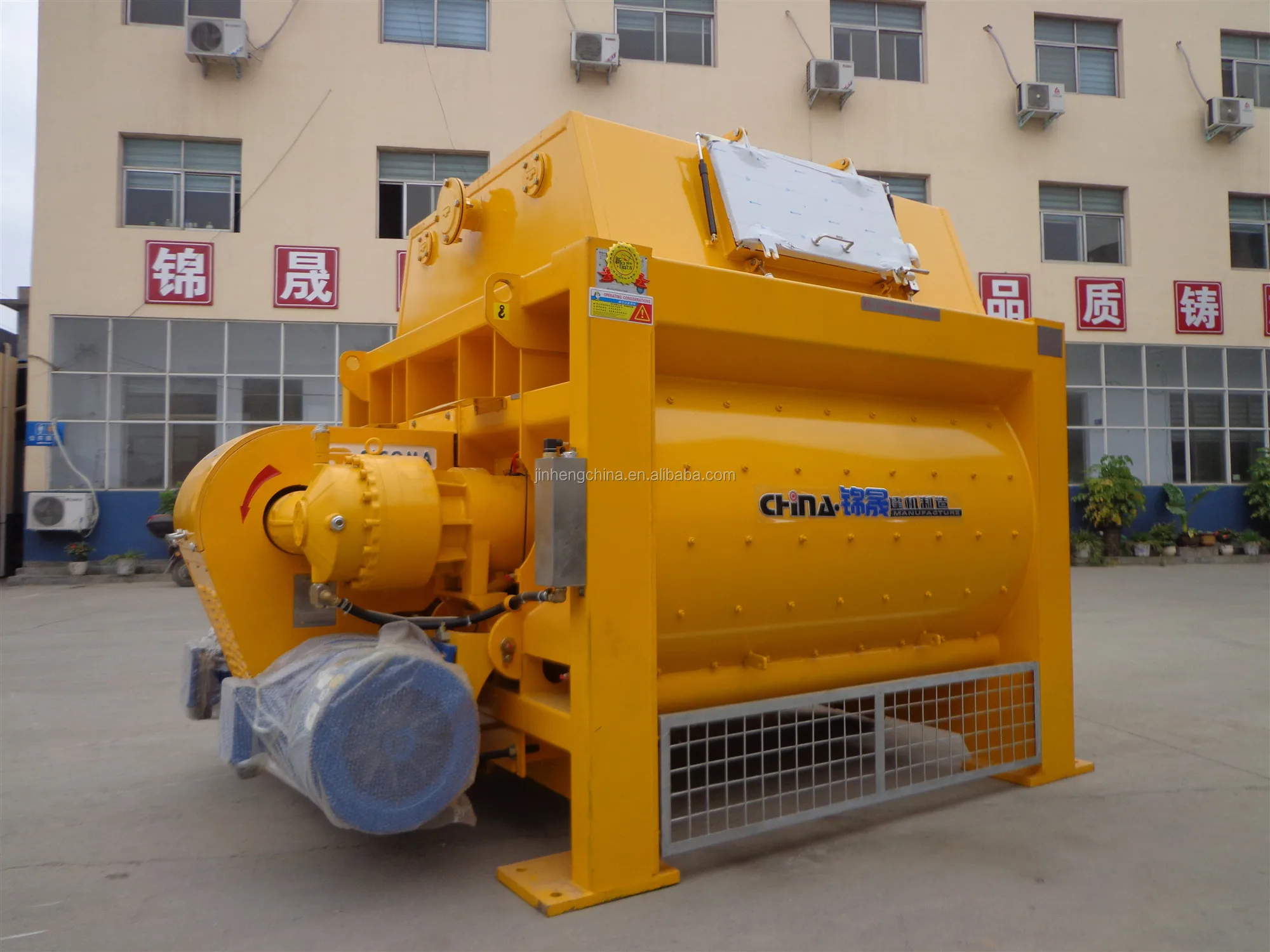

JS type double horizontal shaft forced concrete mixer is composed of feeding mechanism, mixing mechanism, unloading mechanism,
water supply system and electrical control system.Dry hard concrete, plastic concrete, light aggregate concrete and all kinds of
mortar with aggregate size of up to 80mm and gravel size up to 60mm can be mixed.
water supply system and electrical control system.Dry hard concrete, plastic concrete, light aggregate concrete and all kinds of
mortar with aggregate size of up to 80mm and gravel size up to 60mm can be mixed.
Mixing system

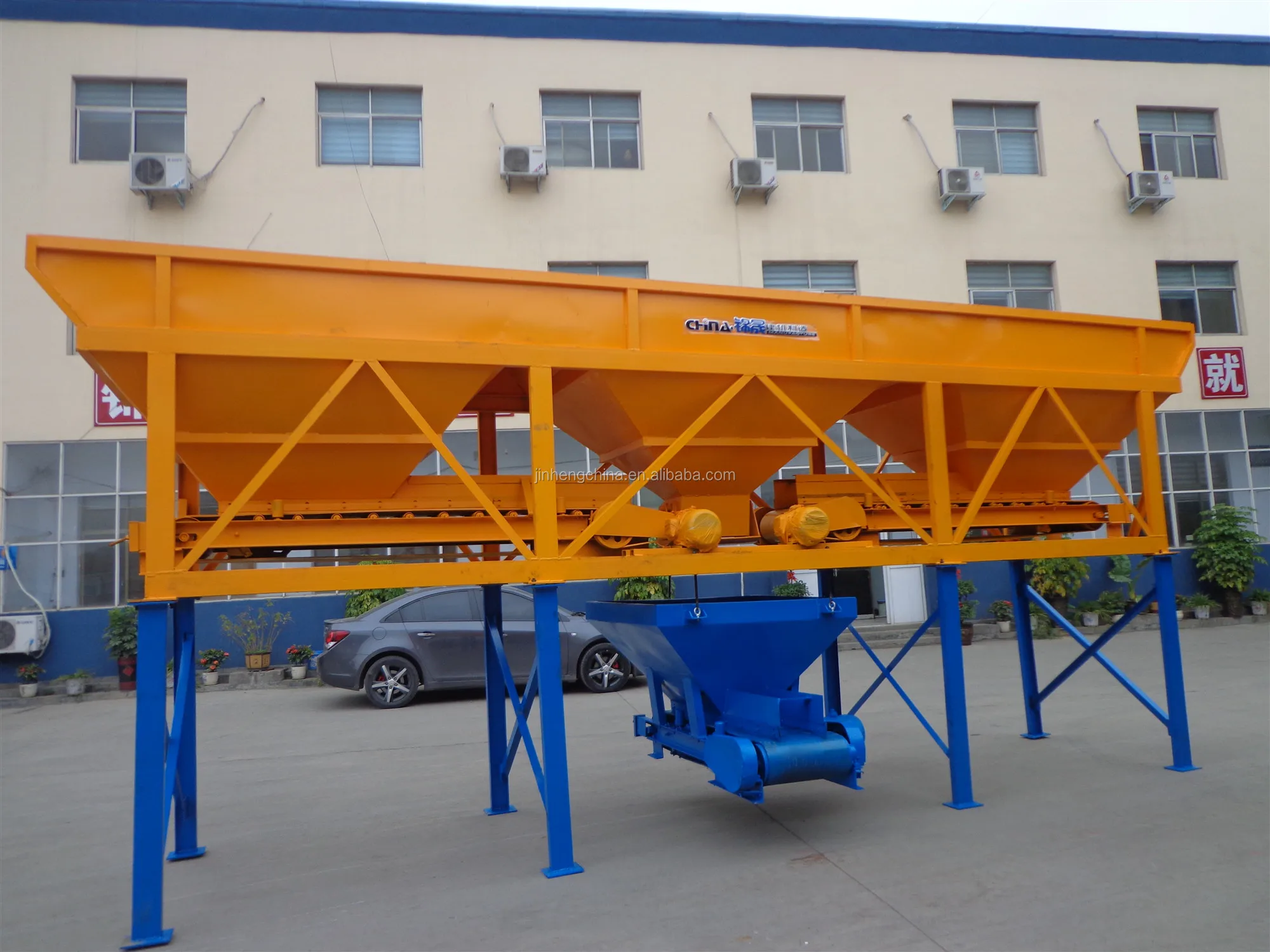

PLD series batching machine is used in loader or belt conveyor feeding sand batching device, can match more than three kinds of materials, with each type of mixer and other metering device matching, can be combined into automatic and semi-automatic mixing station.
Cement silo
The cement silo is a closed silo for storing materials such as cement and fly ash. The tank body is equipped with a material level system, which can display the location of materials.Cement bin and screw conveyer can transport materials to various positions, the bin is easy to install, reliable performance, is the ideal collocation of various mixing stations.

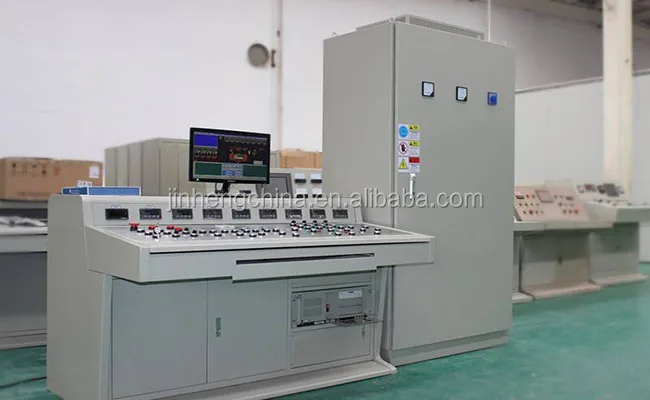

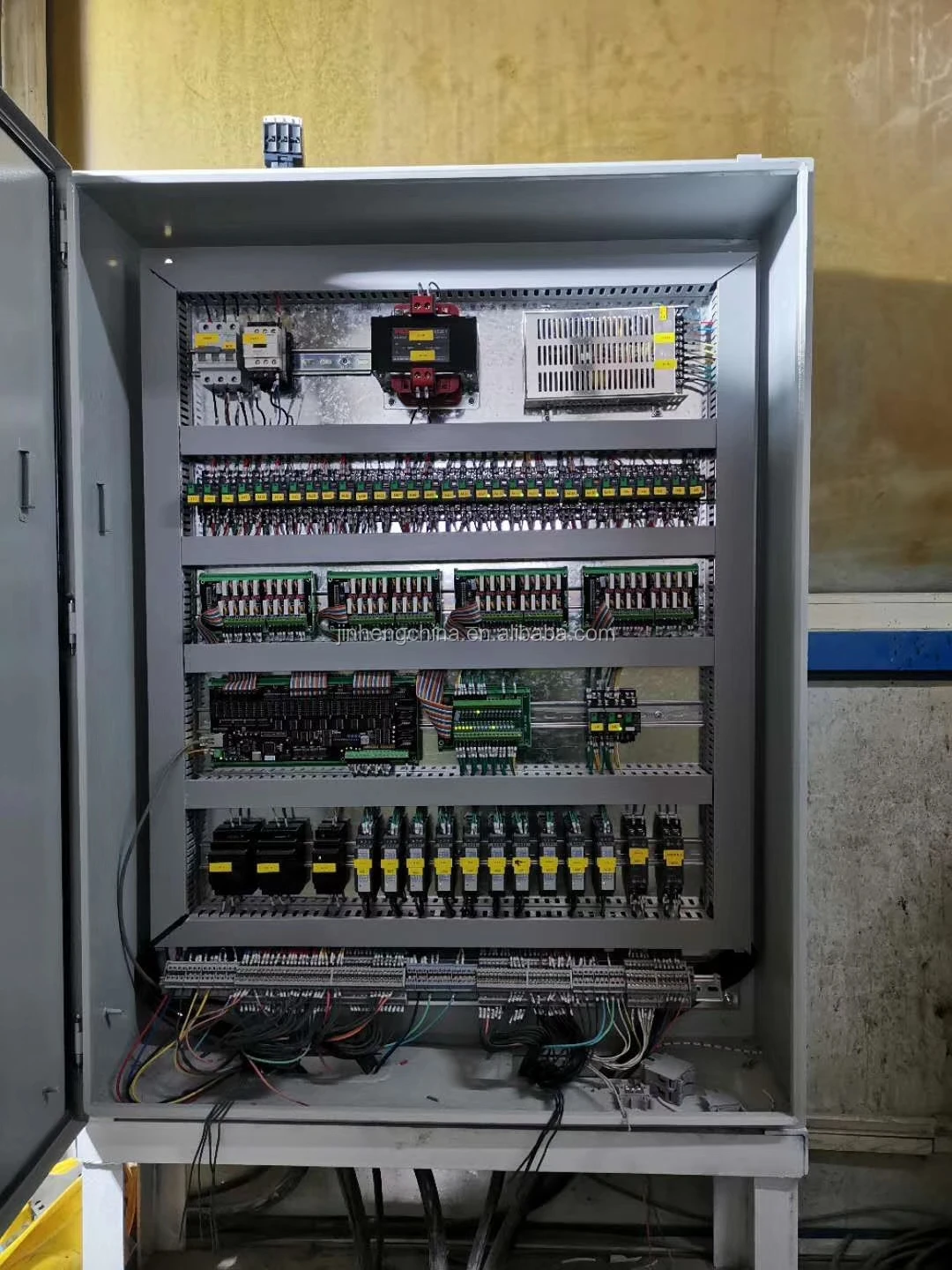

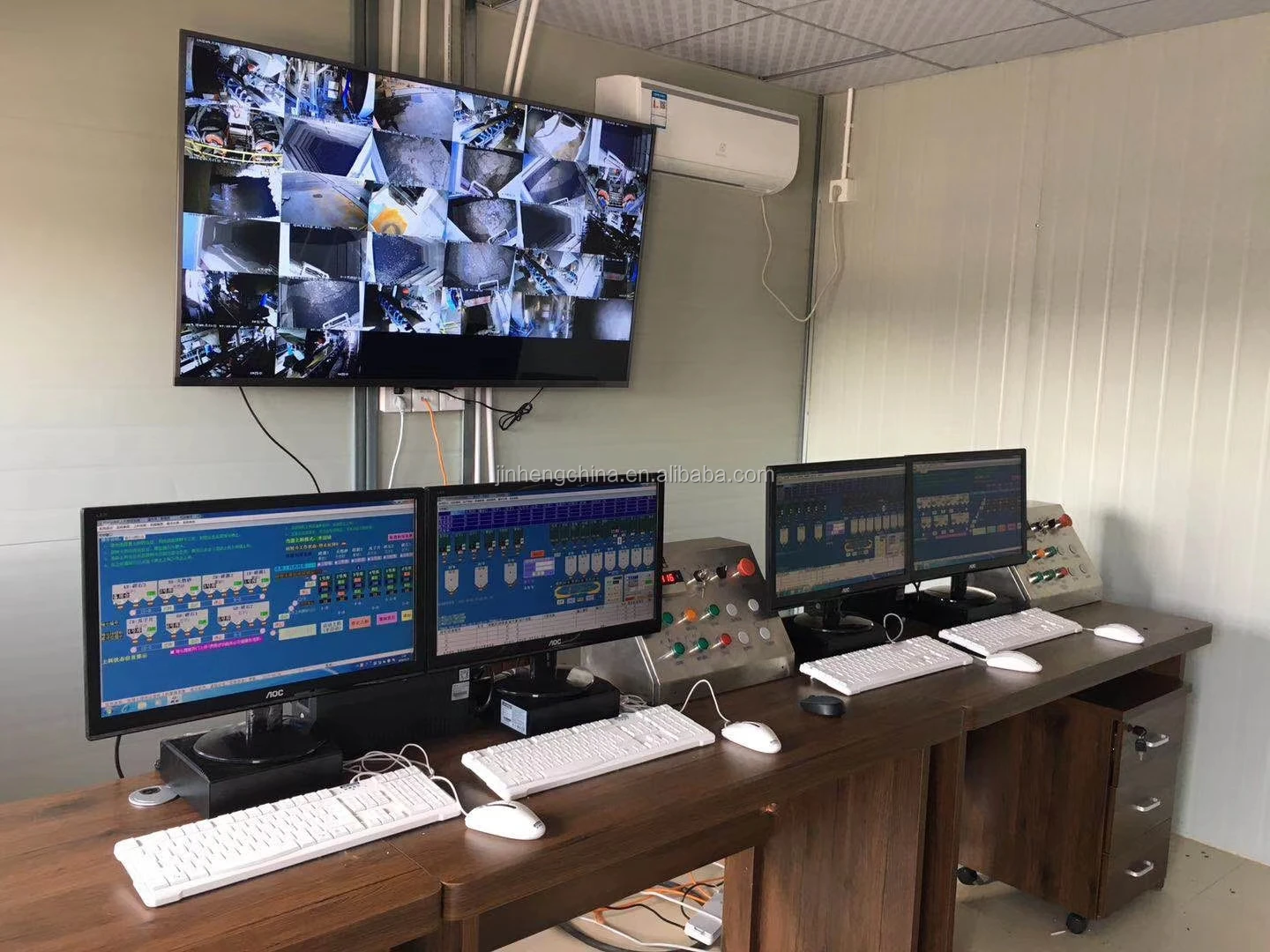

Control system-Schneider
he control system is controlled by computer, which can be controlled automatically or manually. The operation is simple and easy to grasp.Dynamic panel display, can clearly understand the operation of each part, at the same time can store and print reports
FAQ
WHY TO CHOOSE US?
We are the leading manufacturer and supplier of concrete batching plants and concrete mixers in China, lot of them had been exported to Malaysia,Indonisa,Veitnam,Russia etc and enjoying prefect feedback from worldwide users.
DO YOU SELL WET OR DRY CONCRETE BATCHING PLANTS, STATIONARY OR MOBILE?
Yes, we can offer both wet and dry concrete batching plants, and stationary type and mobile type are both available.
I NEED ADVICE ON THE CORRECT EQUIPMENT TO USE, CAN YOU ADVISE ME?
Yes, our professional technical team will be happy to understand your needs and advise for your best options.
DO YOU STOCK SPARE PARTS?
Yes, we have a dedicated team for all spare and service part enquiries and we endeavour to keep parts for all our equipment in stock for next day delivery (48 hours for international customers).
WHAT HAPPENS IF MACHINE BREAKING DOWN OR REQUIRING HELP AND SUPPORT?
We have engineers that are available for call outs. Alternatively support by phone or email is available 24/7.
DO YOU OFFER A WARRANTY ON NEW PURCHASES?
Yes, we offer a full warranty on new equipment purchases.
CAN I VISIT YOU TO VIEW CONCRETE EQUIPMENT?
Yes, we can pay for all your cost of visiting in China.(traffic, hotel, food etc.).
We are the leading manufacturer and supplier of concrete batching plants and concrete mixers in China, lot of them had been exported to Malaysia,Indonisa,Veitnam,Russia etc and enjoying prefect feedback from worldwide users.
DO YOU SELL WET OR DRY CONCRETE BATCHING PLANTS, STATIONARY OR MOBILE?
Yes, we can offer both wet and dry concrete batching plants, and stationary type and mobile type are both available.
I NEED ADVICE ON THE CORRECT EQUIPMENT TO USE, CAN YOU ADVISE ME?
Yes, our professional technical team will be happy to understand your needs and advise for your best options.
DO YOU STOCK SPARE PARTS?
Yes, we have a dedicated team for all spare and service part enquiries and we endeavour to keep parts for all our equipment in stock for next day delivery (48 hours for international customers).
WHAT HAPPENS IF MACHINE BREAKING DOWN OR REQUIRING HELP AND SUPPORT?
We have engineers that are available for call outs. Alternatively support by phone or email is available 24/7.
DO YOU OFFER A WARRANTY ON NEW PURCHASES?
Yes, we offer a full warranty on new equipment purchases.
CAN I VISIT YOU TO VIEW CONCRETE EQUIPMENT?
Yes, we can pay for all your cost of visiting in China.(traffic, hotel, food etc.).
