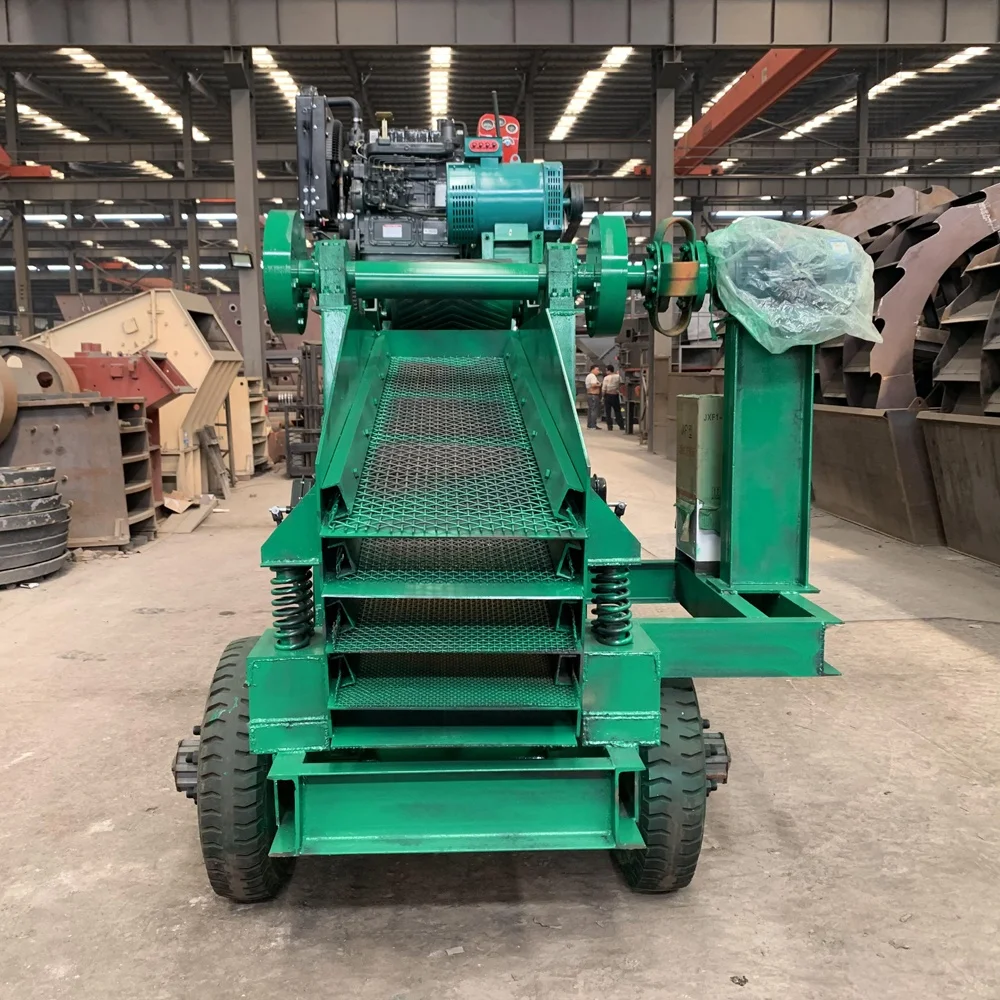

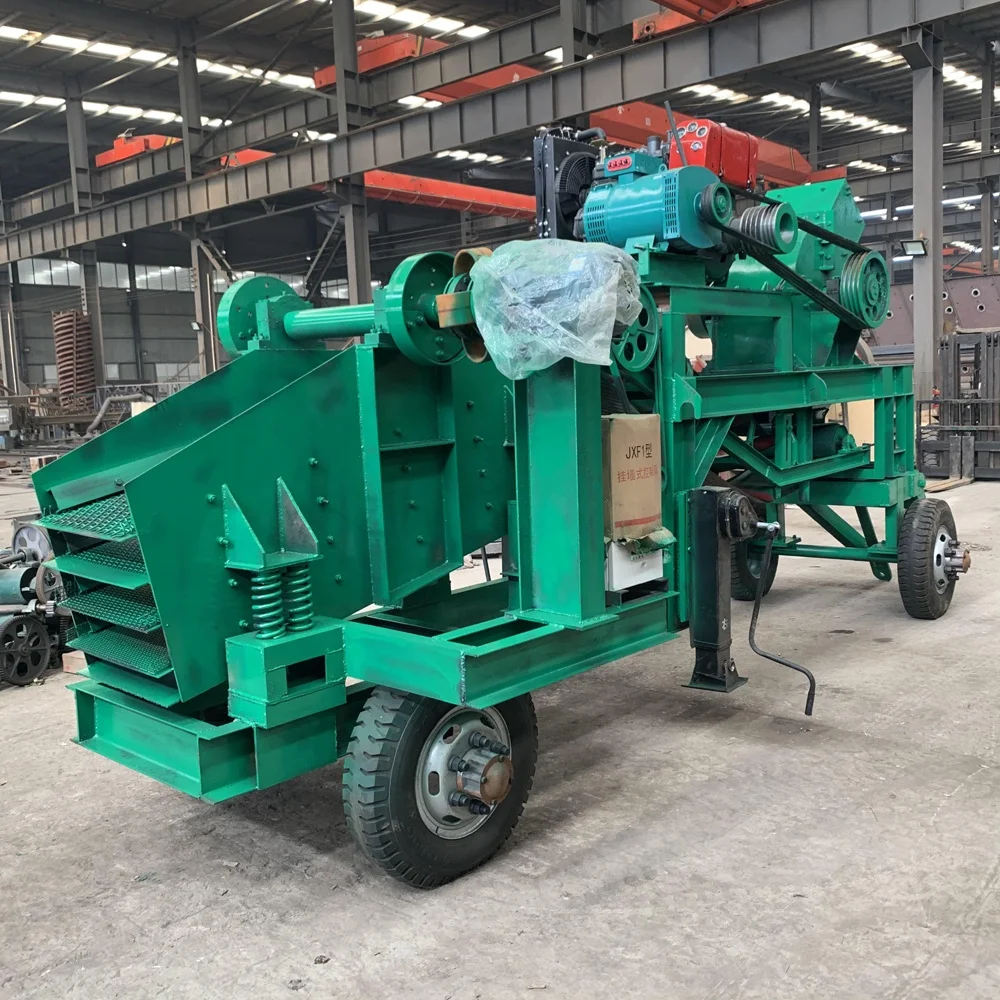

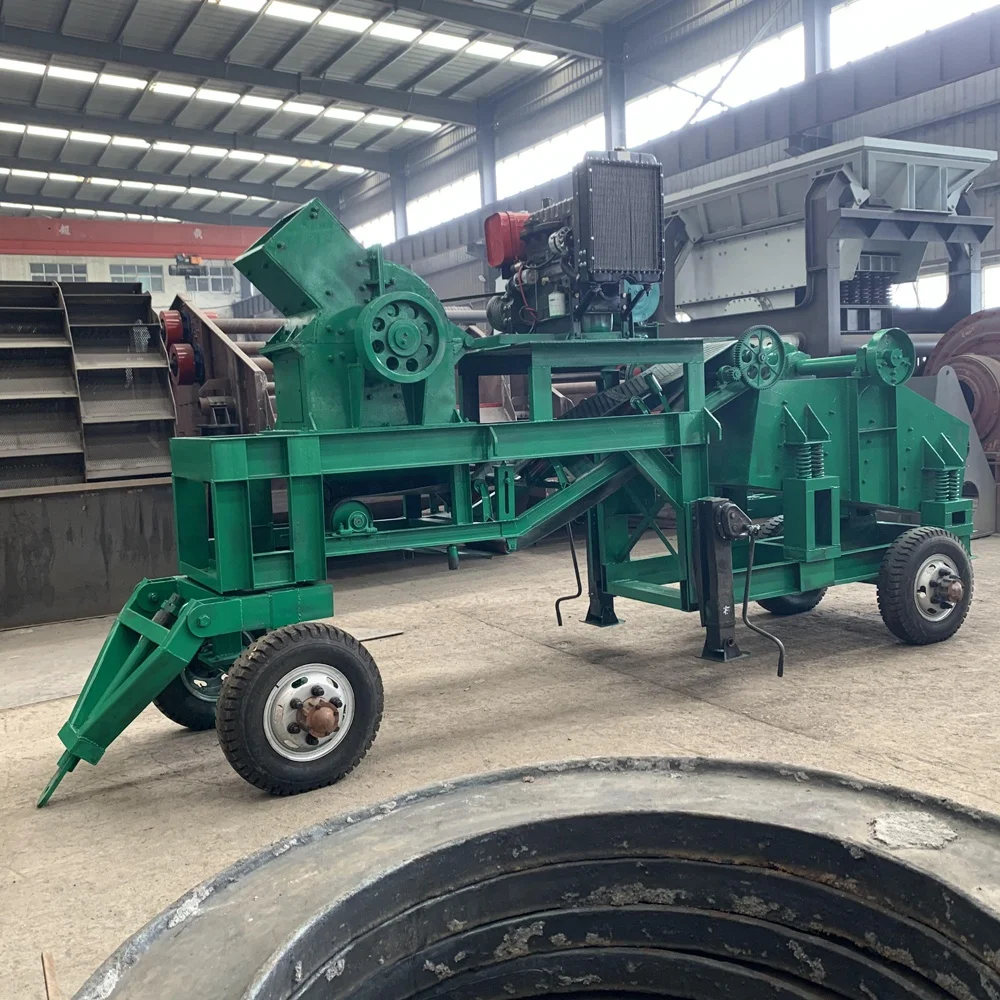

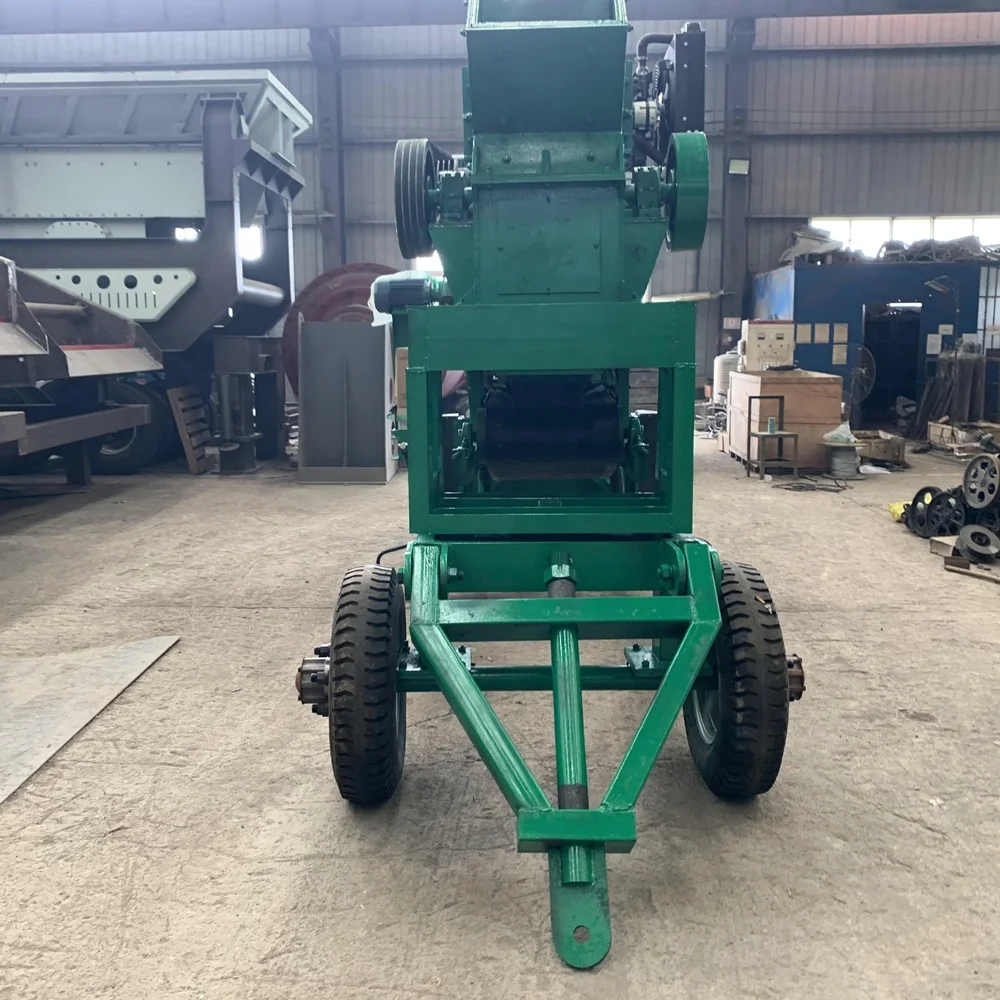

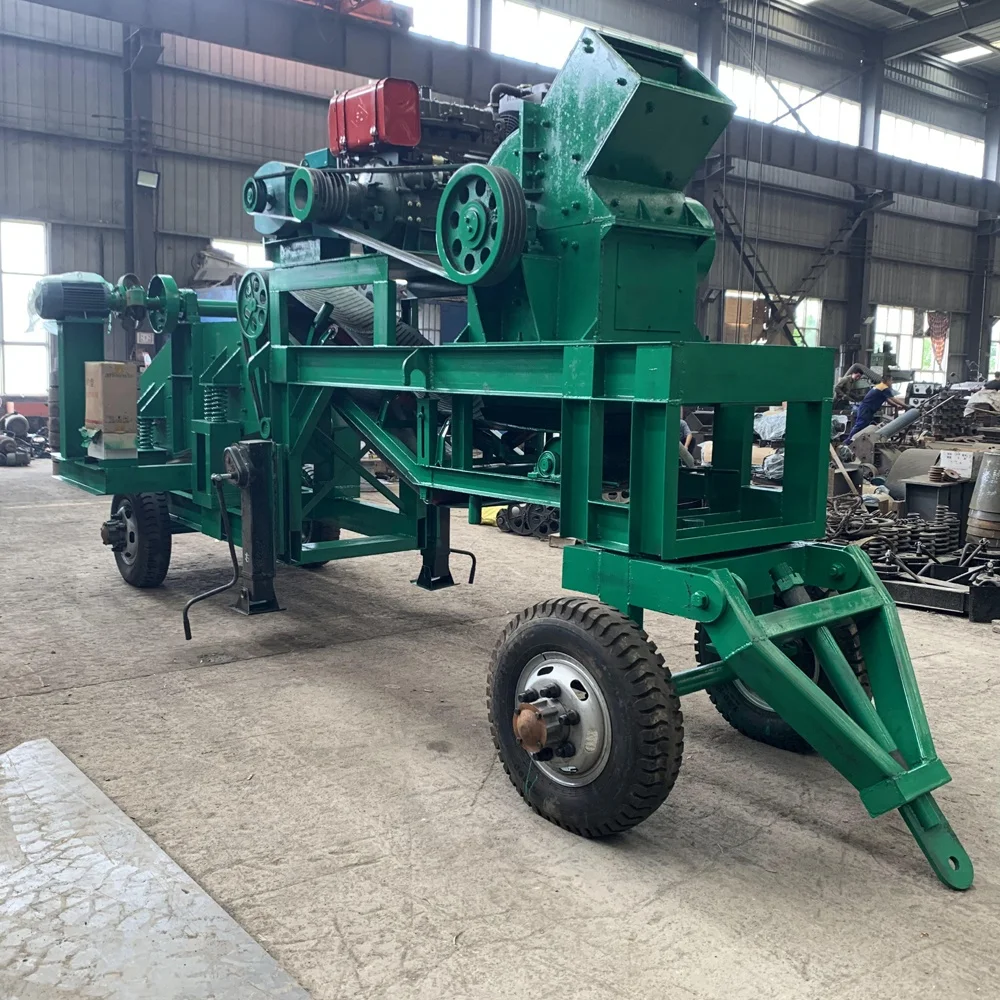

Traction mobile hammer crusher station,hammer mill for sand making plant
- Category: Sand Making Machinery >>>
- Supplier: Zhengzhou Huahong Machinery Equipment Co. Ltd.
Share on (1600100741065):
Product Overview
Description
Product Description

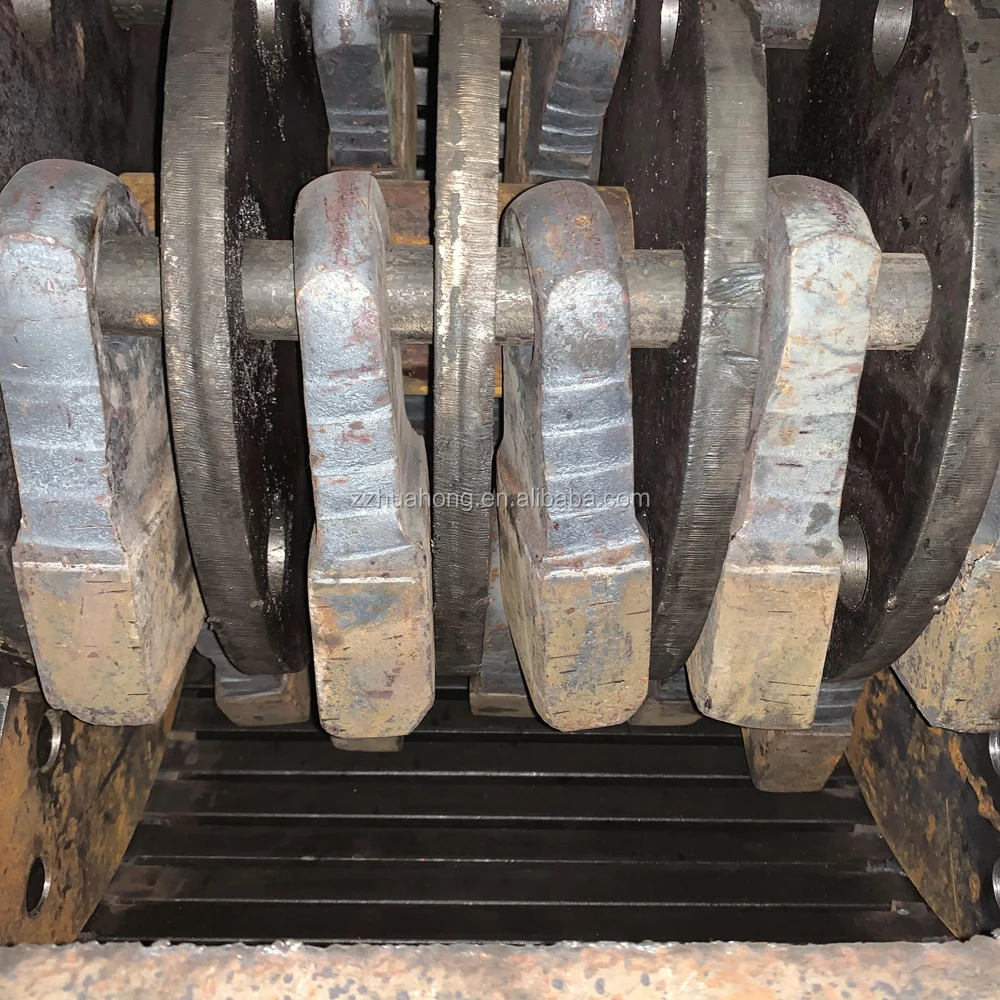

The main working part of types of hammer mill is the rotor with hammers.The rotor consists of main shaft, disk,hinge pin and hammers.A sieve plate is below the rotor.The motor drives the rotor to rotate at a high speed.When the materials get into the crushing cavity,they are crushed by the rotating hammers,the crushed products which meet the required size can be discharged from the sieve plate and become the final products,the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Features of Hammer Crusher
使用效果描述
Hammer crusher is suitable for crushing medium-hardness materials such as limestone, slag, coke, coal and so on in cement,
chemical, electric power, metallurgy and other industrial departments. It has the advantages of simple structure, large crushing
ratio and high production efficiency, which can break both dry and wet forms., Hammer Crusher can adjust grate strip gap according
to user's requirement,Change the size of the material, This can meet the different needs of different users.
chemical, electric power, metallurgy and other industrial departments. It has the advantages of simple structure, large crushing
ratio and high production efficiency, which can break both dry and wet forms., Hammer Crusher can adjust grate strip gap according
to user's requirement,Change the size of the material, This can meet the different needs of different users.
Size Information
specification and technical parameter
Model | feeding size(mm) | Discharge size(mm) | capacity(t/h) | motor power(kw) | weight(t) |
PCΦ400x300 | ≤100 | ≤10 | 5-10 | 11 | 0.8 |
PCΦ600×400 | ≤120 | ≤15 | 10-22 | 18.5 | 1.5 |
PCΦ800x600 | ≤150 | ≤15 | 18-40 | 55 | 3.1 |
PCΦ1000x800 | ≤200 | ≤15 | 25-50 | 75 | 7.9 |
PCΦ1000x1000 | ≤200 | ≤20 | 30-55 | 132 | 8.6 |
Packing & Delivery
Packaging | Wooden case (LCL) |
Weight | According to different models. |
1. The normal package is wooden box. If export to european countries, the wooden box will be fumigated. If container is too tigher,we will use PE film for packing. | |
2. According to customers special request. | |
Packaging: Export Standard Container (FCL) | ||
Related Products

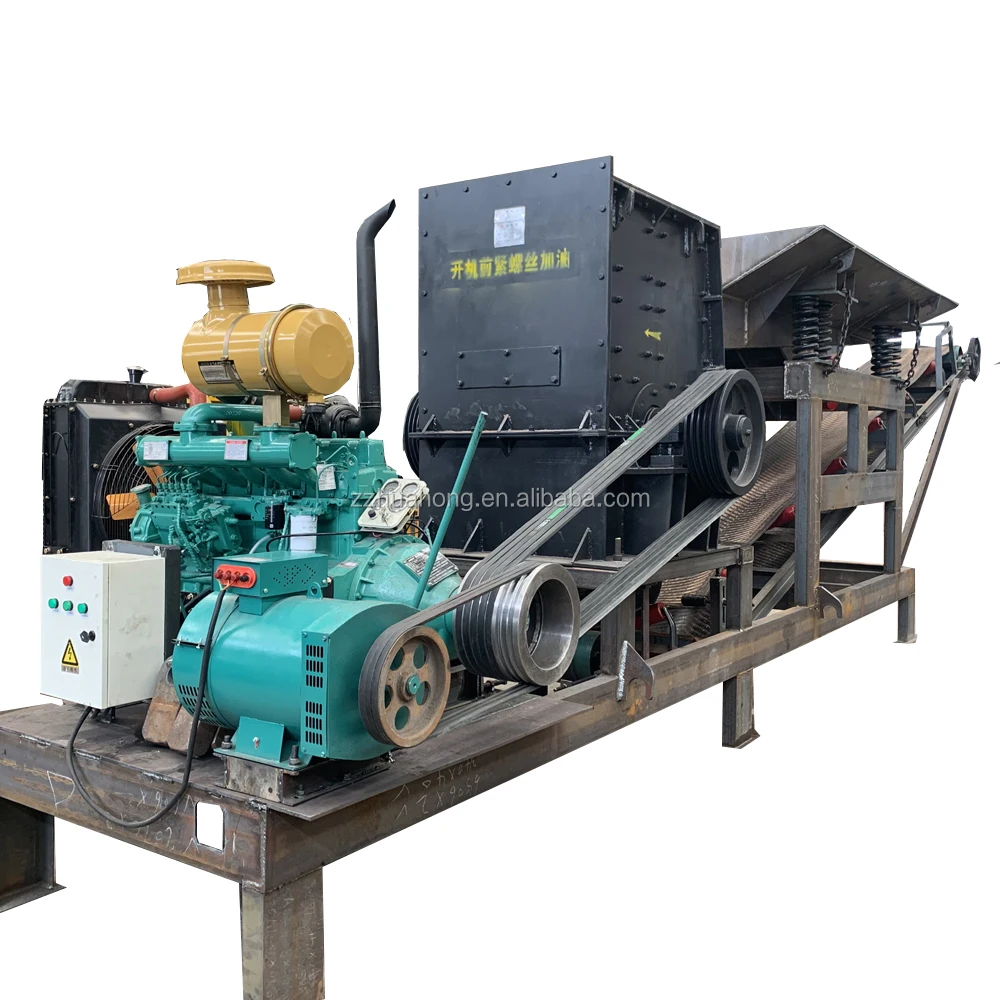

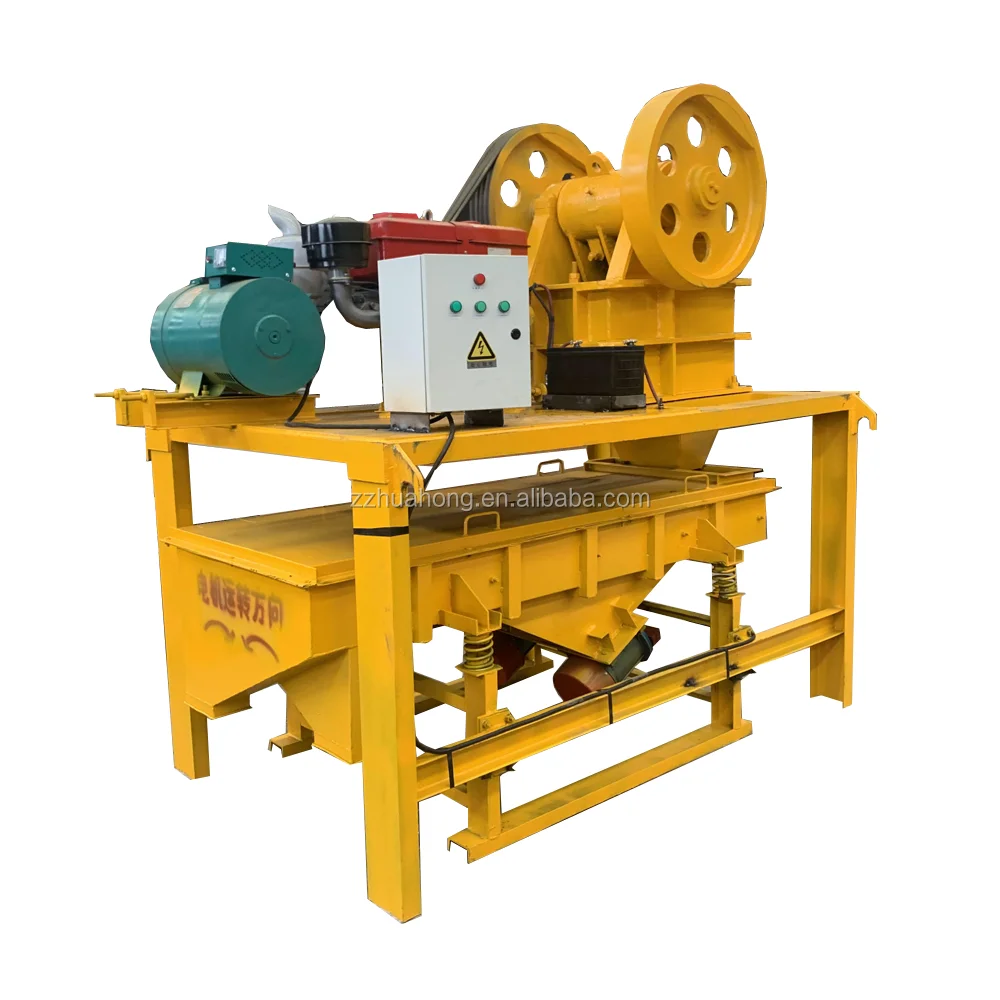

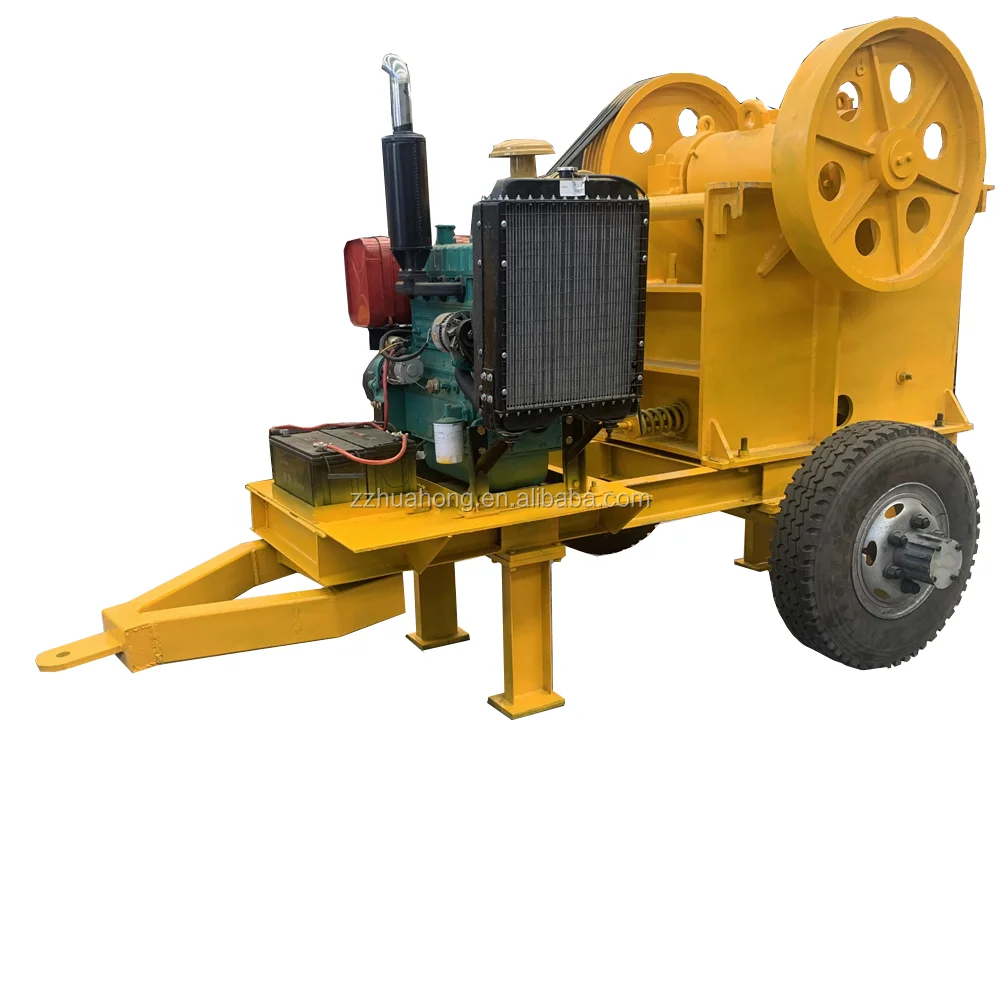

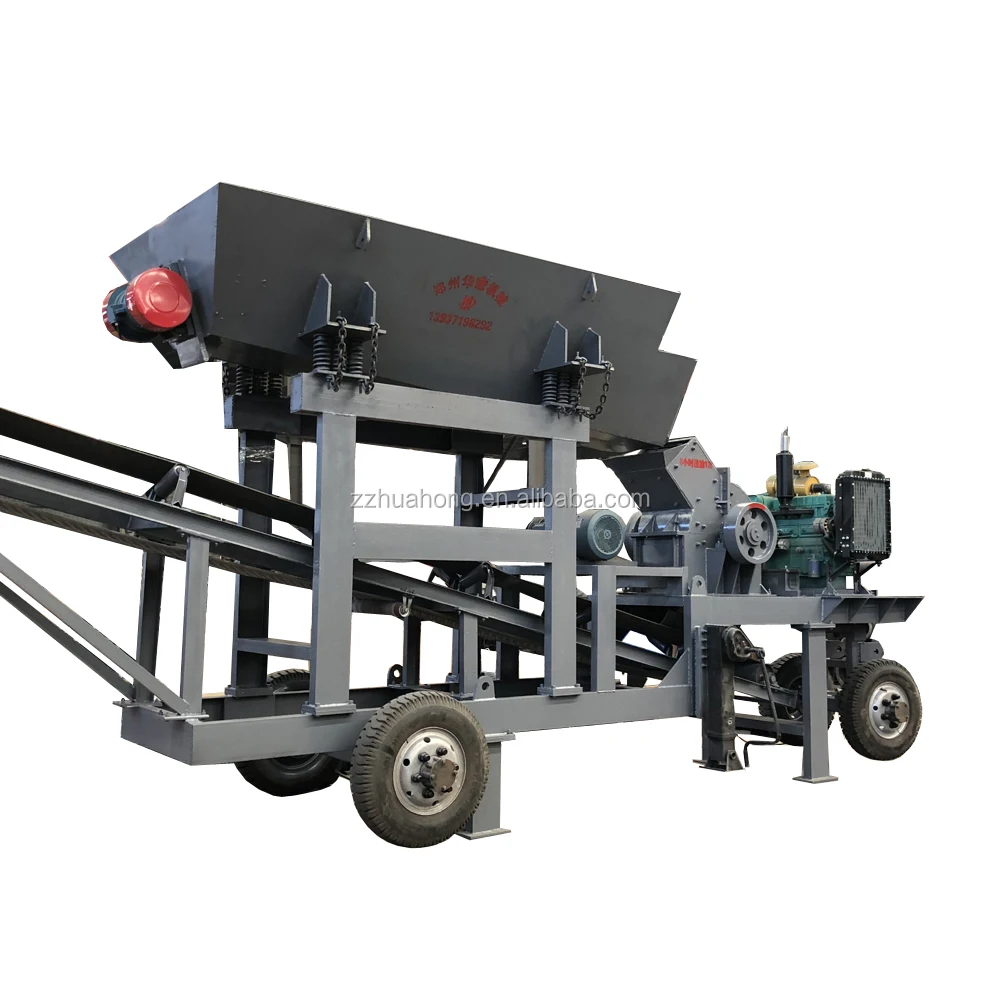

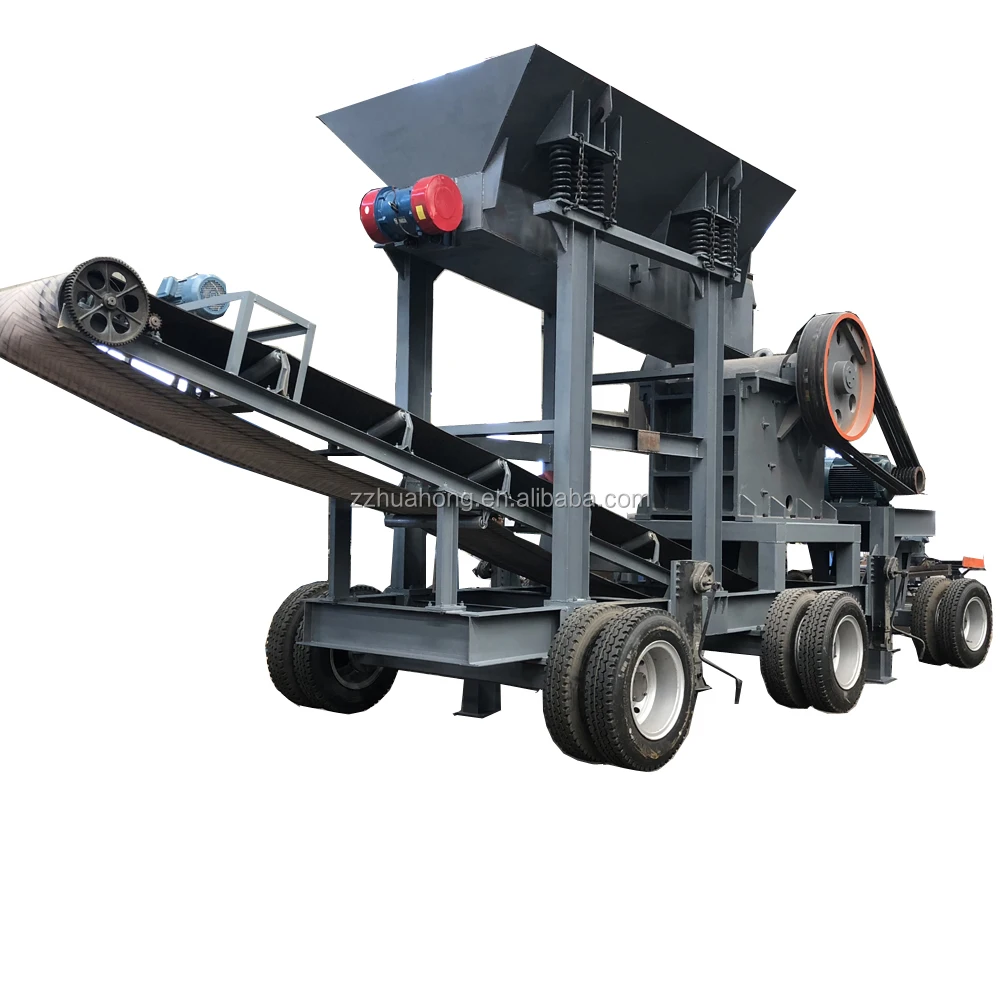

Our factory HUHAHONG BRAND can be customize different types portable jaw crusher station,hammer crusher station,box crusher station,impact crusher station with diesel engine,electric motor,vibrating feeder,vibrating screen ,belt conveyor and etc. You can show us your design, We can customize the machine as your request.
Our Company
Company name:Zhengzhou Huahong Machinery equipment Co.,Ltd
Factory Add: Is located in 150 meters south of the crossing of Huagong Road and Changchun road, Tielu village,Xiliuhu street, Zhongyuan district, Zhengzhou city, Henan Province.
Main machine supply:To be the leading enterprise which is professional manufacturer We provide variety of industrial mining machinery all of our equipment.with high processing capacity, feat ured structure.
Service and certification: As a specialized manufacurer and exporter in china,Zhengzhou Huahong striving its best to service our customer.Our machines are all through ISO CE certificate.
