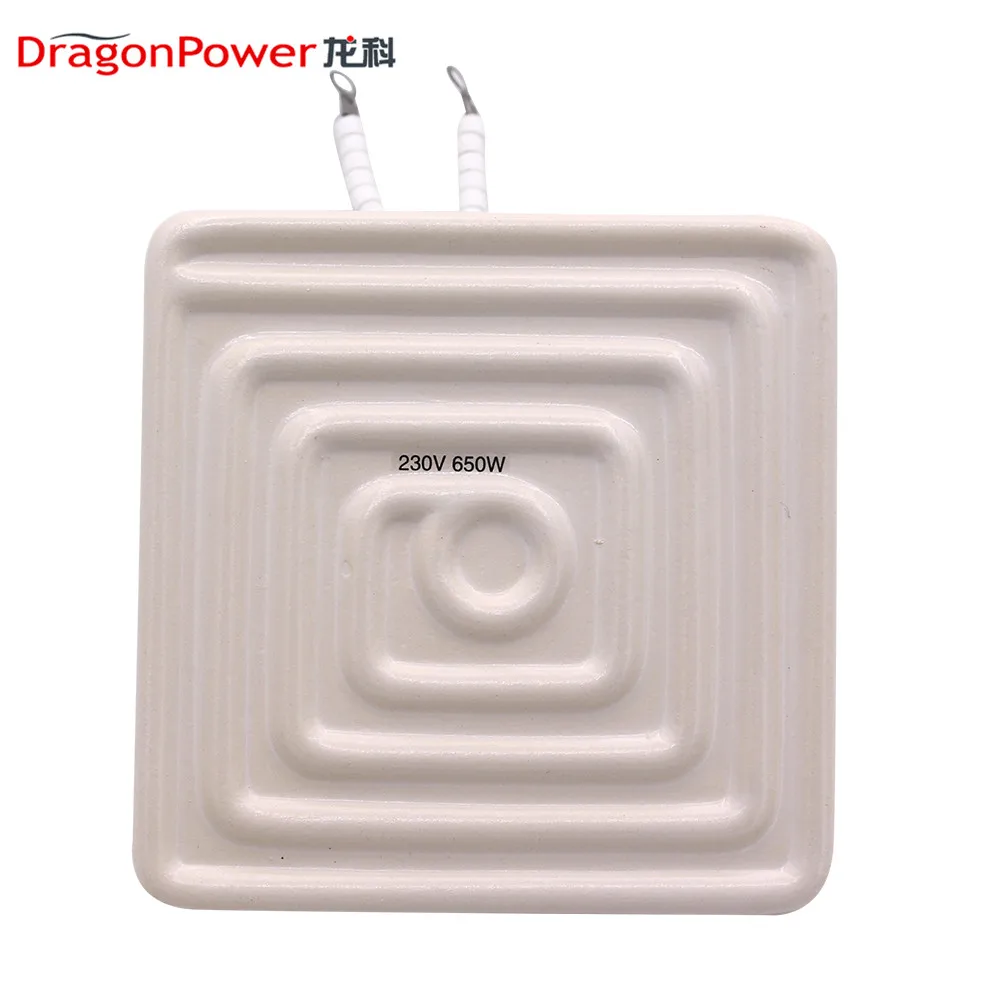

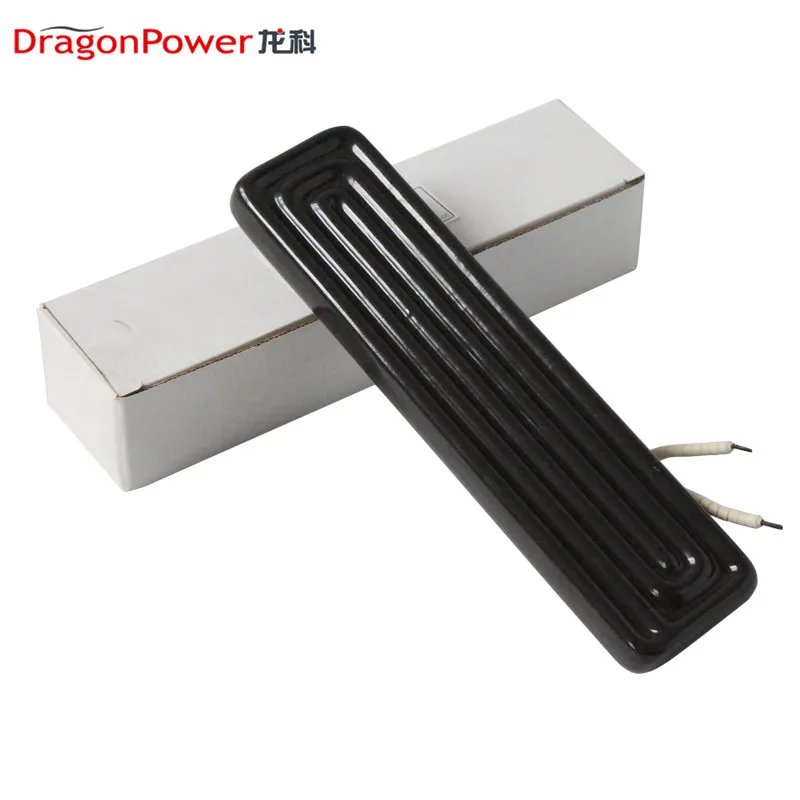

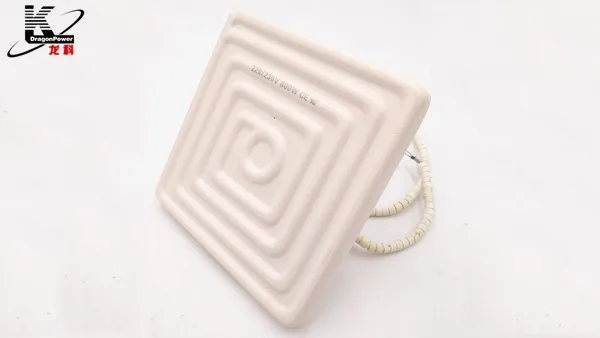

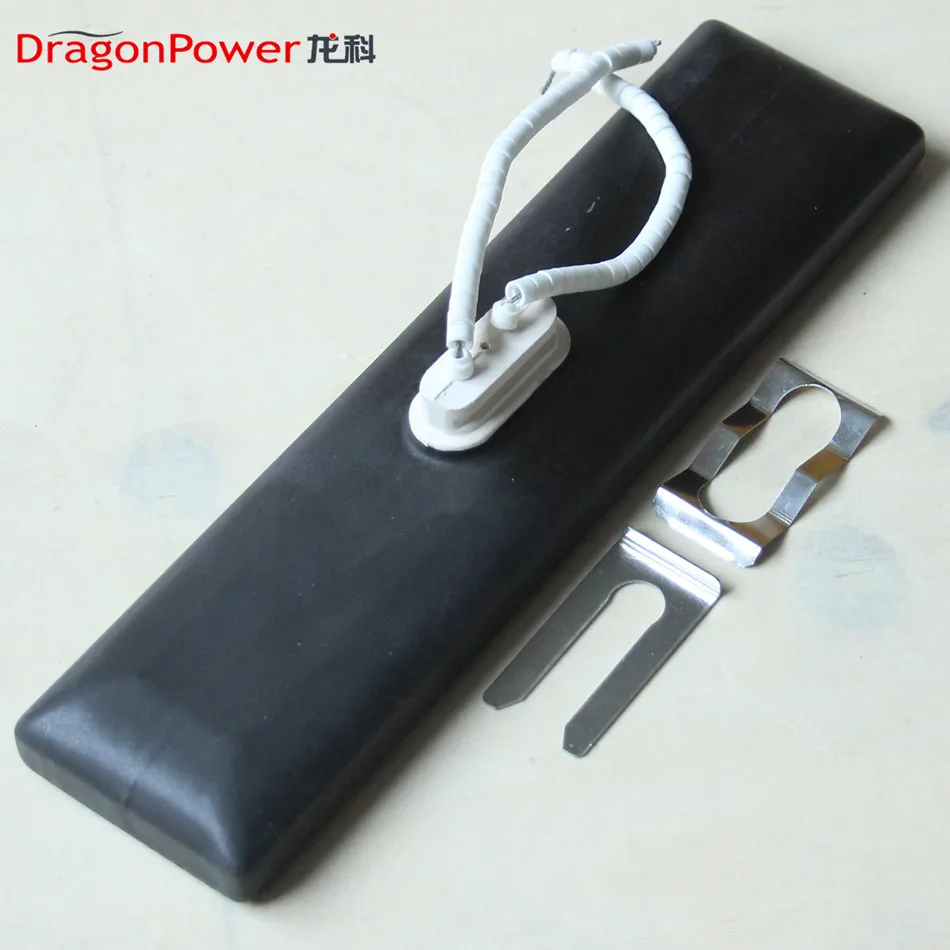

DragonPower 220v 200w 400w 600w customized electric far infrared sauna IR plate ceramic heater for vaporesso

Product Overview

Description

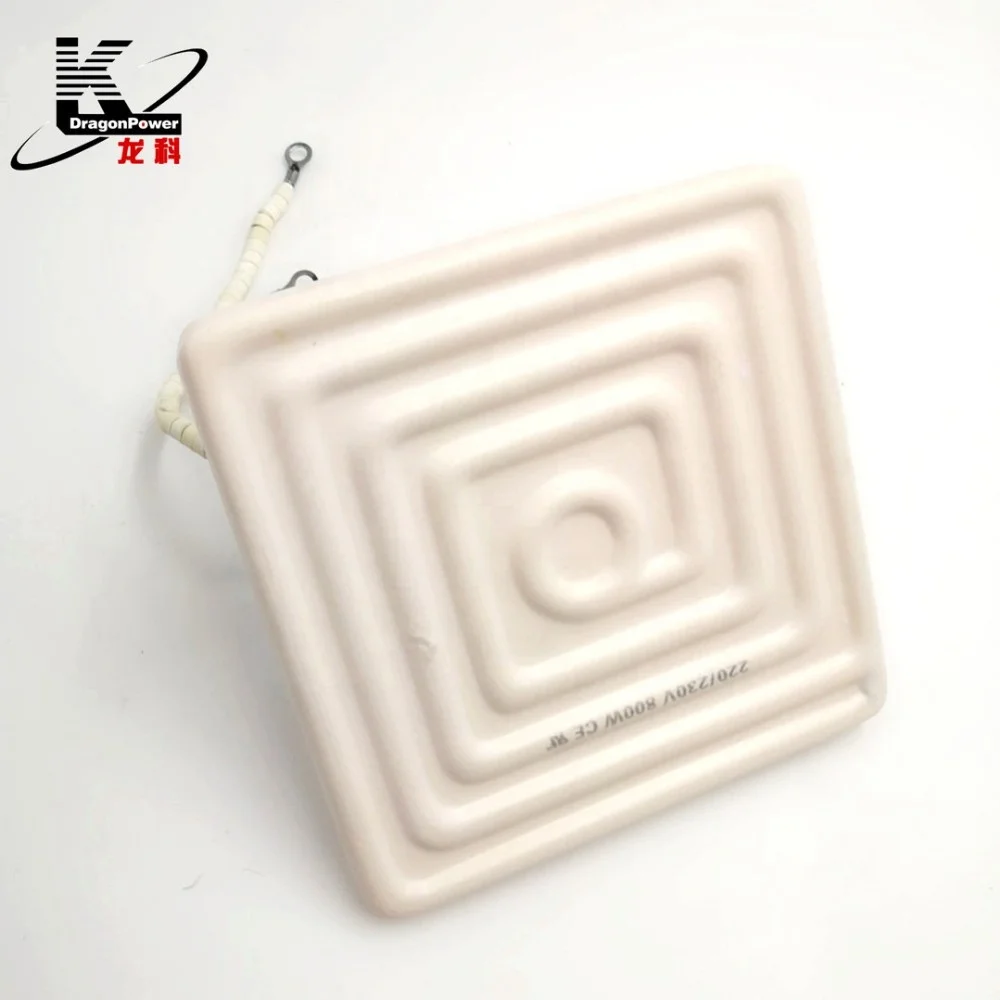

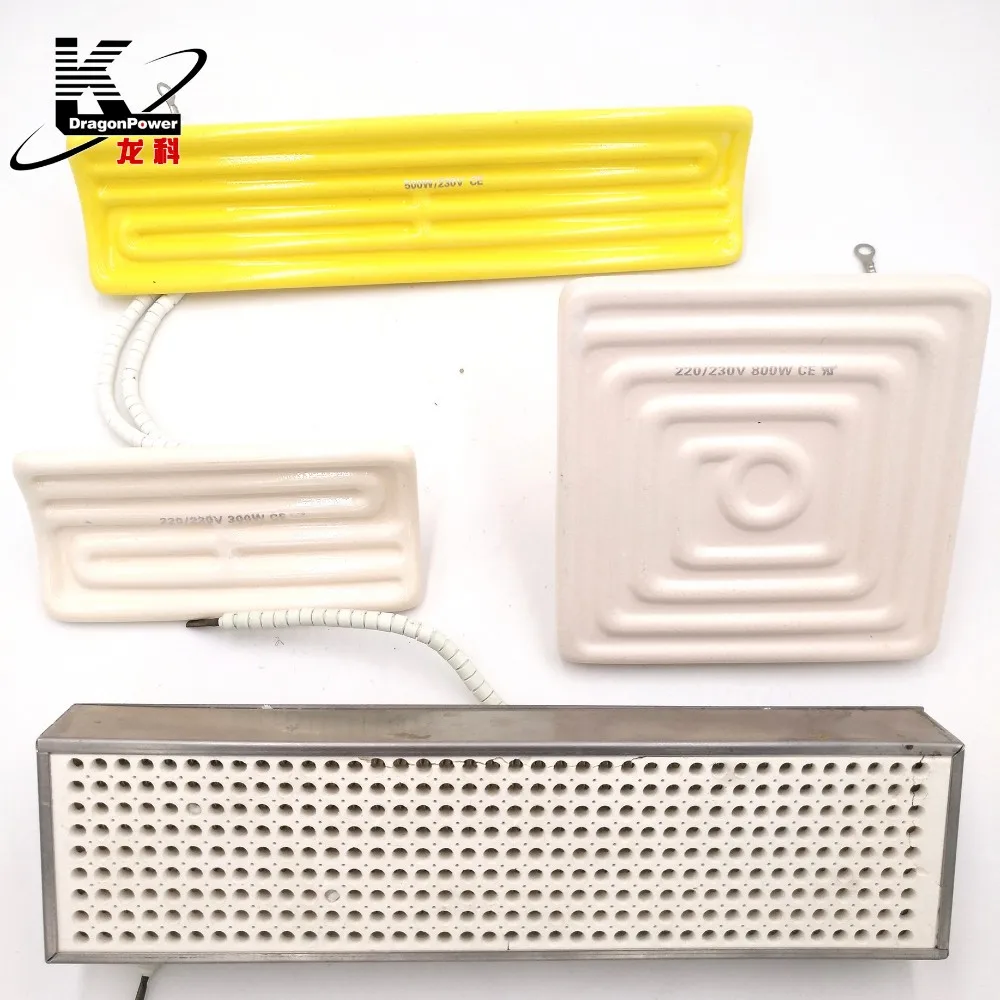

Infrared ceramic heaters are working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.

A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.

Our Infrared Heaters are designed to produce maximum output in form of heat energy. They are constructed by a firmly burnt-in heating coil. The heater incorporates highly heatproof resistance wire that provides safety against any damage.

Longer service life is achieved since the resistance of the heaters is made to remain constant over the whole temperature range. The glaze used in this heater has excellent radiation properties therefore the radiation efficiency is also very high.

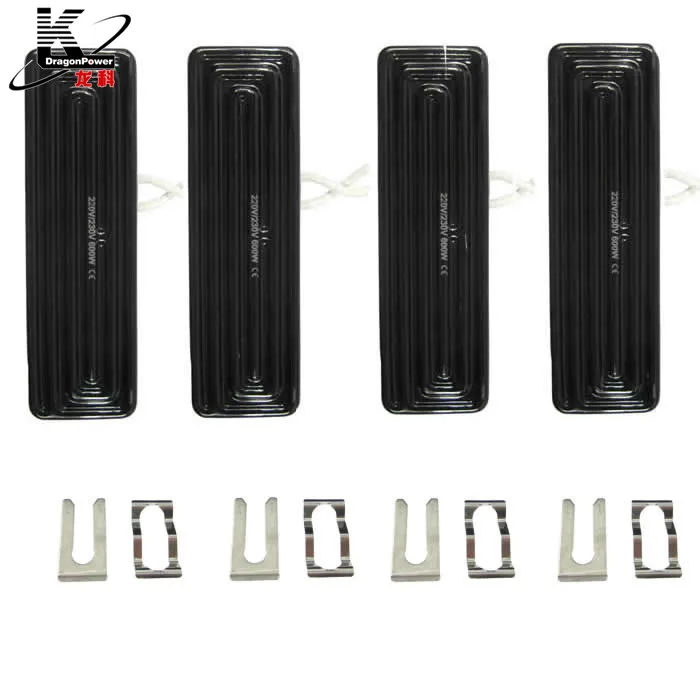

Ceramic infrared heaterTypes :





Model	Size(mm)	Voltage(V)	Power(W)	Key Technical Indexes
LK-YHWTC- L245Χ60	L245Χ60	230	800	1.Use condition: environment temperature -20~+60°C, Relative temperature <95%
				2.Leakage current:<0.5MA
LK-YHWTC- L245Χ60	L245Χ60	230	600	3.Insulation resistance:≥5MO

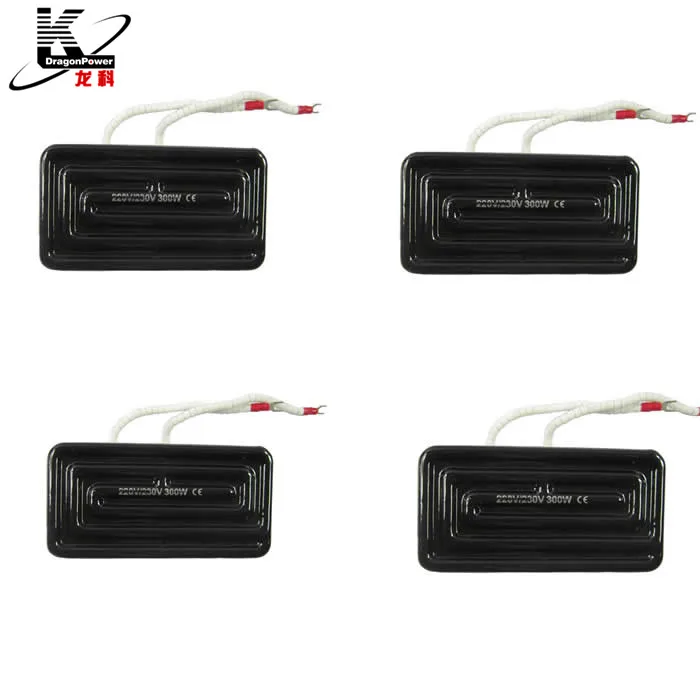

LK-YHWTC- L120Χ60	L120Χ60	230	400	4.Ground resistance:<0.1O
LK-YHWTC- L120Χ120	L120Χ120	230	400	5.Voltage resistance: no electric breakdown for 1 minute under 1500V
Note: Other models are available according to your specifications. Please refer to the Order Guide				6.Temperature endurance:100-1200°C









Thermoforming & Vacuum Forming Machines



PVC Pipe Belling / Socketing Machines



Hot Stamping Machines



Heat Therapy Equipment



Shrink Packaging

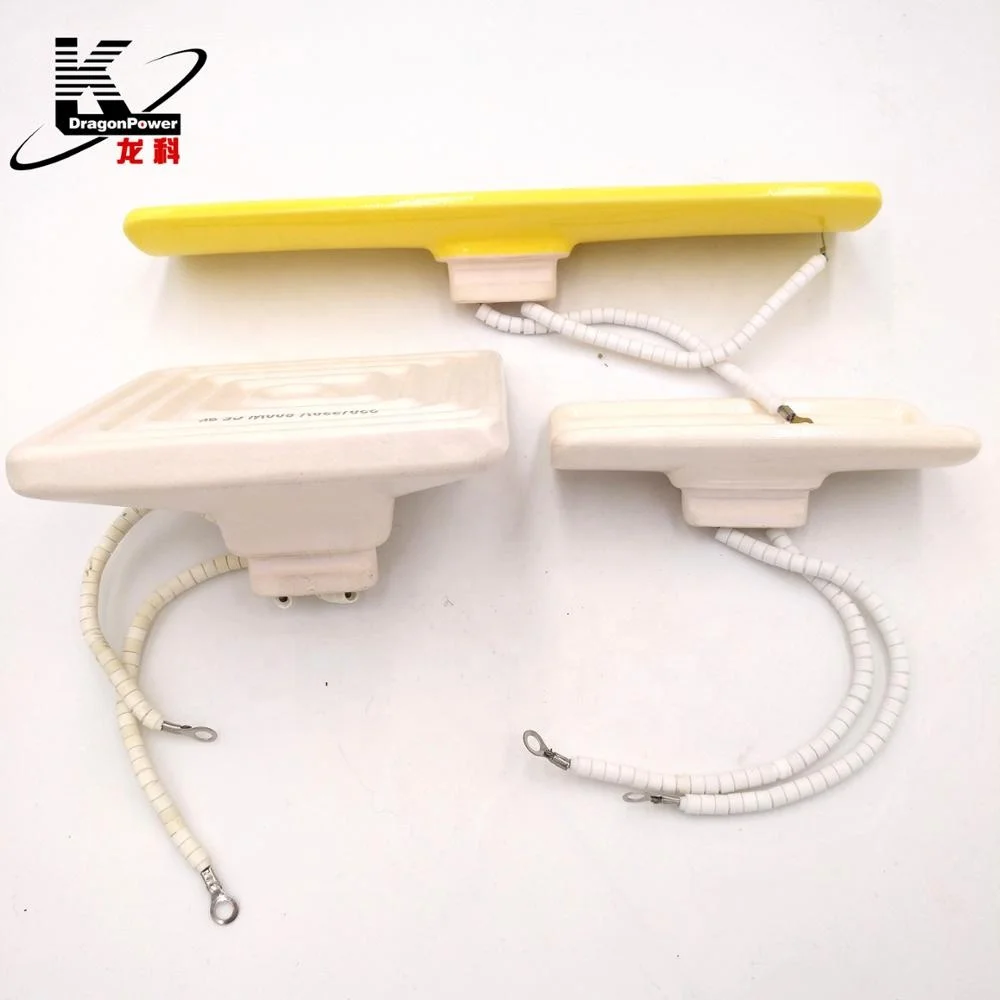

Construction and material of ceramic infrared heater



Insulator: High thermal shock resistance ceramic material



Resistance wire: High quality Ni80Cr20



Glaze Layer: good radiation metal oxide materials with moderate additives to increase radiation intensity and enhance the suitability of the glaze.







Features of ceramic infrared heater



1.     Radiation feature: The monochromatic radiation rate of our infrared ceramic heater reaches 90%, and the reverse radiation rate is larger than 83%.



2.     Thermal response time: Less than 20 minutes from the room temperature to the set temperature



3.     Durability: The surface keeps smooth after five times heating and cooling exchanges.



4.     The radiation surface temperature uniformity: ≤15%



5.     Power error: ≤5%



6.     Cold insulation resistance: 500V mega meter >2m



7.     Thermal insulation resistance: 500V mega meter >0.5m



8.     The service life of >3000 hours

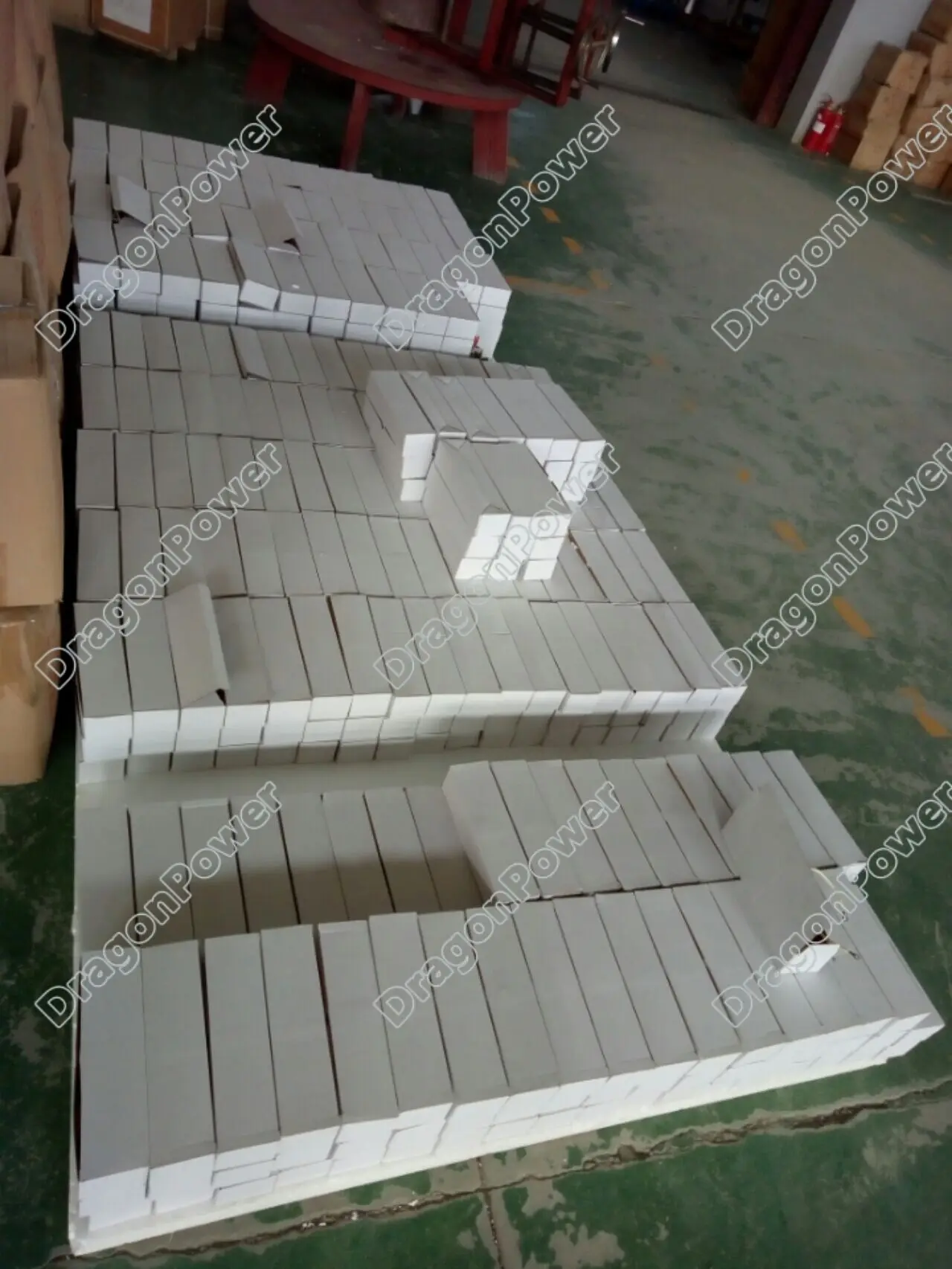

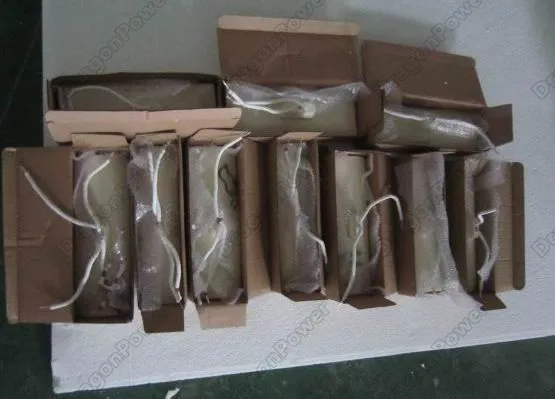

Packaging: Paper carton or wooden cases



Shipment: 1.small quantity by DHL,FEDEX  2.Bulk goods by Sea Freight. 3. Arranged to your order





DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.

Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 40 years of experience in this industry.

DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.

Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.





Please specify the following when ordering:

1. Length (mm) and width (mm) of heaters


2. Type of leads and length (mm)


3. Color of heaters if other than white, e.g. green, red, etc


4. Voltage and power density


5. Content of the stamping if needed


6. Order quantity


7. Delivery date

 ** It’s better to provide us with the drawings/pictures
