Multi Layer Spray Glue Spraying Fabric Compound Laminating Machine For Mattress Composite Membrane
- Category: >>>
- Supplier: Guangdong Henghuilong Machinery Co. Ltd.
Share on (1600101125437):
Product Overview
Description
Applications：
The equipment is mainly suitable for composite film of medical protective clothing, composite film for mattress, and multi-layer composite.
Medical protective gowns fabric
Hospital mattress
Disposable surgical gown fabric
Model | HPJ2500 |
Mechanical Speed | 200-500m/min |
Production speed | 180-500m/min |
Wide material | 2400mm |
Roll width | 2500mm |
Glue effective wide | 2400mm |
Rewinding and unwinding diameter | 1200mm |
Inner diameter of retractable paper tube | 76mm/3inch |
Rewinding and unwinding | Single station |
Equipment width * height * length | 5800*2550*10300 |
Single station | 10000 |
Production Process:
Cloth unwinding-spraying/squeegee coating-cooling-film unwinding-rewinding
Main features：
1.The function configuration options are abundant to meet various needs.
2.AC frequency conversion motor ensures high precision glue delivery.

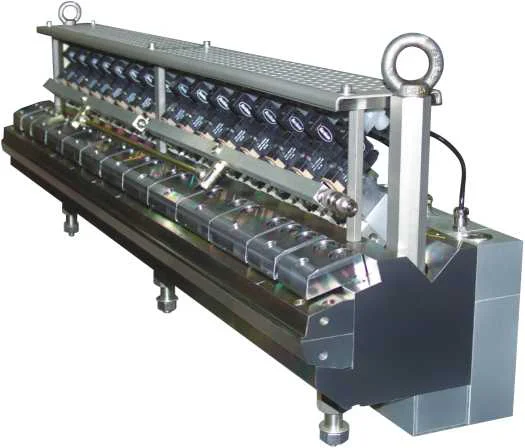

3.Spray gun, compatible with UM25, ∪M50 and other common modules, compatible with large spiral, small spiral, signature, rubber band spray order, etc.
4.Unwinding is equipped with deviation correction device, high-performance photoelectric sensor and 5.servo actuator to ensure the neatness of the coil.
6.Tension closed loop automatic control, stable tension and speed control before compounding, product quality guarantee.
Cloth unwinding-spraying/squeegee coating-cooling-film unwinding-rewinding
Main features：
1.The function configuration options are abundant to meet various needs.
2.AC frequency conversion motor ensures high precision glue delivery.
3.Spray gun, compatible with UM25, ∪M50 and other common modules, compatible with large spiral, small spiral, signature, rubber band spray order, etc.
4.Unwinding is equipped with deviation correction device, high-performance photoelectric sensor and 5.servo actuator to ensure the neatness of the coil.
6.Tension closed loop automatic control, stable tension and speed control before compounding, product quality guarantee.
Comparison of the properties for Dot transfer lamination & Suspension scraping lamination
Item | Dot transfer lamination | Suspension scraping lamination | ||||
Post-maintenance | Frequently changing the width of the rubber baffle will result in a short life of the rubber baffle. The rubber baffle needs to be replaced frequently. The scraper blade is replaced in about 30 days. The rubber roller is often repaired and replaced, which is troublesome to disassemble. | Since the width of the glue is changed, there is no need to adjust the rubber baffle, and the rubber baffle has a long life. The pressure of squeegee for suspension scraping coating is 2-3KG air pressure relative to the squeegee for dot transfer coating, so the life of the squeegee is relatively long. | ||||
Frequently change the width of the glue coating, the baffle is easy to damage | The rubber roller is easy to be deformed and needs maintenance, and the accuracy must be well controlled. | |||||
Glue coating material | Not suitable for high air permeability and perforated materials, and not suitable for low weight materials, such as (8-15g non-woven fabric, etc.) | Breathable and non-breathable materials, both high and low weight materials are available, and mesh materials can also be coated | ||||
Q1: What Industry is your product suitable for?
A1:Our machines are widely used in the fields of disposable hygienic products,disposable medical products, clothing, textile fabrics, self-adhesive labels, medical tape, plaster backing, and various othercoating compounds.
Q2：What if the machine fails during use?
A2:Our machines will be carefully inspected and ensured before delivery,and we will provide the correct instructions for use of the products. In addition, our products support lifetime warranty service, if there any question during using our products please consult our work personnel.
Q3: When can I get the machine after payment?
A3:The product production time about 45-60 days. We will deliver it on time as the date we agreed both side.
Q4: How can I install my machine when it arrives?
A4:We will provide installation videos and tutorials, or send our engineer to your side ASAP
you get all your machines ready, for testing and teaching your technicians how to run the machine.
you get all your machines ready, for testing and teaching your technicians how to run the machine.
Q5: What payment do you accept?
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
A5:We generally accept T/T or L/C, and we can negotiate the payment method.
