SJ Series ABS PE single screw compounding extruder
- Category: >>>
- Supplier: Zhangjiagang Shangyi Machinery Co. Ltd.
Share on (1600101389656):
Product Overview
Description
Product Description
Color | selectable |
Length | 3m |
Temperature controller | OMRON |
Converter | ABB Inventer |
Motor brand | SIMENS |
Plastic Processed | PE,PP,PERT,TPU,PEX |
Voltage | 3phase 380v 50hz |
Product Display

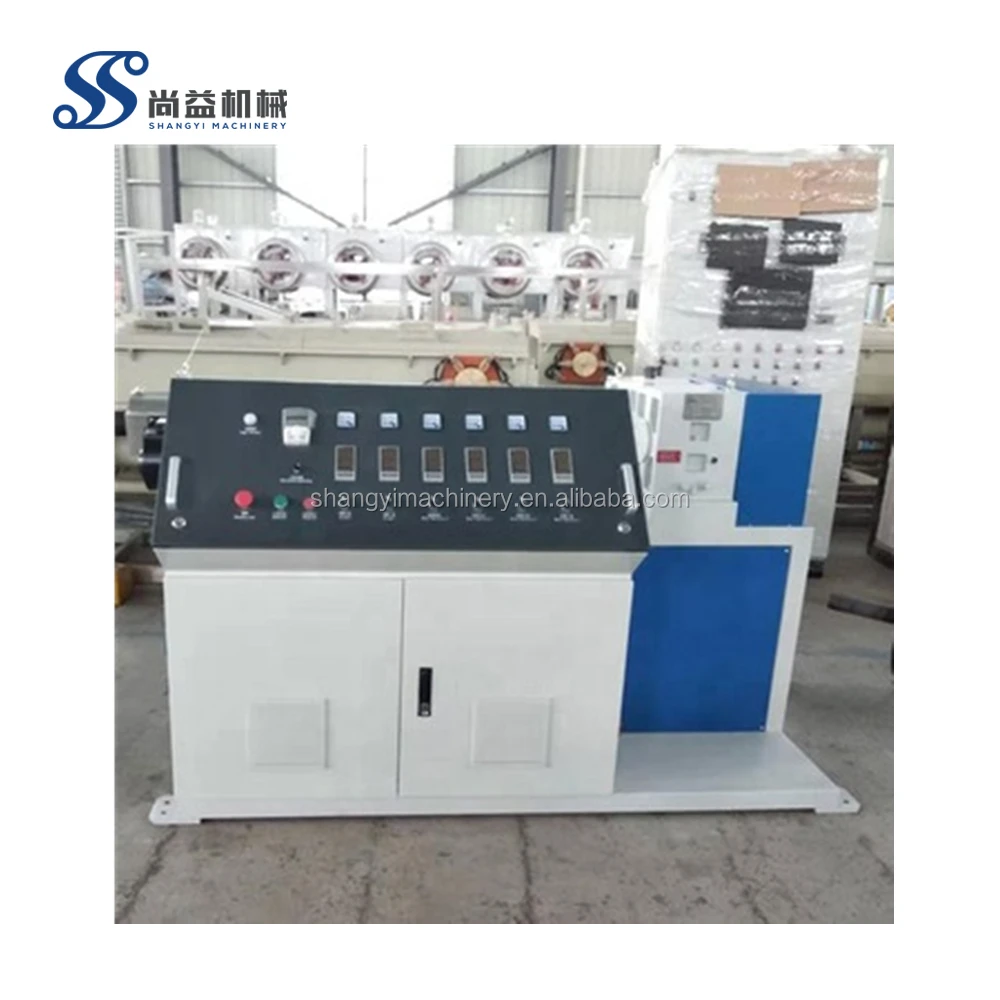

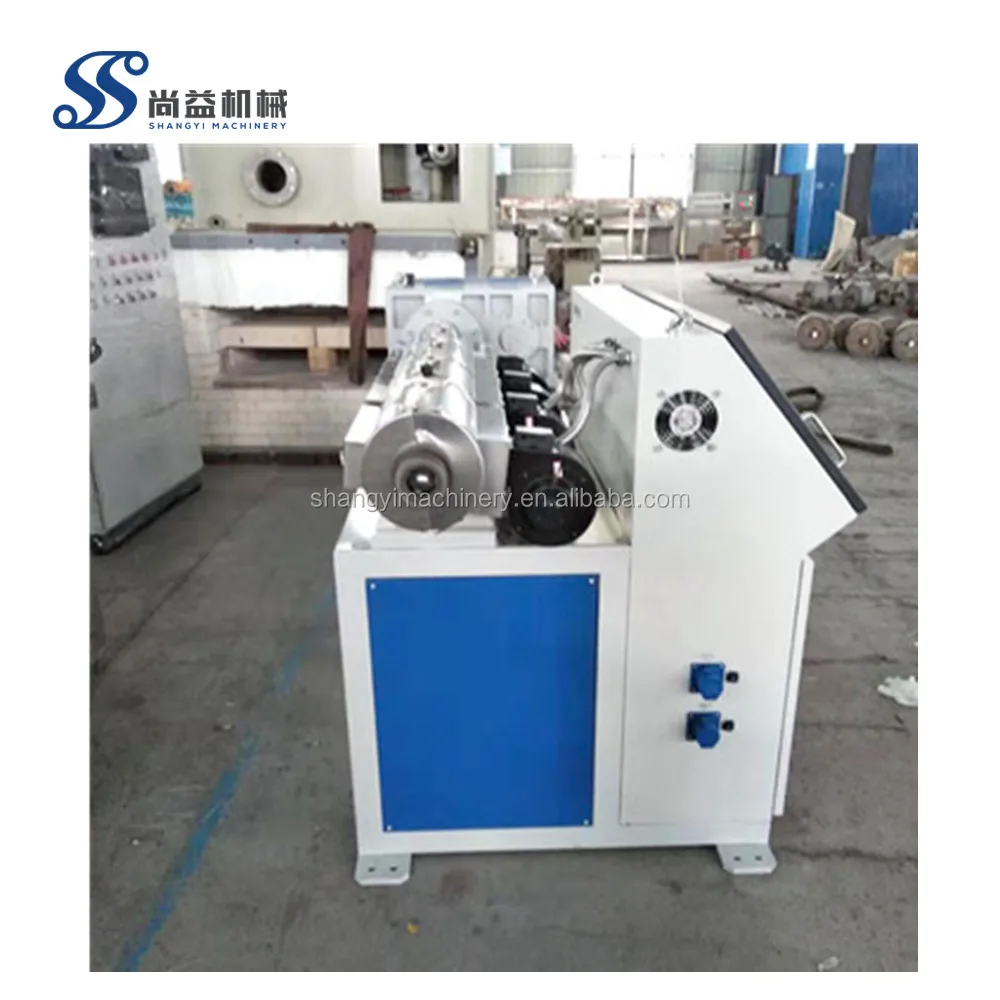

SJ Single Screw Extruder is mainly used to process PP, PE, PP-R,ABS and other plastics. Equipped with auxiliary machines, it can
manufacture profile, pipes, sheets and other plastic products and granulation. It has the advantage of simple production
technological process, high output, stable quality and low cost.
manufacture profile, pipes, sheets and other plastic products and granulation. It has the advantage of simple production
technological process, high output, stable quality and low cost.
Main advantage:
1.Suitable for various polyolefin materials: HDPE, PPR, PP,and ABSetc. Adopt advanced human-machine interface control system to
realize the automatic control of the whole line.
2.Excellent temperature control system to ensure the stability of the producing process. Integrated design of force water cooling
and force feeding groove ensures the evenness and stability of the manufacturing process.
3.High-performance driving system; Wearable and easy to maintain.
realize the automatic control of the whole line.
2.Excellent temperature control system to ensure the stability of the producing process. Integrated design of force water cooling
and force feeding groove ensures the evenness and stability of the manufacturing process.
3.High-performance driving system; Wearable and easy to maintain.
Details Images
Model | L/D | Output | Speed of Screw Rotationl | Power | Center Height |
SJ-30 | 33：1 | 10-25kg/h | 20-120r/min | 3-5.5kw | 1000mm |
SJ-45 | 33：1 | 10-35kg/h | 20-120r/min | 7.5-18.5kw | 1000mm |
SJ-50 | 33：1 | 20-80kg/h | 20-120r/min | 22-37kw | 1000mm |
SJ-65 | 33：1 | 80-150kg/h | 20-120r/min | 37-55kw | 1000mm |
SJ-75 | 33：1 | 120-280kg/h | 20-120r/min | 55-90kw | 1000mm |
SJ-90 | 33：1 | 150-450kg/h | 20-120r/min | 90-160kw | 1200mm |
SJ-120 | 33：1 | 300-600kg/h | 20-120r/min | 160-260kw | 1200mm |
SJ-150 | 33：1 | 450-700kg/h | 20-120r/min | 260-315kw | 1200mm |
