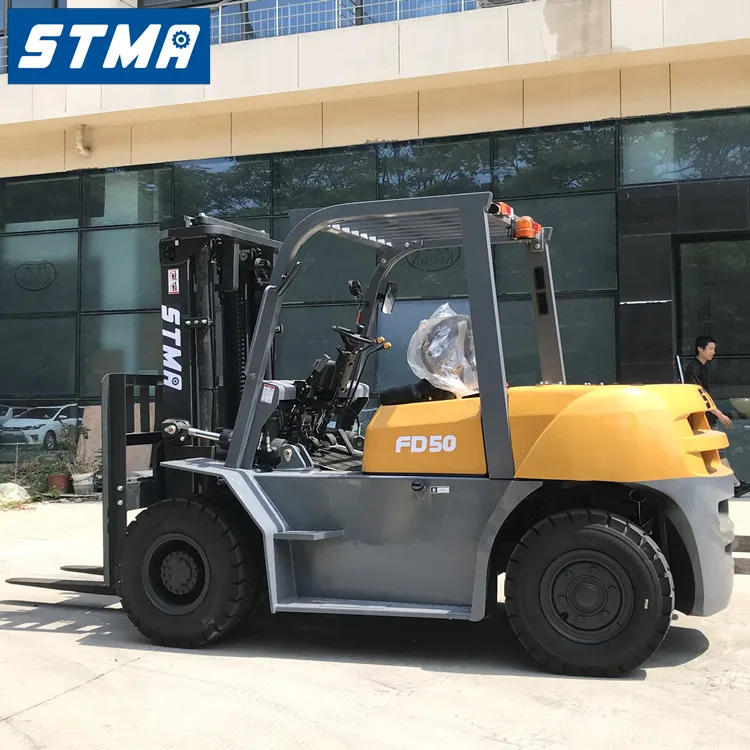

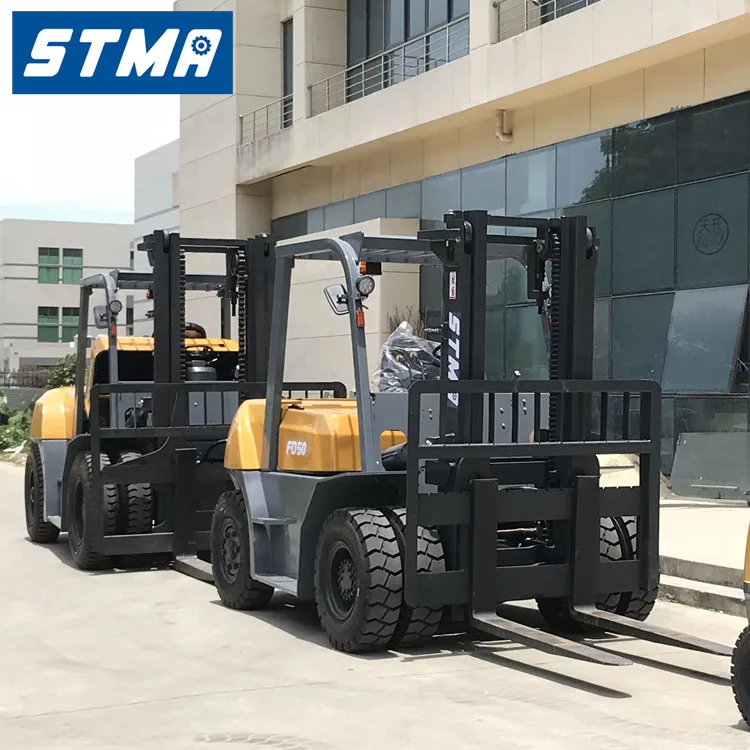

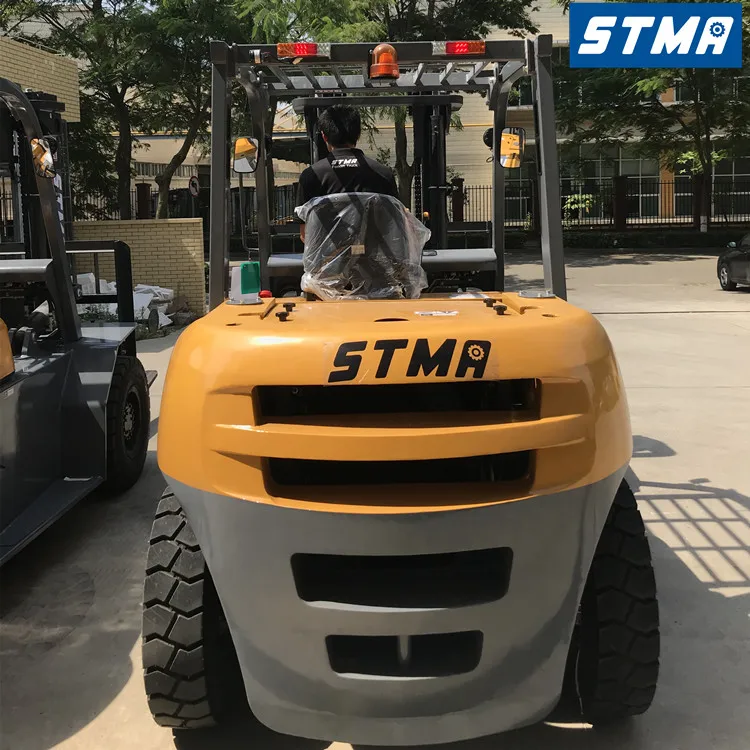

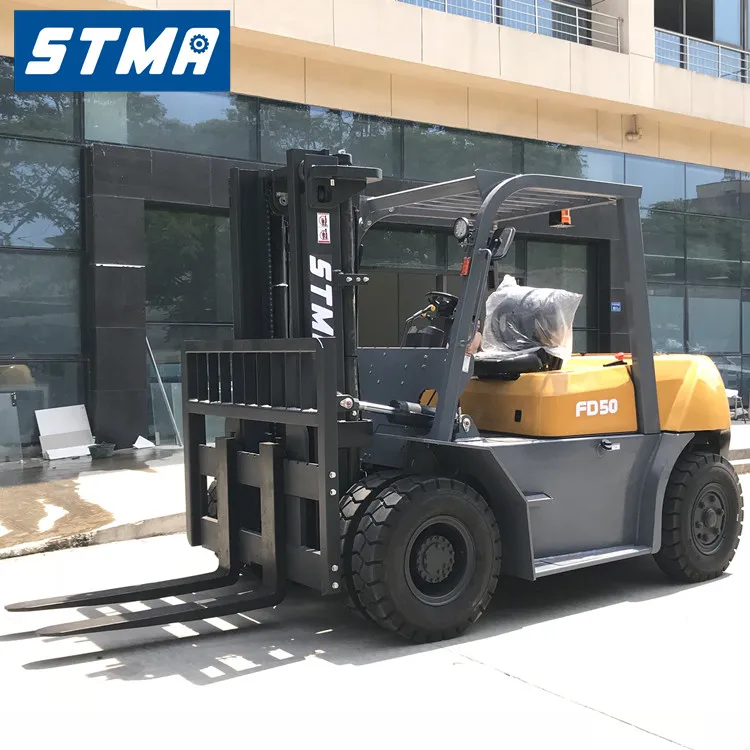

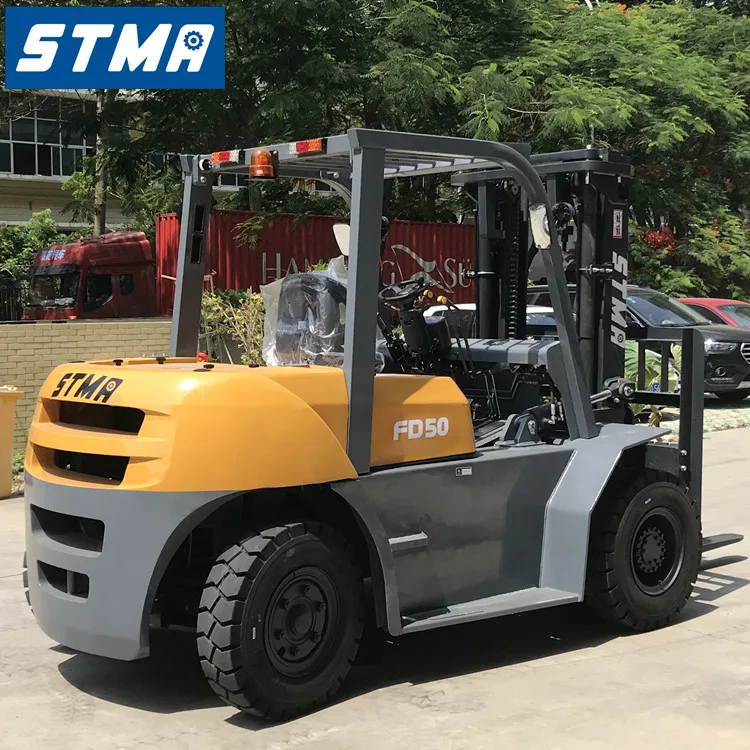

STMA big 5 ton forklift 5 ton diesel 5000kg with Mitsubishi S6S engine for 65.5kw/2250min
- Category: >>>
- Supplier: STMA Industrial (Xiamen) Co. Ltd
Share on (1600101474902):
Product Overview
Description
Product Description
STMA big 5 ton forklift 5 ton diesel 5000kg with Mitsubishi S6S engine for 65.5kw/2250min
big 5 ton forklift
Our Advantages
Specifications of forklift 5 ton diesel 5000kg
Model | FD50 big | ||||
1 | Power Type | Diesel | |||
2 | Rated Capacity | kg | 5000 | ||
3 | Load Centre | mm | 600 | ||
4 | Lift Height | mm | 3000 | ||
5 | Fork Size (L×W×T ) | mm | 1220×150×55 | ||
6 | Mast Tilt Angle (F/R) | Deg | 6°/12° | ||
7 | Front Overhang (Wheel center to fork face) | mm | 590 | ||
8 | Ground Clearance(Bottom of mast) | mm | 200 | ||
9 | Turning Radius (outside) | mm | 3250 | ||
10 | Min. Intersecting aisle | mm | 2960 | ||
11 | Max.Gradeability (No load/Full load) | % | 20 | ||
12 | Wheelbase | mm | 2250 | ||
13 | Service weight | kg | 8550 | ||
14 | Battery (Voltage/Capacity) | V/Ah | (12/80)x2 | ||
15 | Overall Dimension | Length to face of fork(Without fork) | mm | 3450 | |
16 | Speed | Overall Width | mm | 2010 | |
17 | Mast Lowered Height | mm | 2500 | ||
18 | Mast Extended Height(With backrest) | mm | 4380 | ||
19 | Overhead Guard Height | mm | 2470 | ||
20 | Travel (No load) | km/h | 26 | ||
21 | Lifting(Full load) | mm/s | 500 | ||
22 | Tire | Front | mm | 8.25-15-14PR | |
23 | Rear | mm | 8.25-15-14PR | ||
24 | Engine | Model | 6BG1 | ||
25 | Manufacture | ISUZU | |||
26 | Rated output/r.p.m. | kw | 82.3/2000 | ||
27 | Rated torque/r.p.m. | N·m | 416/1400-1600 | ||
28 | No.of Cylinder | 6 | |||
29 | Bore×Stroke | mm | 105×125 | ||
30 | Displacement | cc | 6494 | ||
31 | Fuel Tank Capacity | L | 140 | ||
32 | Transmission | Type | Powershift | ||
33 | Stage FWD/RVS | 43133 | |||
34 | Operating Pressure for Attachment | Mpa | 19 | ||

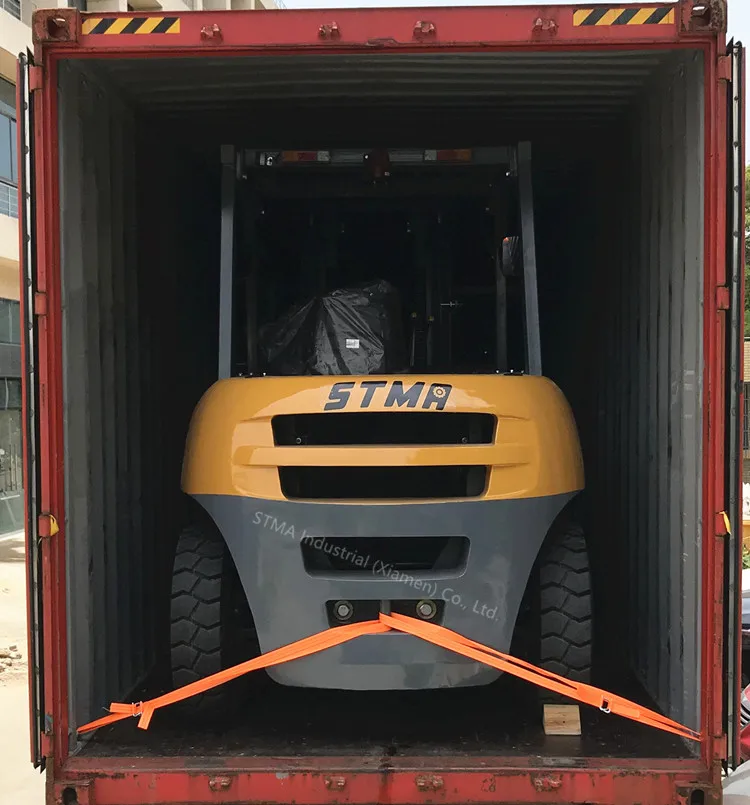

Packing & Delivery
