Ceramic fiber module
- Category: Ceramic Fiber Module >>>
- Supplier: Rosewool Insulation Refractory Co. Ltd.
Share on (1600101488377):
Product Overview
Description

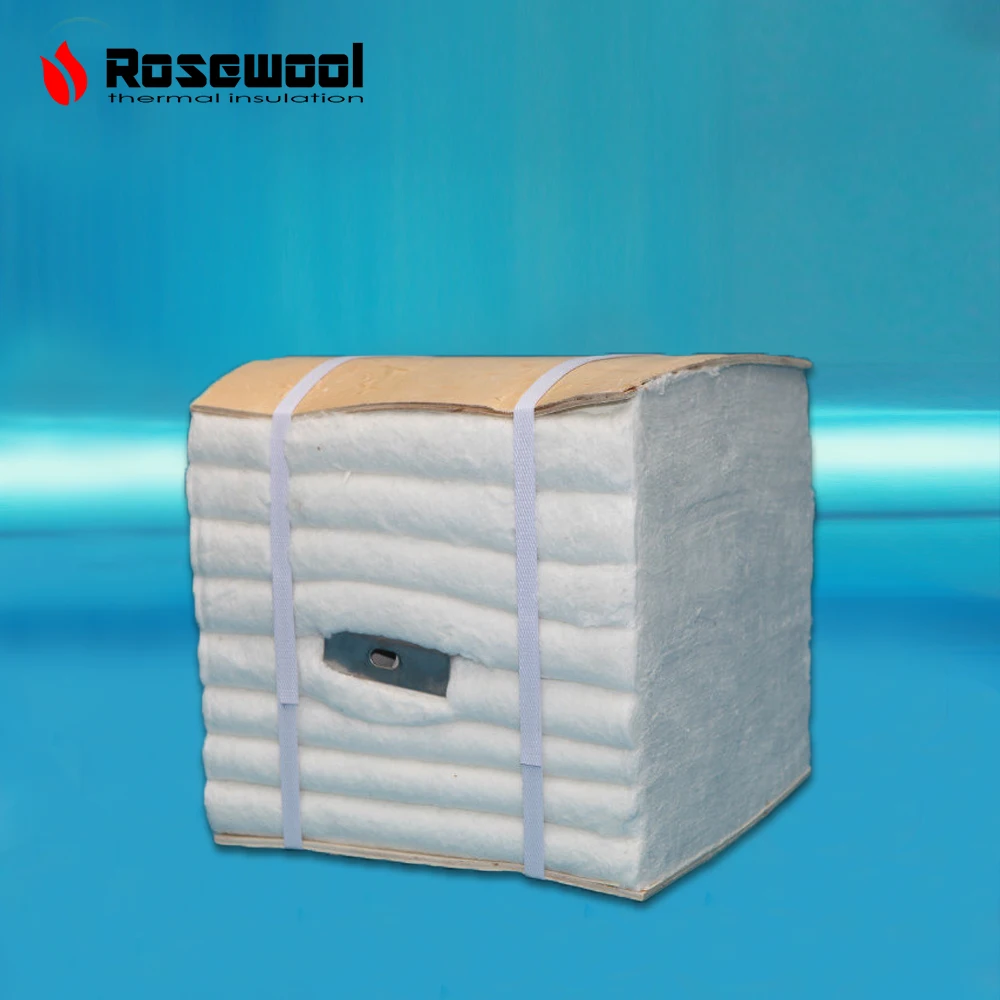

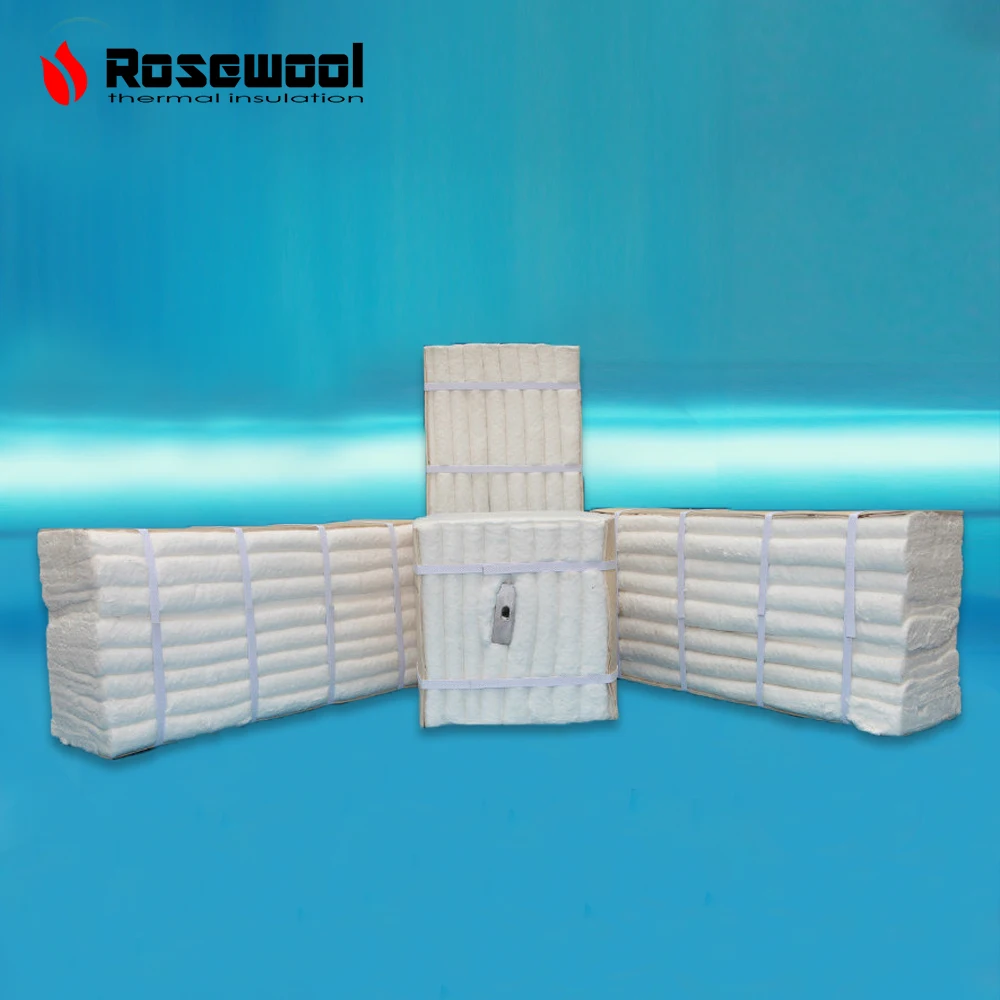

Inorganic spun ceramic fiber moudle bulk heater module

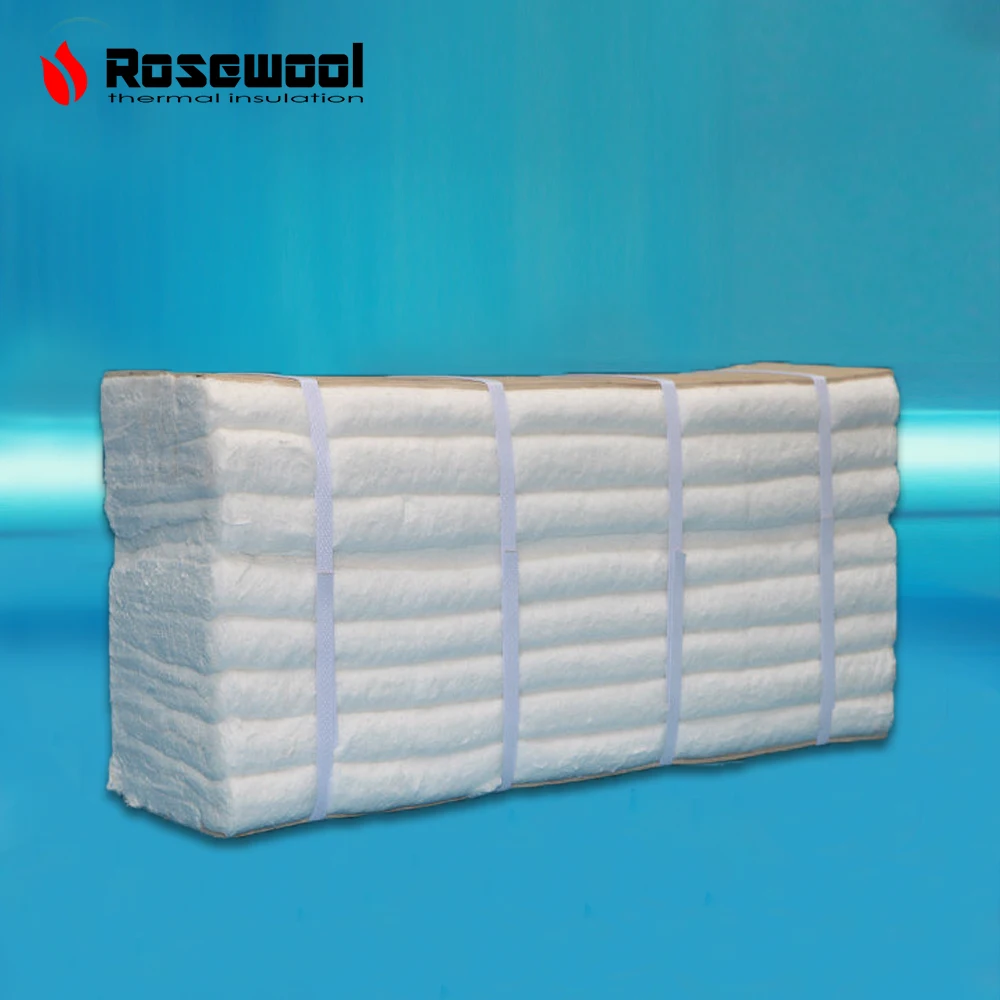

Thermal Insulation ceramic fiber module

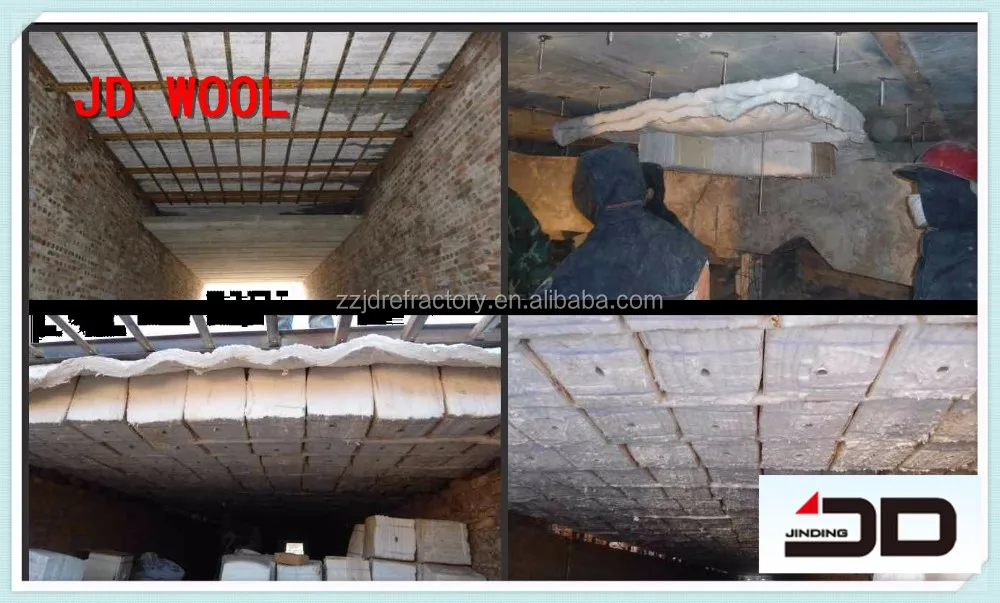

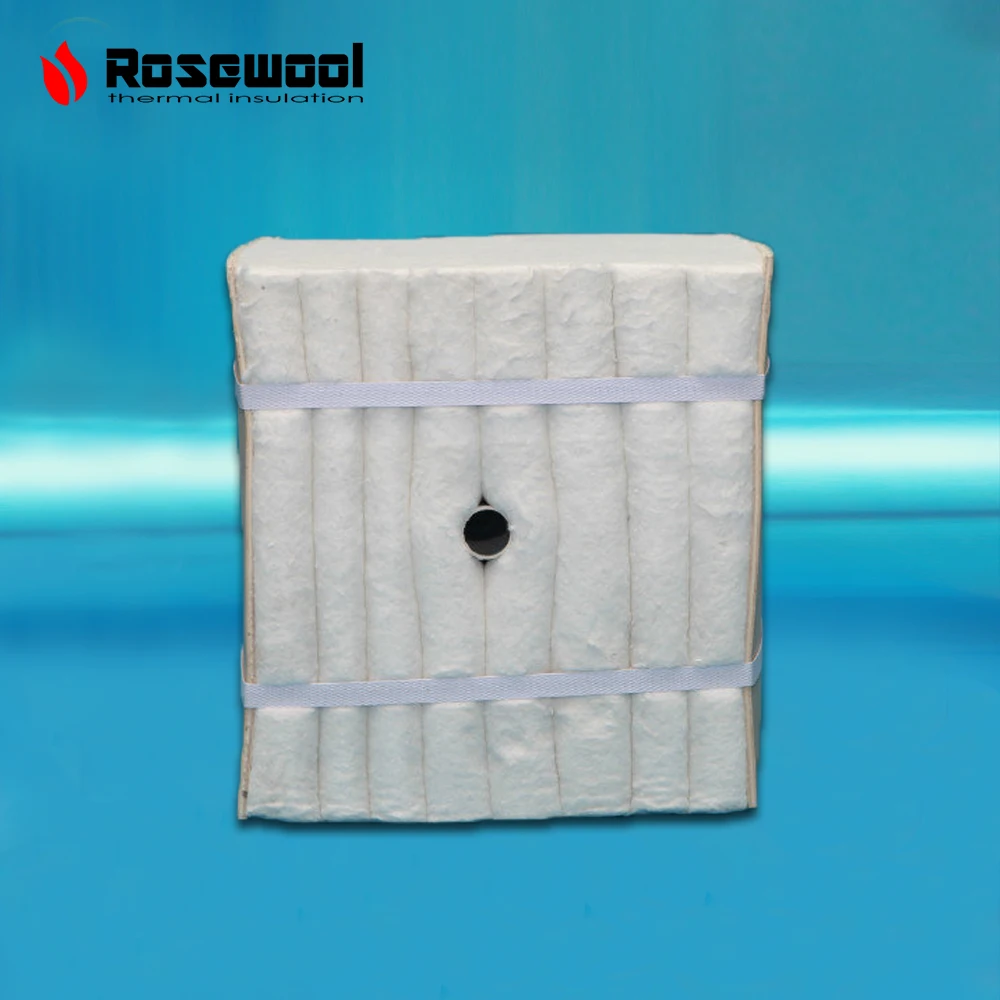

Ceramic fiber module is made by processing the corresponding ceramic fiber needling blanket with the specific machine according to structure and size of the fiber module. During the process, it should maintain a certain percentage of compression, so as to ensure the fiber modules can swell to different directions and can crush together into a whole without crack after the lining construction. The ceramic fiber modules can be fixed on the steel plate of industrial furnace by different kinds of anchors
| Character of ceramic fiber module |
1. Low density, low thermal conductivity
2. Excellent thermal resistance to shock
3. Resistance to air eroding
4. Excellent mechanical strength
5. Good safety with anchor inside
6. Easy to install

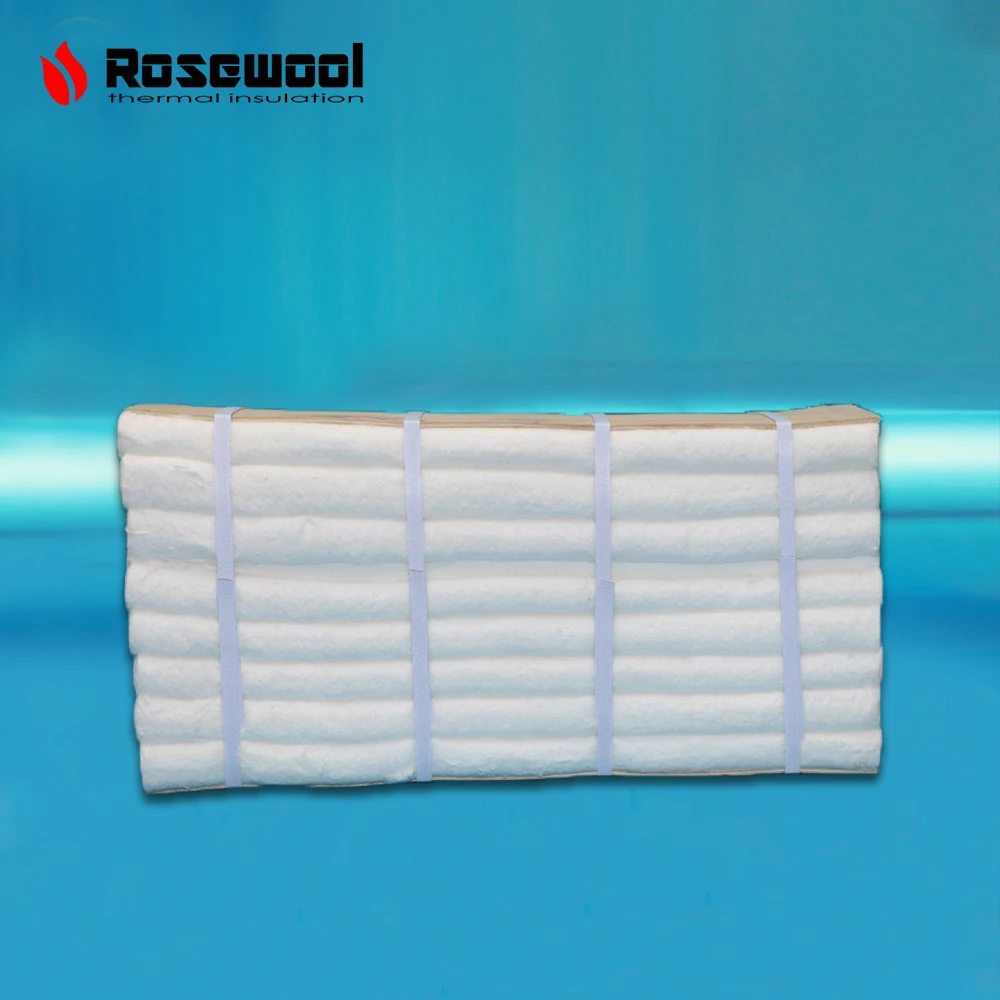

Thermal Insulation ceramic fiber module
| Application of ceramic fiber module |
1) Steel industry: types of furnaces including heating furnaces, heat treatment furnaces ladle cover,annealing furnaces, bell-type furnaces.
2) Ceramic industry: shuttle-type kilns, end-fired furnaces, tunnel kilns and other types of ceramic furnaces, kiln cars, kiln doors.
3) Petrochemical industry: cracking furnaces, converting furnaces, constant/reduction press furnaces, flue pipes.
4) Heat-treatment industry: annealing furnaces, normalizing furnaces, drawing furnaces, pit furnaces, kiln cars. High- temperature equipment, for example, pot furnaces, electricity resistance furnaces and other kinds of industrial furnaces
| Data of ceramic fiber module |
Technical index of ceramic fiber module
| 1260 Fiber Folding Block | 1400 Fiber Folding Block | 1260 Fiber Folding Block | 1400 Fiber Folding Block |
Classification Temperature(°C) | 1260 | 1400 | 1260 | 1400 |
Density(Kg/m3) | 160, 190, 220 | |||
Heating Linear Shrinkage (%) | (1100°C*24hrs) 1.0 | (1200°C*24hrs) 1.1 | (1100°C*24hrs) 1.0 | (1200°C*24hrs) 1.1 |
Heat Conductivity Kcal/mh °C (W/m·k), ASTM C201 160kg/m3 | ||||
Average 400°C | 0.09 |
| 0.09 |
|
Average 600°C | 0.14 | 0.14 | 0.14 | 0.14 |
Average 800°C | 0.21 | 0.21 | 0.20 | 0.20 |
Average 1000°C |
| 0.26 |
| 0.28 |
Module Size (mm/module) | 300*300*150, 200, 250, 300 | |||
| ||||
| 1260 Fiber Veneer Block | 1400 Fiber Veneer Block | 1500 Fiber Veneer Block | 1600 Fiber Veneer Block |
Classification Temperature(°C) | 1260 | 1400 | 1500 | 1600 |
Density(Kg/m3) | 130, 160 | |||
Heating Linear Shrinkage (%) | (1100°C*24hrs) 1.3 | (1200°C*24hrs) 1.5 | (1300°C*24hrs) 1.2 | (1400°C*24hrs) 1.1 |
Heat Conductivity Kcal/mh °C (W/m·k), ASTM C201 160kg/m3 | ||||
Average 400°C | 0.12 |
|
|
|
Average 600°C | 0.17 | 0.12 | 0.10 |
|
Average 800°C | 0.25 | 0.16 | 0.14 |
|
Average 1000°C |
| 0.21 | 0.19 |
|
Module Size (mm/module) | 300*300*50, 75 | |||
Common Size:300*300*150-300mm or customized as your request.
ZhengZhouShengShiJinDIng
ZhengZhou ShengShiJinDing Refractory Co. ,Ltd . Since we began our operations, we have focused our efforts on the development ,manufacture, marketing and construction of various refractory materials, such as, Silicate fiber products, Ceramic fiber products, The calcium silicate board, The glass wool products, Rockwool etc, and now our products have been widely used in the cement, petrochemical and metallurgical industries throughout our country even the world, especially in United States, Japan, Korea, the Middle East, Southeast Asia, Africa, Russia and so on.

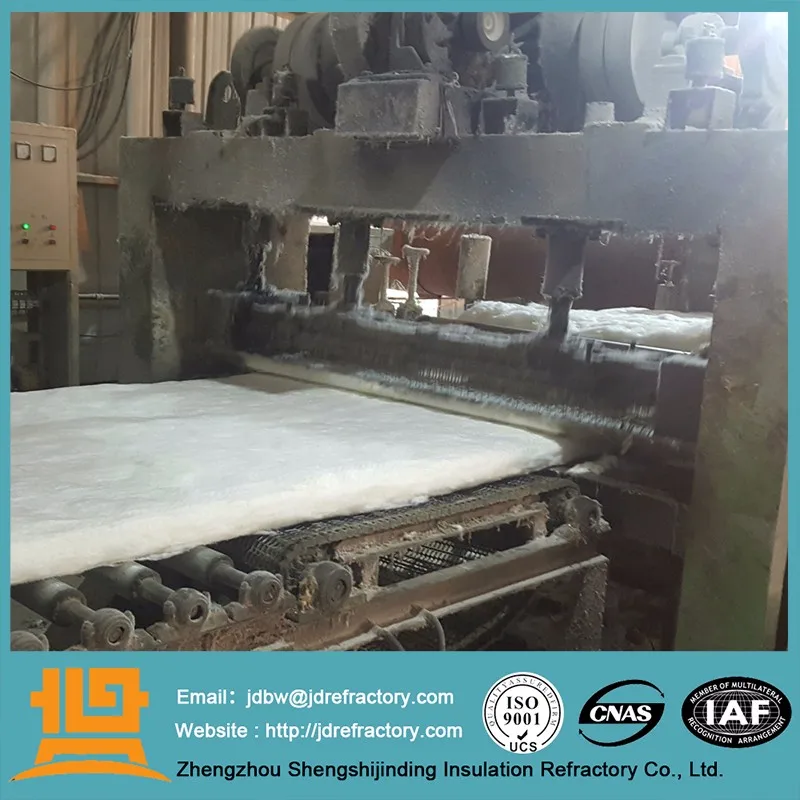

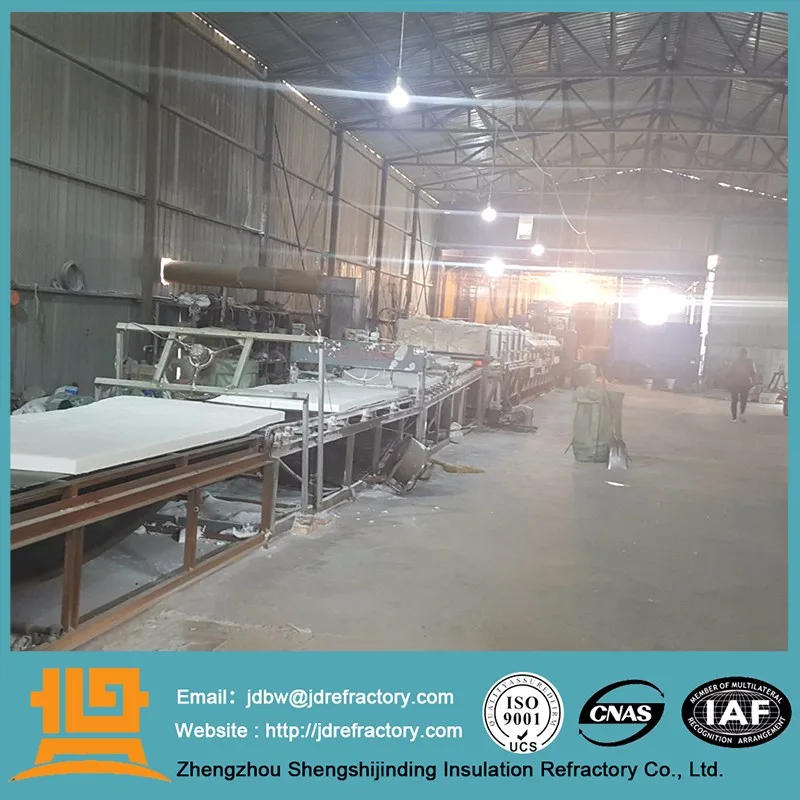

| Workshop of ceramic fiber module |
We have more than one production line, every line daily production of 800 cubic meters of fiber module, we have a professional team and superb technology

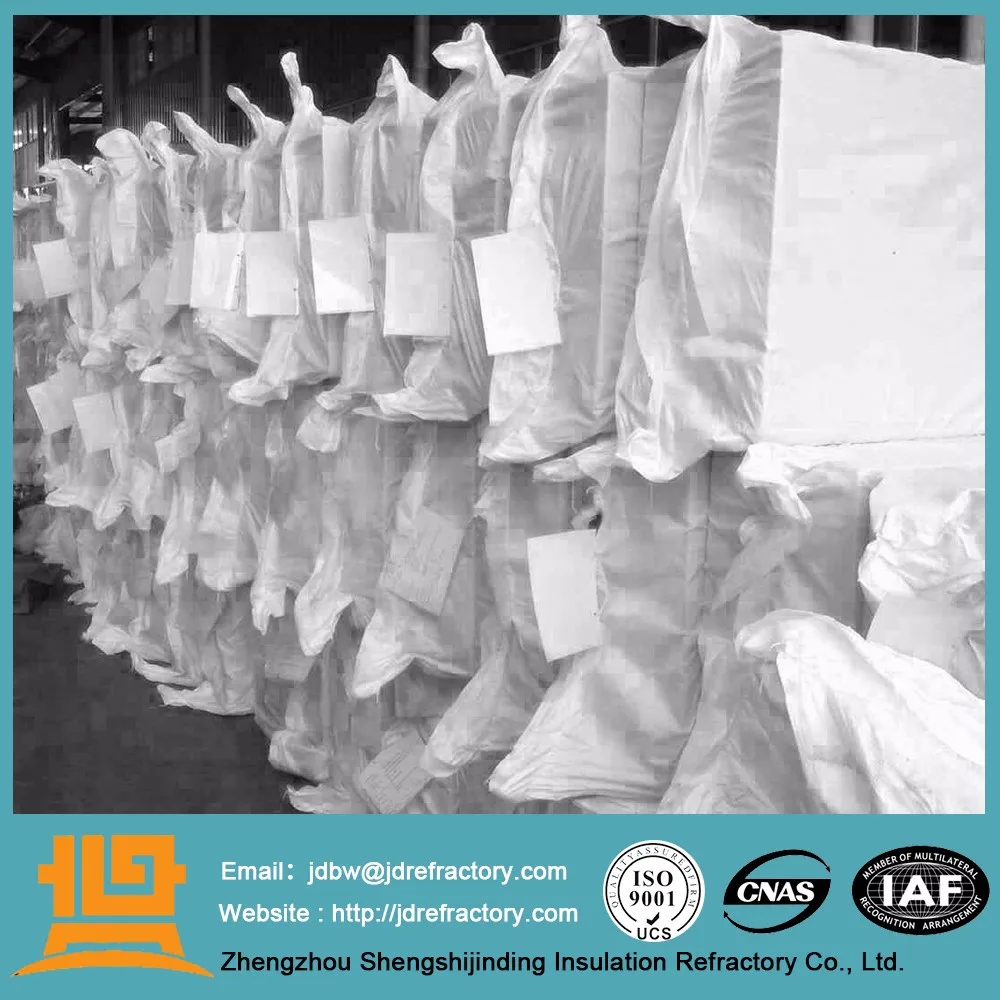

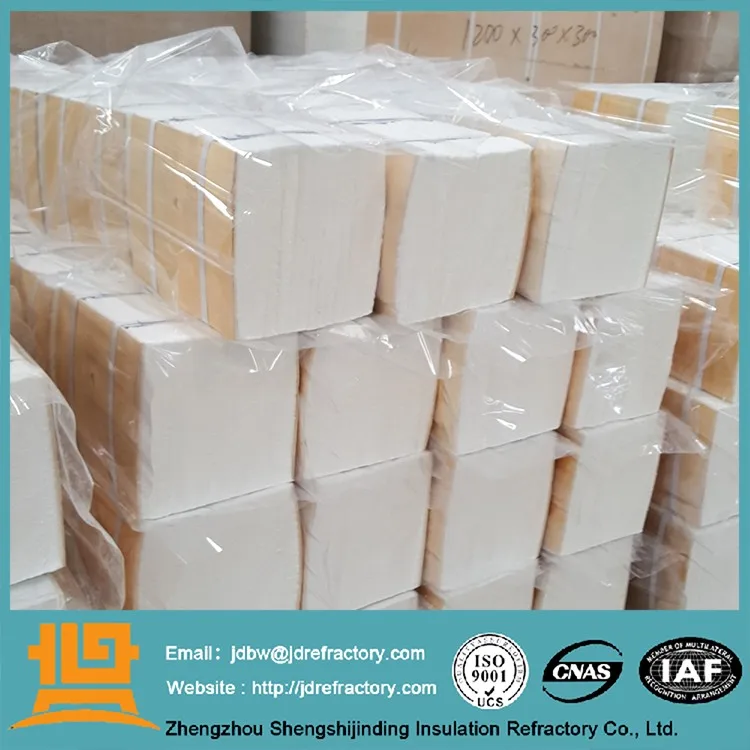

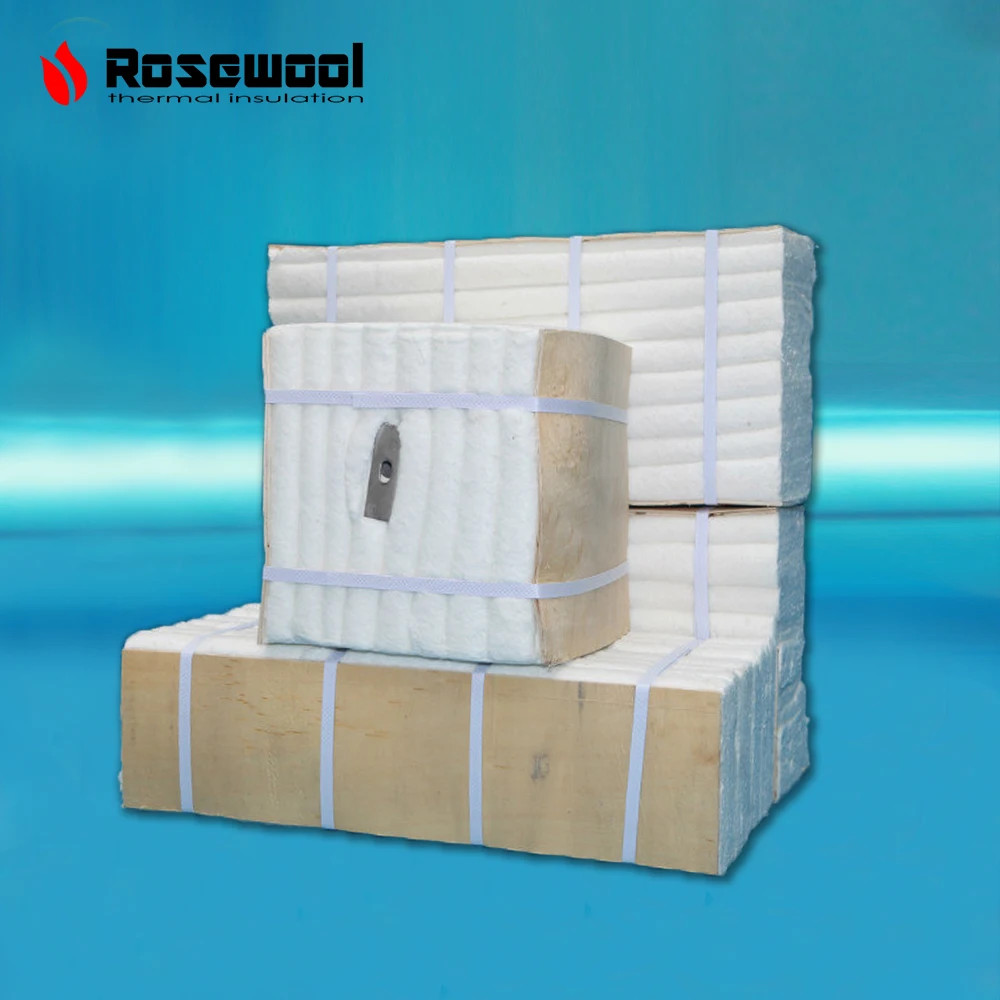

| Packing of ceramic fiber module |
Packed with plastic bag inside and carton box outside or with pallet. the module includes the anchor
| Shipping of the ceramic fiber module |
We have weight inspection before packing, to make sure actual weight >= theoretical weight.
Also have size inspection to guarantee precise size.
Inner: plastic bags,outside carton box or pallet, or according to customer's requirement
customer visting
Thermal insulation of ceramic fiber module
| Do our best to do my best for our customer |
1. Prompt reply within 24 hours without delay by our specialized after-sale service sector.
2.Provide high temperature solutions and professionals construction services for different fields for our customers.
3.Provide the most reasonable logistics for customers to save every penny.
4.Production of goods are finished, thoughtful provide products and packaging photos for our customers
5.sample free supply
| FAQ |
what is your delivery time ?
Within 10-15 days after get your depsiot & confirmations,also deliver as per your requirement on time .
Which payment can you accept ?
T/Tdepositor 40% balance 60% against copy of B/L or L/C at sight.
What is your MOQ?
40'HQ container, that's around 68 cubic meters.
I am interested in the products but I do not have experience?
Tell us your budget and target market and we will give you professional advice of exact kinds and quantity.
Can I get some samples for check?
Yes. Samples can be provided for free but you should take charge of freight and but that will deduct from your bulk order

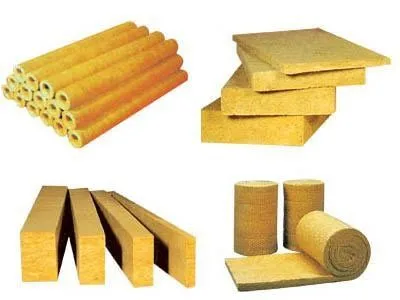

Related products of insulation material
