Product Overview

Description



Product Description

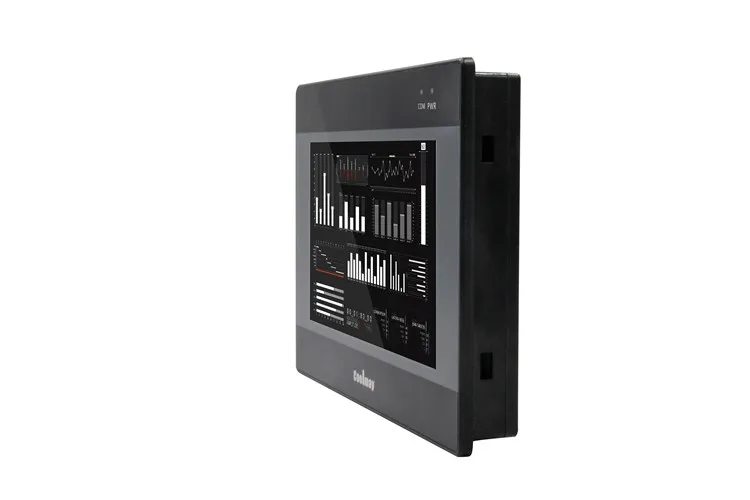

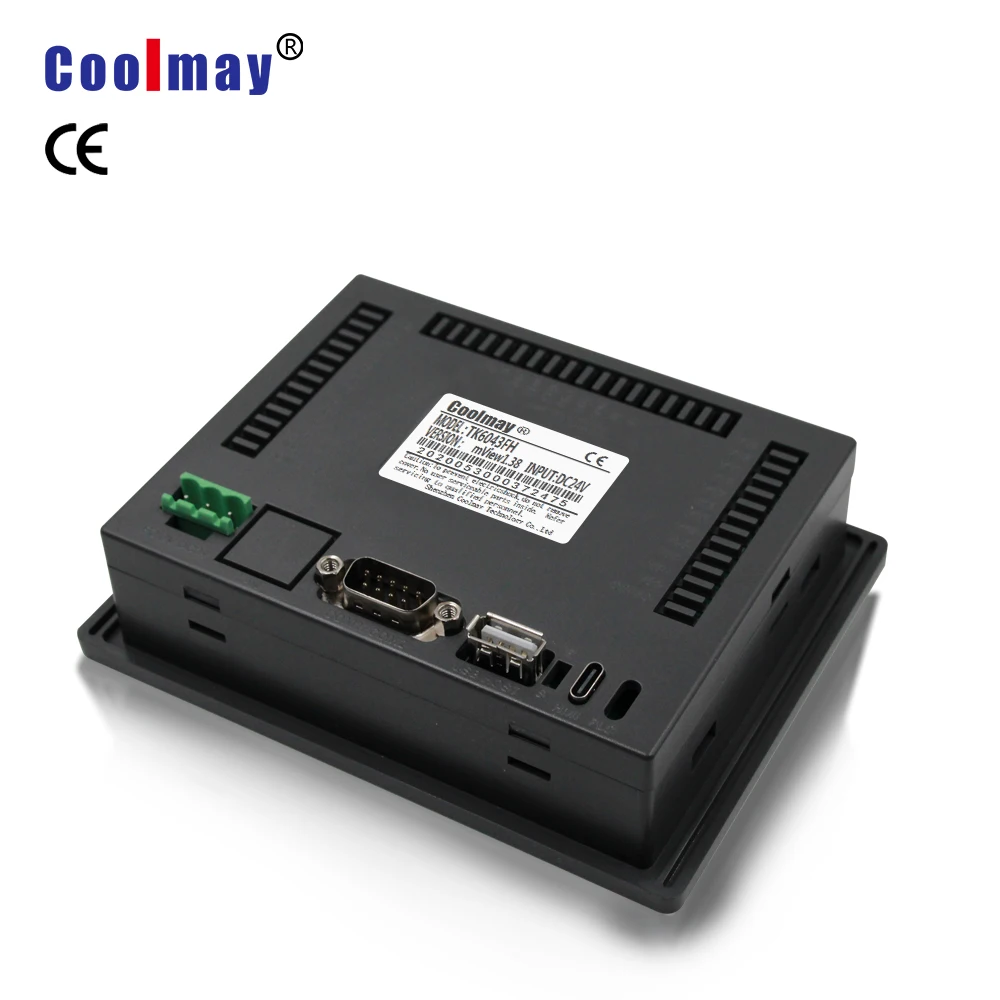

5inch hmi touch screen with rs232 with wifi


Features
●5" 800*480 TFT LCD
●High precision and high relability resistive touch panel
●Natural cooling system
●IP65 panel protection level
●LED backlight
●Buit-in storage memory and perpetual calendar
●Provide a large number of vector galleries and self-built galleries
●Software function templated and personalized coexistence
●Support multi-language, batch translation function
●Import and export of batch data and recipes

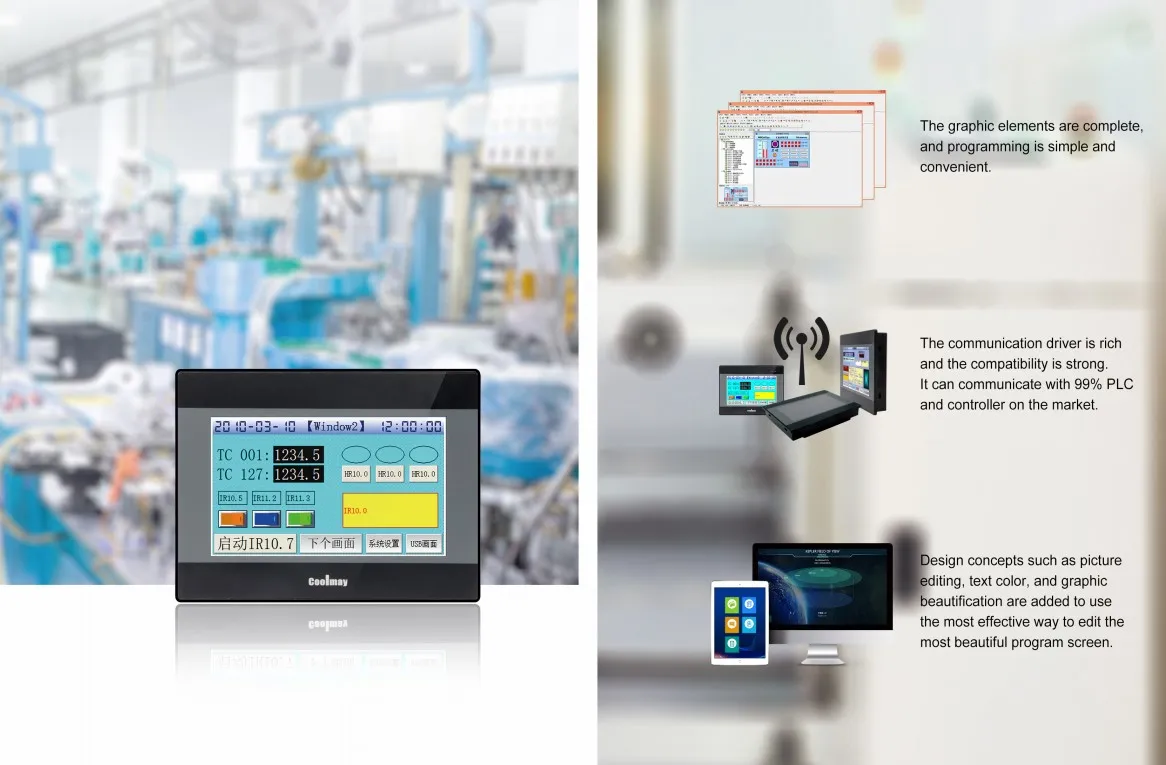

New mView HMI Programming software for TK panel!

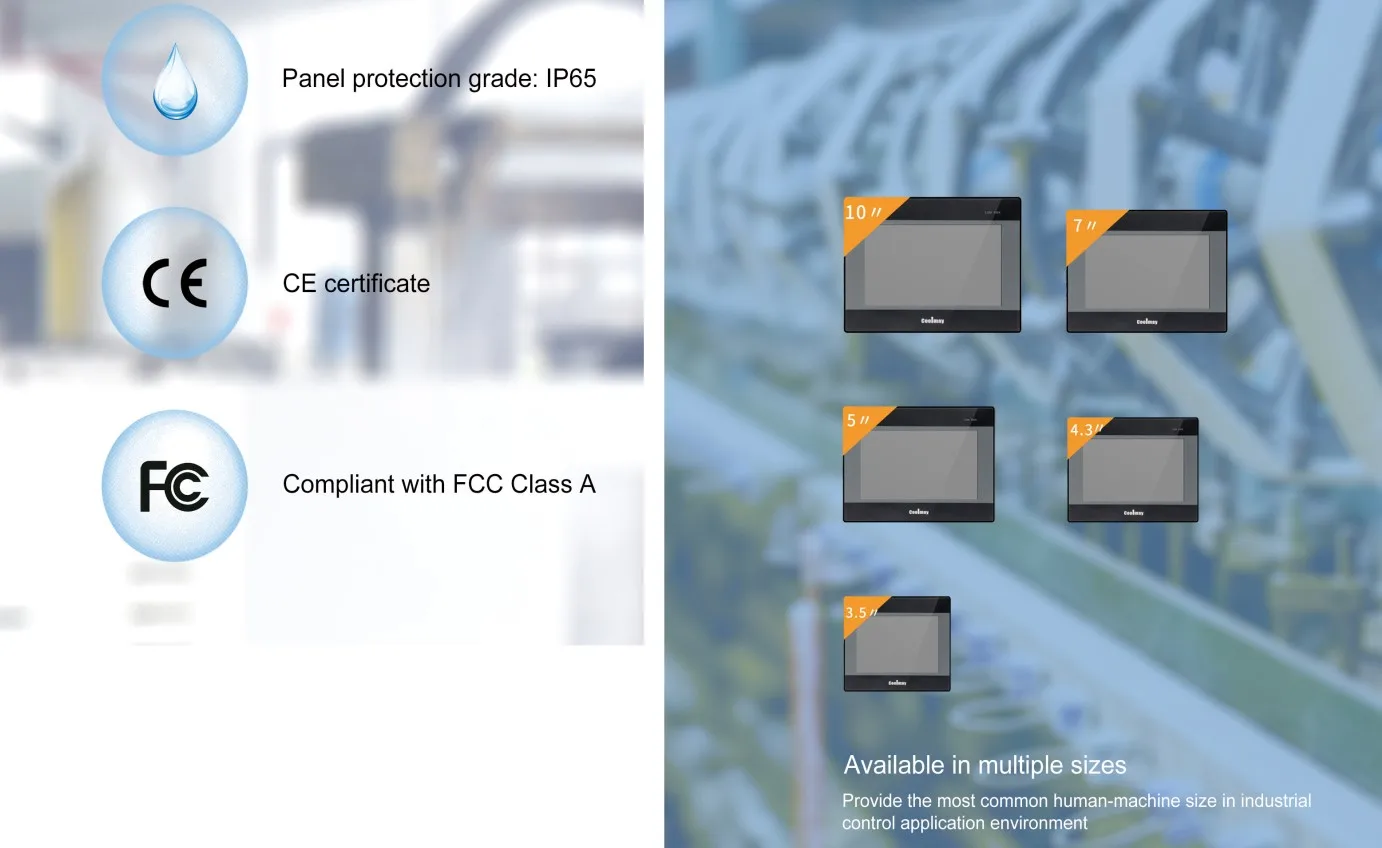

NEW TK Series HMI touch screen in stock !


TK6037FH
TK6043FH
TK6050FH
TK6070FH
TK6100FH
Dimension
88*88*25mm
134*102*36mm
151*96*36mm
200*146*36mm
275*194*36mm
Cutout
72*72mm
120*94mm
143*86mm
192*138mm
262*180mm
Display
73*56mm
97*56mm
108*65mm
154*87mm
222*125mm
Weight
Appox. 0.3 kg
Appox. 0.33 kg
Appox. 0.4 kg
Appox. 0.54 kg
Appox. 0.7 kg
Resolution
320*240
480*272
800*480
800*480
1024*600
Brightness
300cd/m²
400cd/m²
300cd/m²
Contrast ratio
400:1
Backlight
LED
Backlight time
60,000 hours
Display color
65536 colors
Touch type
4-wire resistive panel
ROM
32MB
64
64MB
RAM
NOR Flash 8MB
NOR Flash 64MB
CPU
32bit CPU 408MHz
Download port
Type-C, RS232, RS485
Type-B, RS232, RS485

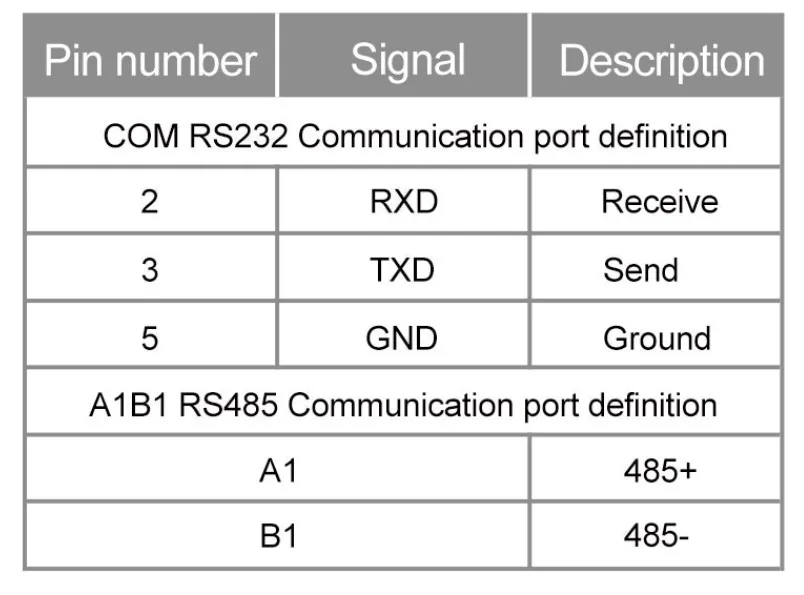

COM port
1 RS232, 1 RS485
Protocol
Support MODBUS, free port and common PLC communication Protocol
Audio
Optional
Calendar
Yes
Input Voltage
12-24VDC±10%<150mA @ 24VDC
Consumption
42mA/24V
72mA/24V
85mA/24V
107mA/24V
145mA/24V
Protection Class
IP65 (front panel)
Temperature
Ambient environment: 0～50℃ | Storage environment: -20～70℃
Humidity
20%～90% RH
Certification
CE

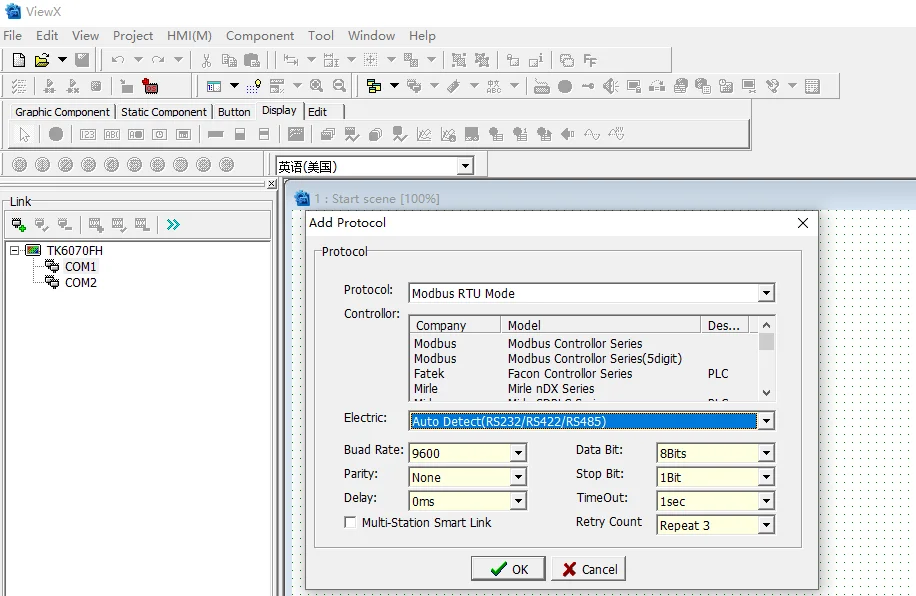

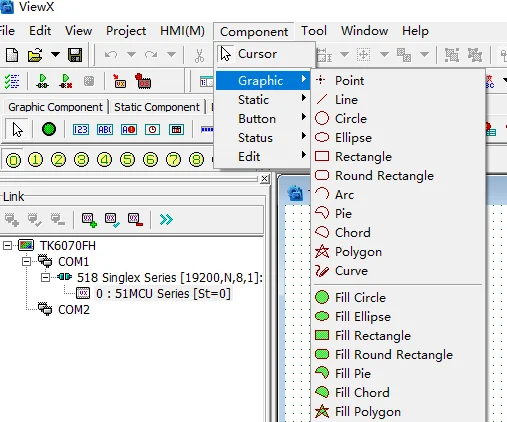

Software
Coolmay mView HMI Programming Software






Product packaging
