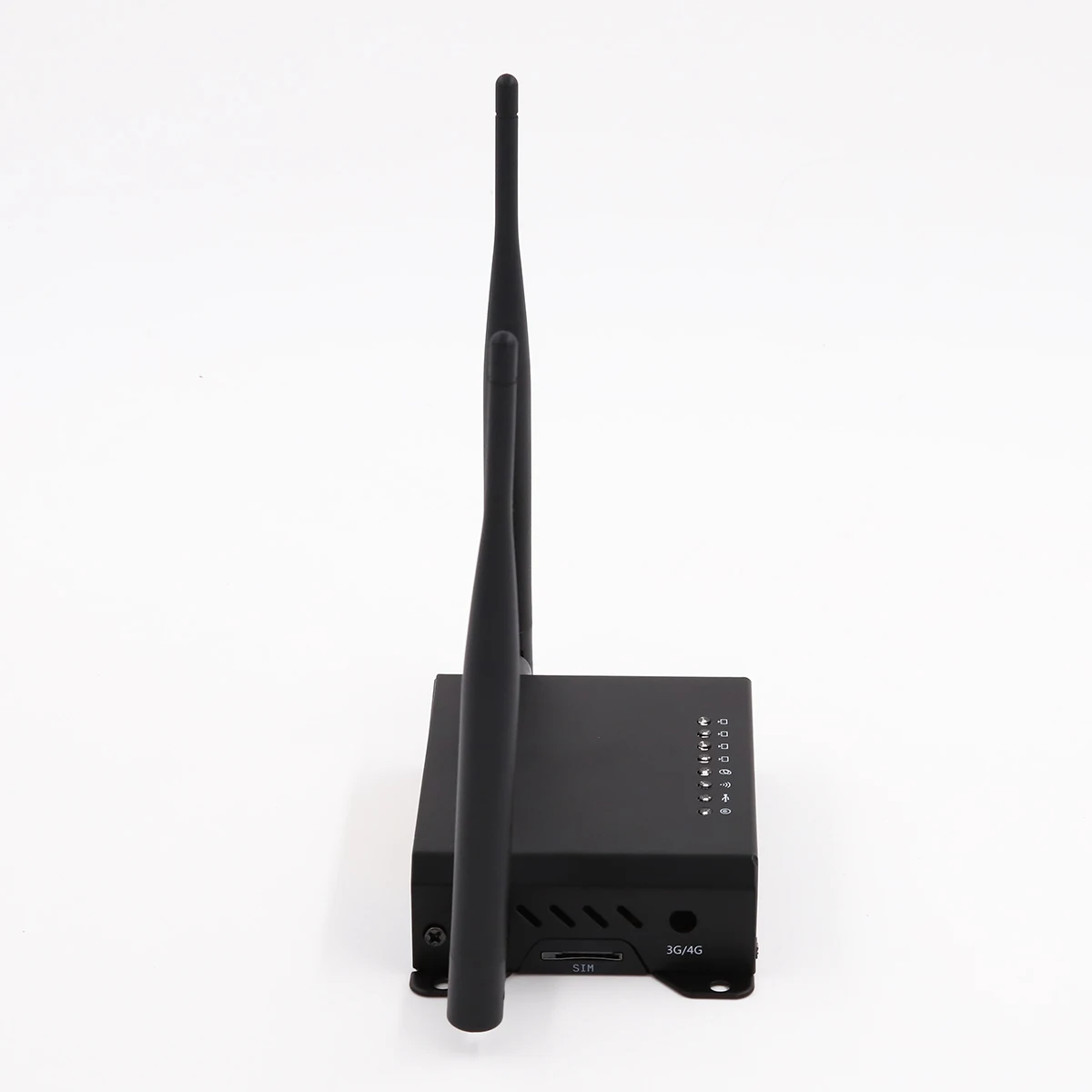

300Mbps 2.4G OpenWrt ZBT WE826T2 4G LTE Wifi Modem Router
- Category: Routers >>>
- Supplier: Shi,Di,Fen,(Shenzhen),Technology,Co.,Ltd.
Share on:
Product Overview
Description
300Mbps 2.4G OpenWrt ZBT WE826T2 4G LTE Wifi Modem Router
Introduction:
WE826-Q and WE826-T2 are designed to produce a moderately more stable 2.4GHz WiFi component with a noticeable increase in throughput–a theoretical transmission rate of 300Mbps.
WE826-Q uses the Qualcomm Atheros QCA9533 v2 where the WE826-T2 uses the MediaTek MT7620A chip
They uses the latest wireless 1 Micro slot.The WiFi supports IEEE802.11 N/G/B/A protocol with a maximum wireless rate of 300 Mbps. It is equipped with two removable RP-SMA 5dBi high gain WiFi antennas for better coverage and performance in large areas.WE826-Q and WE826T2 are a router requires a modem for cellular internet.
MODEM OPTIONS:
The WE826-Q and WE826-T2 are equipped with a single Mini PCI-E modem slot which allows modem installation without additional hardware.When installing a M.2 form modem into a Mini PCI-E modem slot, a Mini PCI-E to M.2 Key B adapter MUST be used (with or without optional SIM Card slot).
Mini PCI-E Modems:
· Sierra Wireless CAT6 MC7455 (Multi-Carrier) 1
· Quectel CAT6 EP06-A (Multi-Carrier)
· Quectel CAT4 EC25-AF (Multi-Carrier, includes T-Mobile Band 71, and AT&T FirstNet Band 14)
Quectel CAT4 EC25-E LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 WCDMA:B1/B5/B8 GSM:B3/B8
Quectel CAT4 EC25-A LTE-FDD:B2/B4/B12 WCDMA:B2/B4/B5
Quectel CAT4 EC25-V LTE-FDD:B4/B13
Quectel CAT4 EC25-J LTE-FDD:B1/B3/B8/B18/B19/B26 LTE-TDD:B41 WCDMA:B1/B6/B8/B19
Quectel CAT4 EC25-AUT LTE-FDD:B1/B3/B5/B7/B28 WCDMA:B1/B5
Quectel CAT4 EC25-AUTL LTE-FDD:B3/B7/B28
Quectel CAT4 EC25-AU LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B1/B2/B5/B8 GSM:850/900/1800/1900
Quectel CAT4 EC25-AF LTE- FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5
Quectel CAT4 EC25-AFX LTE- FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5
Quectel CAT4 EC25-EU LTE-FDD:B1/B3/B7/B8/B20/B28A WCDMA:B2/B4/B5
Quectel CAT4 EC25-EUX LTE-FDD:B1/B3/B7/B8/B20/B28A LTE-TDD:B38/B40/B41 WCDMA:B2/B4/B5 GSM:B3/B8
Quectel CAT4 EC25-MX LTE-FDD:B2/B4/B5/B7/B28/B66 WCDMA:B2/B4/B5
Quectel CAT4 EC25-AUX LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B1/B2/B5/B8/B4 GSM:850/900/1800/1900
M.2 Modems:
· Sierra Wireless CAT12 EM7565 (Multi-Carrier)
· Sierra Wireless CAT12 EM7511 (Multi-Carrier, includes AT&T FirstNet Band 14).
· Quectel CAT12 EM12-G (Multi-Carrier)
· Quectel CAT6 EM06-A (Multi-Carrier)
Specification:
| Main Chipset | MT7620A |
| RAM | DDR2 128MB (MAX DDR2 256MB) |
| SPI FLASH | 16MB |
| Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a IEEE 802.3, IEEE 802.3u |
| Work Channel | 2.4GHz choose :1-13 |
| Work Frequency | 2.4GHz |
| Antenna | 4 removable 5dBi antenna |
| Interface | 1 PCI-E slot 1 SIM card slot 1 USB 2.0 port 1 Micro SD card slot 1 10/100M WAN port(Auto MDI/MDIX) |
| LED | Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
| Button | Reset/WPS |
| Max Power consumption | < 12W |
| Dimension(L*W*H) | 110*80*30MM |
| software | |
| WAN Type | PPPoE,Dynamic IP, Static IP |
| Work Mode | AP; Router; |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
| DDNS | Support |
| VPN | PPTP, L2TP, IPSec (ESP Head) |
| Other Function | System Log Static Router Band Control Mac clone |
| Adapter | 12V 1A |
| Work Environments | Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing |
| Authentication | FCC & CE certifications |
