Product Overview
Description
Product Description
Usage:
1.Separate liquid from solid
2.Low temperature frozen state
3.Improve the purity and brightness.
1.Separate liquid from solid
2.Low temperature frozen state
3.Improve the purity and brightness.
1.This machine is used for alcohol sediment in Chinese herb medicine,oral liquid, foodstuff,health products,alcohol
deposition process is used to purify the medicine after extractor process .
2.As usual the extractor medicine mix with the alcohol sediment in the cold temperature and the solid will sediment in the bottom and the clear solvent will be get from the discharge pipe .this machine is adopted SS304material and CIP
system, it can meet the GMP.
system, it can meet the GMP.

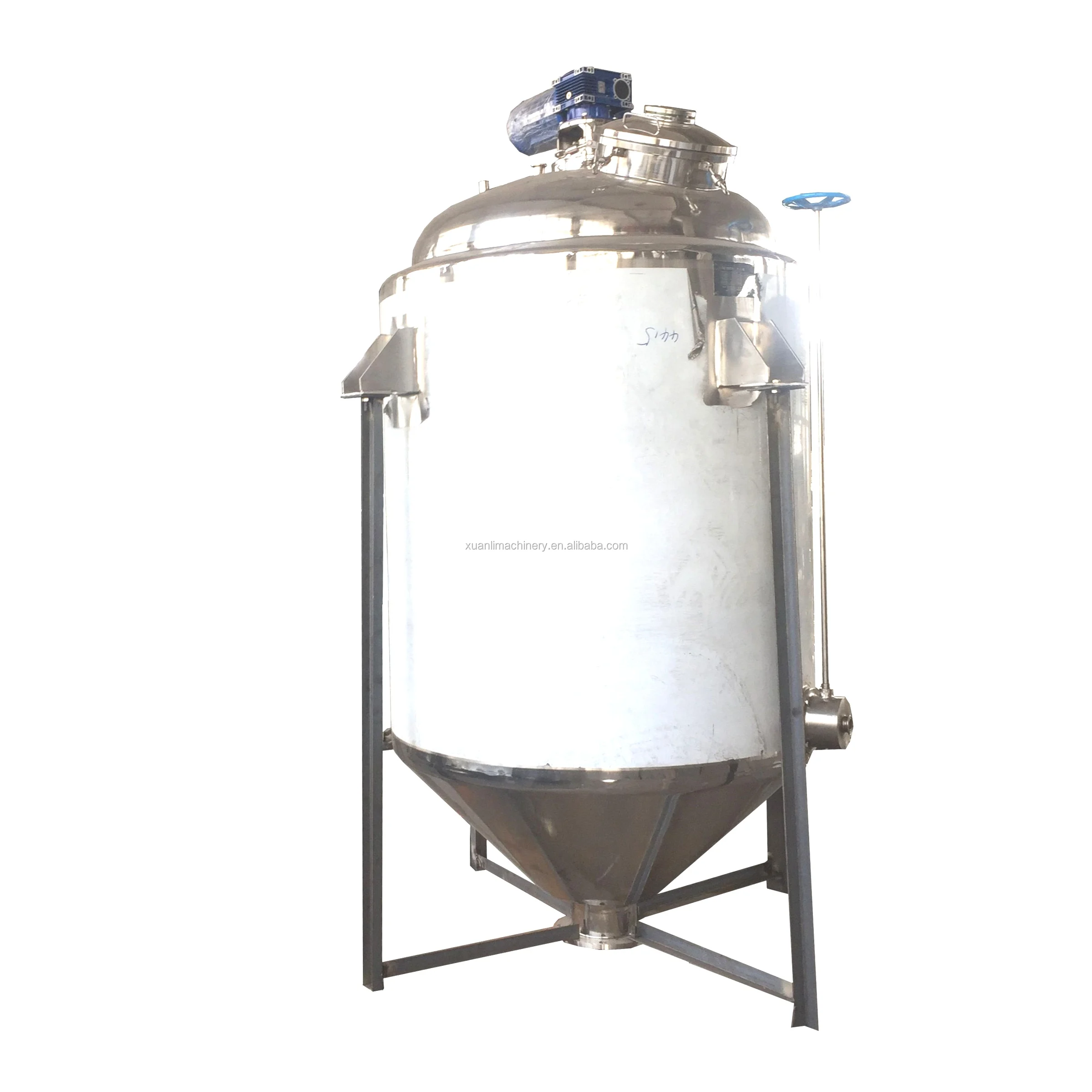

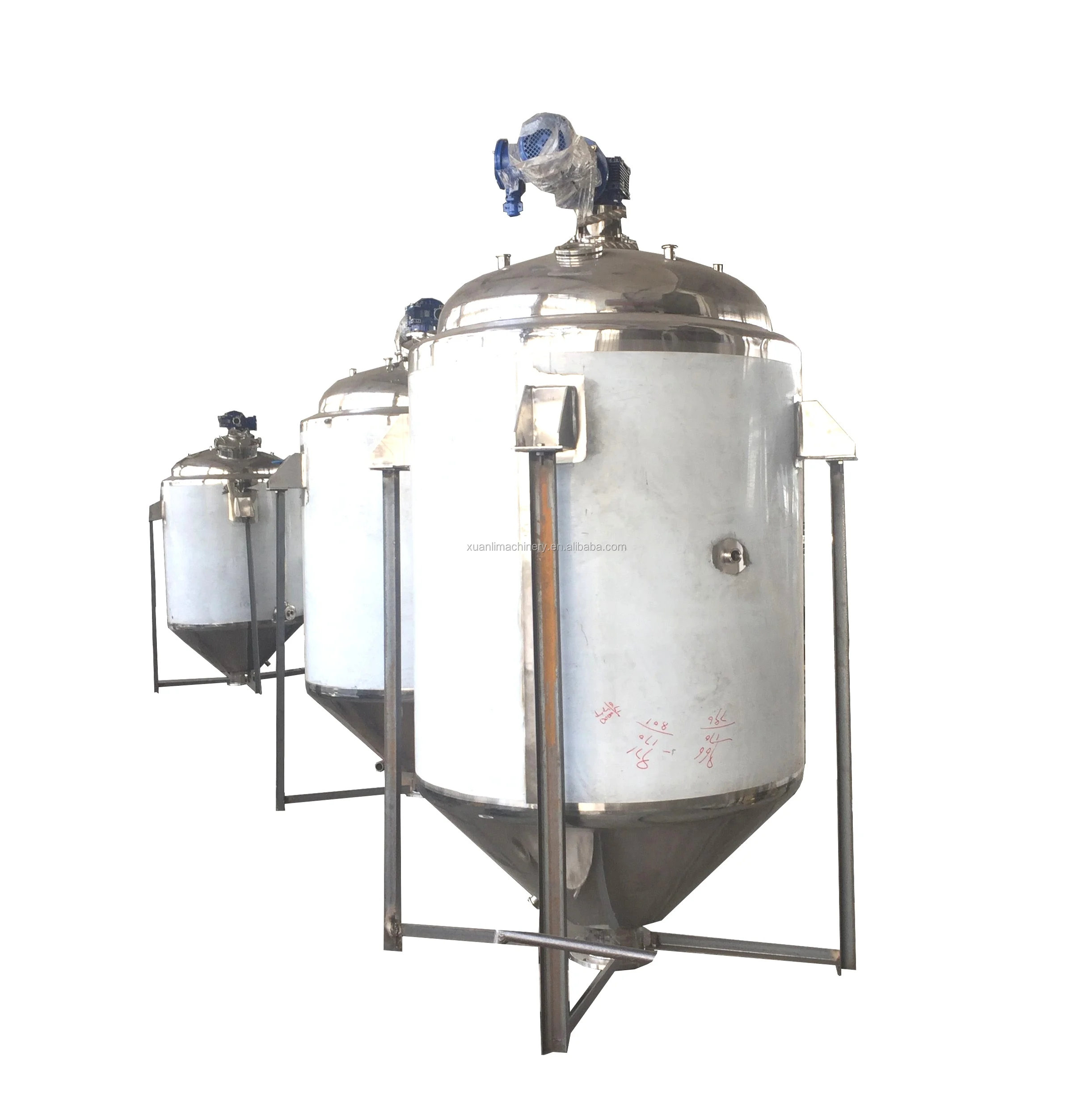

3.This machine is including jacket and conical vesseland impeller agitator and discharge pipe.
Specification
Specification | 300 | 500 | 1000 | 1500 | 2000 | 3000 | 6000 | ||||||||
Volume(m3) | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 6.0 | ||||||||
Heat Exchange area | 1.8 | 3.0 | 4.5 | 6.5 | 7.5 | 8.5 | 13 | ||||||||
Work Temperature(°C) | Normal temperature~ -15 | ||||||||||||||
Pressure in the jacket(Mpa) | 0.25 | ||||||||||||||
Pressure in the tank(Mpa) | 0.01 | ||||||||||||||
Heat transfer coefficient(Kj/m²h°C) | 150-200 | ||||||||||||||
Motor power(KW) | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3.0 | 5.0 | ||||||||
Speed of agitator (r/min) | 250 | 250 | 160 | 125 | 125 | 125 | 125 | ||||||||
equipment Weight (kg) | 512 | 1250 | 1480 | 1750 | 1880 | 2200 | 4000 | ||||||||
External dimensions (mm) | Length | 600 | 800 | 1000 | 1200 | 1300 | 1400 | 1600 | |||||||
Width | 850 | 1050 | 1300 | 1550 | 1650 | 1750 | 2000 | ||||||||
Height | 900 | 900 | 1200 | 1200 | 1300 | 1400 | 2700 | ||||||||

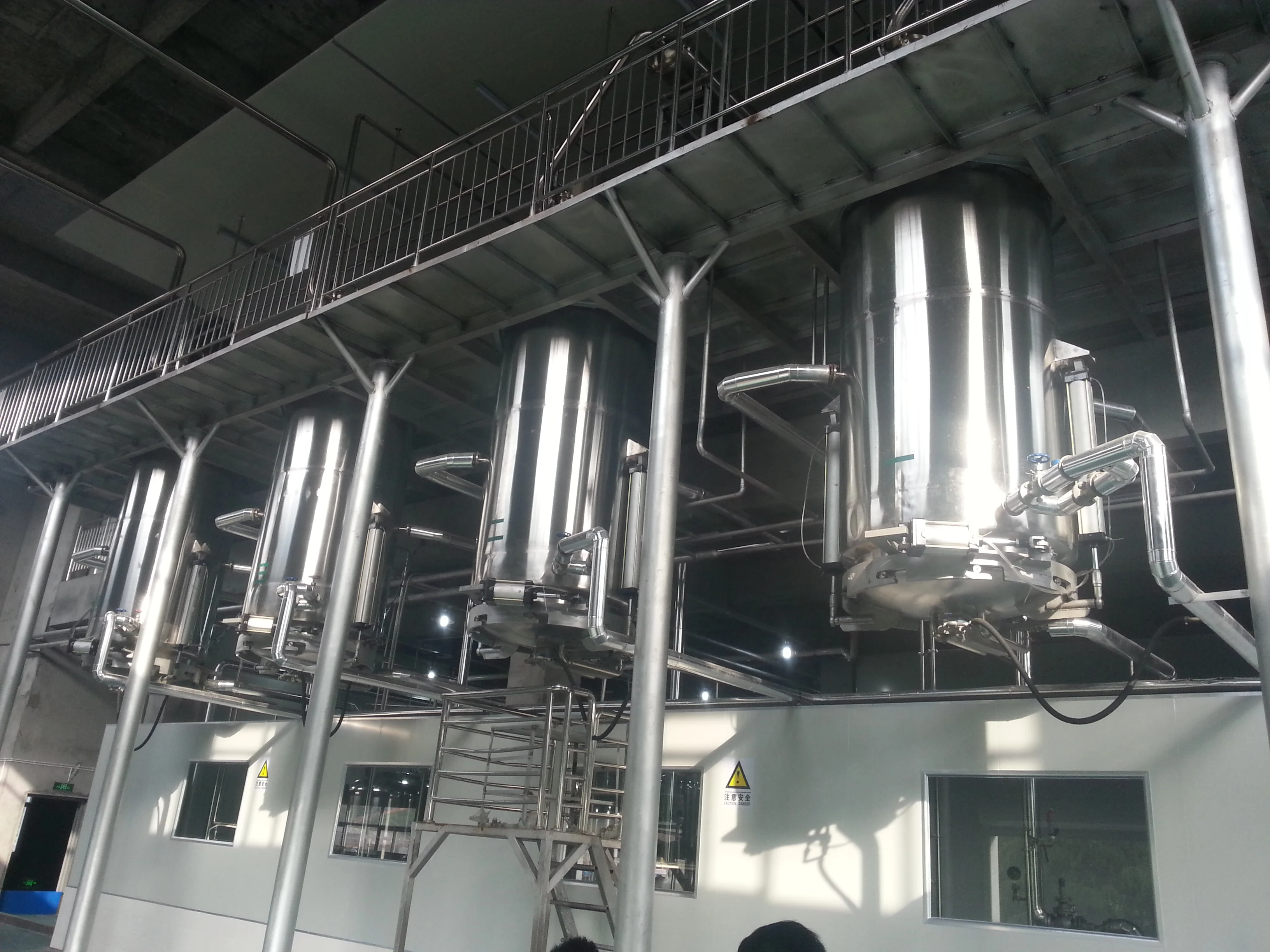

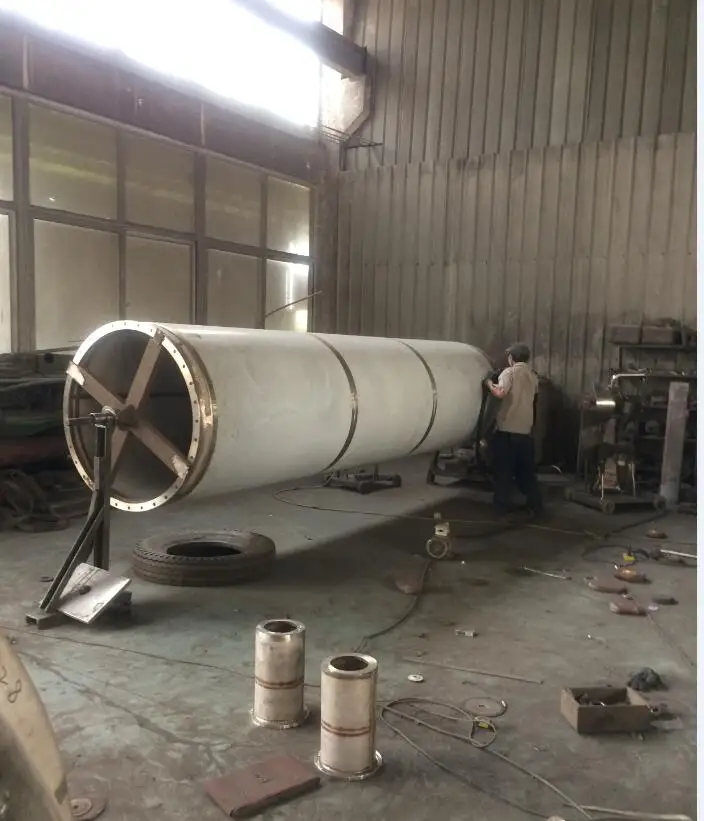

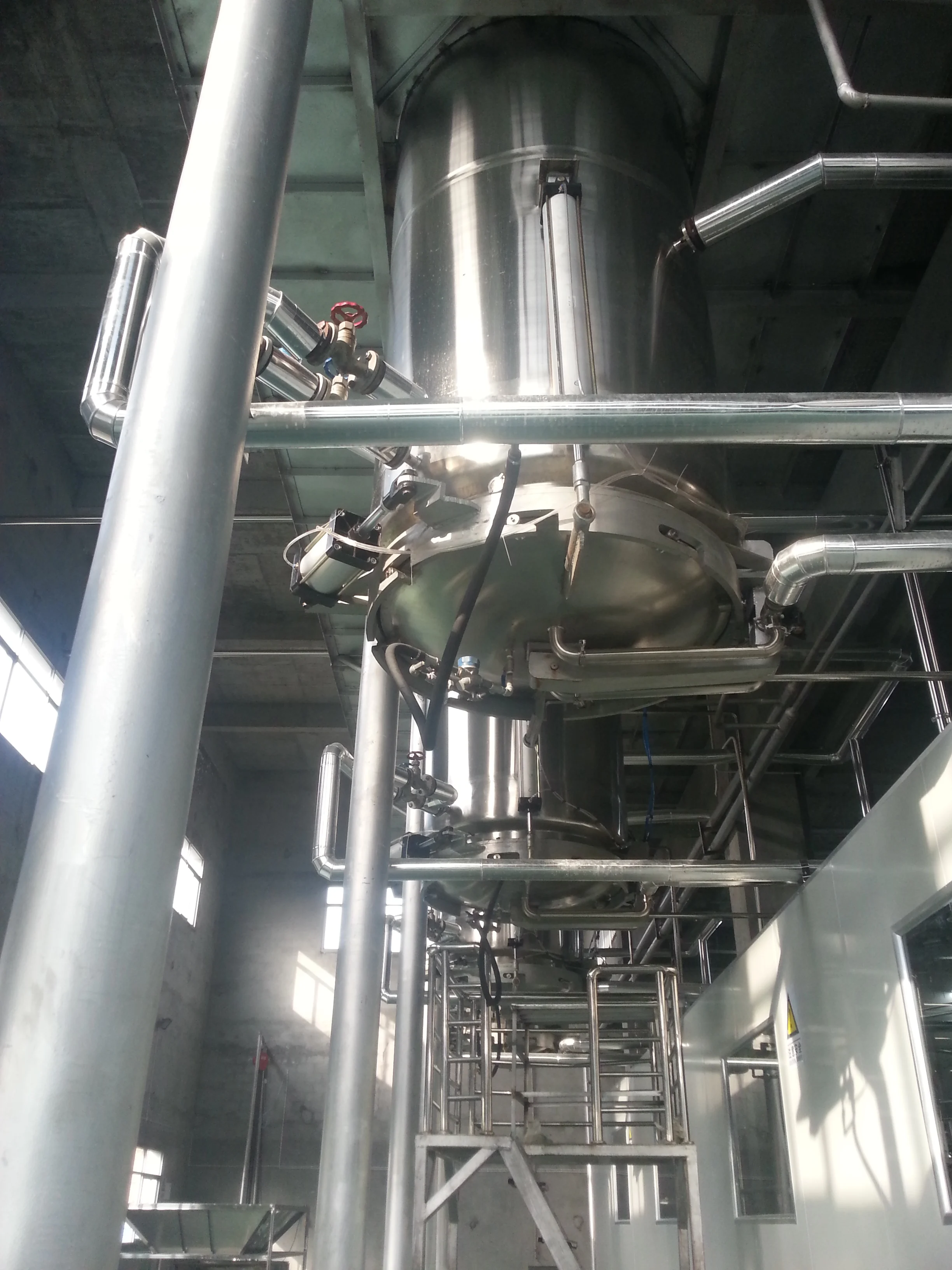

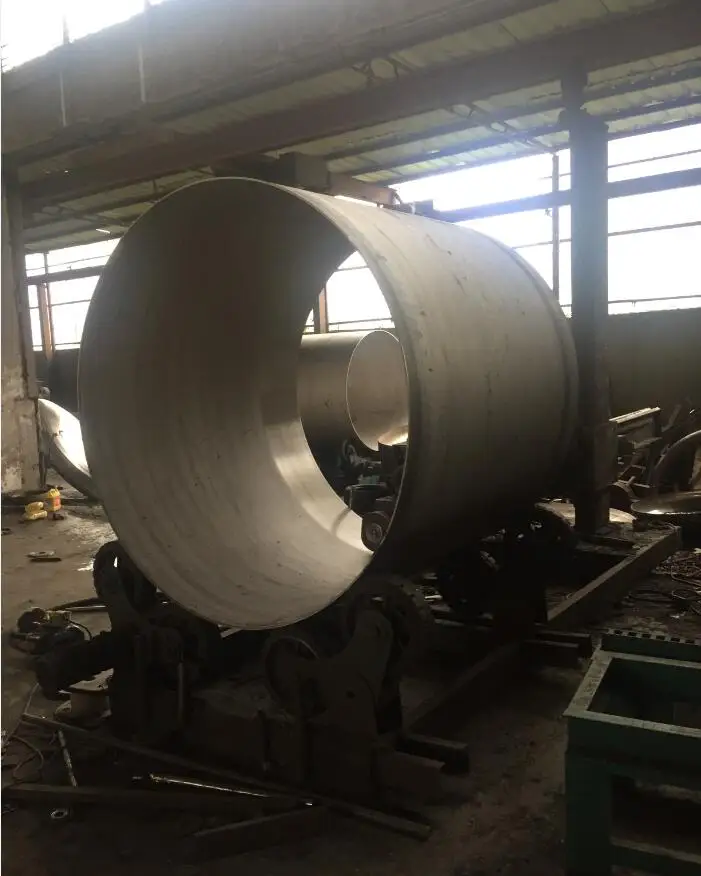

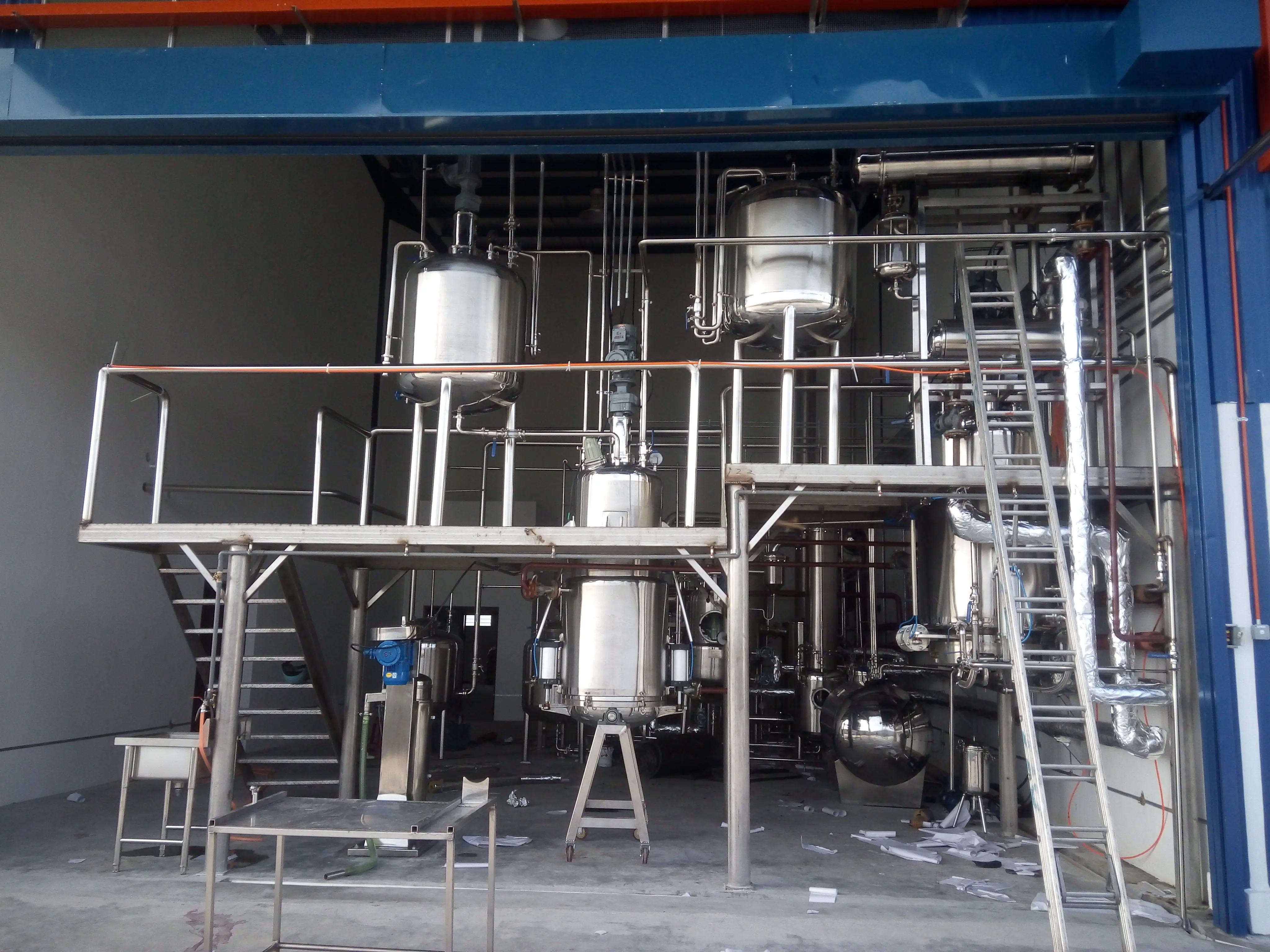

Project Samples

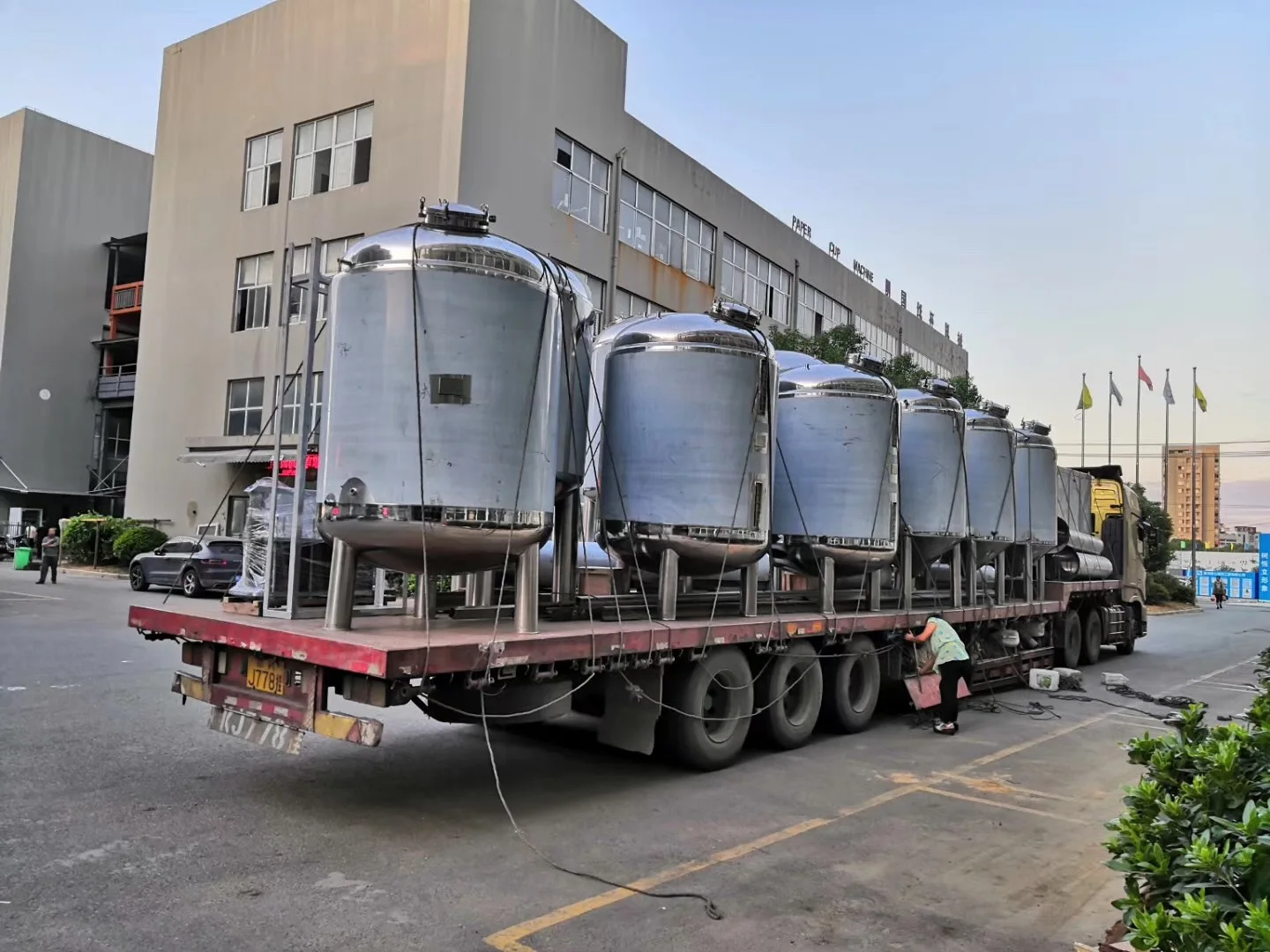

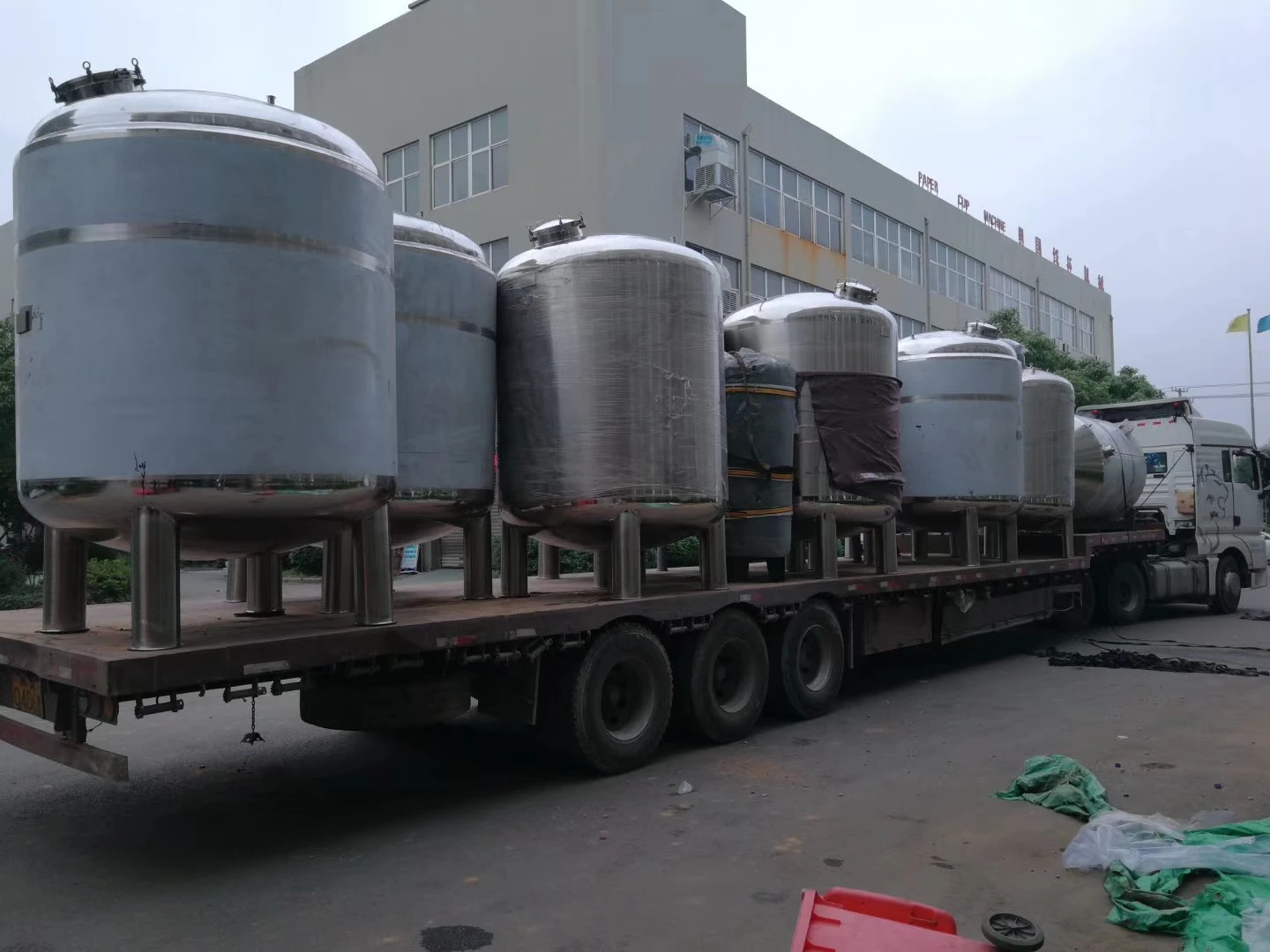

Packing & Delivery

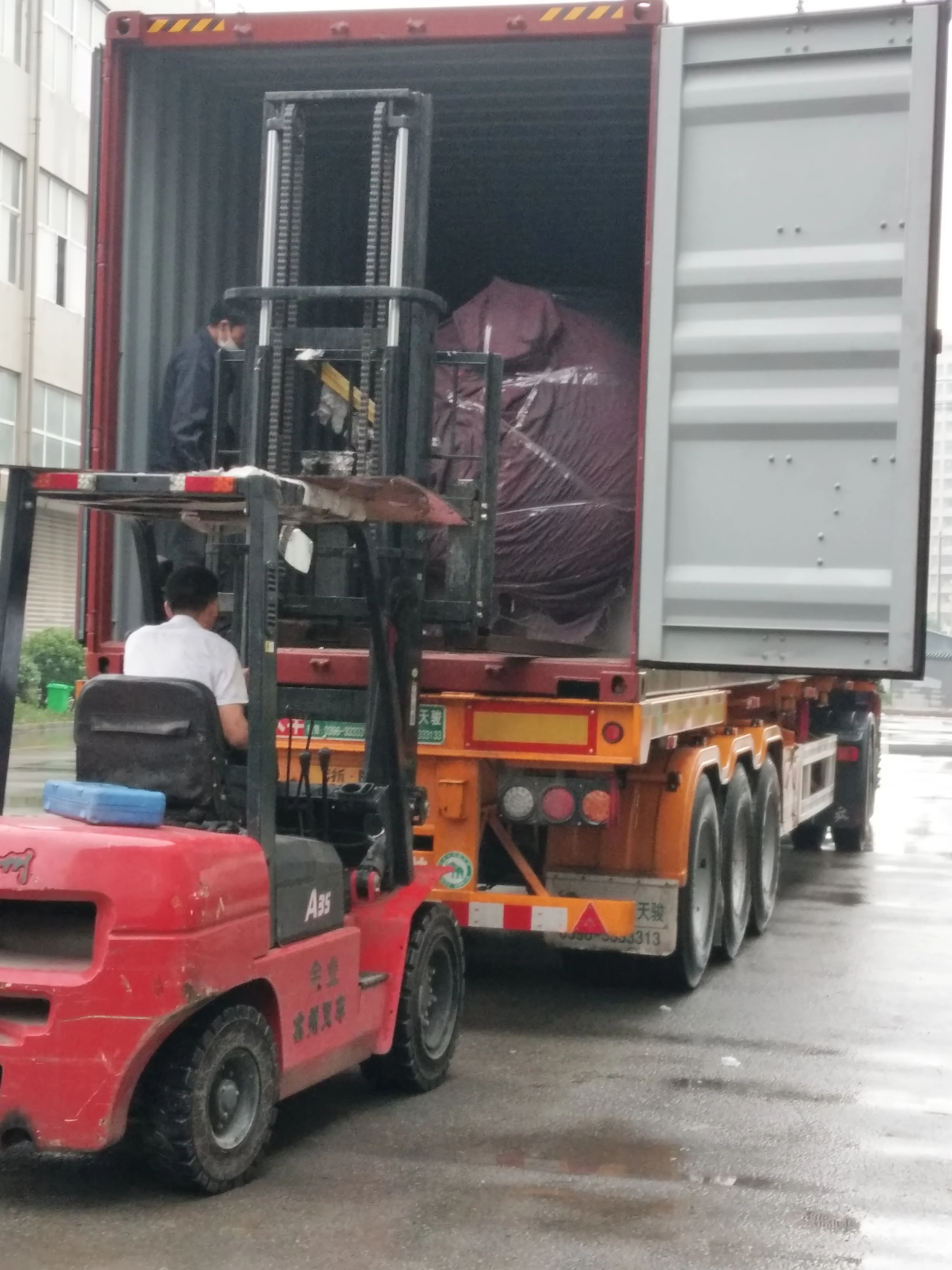

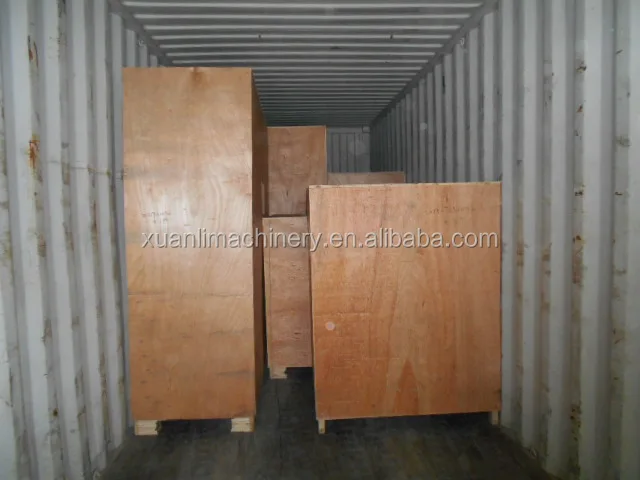

small volume tank or bulk shipment package big volume tank or container shipment package
