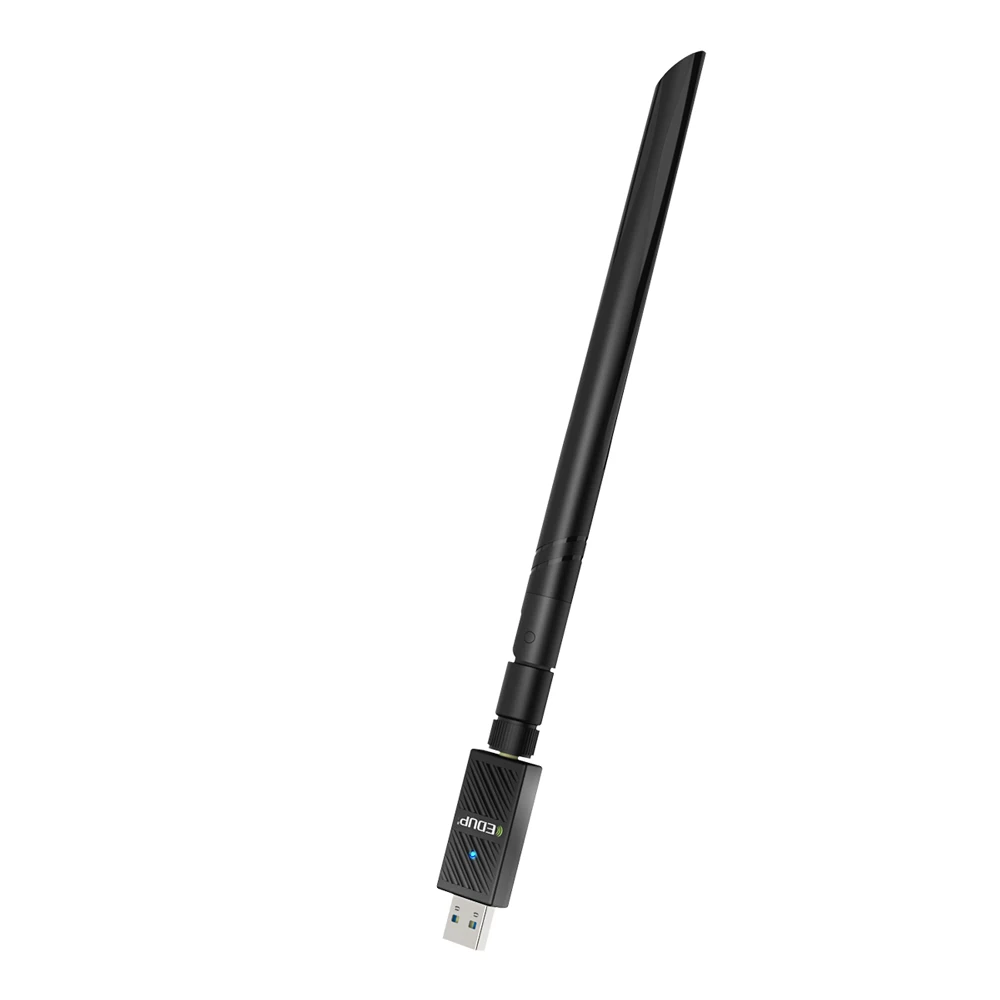

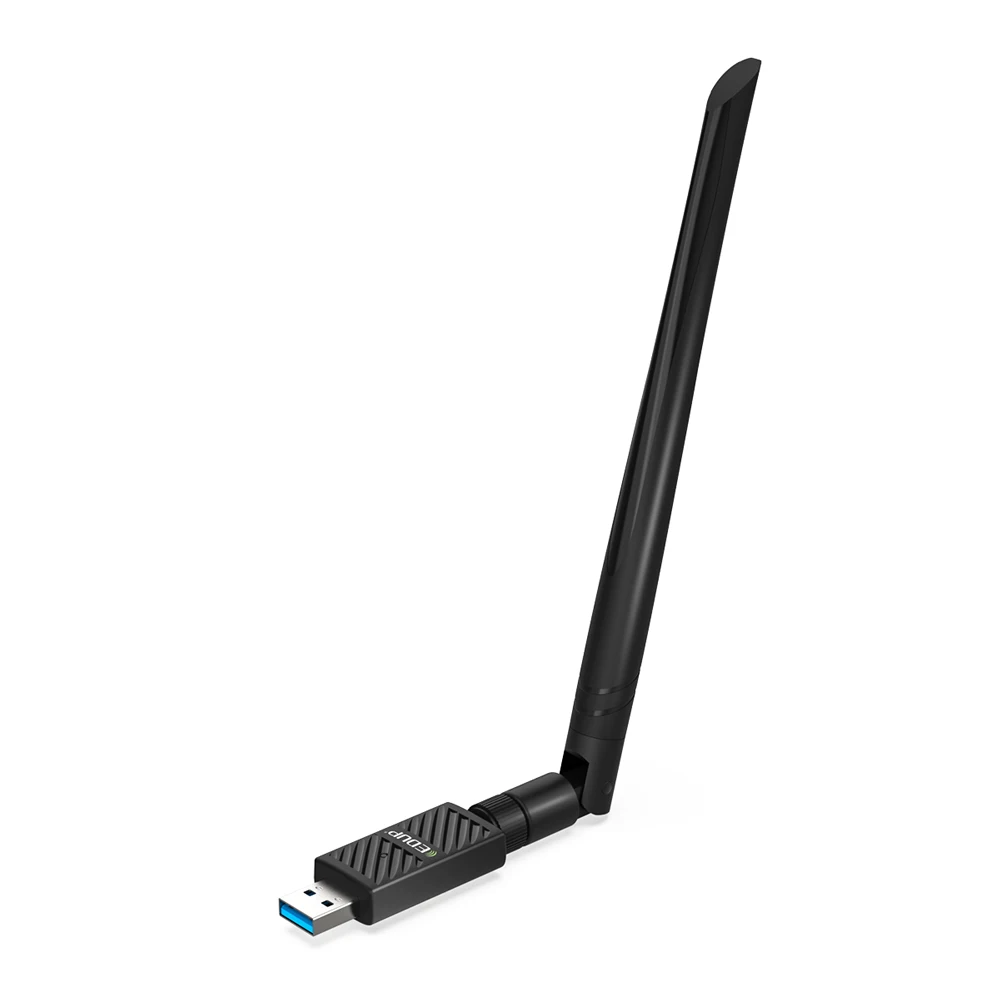

EDUP High Speed AC1200 BT5.0 USB WIFI Adapter RTL8822BU 2 To 1 Wireless Dongle
- Category: >>>
- Supplier: Shenzhen EDUP Electronics Technology Co. Ltd.
Share on (1600102012224):
Product Overview
Description
EDUP High Speed AC1200 BT5.0 USB WIFI Adapter RTL8822BU 2 To 1 Wirless Dongle

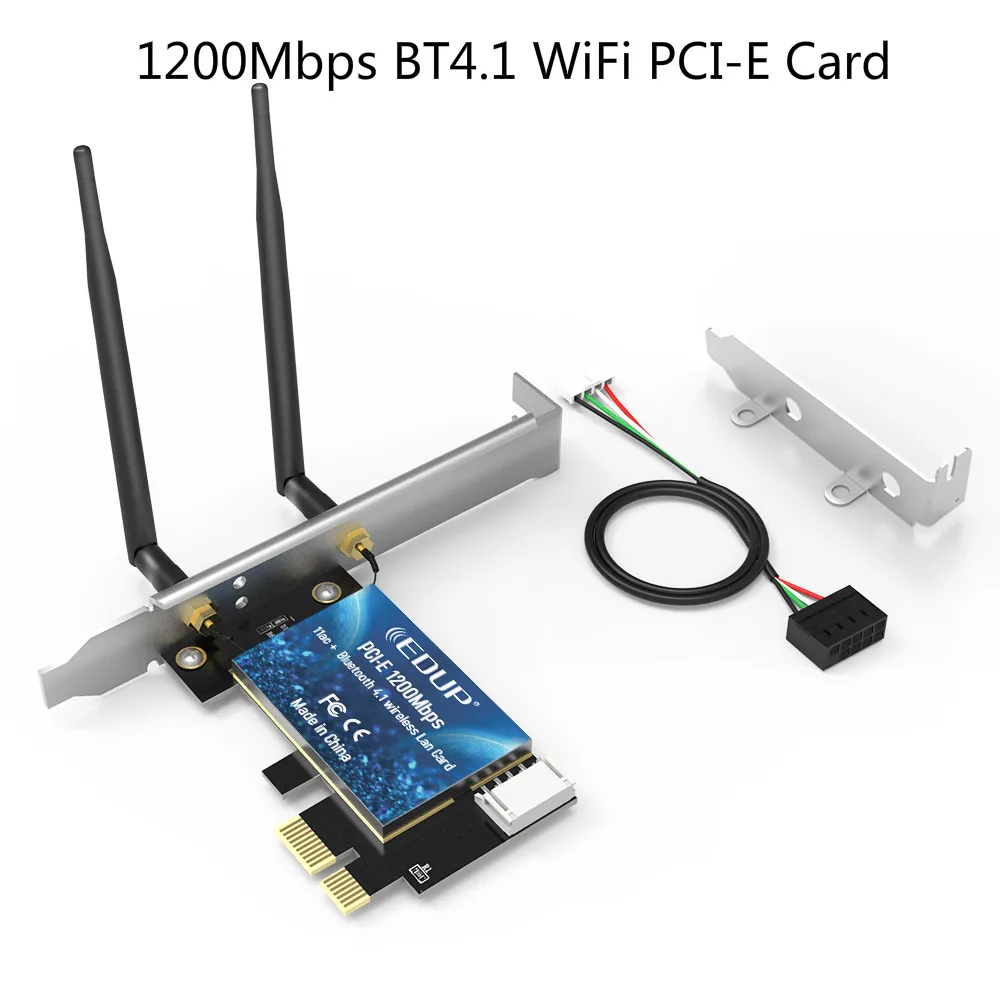

Blue-tooth PCIE card
Product Description
EP-AC1690is a WLAN 11AC and Blue-tooth combo dongle, provides a single USB interface to host, w ich fully supports the features and functional compliance of IEEE 802.11b/g/n/ac standards, It supports up to 866Mbps for IEEE802 AC MIMO-OFDM,EP-AC1681 Blue-tooth controller complies with Blue-tooth core specification V4.1, and supports dual mode(BR/EDR+AMP+low Energy Controllers). It is backward previous versions including V2.1+EDR and v3.0+HS.Both BR/EDR and LE can operate simultaneously.
What’s the key features of blue-tooth wireless adapter?
l 2T2R 802.11n 2.4GHz WiFi speed up to max 300Mbps data rate
l 2T2R 802.11ac 5GHz WiFi speed up to max 866Mbps data rate
l Complies with USB Specification 2.0
l Compatible with IEEE 802.11b/g/n/a/ac Specifications
l Supports WPA, WPA2
l Supports MU-MIMO (Multi-User MIMO)
What is the function of blue-tooth wireless adapter?
1.can work as a AC61200 Dual Band USB WiFi Adapter
2.Blue-tooth4.1 USB Dongle
What’s the full specification?
Model Name
| EP-AC1690 |
Product Name
| WLAN (2T2R)AC and BT 4.1 Combo Dongle
|
Product Name
| WLAN (2T2R)AC and BT 4.1 Combo Dongle
|
Standard
| IEEE 802.11ac / a / b / g / n / d / e / h / I Blue-tooth v2.1+EDR/ v3.0/ v3.0+HS/ v4.1
|
Antenna | 1*6dBi |
Data Transfer Rate
| WIFI:11ac mode up to 866Mbps 11n mode up to 300Mbps BT:Basic rate: 1Mbps and Enhanced data rate: 2, 3 Mbps
|
Modulation Method
| CCK,DQPSK,DBPSK,BPSK,QPSK,16QAM,64QAM,256QAM Blue-tooth: 8DPSK, π/4 DQPSK, GFSKFSK
|
Frequency Band
| 2.4GHz and 5GHz ISM Band
|
RF Output Power (tolerance ±2dBm)
| 13dBm@11n, 17dBm@11b, 15dBm@11g 13dBm@11a, 9dBm@11ac Blue-tooth: + 8dBm
|
Receiver Sensitivity
| -80dBm – 802.11b@11Mbps -71dBm – 802.11g@54MBps -67dBm – 802.11n@MCS7_BW20 -64dBm – 802.11n@MCS7_BW40 -57dBm – 802.11ac@NSS1_MCS9_BW20 -54dBm – 802.11ac@NSS1_MCS9_BW40 -51dBm – 802.11ac@NSS1_MCS9_BW80 Blue-tooth: -89dBm@1Mbps, -90dBm@2Mbps, -83dBm@3Mbps
|
LED
| POWER
|
Security
| WPA, WPA2
|
Power supply
| USB / DC 5V
|
Operating Temperature
| 0 ~ 50° C ambient temperature
|
Storage Temperature
| -10 ~ 70°C ambient temperature
|
Humidity
| 5 to 90 % maximum (non-condensing)
|
Dimension
| 58 (L) * 24 (W)*10(H) mm
|

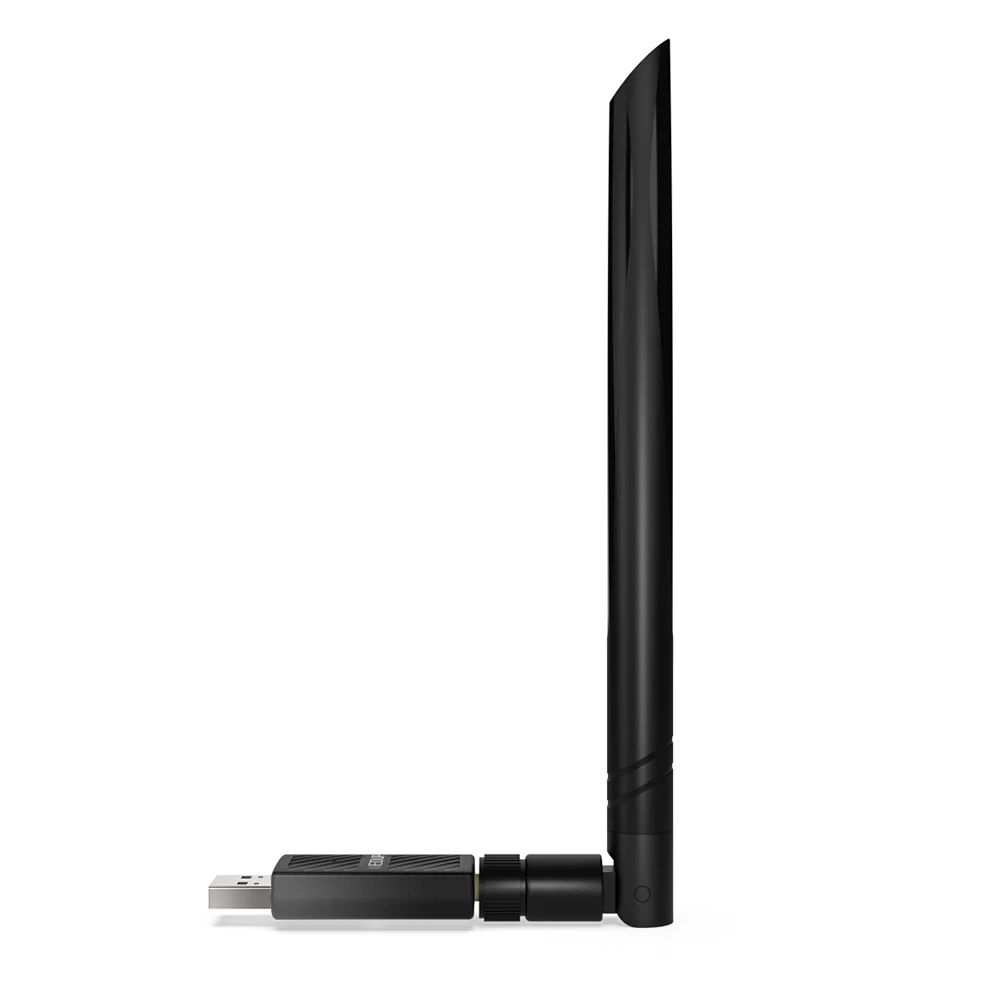

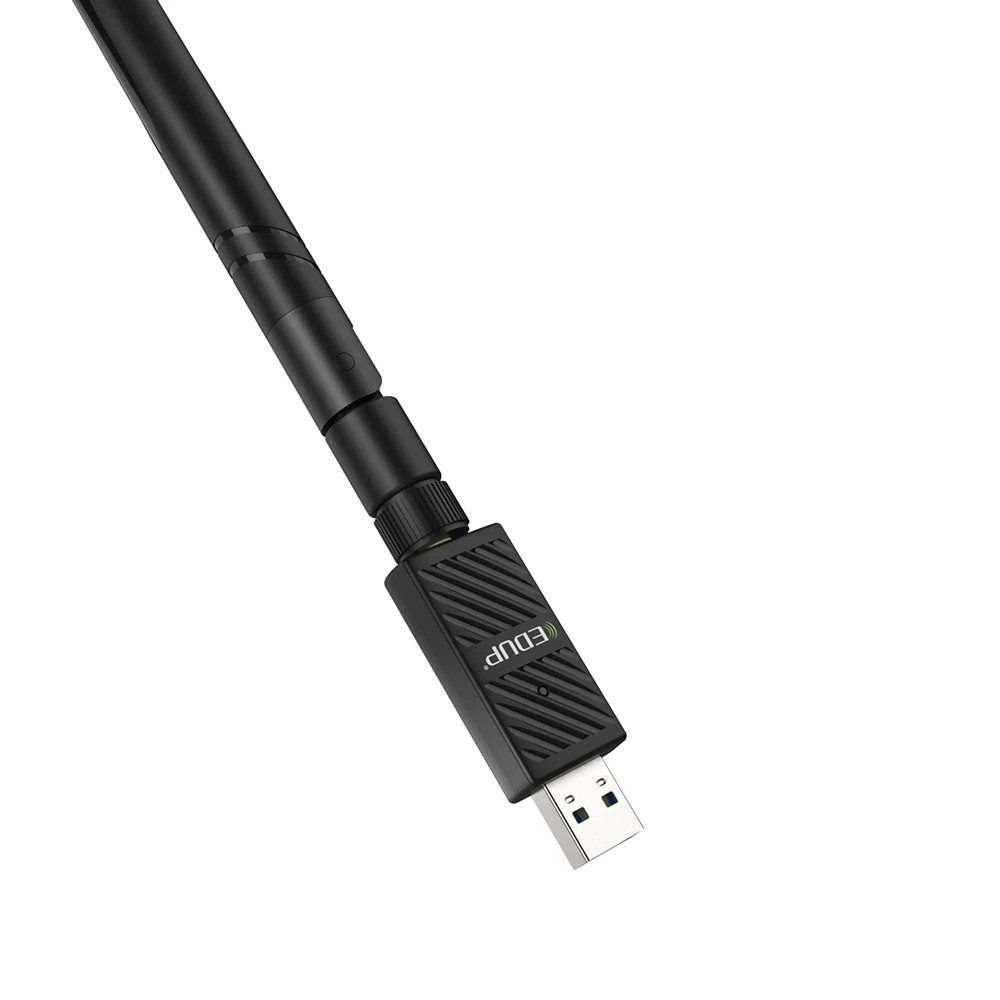

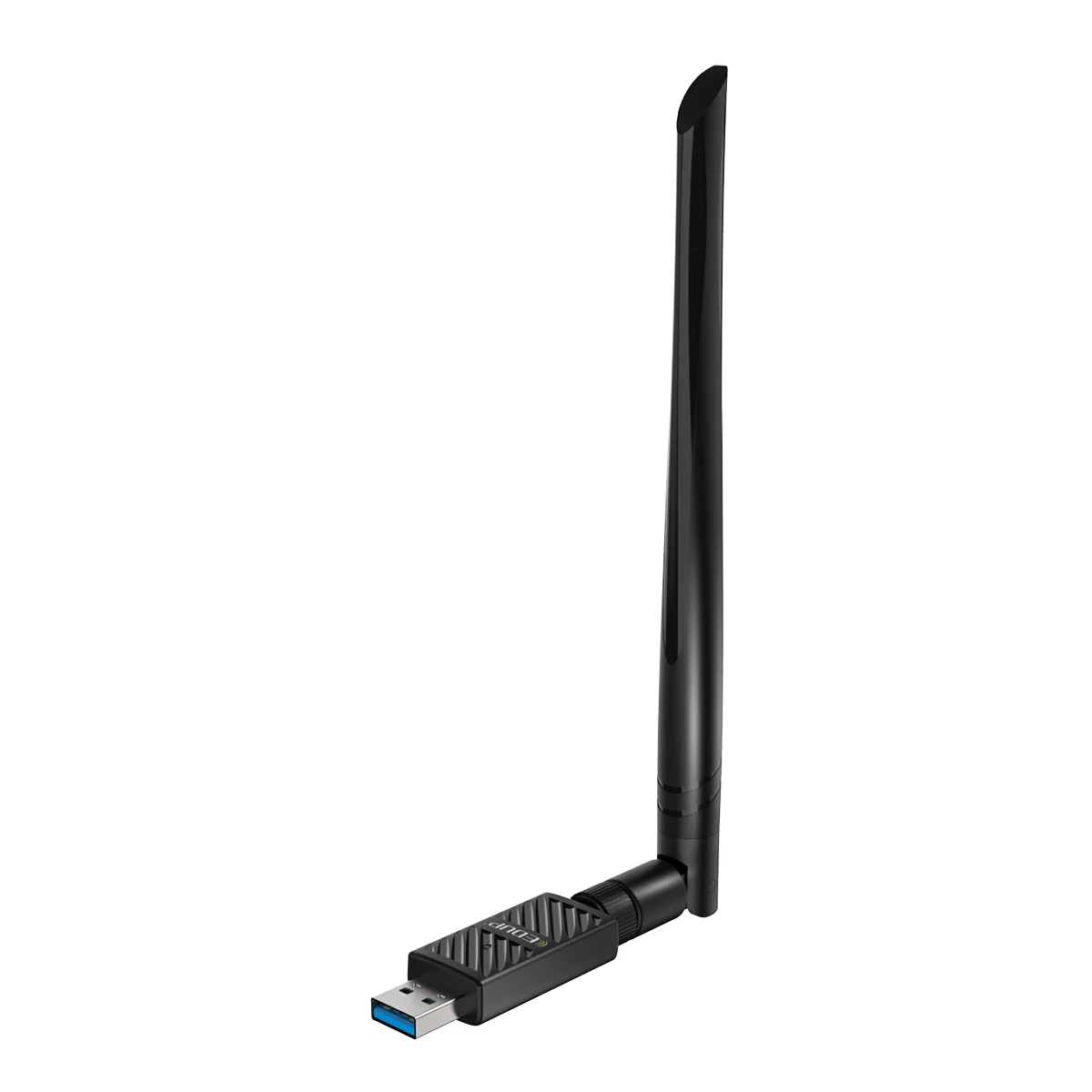

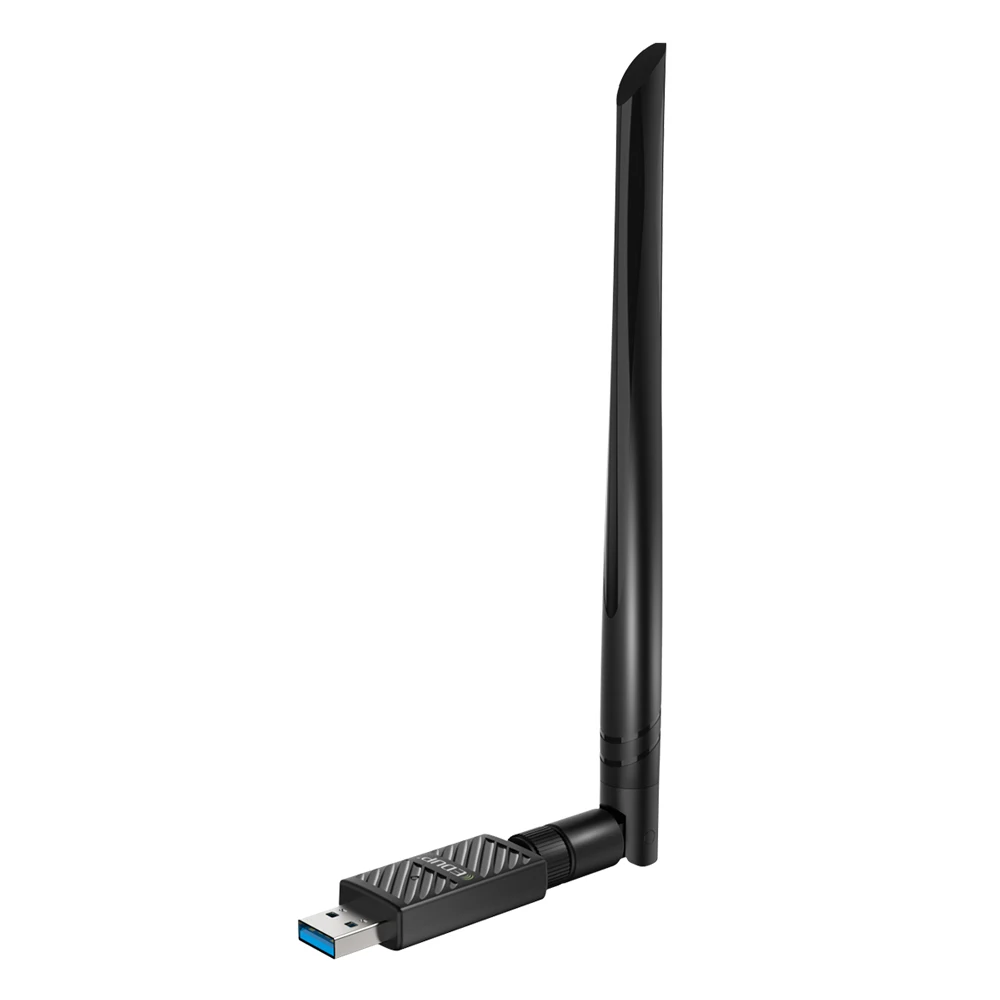

Can you show me detailed pictures wireless adapter?
What package do you have for option?
OEM if 1000pcs (Customized,print your logo)
What is included in the package?
1.1* Blue-tooth Wifi adapter
2. 1 Antenna
3.1* CD Driver
Packaging & Shipping
How about the shipping method? |
1) The parts from us are sure to have quality warranty,and they are double tested before shipping.
2) The items can be sent in 1~3days if less than 500pcs,and 20~30 days if more than 1000pcs or OEM.If you do ODM,It takes about 40~50days.
3) We can send your order by UPS/DHL/TNT/EMS/FedEx. Pls contact us directly and we will use your preferred ways.
4) Any import fees or charges are the buyer's responsibility. But we can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
5) Sample is available.
Our Services
Warranty
1. We can guarantee the product quality within 12 months.
2. If products cannot work,refund or exchange is available.
We provide comprehensive after-sales service, including quality service, guidance
services,We focus on customer needs in every detail.Please contact us if you need our
detail warranty term.
Payment Terms
1) We accept T/T, Western Union, Paypal,L/C if over 100000$
2) For Paypal,please pay 4.4% of commission as paypal fee
3) For out of stock items,please pay 30% in advance,and goods will be shipped after the 70% balance is received
4) Please make sure all detailed information is correct when doing the payment.

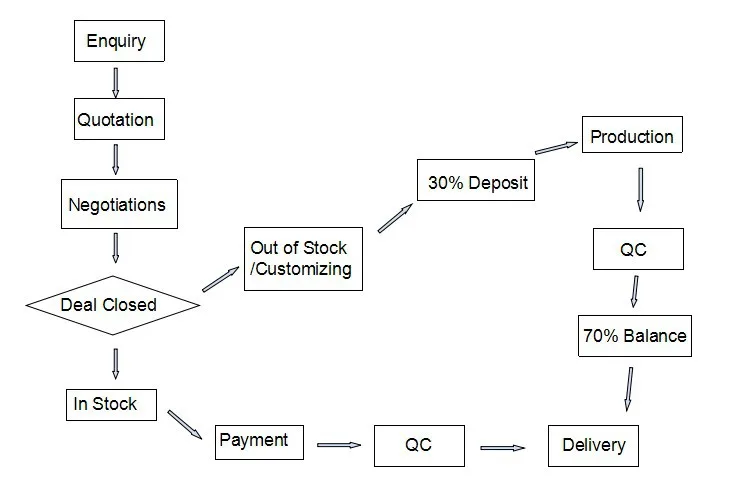

How to make an order? |
Company Information
Why Chose US? |
1)Built-in 2005,EDUP have professional in wifi product
2) As a manufacturer, we have our own factory, our own mold and design,so we definitely have price advantage on our models!
3) All products are 100% and twice tested working before sent to you.
4) We have professional sales team, so please do not hesitate to contact us if you have any question!
FAQ
FAQ |
1.How can I buy this Model?
---You can send e-mail to us.We are sure to reply you in 24 hours.You can also talk with us throught trade manager.If we are not online,you can leave us a message.We will reply you asap.
2.What is your warranty?
---For any of our models,we provide 12 months warranty.If the model is broken or can not work,We will prepare 0.1-0.3% etra models.If the product have been broken because of quality problem.You can send them back.You just need pay the return shipping fee.We will send you new models instead.
3.How could I get the best price?
---We do wholesale on Alibaba.We will gurantee the benefite for both sides.The price is based on quantity.And We usually offer discount for old customers.
