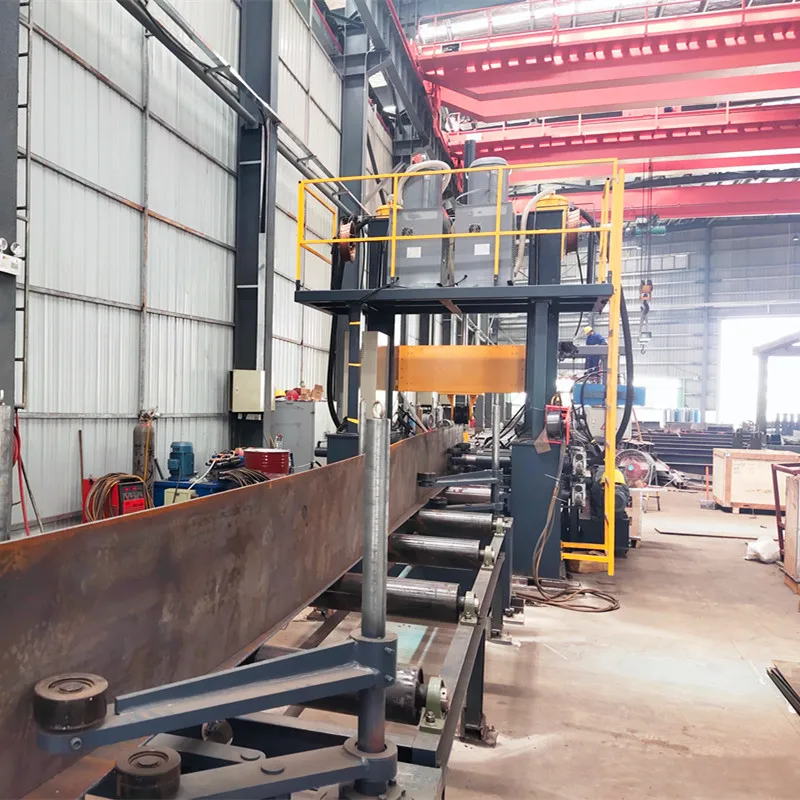

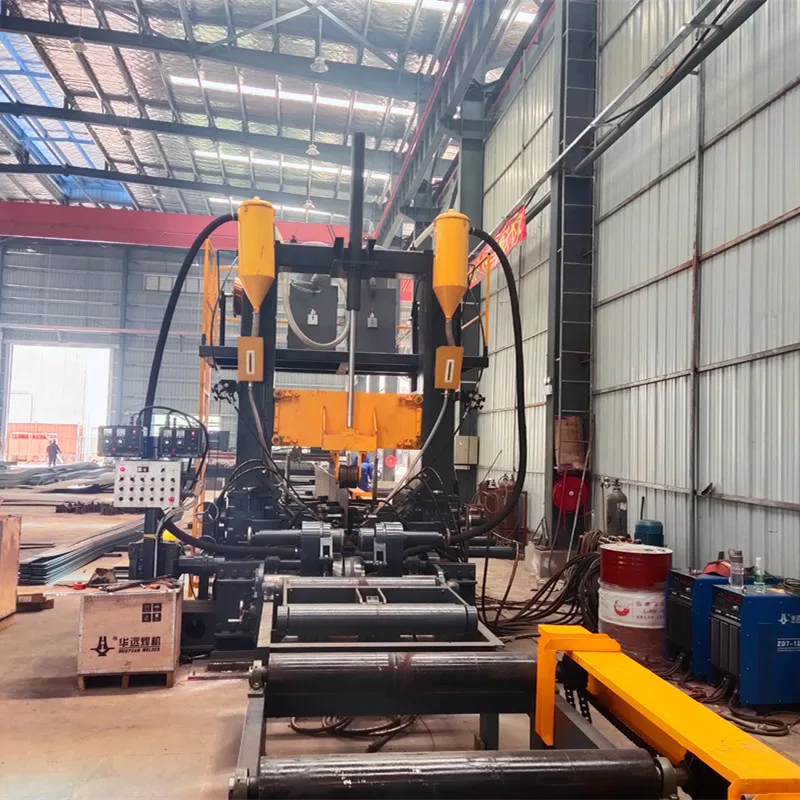

Automatic H Beam Welding Machine for Assembly Welding Straightening 3 Functions in 1
- Category: >>>
- Supplier: Shandong Yomi Intelligent Science And Technology Co. Ltd.
Share on (1600102027273):
Product Overview
Description
Product Description

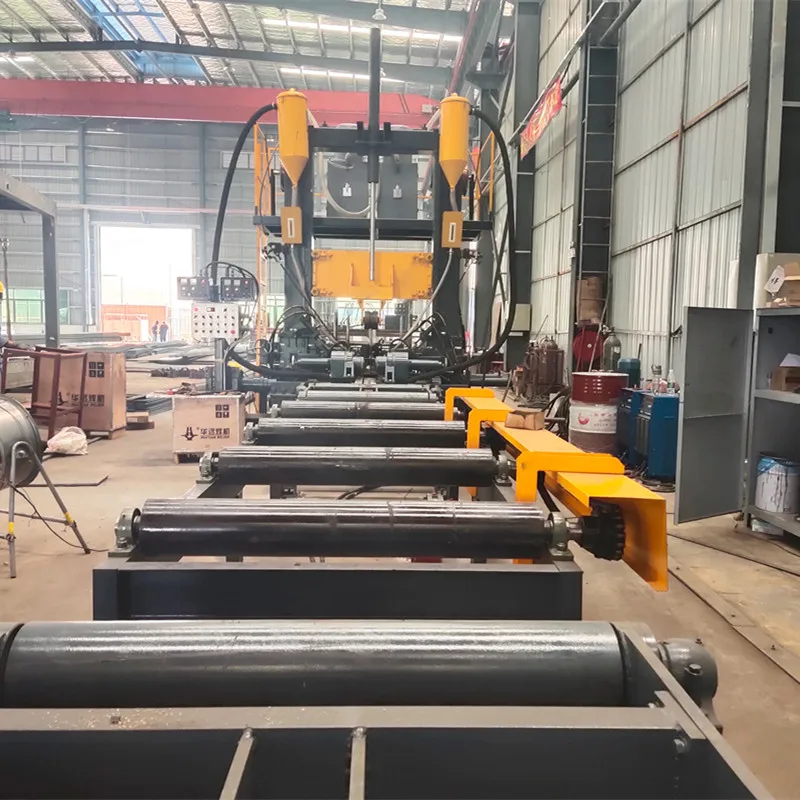

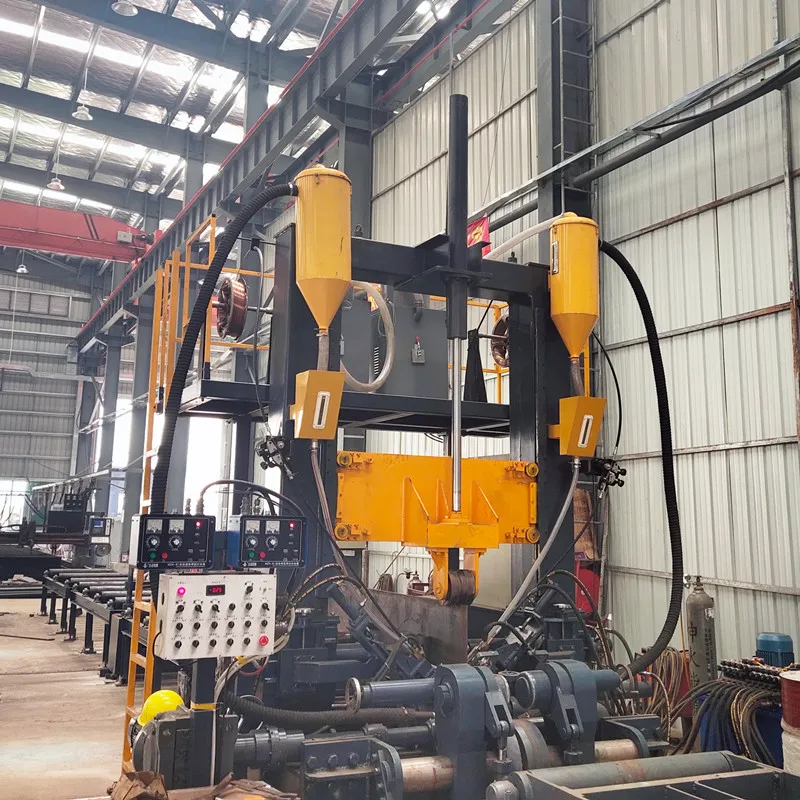

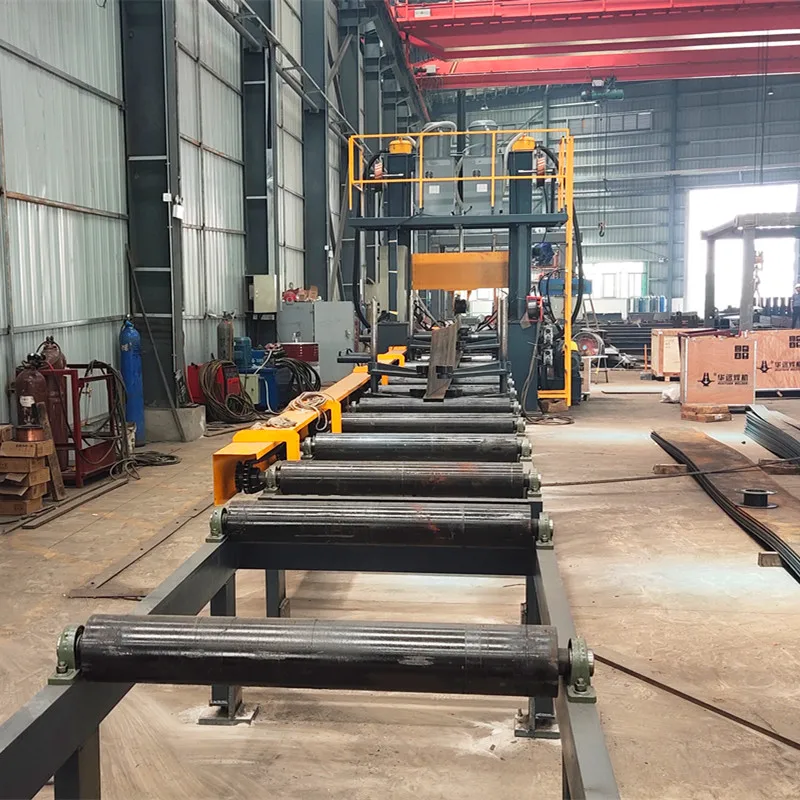

Automatic H Beam Welding Machine for Assembly Welding Straightening 3 Functions in 1
The machine is a special equipment for assembling, welding, and straightening H-shaped steel. It integrates the processes completed by the three machines of assembly machine, gantry welding and straightening machine into one machine, which significantly improves production efficiency ,reduced equipment costs, saved equipment installation space, the most efficient production equipmen for H-beam and T-beam

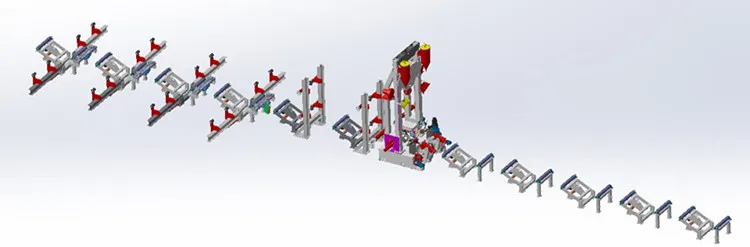

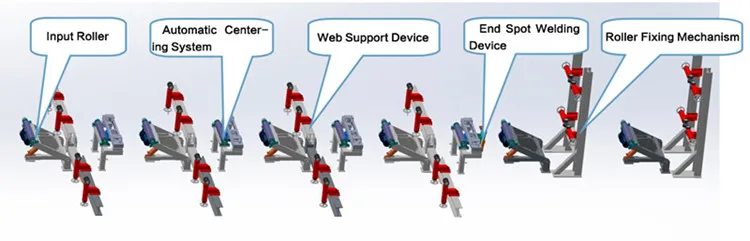

The equipment is mainly composed of seven parts: main machine, input roller table, output roller table, drawbar centering system, welding power source, hydraulic system and control system.
Welding process:
Support a veriaty of welding type: - single arc single wire welding
- single arc double wire welding
- double arc double wire welding
- submerged arc welding
Product Details
Product Paramenters
NO. | Item | Technical data |
1 | Flange width | 200-800mm |
2 | Flange thickness | 6-60mm |
3 | Web height | 200-1800mm |
4 | Web thickness | 6-50mm |
5 | H beam length | 2000-12000mm |
6 | Assembly and welding speed | 400-1500mm/min |
7 | Main machine power | 22.5kw |
8 | workpeice height | 200-2000mm |
9 | workpeice length | 4000-15000mm |
10 | welding speed | 150-1500mm/min |
Product Advantages
1. It only needs 2 operators to operate on the same station, and complete the H beam assembling, welding, straightening, holding and discharging in the production process, which can save a lot of time and improve production efficiency. To increase the output per square unit.
2. Compact structure, small footprint, save space.
3. Automatic centering and positioning makes assembling accuracy and assembling efficiency significantly improved.
4. It has the function of improving the correction accuracy and reducing the correction force, so that the web will not deform after welding. Symmetrical welding, small deformation.
5. The centralized lubrication system is adopted to ensure that the widely distributed lubrication points are lubricated in time to achieve the purpose of good lubrication, reducing wear and extending the service life of the equipment.

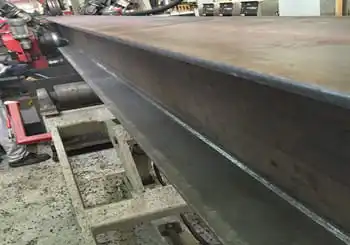

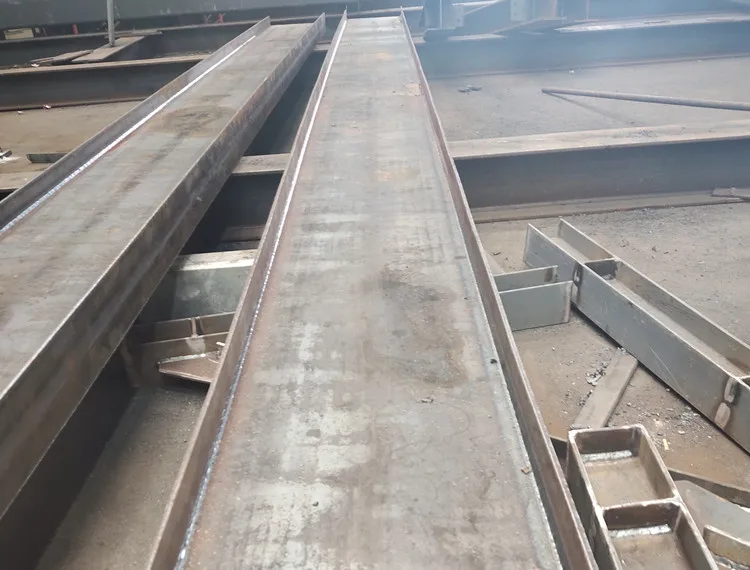

6. The welding seam is beautiful and well formed.
7. Bus control, adjustable parameters, production data sharing.
2. Compact structure, small footprint, save space.
3. Automatic centering and positioning makes assembling accuracy and assembling efficiency significantly improved.
4. It has the function of improving the correction accuracy and reducing the correction force, so that the web will not deform after welding. Symmetrical welding, small deformation.
5. The centralized lubrication system is adopted to ensure that the widely distributed lubrication points are lubricated in time to achieve the purpose of good lubrication, reducing wear and extending the service life of the equipment.
6. The welding seam is beautiful and well formed.
7. Bus control, adjustable parameters, production data sharing.
FAQ
Q1. Are you a Manufacturer or a trading company?
A1.We are the manufacturer, integrating with design, machining and assembling for machines.
Q2. Do you have stock product ready to deliver?
A2. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the
machine on LIVE-DEMONSTRATION at any time.
Q3. How do you deliver the finished products?
A3. The machine is mostly delivery by sea, rail way or road for some exception. For some urgent part or shipping document we
delivered by air or Express like TNT, FEDEX,DHL,UPS,EMS, Etc.
Q4. How can you guarantee the after-sales service?
A4. We have the special after-sales service department, they will provide training program for operation and trouble shouting
during installation. And they will visit the customer regularly for service.all questions will be answered within 3 hours and 90%
problem will be solved within 24 hours.
Q5. What's delivery time for the angle machine.
A5. Within 20 days after payment.
Q6. How can you guarantee your finished machine quality?
A6. First, the machine will have 8 hours idle running;
Second, we will test the machine with the material working together.
A1.We are the manufacturer, integrating with design, machining and assembling for machines.
Q2. Do you have stock product ready to deliver?
A2. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the
machine on LIVE-DEMONSTRATION at any time.
Q3. How do you deliver the finished products?
A3. The machine is mostly delivery by sea, rail way or road for some exception. For some urgent part or shipping document we
delivered by air or Express like TNT, FEDEX,DHL,UPS,EMS, Etc.
Q4. How can you guarantee the after-sales service?
A4. We have the special after-sales service department, they will provide training program for operation and trouble shouting
during installation. And they will visit the customer regularly for service.all questions will be answered within 3 hours and 90%
problem will be solved within 24 hours.
Q5. What's delivery time for the angle machine.
A5. Within 20 days after payment.
Q6. How can you guarantee your finished machine quality?
A6. First, the machine will have 8 hours idle running;
Second, we will test the machine with the material working together.
Packing&Shipping
Sea-worthy package
plywood carton or nude package
