DIY stainless steel infrared sensor high pressure spray hand disinfection system 20 electronic product solution research provide

-AC220V high pressure spray soap dispenser control board

Supply Ability

Supply Ability:     5000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details       500PCS/ctn

Port                              ShenZhen

Lead Time                   With 5 working days

product description:

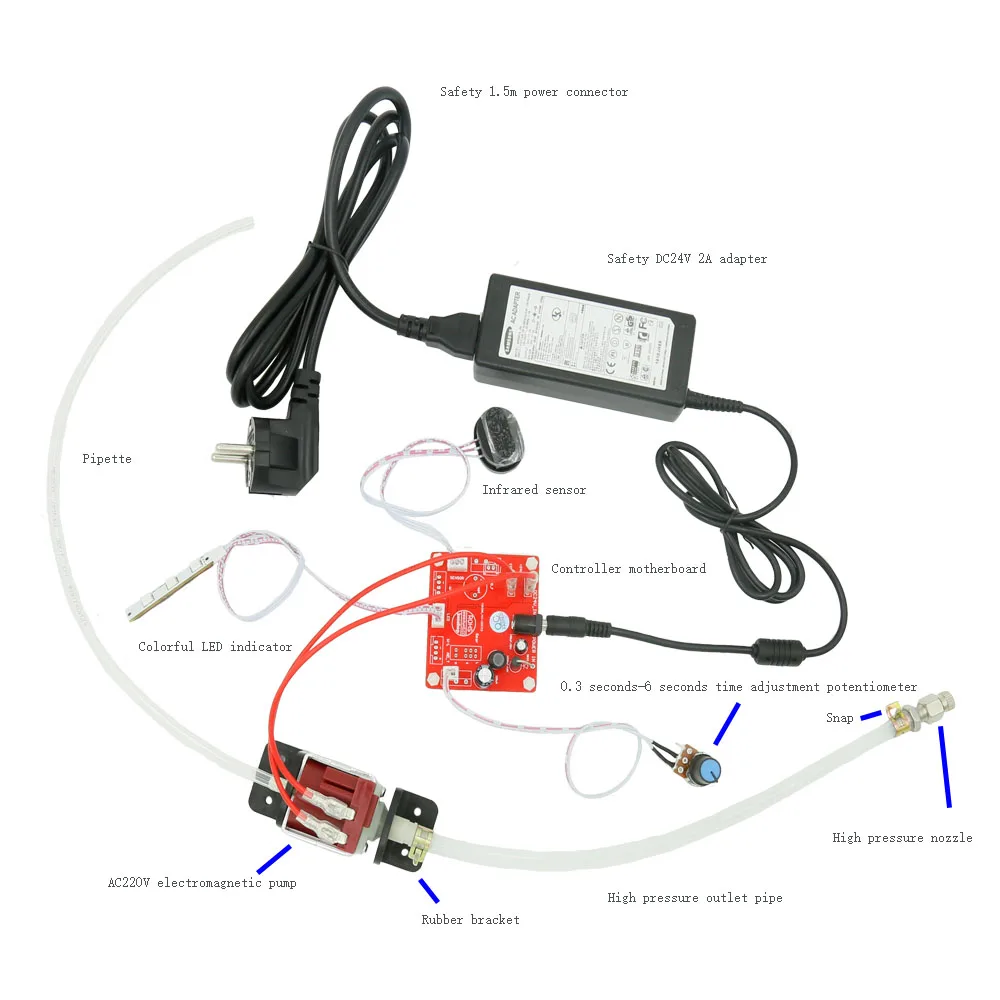

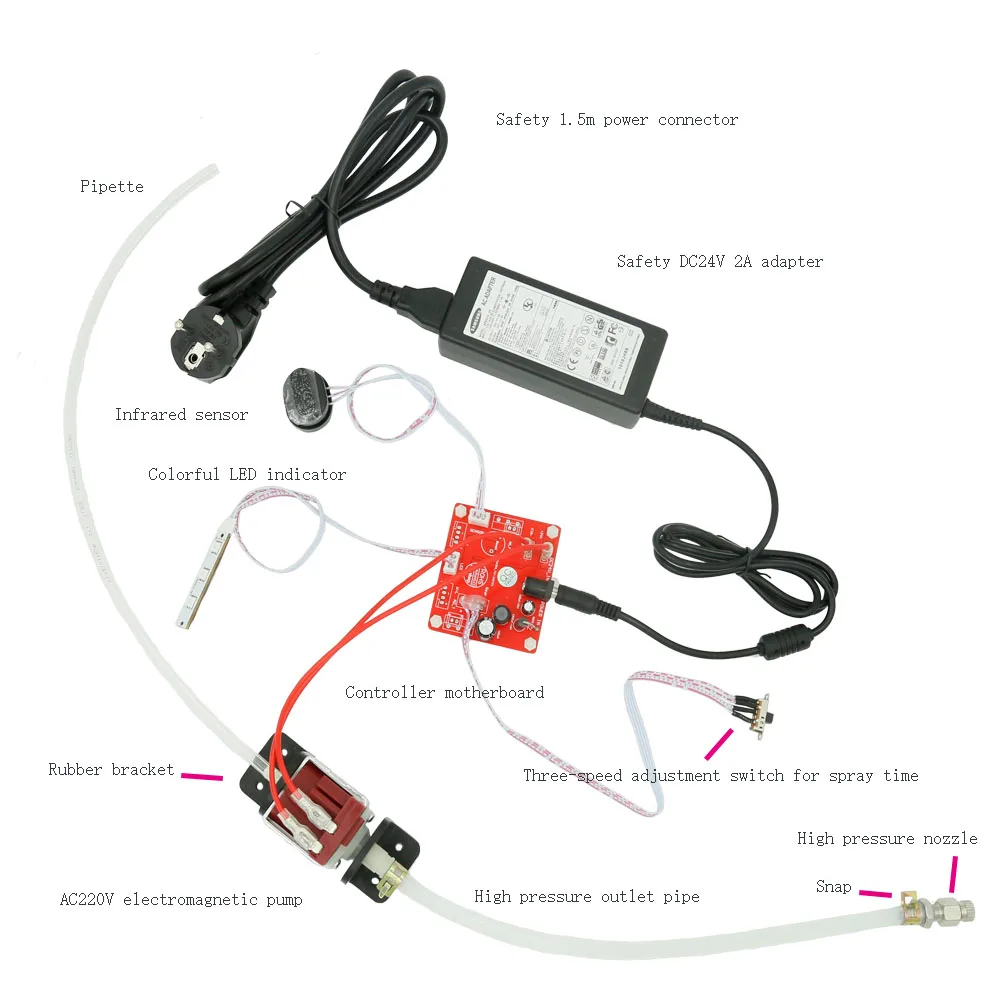

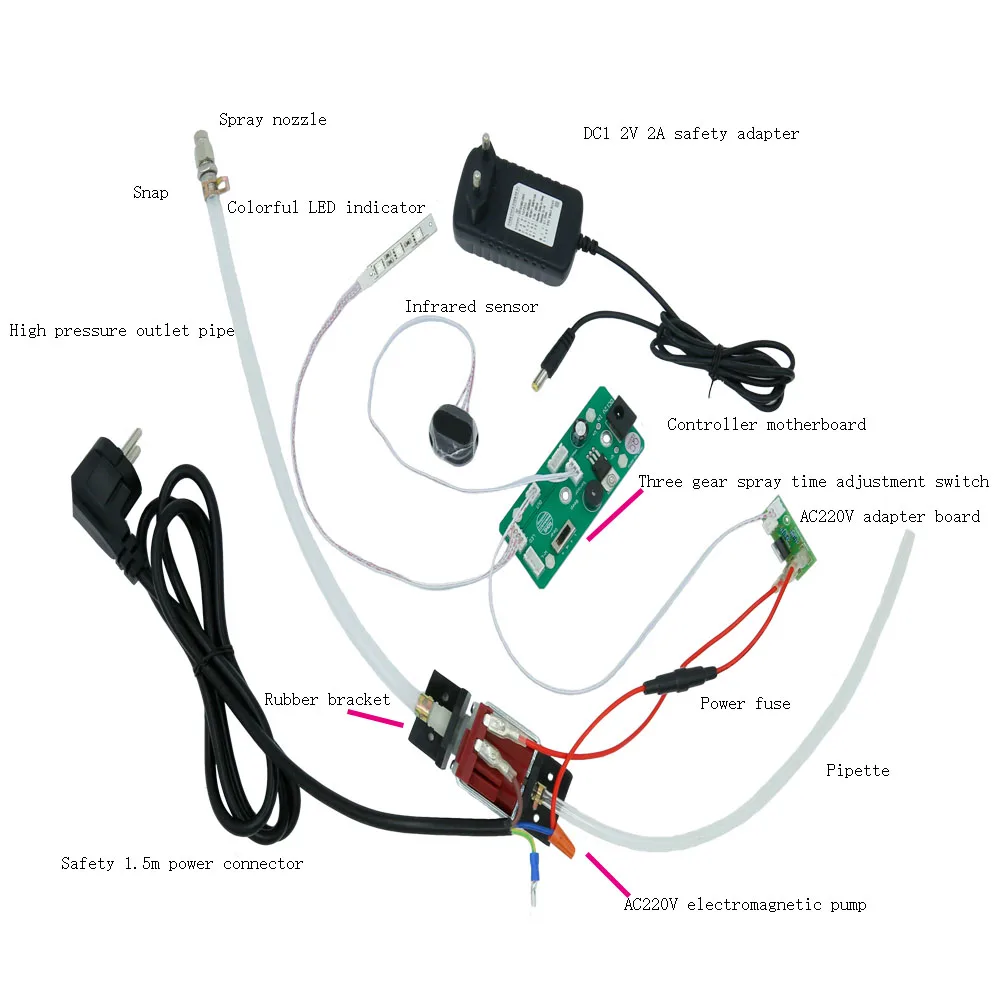

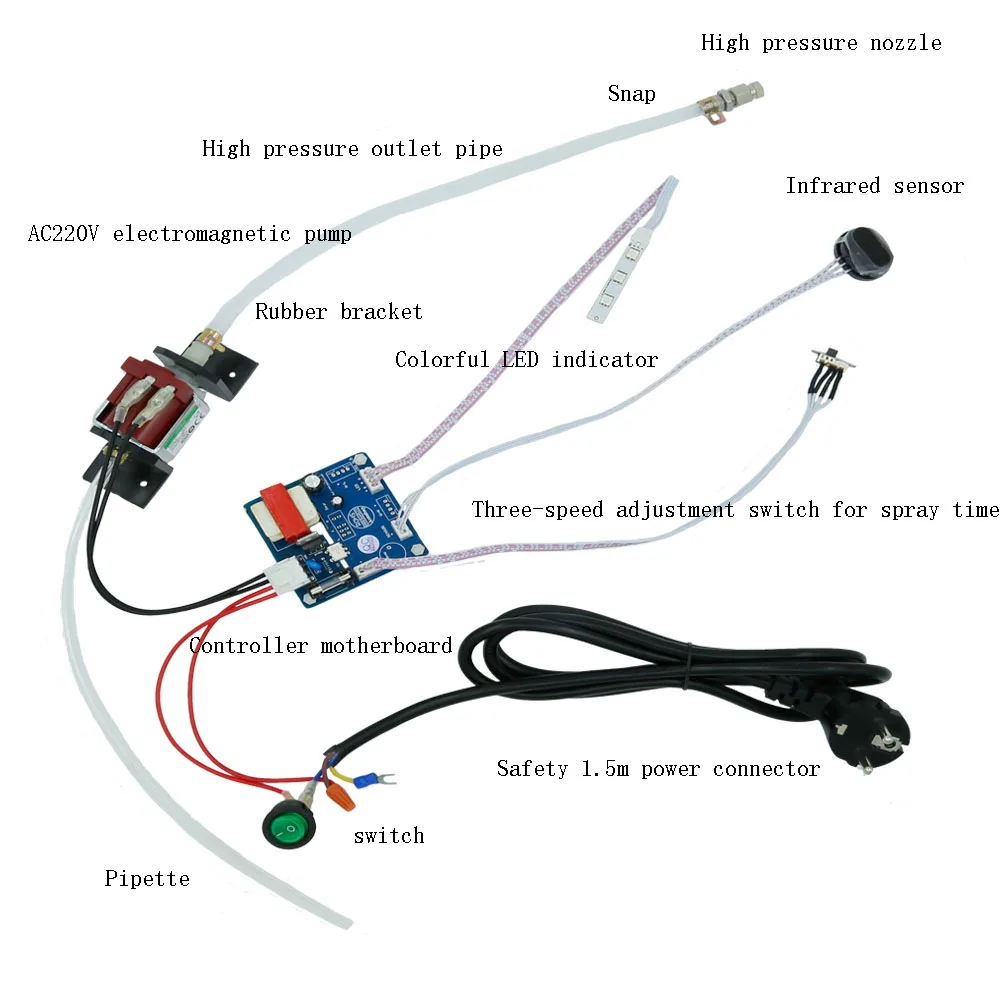

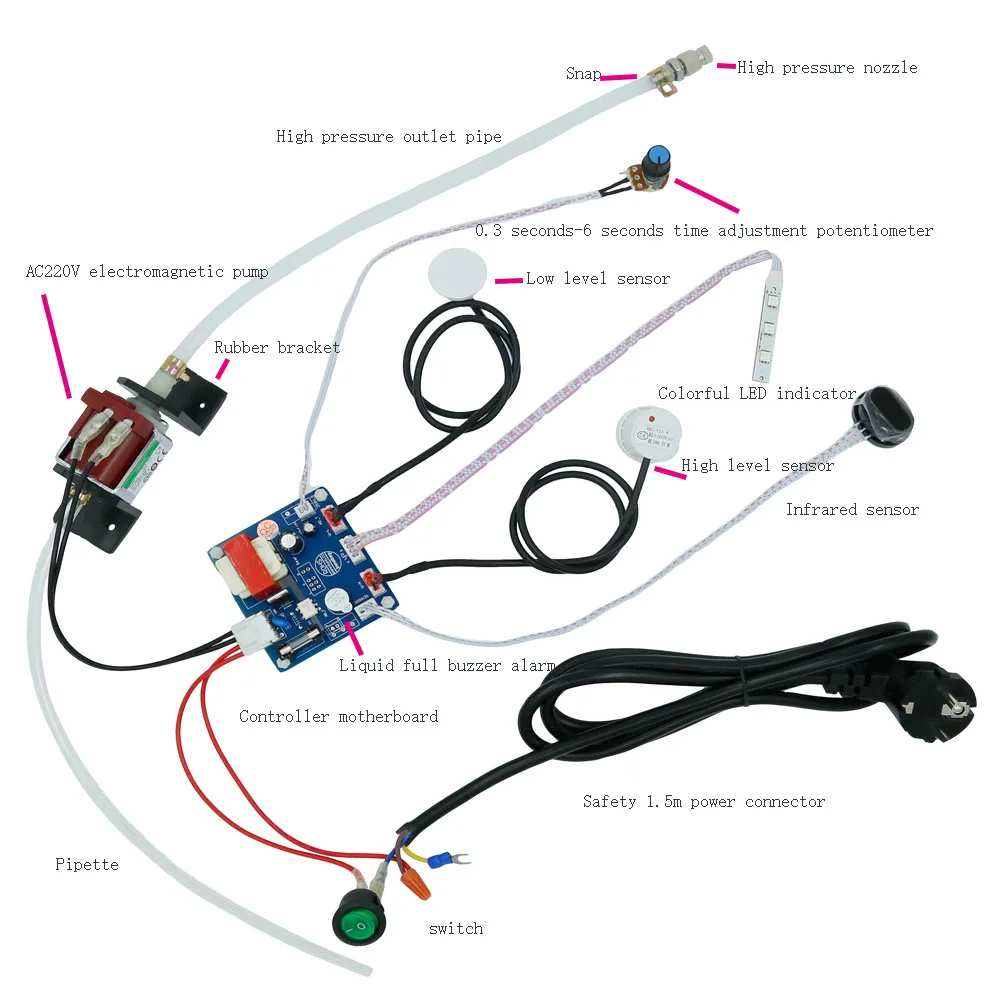

This system is professionally used for non-contact infrared induction automatic spray hand washing and disinfecting machine,The system uses AC220V voltage,The sterilization is converted into high-pressure liquid by the pressure pump, and the nozzle is turned into a spray,Spray evenly on palm,Back of hand,Achieve complete and complete rapid disinfection function.

 product features:

        1] Input voltage: AC186-256, Comes with 1.5A insurance tube, When the current exceeds  1.5A due to load short circuit or other reasons,Fuses fuse;

2] Three-color LED indicator,The red light is the boot instruction,The green light is the  induction indicator,Yellow light indicates lack of fluid;

3] Liquid level sensor detection,When the disinfectant is about to run out,The system is  automatically stopped,Yellow light flashes to indicate that disinfectant needs to be   added;

       4] When the disinfectant is about to fill up,The buzzer sounds: beep beep, beep beep ...  alarm sound;

        5] Third gear adjustment,Are:

             A, Induction mode:When the hand is sensed, start spraying and stop spraying until the hand is away;

            B, 3 seconds spray mode : start spraying every time a hand is sensed, and stop spraying after 3 seconds;

            C, 7 seconds spray mode:Every time a hand is sensed, start spraying and stop spraying after 7 seconds;

        6] The misting state of the high-pressure nozzle can be changed by manually adjusting the tightness of the nozzle;

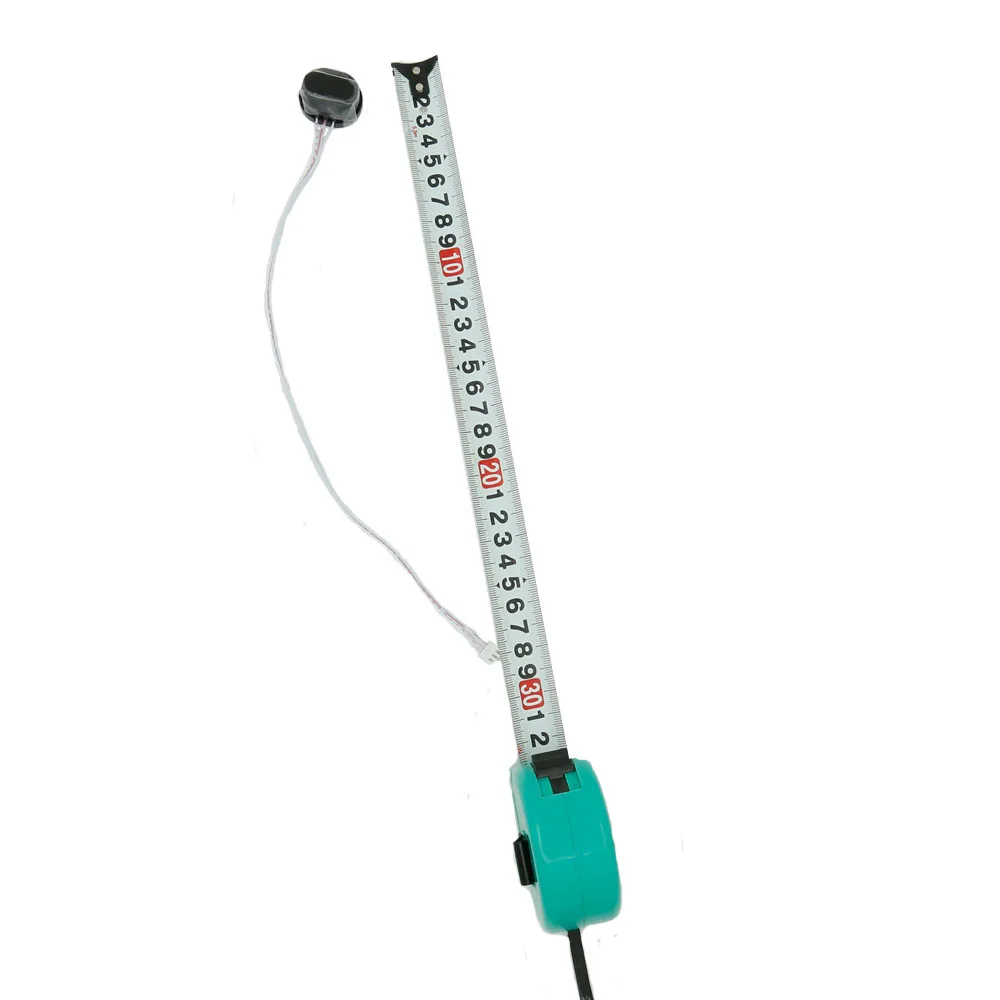

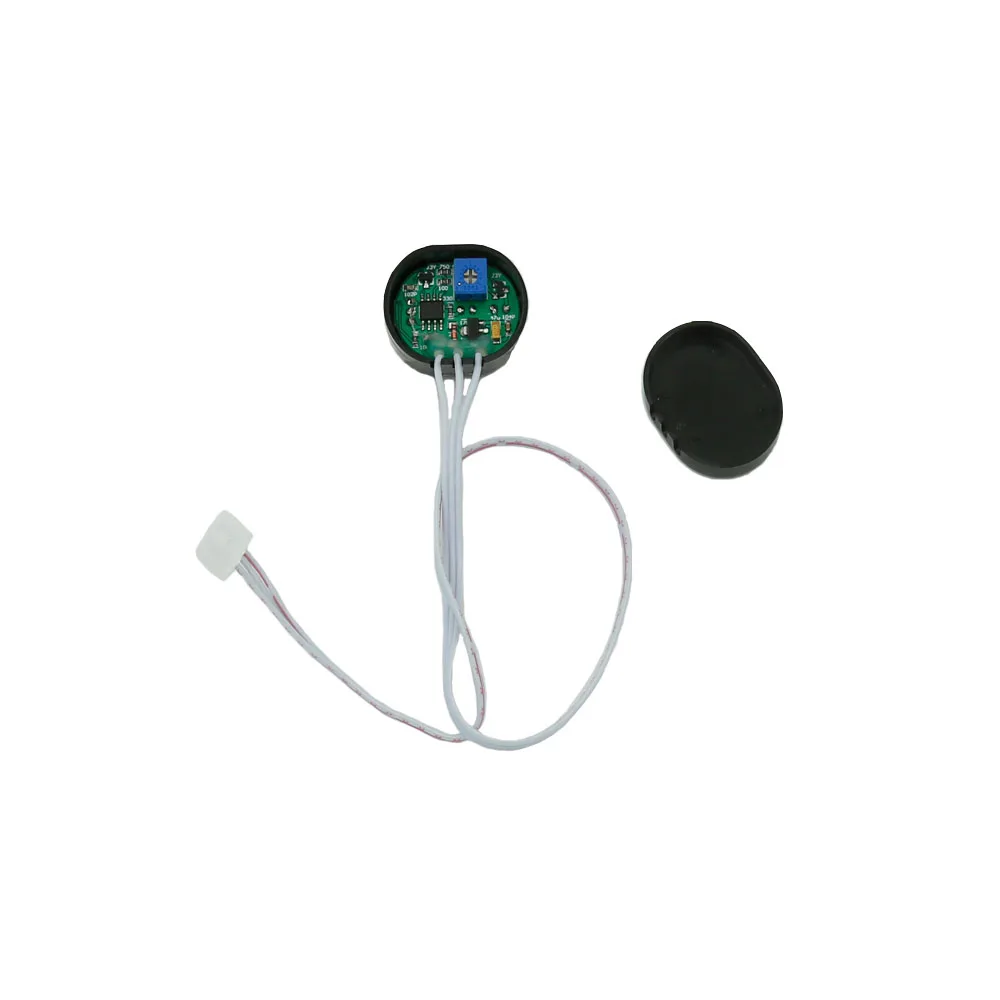

        7] Infrared sensing distance can be adjusted by adjustable potentiometer on the   motherboard,The sensing distance adjustment range is about:3CM-20CM,The longest sensing distance can be set to ≥300CM, which must be customized;

Remarks:

The above is the ready-made sample form,All system functions,PCB shape, positioning, size, wiring, switch, conduit…All can be customized according to the requirements of customers, and related certification and subsequent mass production testing!
