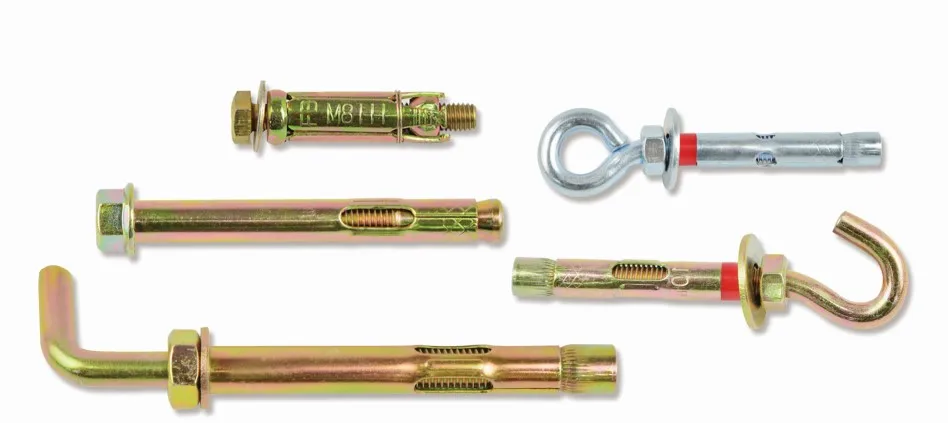

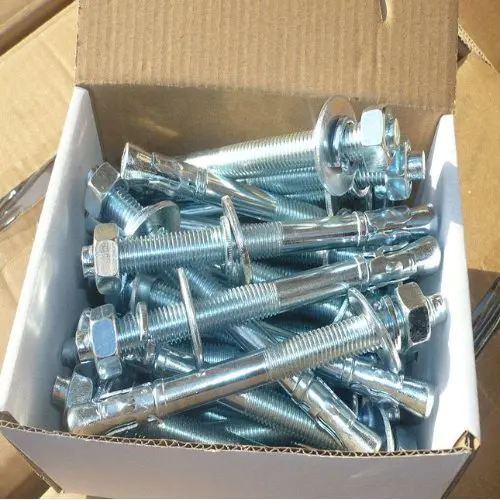

PRODUCT NAME | Zinc plated concrete expansion / heavy duty wall / wedge anchor bolts | ||||
MATERIAL | BODY:Carbon Steel Q195 Washer and Nut:Carbon Steel | ||||
COLOR | Plating white zinc or yellow zinc | ||||
SIZE | M8*100 or you need | ||||
MANUFACTURE | Yes | ||||
OEM | Accept | ||||
SAMPLE | Free | ||||
USEAGE | Concrete and Stone | ||||
OTHER MATERIAL | Steel or Stainless steel | ||||
PACKING | WHITE BOX+CARTON | ||||
PAYMENT TERM | T/T,L/C,PAYPAL,WESTERN UNION,MONEY GRAM |
Anchor size L | Min.thread length | Min Embedment | Pull out load(kgs) |
M6X40 min | 15 | 27 | 890 |
M6X95 max | 60 | 35 | 890 |
M8X50 min | 20 | 35 | 1250 |
M8X160 max | 100 | 40 | 1250 |
M10X65 min | 30 | 40 | 1680 |
M10X130 max | 95 | 50 | 1680 |
M12X80 min | 35 | 50 | 2450 |
M12X150 max | 100 | 60 | 2450 |
M16X105 min | 50 | 70 | 3800 |
M16X180 max | 100 | 80 | 3800 |
M20X125 min | 65 | 85 | 5650 lathe anchor |
M20X180 max | 100 | 100 | 5300 lathe anchor |
