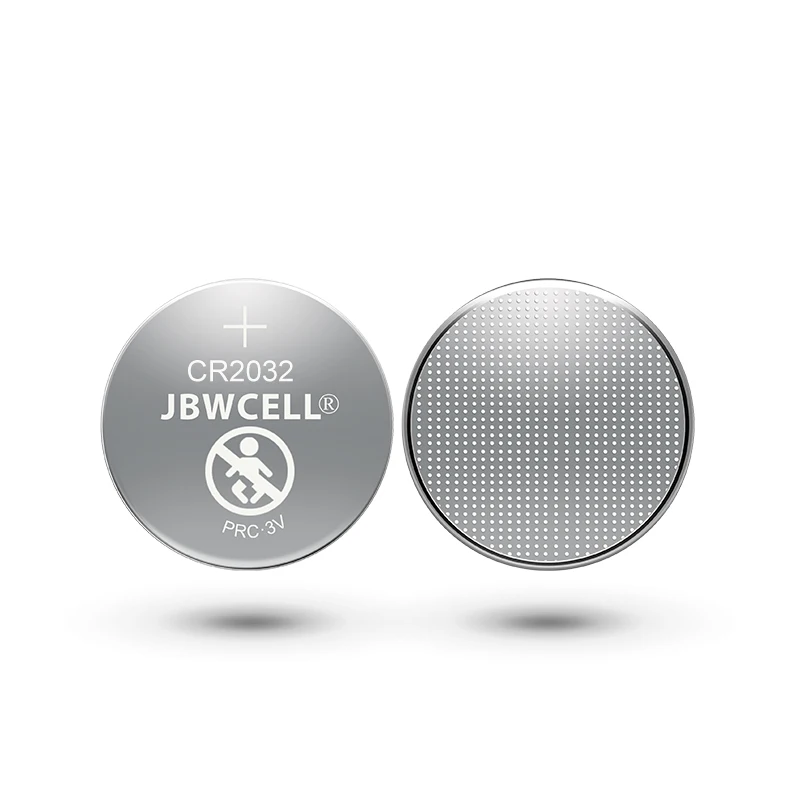

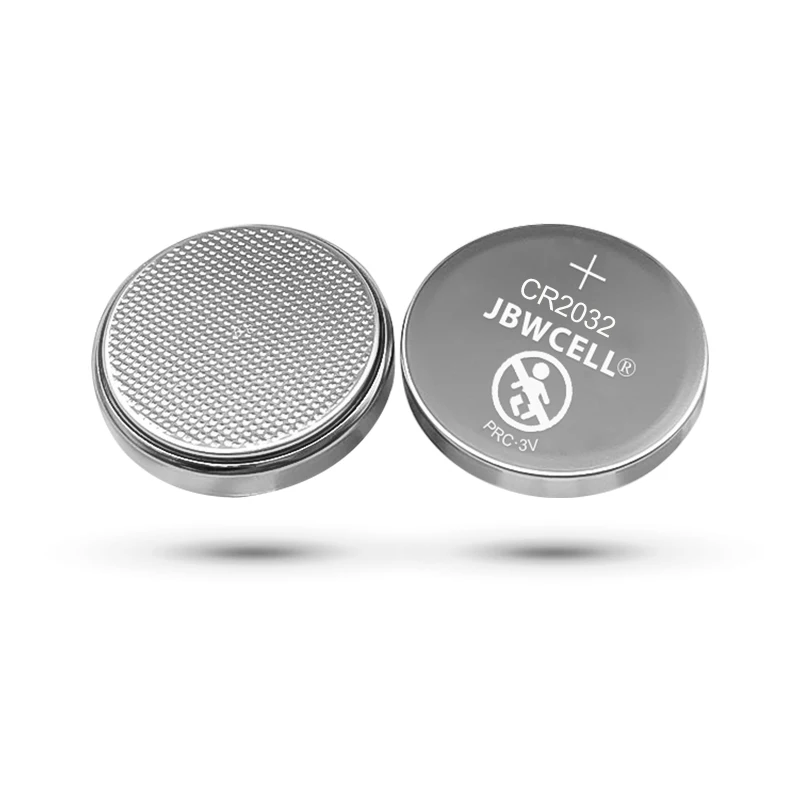

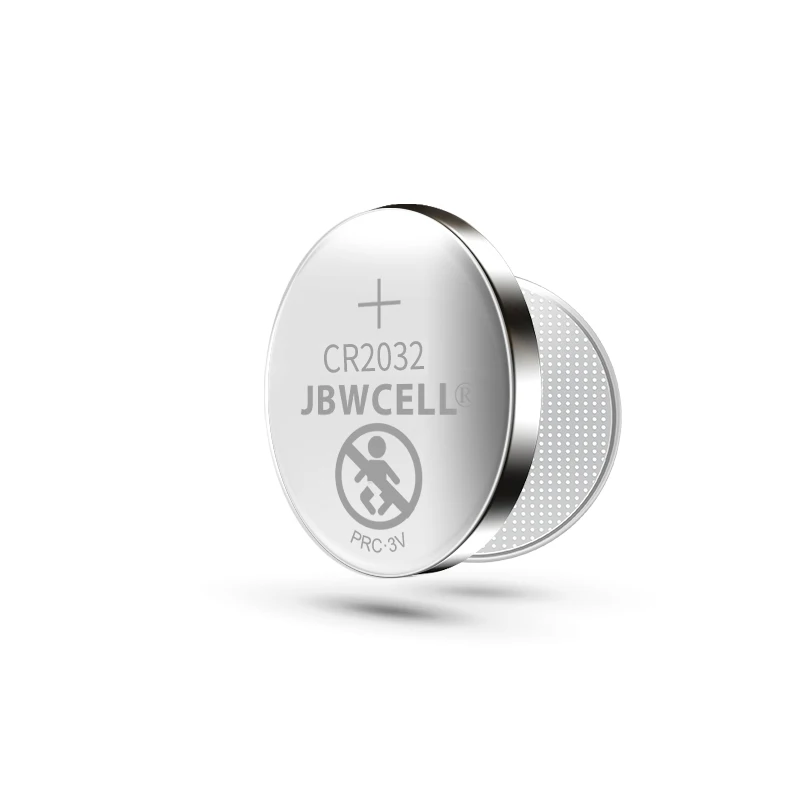

CR2032 battery 3V lithium button cell battery
- Category: >>>
- Supplier: Shenzhen Jbwcell Battery Co. ltd
Share on (1600102420740):
Product Overview
Description
Product Description
Battey Type | CR2032 3V button cell battery |
Brand | JBWCELL or OEM |
Model | CR2032 |
Size | 20*3.2mm |
Voltage | 3V |
Capacity | 230mAh |
Shelf Life | 5 years |
Chemical System | Lithium manganese dioxide button battery (Non-Hg, Non-Cadmium) |
Certifications | RoHS SGS REACH MSDS |
Description | 3V Lithium manganese dioxide button battery |
Storage Performance | After 12 months storage at specified conditions, discharge capacity should be no less than 80% of the original discharge capacity. |

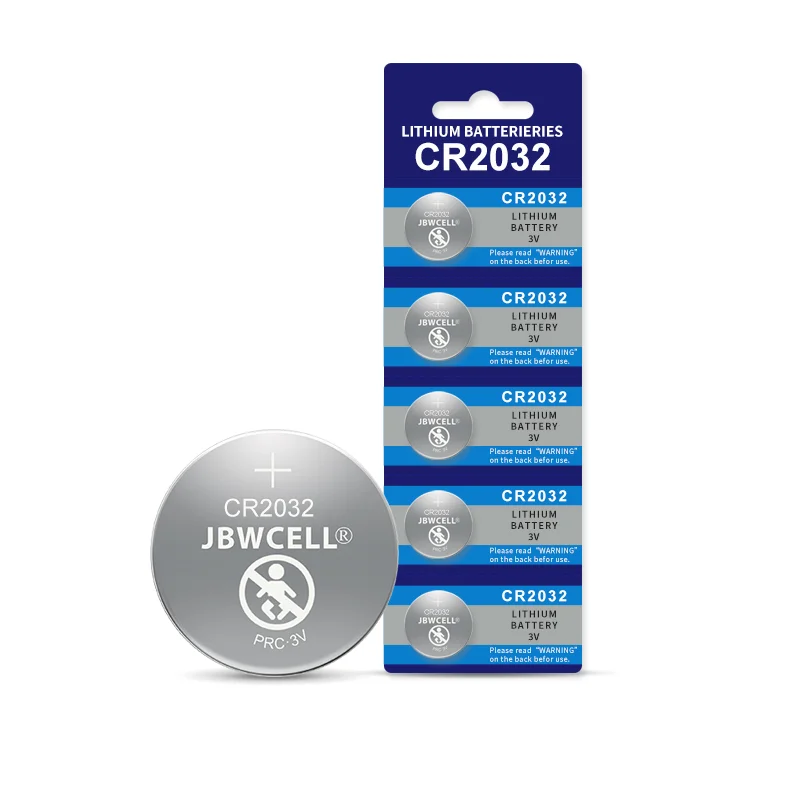

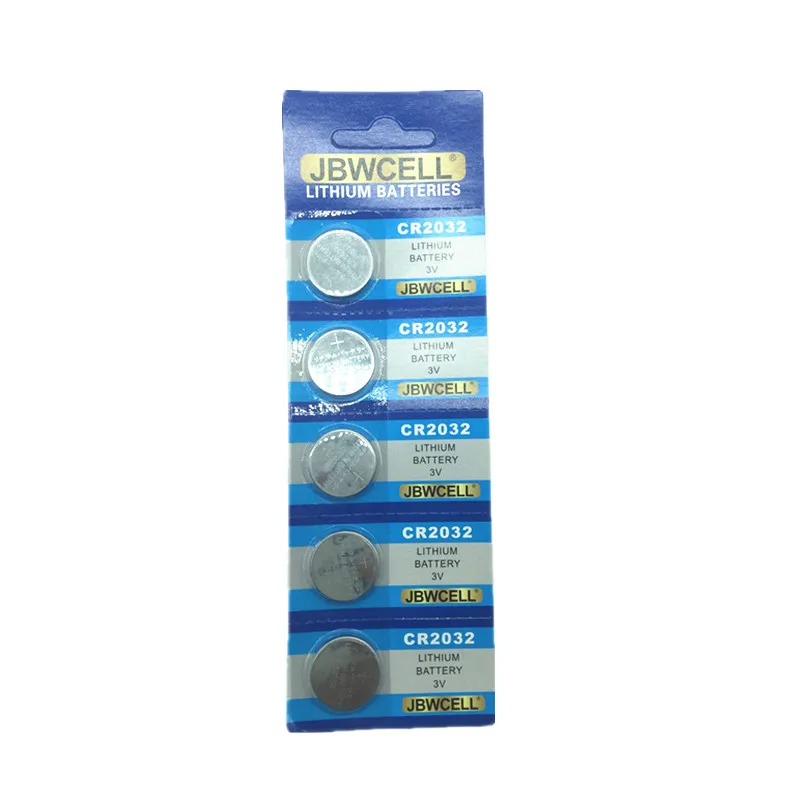

Package | Tray bulk, blister card, shrink, box, clamshell. |
Shipping | 3-20 working days |
Each battery has full voltage, long life safety durable, quality assurance.
Details Images

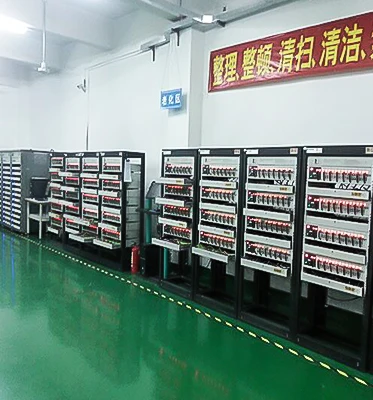

Using lithium cell, each battery before the factory through strict quality control and battery test to ensure that each battery is full of power
Quality assurance, low self discharge, valid for up to 5 years, it is recommended to keep in low temperature dry environment The battery storage time can be relatively extended
Manganese dioxide with very stable chemical properties is used as positive electrode material and lithium metal with very high energy as negative electrode materialHigh and low unstable current will not occur, effectively prevent the damage of unstable current to electrical appliances
The appearance is made of stainless steel with excellent sealing performance, which can effectively prevent short circuit and leakage between positive and negative electrodes of the battery.Improve the safety of battery use.
Application
Scope of use
Suitable for automobile key battery, calculator, watch, mouse, computer motherboard, remote control and other electronic devices
Product packaging
Model | Voltage(V) | Norminal Capacity (mAh) | Dimension (mm) | Weight (g) | Recommended Continuous Drain(mA) | Recommended Pulse Drain(mA) |
CR927 | 3 | 30 | 9.5*2.7 | 0.8 | 0.1 | 5 |
CR1025 | 3 | 30 | 10*2.5 | 0.8 | 0.1 | 5 |
CR1130 | 3 | 60 | 11.5*3.0 | 1 | 0.05 | 5 |
CR1212 | 3 | 18 | 12.5*1.2 | 0.5 | 0.1 | 5 |
CR1216 | 3 | 26 | 12.5*1.6 | 0.7 | 0.1 | 5 |
CR1220 | 3 | 36 | 12.5*2.0 | 0.8 | 0.1 | 5 |
CR1225 | 3 | 50 | 12.5*2.5 | 1 | 0.1 | 5 |
CR1530 | 3 | 90 | 15*3.0 | 1.5 | 0.1 | 8 |
CR1616 | 3 | 50 | 16*1.6 | 1.2 | 0.1 | 5 |
CR1620 | 3 | 70 | 16*2.0 | 1.4 | 0.1 | 5 |
CR1625 | 3 | 90 | 16*2.5 | 1.4 | 0.1 | 8 |
CR1632 | 3 | 125 | 16*3.2 | 2.3 | 0.1 | 5 |
CR2016 | 3 | 80 | 20*1.6 | 1.6 | 0.1 | 10 |
CR2020 | 3 | 120 | 20*2.0 | 2 | 0.1 | 10 |
CR2025 | 3 | 150 | 20*2.5 | 2.5 | 0.2 | 15 |
CR2032 | 3 | 230 | 20*3.2 | 3.1 | 0.3 | 15 |
CR2050 | 3 | 300 | 20*5.0 | 4.2 | 0.2 | 18 |
CR2320 | 3 | 130 | 23*2.0 | 3 | 0.2 | 15 |
CR2325 | 3 | 180 | 23*2.5 | 3.5 | 0.2 | 15 |
CR2330 | 3 | 250 | 23*3.0 | 4 | 0.3 | 15 |
CR2335 | 3 | 330 | 23*3.5 | 5 | 0.3 | 15 |
CR2354 | 3 | 530 | 23*5.4 | 6.3 | 0.3 | 20 |
CR2430 | 3 | 280 | 24.5*3.0 | 4.3 | 0.4 | 20 |
cr2450 | 3 | 550 | 24.5*5.0 | 6.2 | 0.4 | 25 |
CR2477 | 3 | 1000 | 24.5*7.7 | 10.5 | 0.4 | 25 |
CR3032 | 3 | 500 | 30*3.2 | 7.1 | 0.4 | 25 |
