Hot sale factory direct steel profile pipe cutting machine pipe cutting machine
- Category: >>>
- Supplier: Shanghai Xuanzheng Machinery Equipment Co. Ltd.
Share on (1600102429944):
Product Overview
Description
Product Description

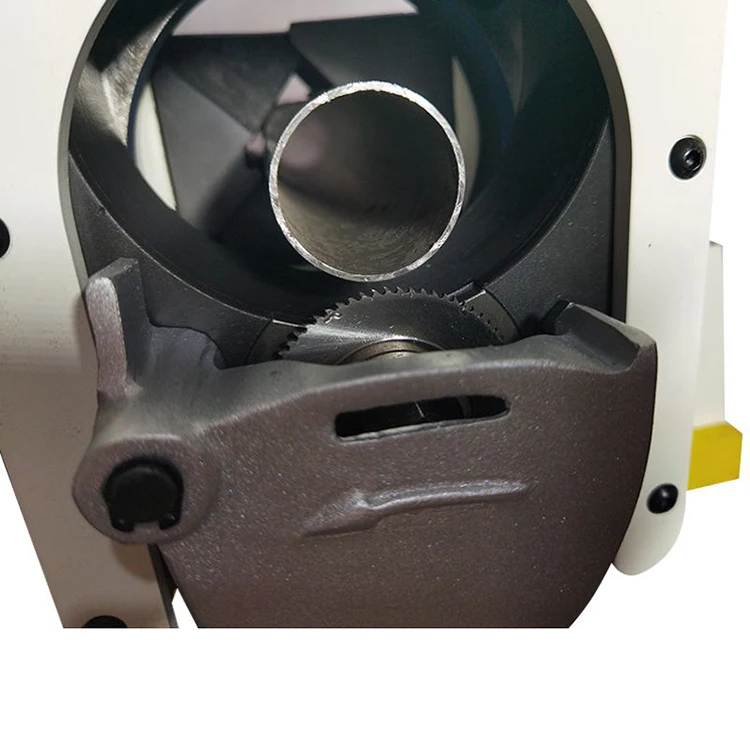

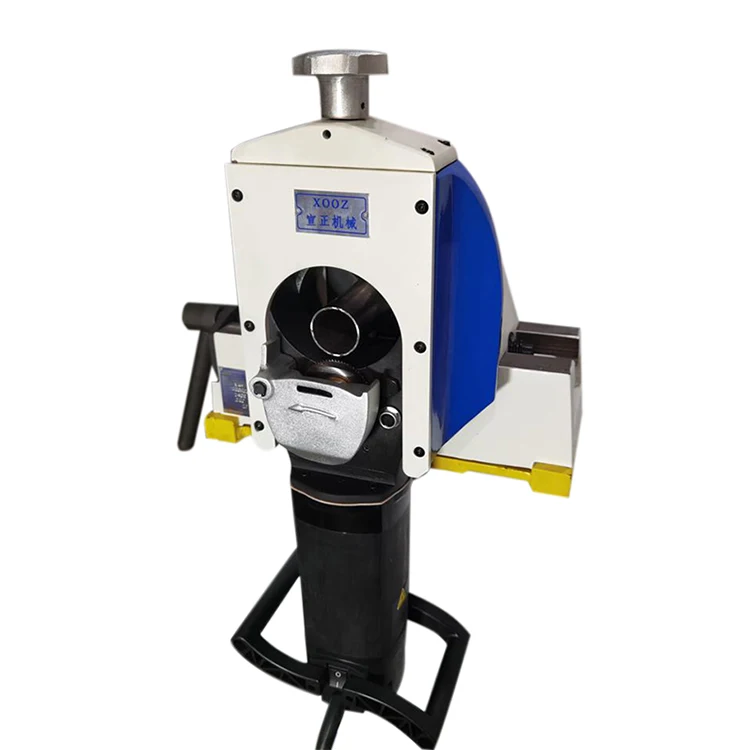

The pipe to be cut during operation is fixed on the 'self-centering' clamping device, so that no deformation occurs to the pipe.When cutting, the cutting head is rotated around the pipe by hand or driven by an automatic device. The cutting blade will cut off the pipe. The rear end of the cutting is vertical with no burr on the end and no deformation on the pipe

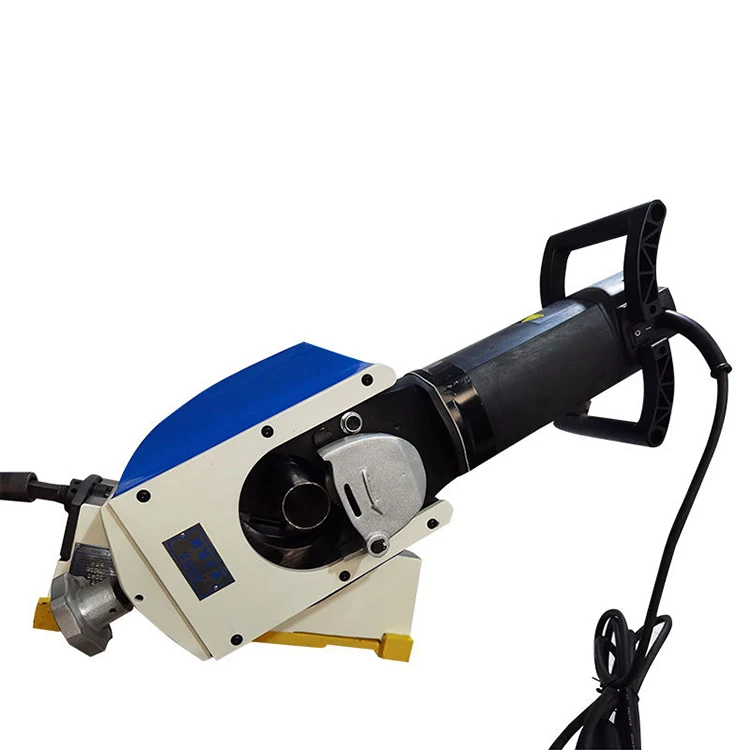

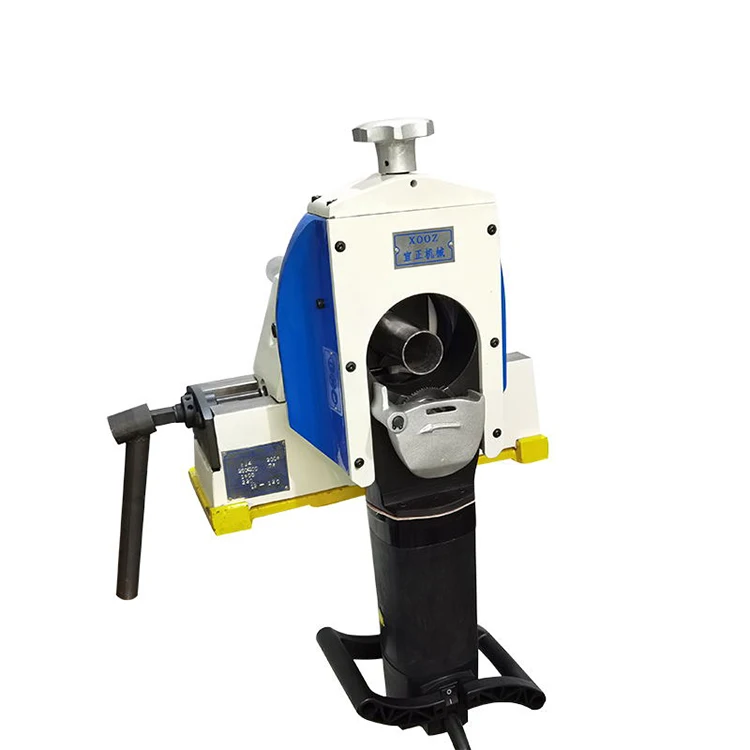

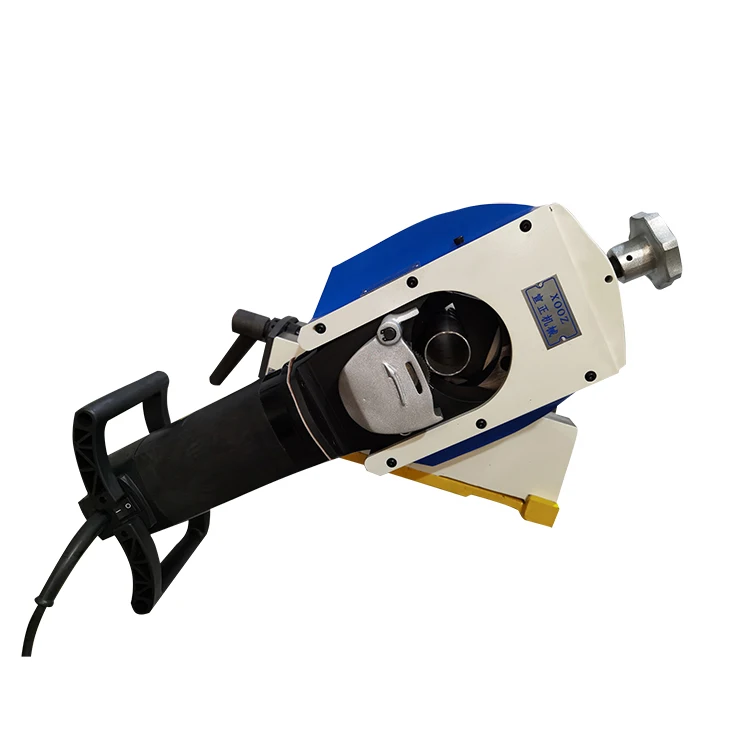

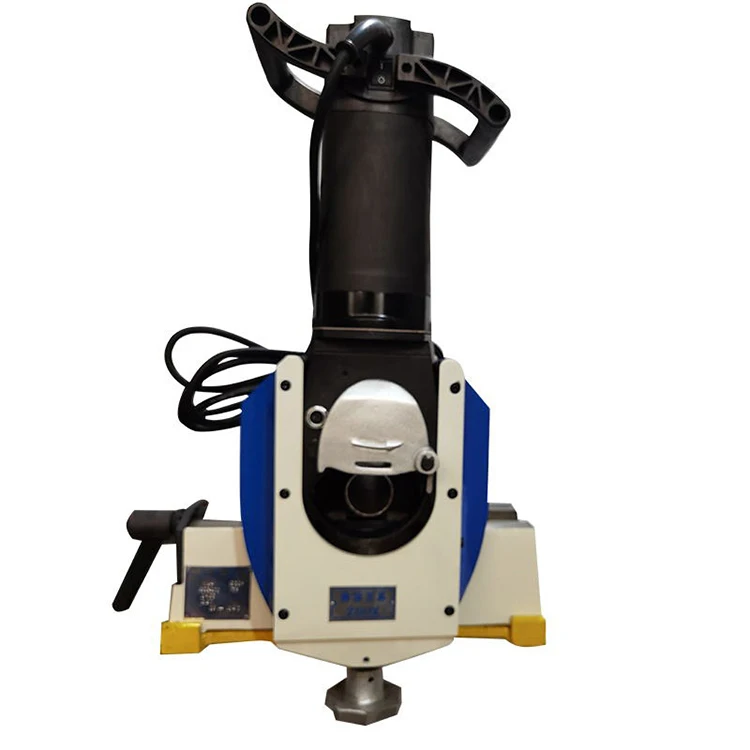

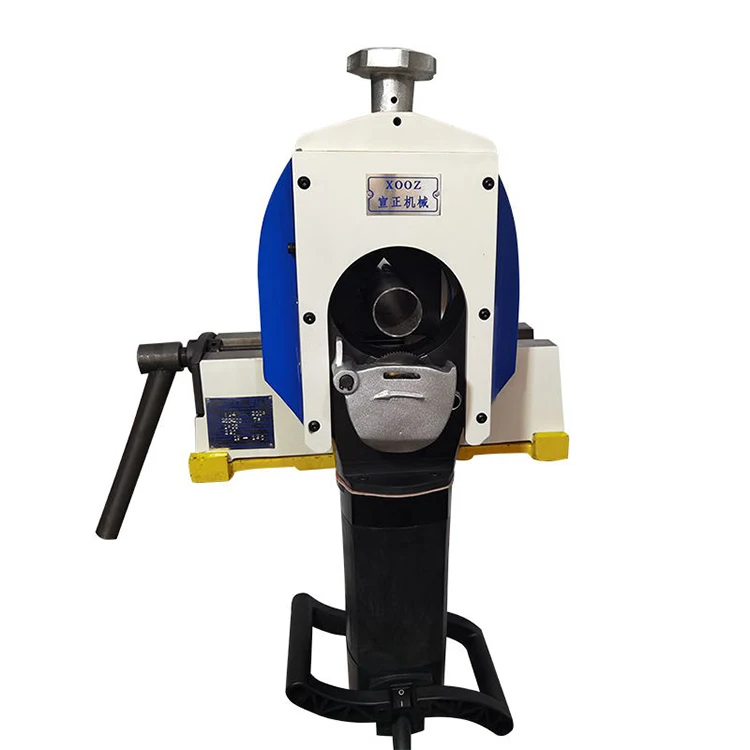

Orbital Pipe Cutting machine adopts high-power electric drive, powerful, easy to operate, save a space, operation will be fixed in
the self-centering device pipe, the pipe does not produce distortion, manual or automatic device driven by cutting the pipe
revolves round pipe cutting head cutting, after cutting the absolute vertical, transverse burr, the pipe deformation and to
provide guarantee to ensure the quality of the pipe welding and finish groove requirements at the same time.
* Rugged design, high safety, unique automated planetary cutting process
* Fast cold cutting, high efficiency, no burr on the end face, no deformation of the cut
* The cutting speed can be adjusted
* Ergonomically optimized click handle for safer operation position
* Automatic centering and even groove when cutting
* Quick replacement of blade, blade can be used in AXXAIR and GF pipe cutting machine
* The blade can move automatically
Model | Pipe OD | Wall Thickness | Motor | V/Hz | NT |
Xa4 | 0.75''-4.5'' 19-120mm | 0.04''-0.22'' 1-7mm | 1600w | 110/220V 50/60Hz | 75kg/165bl |
Xa6 | 2.5''-7'' 63.5-182mm | 0.08''-0.4'' 2-10mm | 1600w | 110/220V 50/60Hz | 90kg/198lb |
Xa8 | 6''-9'' 150-230mm | 0.08''-0.4'' 2-10mm | 1600w | 110/220V 50/60Hz | 110kg/242lb |
Xa12 | 8.5''-12.5'' 215-325mm | 0.08''-0.4'' 2-10mm | 1600w | 110/220V 50/60Hz | 130kg/286lb |
Blade speed | |||||
Model | Pipe Material | Speed control knob position | Cutting speed (r/min) | ||
Xa4 | Stainless Steel ,high alloy steel | 1-2 | 150-183 | ||
low alloy Steel | 3-4 | 183-216 | |||
plastic,non erros Steel,Galvanized Steel etc. | 5-6 | 183-216 |
Company Information
Shanghai Xuanzheng Machinery Equipment Co., LTD. (XOOZ)Is a high-tech enterprise integrating scientific research, development, manufacturing, sales and service.We are the Manufacture in this industry for more than 10 years.At the beginning of its establishment , it takes technology as the core and quality as the life and is committed to building a first-class pipe cutting groove equipment manufacturer in China.We specialize in the research and development of pipe cutting machine, bevel machine, flat machine and other equipment for welding technology services.Xuanzheng introduces and absorbs advanced technology and experience at home and abroad to be the best of all and Constantly update and develop with their own intellectual property rights, more economical and more efficient pipe cutting bevel machine and peripheral products.
Our product business serves many industries, such as: beer, pharmacy, biotechnology, beverage, dairy, pressure vessel, petroleum, natural gas, chemical industry, shipbuilding, power construction, boiler, water treatment and so on pipe cutting, groove field.
The efforts of Xuanzheng people are formed with skillful talents,strong techinical staffs make our friends more efficient in their work.Xuanzheng people welcome our customers with their honest service. At the same time,We participate in the market competition in the spirit of people-oriented, honest and pragmatic, pioneering and innovative ideas.In order to better cost-effective service for customers, customers at home and abroad to obtain greater benefits.
All the employees and professional distributors of the company will provide you with the best production solutions, all the equipment to provide lifelong technical support and spare parts supply.

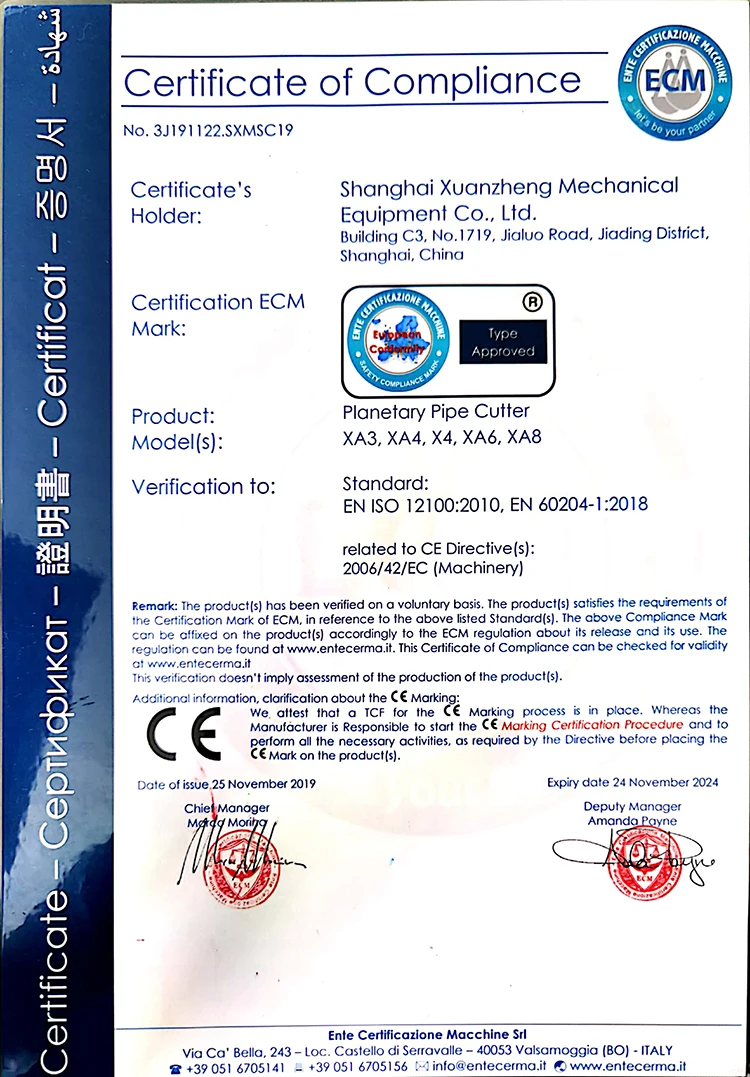

Certifications
Packaging & Shipping
PACKAGE:
Standard export carton packing.
