Product Overview

Description

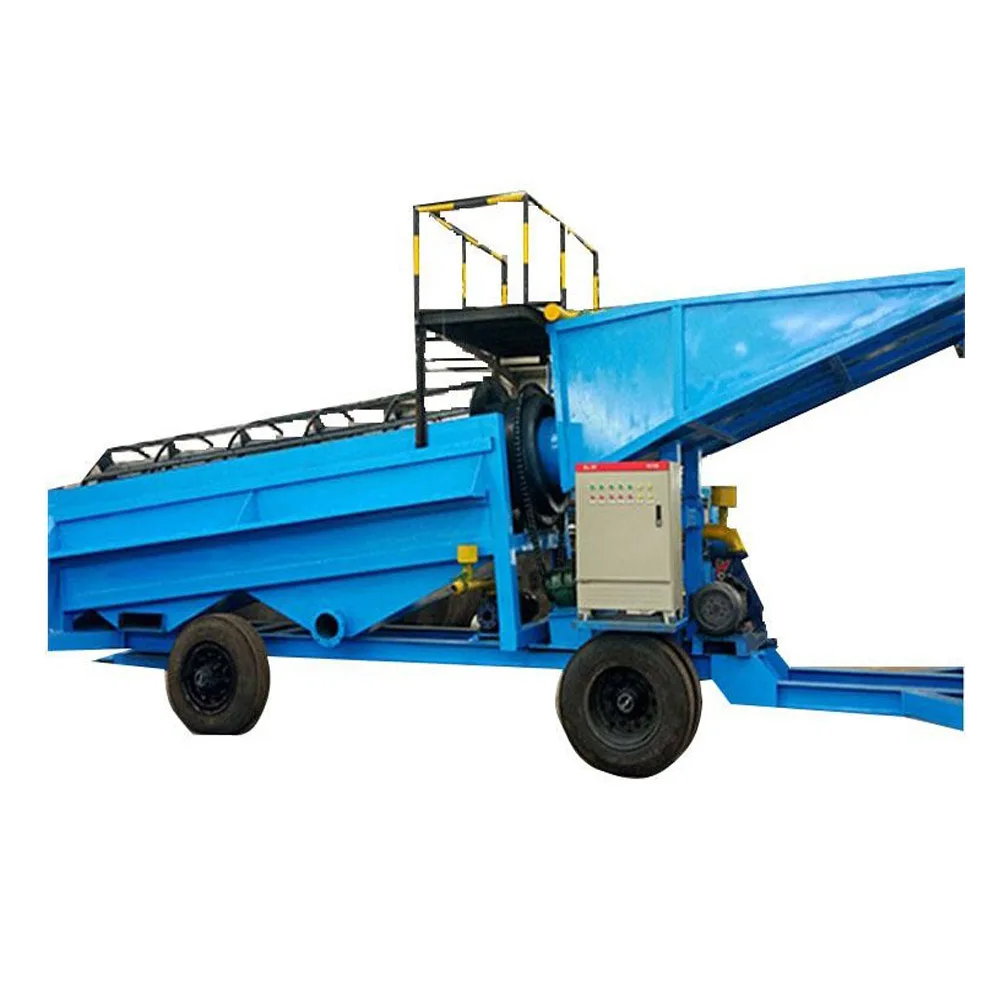

Trommel screen plant capacity 100tph
♦ The trommel screen provide a simple, efficient and economical solution to upgrade a wide range of material and optimize the subsequent process steps of recovery. This method of screening helps to reduce operating and investment cost and to increase product quality, while allowing rapid and large volume processing.
♦ The gold washing plant offers the portability of smaller hand fed systems, while maintaining large scale production with a smaller footprint. Once on site, setup takes only minutes and can be accomplished by a single person.
♦ The size and capacity can be customized. As we are the manufacturer, we can help you design the suitable equipment in your plant. This equipment includes the washing function and sieving function. The length of washing part and sieving part can be made as your request.






1.Easy to move, Patented unique design, adapt to complex condition;
2.Simple Operation, Low water and electricity requirements, save cost;
3.Large processing capacity, high recovery rate, gold Recovery rate more than 90%;
4.Adopt engineering machinery loading, longer drum life and no blockage.


size
wheel
hopper
genset
mesh
9*2.5*3.5
10.
00
15mm
30kw
8mm


Specification

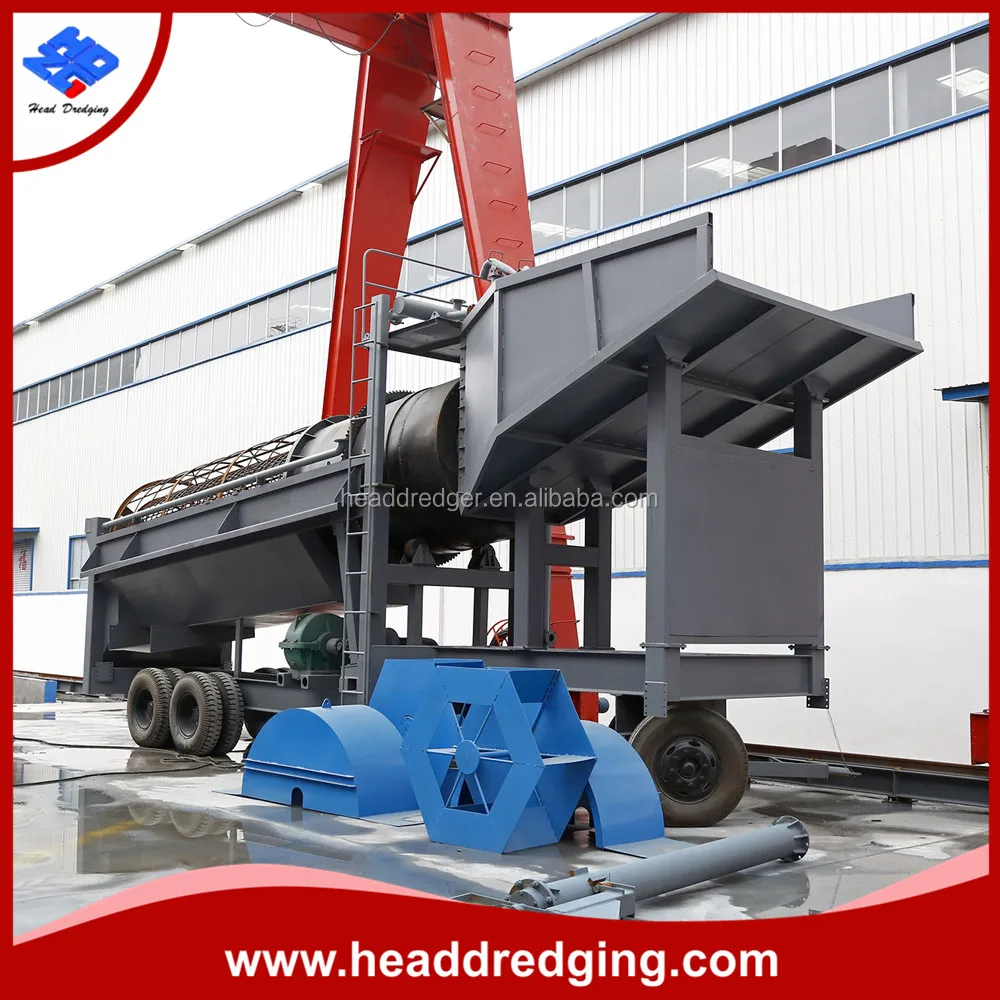

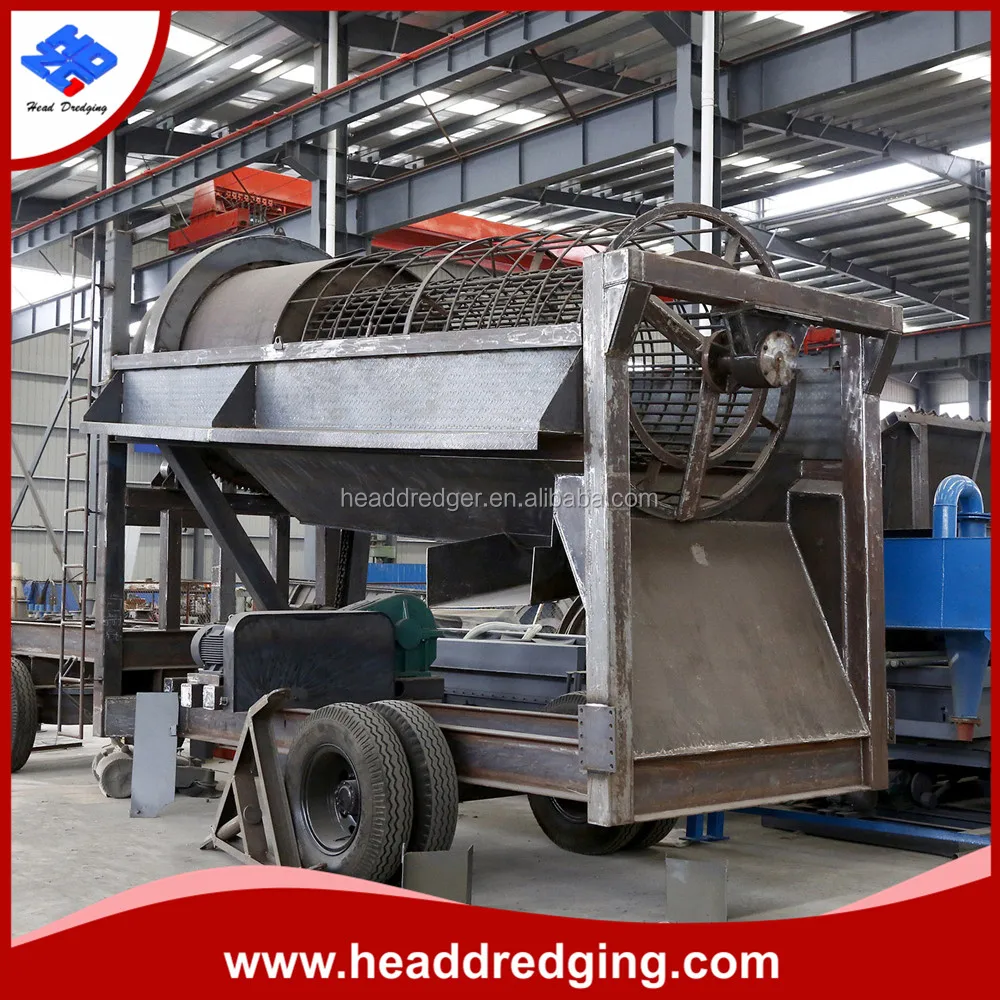

Gold Screen Trommel
1
Overall
Model
HD-T50
Dimension
8500mm*2250mmx2700mm
Work capacity
50-80TPH
Max. particle of material
200mm
2
Feeder Hopper
Size
2500mm*2200mmx2700mm
Material
Bottom plate 10mm ,side plate 6mm
Frame
120mm square steel
3

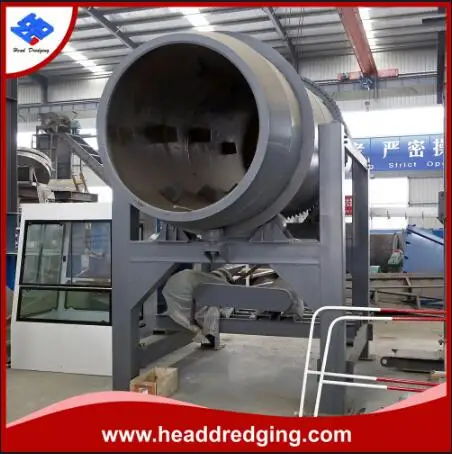

Trommel Screen
Trommel Size
3000mm*1600mm
Scrubber Length
2000mm
Power
7.5KW
Screen mesh
8mm
4
Frame and Bottom Seat
Bottom seat
200mm H-steel
Frame
120mm square steel
Shifter
one rear axle and one front akle(4 units wheels)
Water System
5
Water Pump
Model
150-120-400
Flowing
240
Head
46m
Power
45kw
Engine
Yuchai YC4D85Z

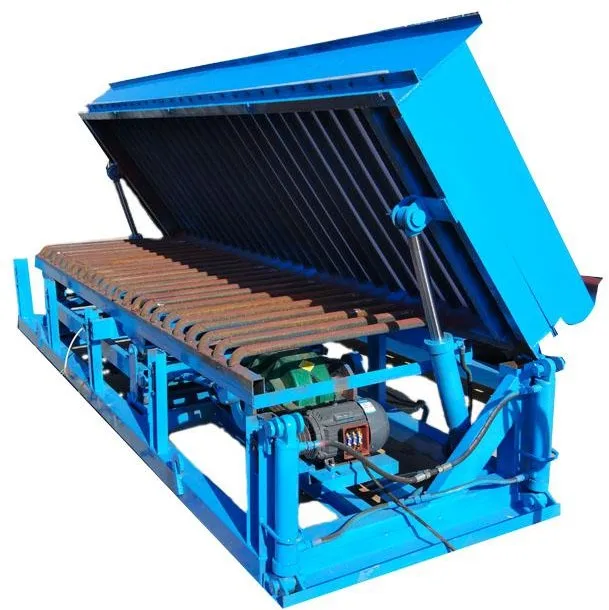

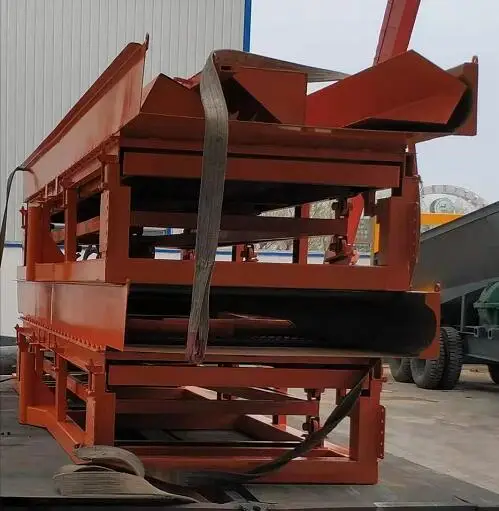

Shaking Chute
6
Work Capacity
30-40THP
Motor Power
3kw
Size
4300mm*1700mmx1000mm

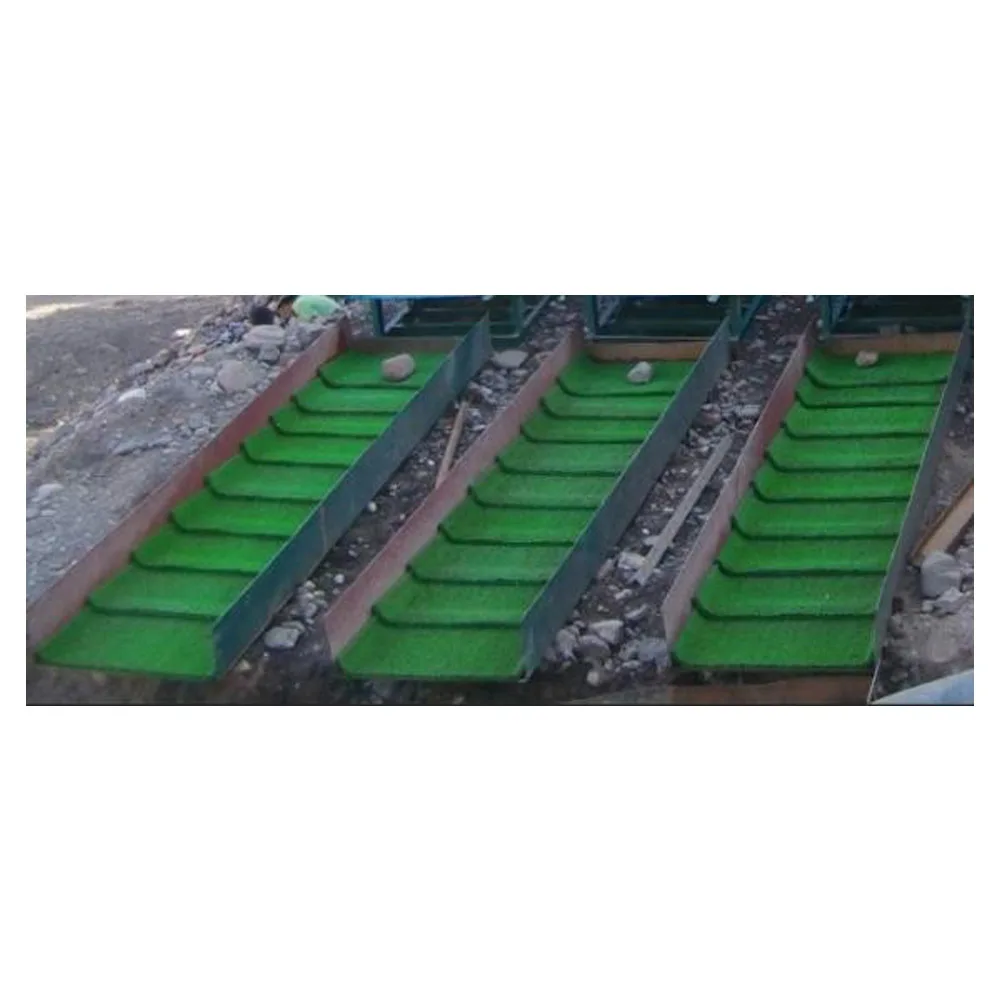

Fixed Chute
7
Size
6000mm*1500mm
Gold carpet Brand
Mitsubishi Japan
Generator Set
8
Power
30KW
Engine brand
Yuchai
Alternator
Shanghai Zhongqi
