Hot selling YK swing organic fertilizer ball granulation machine

YK series swing granulator equipment

YK series swing granulator equipment introduction:

YK series swing type granulator is mainly used to manufacture granules of various specifications in the pharmaceutical, chemical, food and other industries. After drying, it is used to press various shaped products. The machine can also be used to crush dry materials that are condensed into blocks. The material contact parts are all made of stainless steel, with beautiful appearance, easy cleaning, simple operation, and low energy consumption.

YK series swing pellet machine working principle:
The agitated material is made into particles of the required size, or agglomerated materials are broken into small particles.

YK series swing pellet machine:

This machine is suitable for granulating in the pharmaceutical, chemical, food, solid beverage and other industries.

YK Series Swing Granulator Technical Specifications:
Model                                  YK160                                YK320
Production capacity         50-200 kg/h                        50-400 kg/h
Motor power                         2.2kw                                  7.5kw
Drum speed                         65rpm                                 65rpm
Swing angle                           360o                                   360o
Roller diameter                  Φ160mm                             Φ320mm
Weight                                  450kg                                  750kg
Dimensions                  1000×800×1300m             1500×1200×1500m

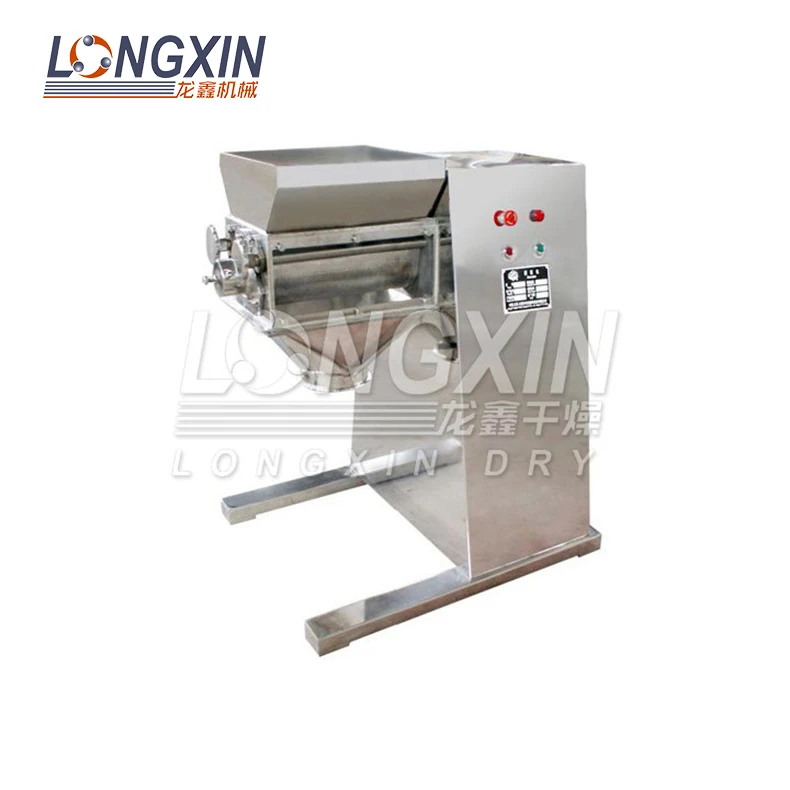

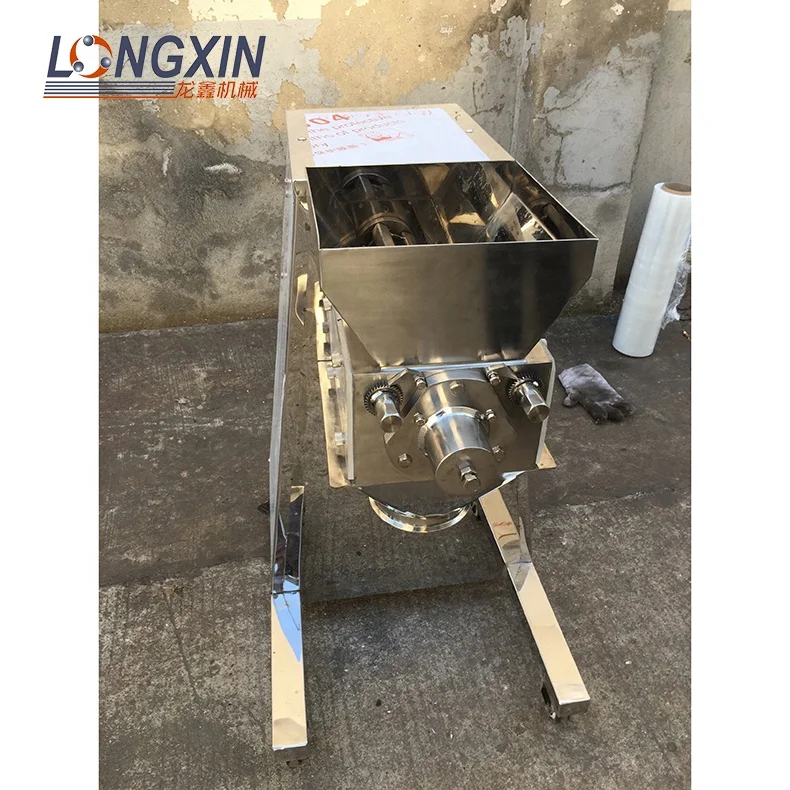

Product Picture:
