GoldenMorning Mono Color White IIC 2.26 Inch 16x2 LCD OLED Module Character Display
- Category: Display Modules >>>
- Supplier: Shenzhen Goldenmorning Electronic Co. Ltd.
Share on (1600102477819):
Product Overview
Description
Product Description

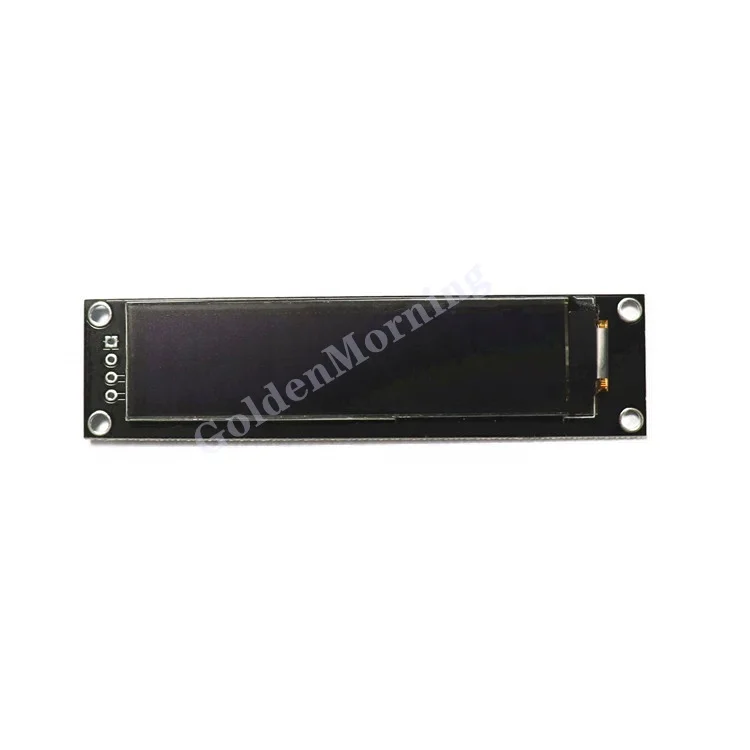

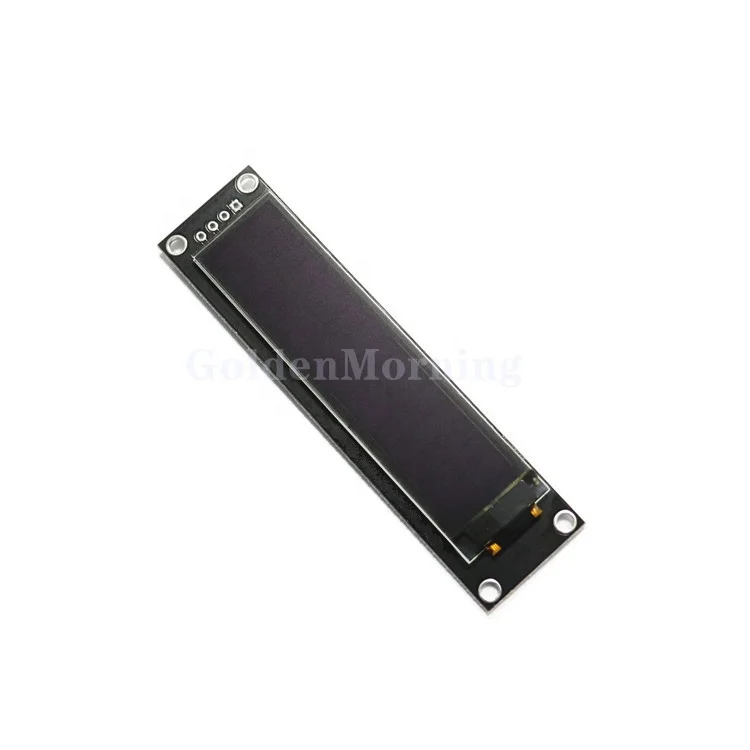

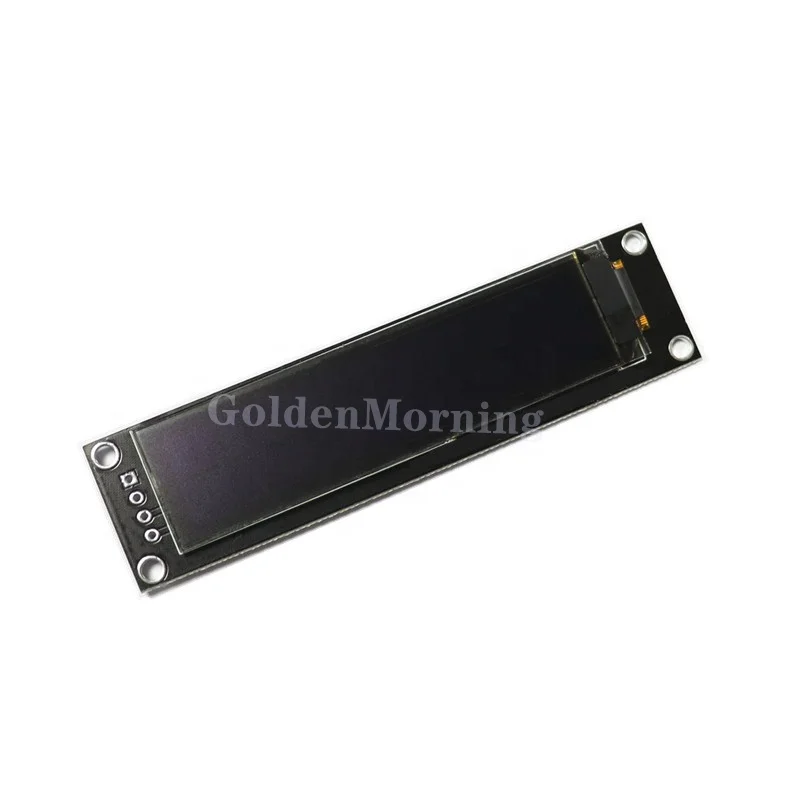

GoldenMorning Mono Color White IIC 2.26 Inch 16x2 LCD OLED Module Character Display
2.26" yellow oled display module
| Diagonal Screen Size | 2.26inch |
| Color | Mono(Yellow) |
| Model number | GME1602-10 |
| Resolutions |
16x2 |
| Outline dimension | 80x20.2x5.3mm |
| Active area | 56.22x11.52mm |
| Pixel pitch | 0.60x0.70 mm |
| Pixel size | 0.57x0.6mm |
| Driver IC | KS0066 |
| Voltage | 3-5V |
| Interface | IIC |
| Operating temperature | -40~85℃ |
| Storge Temperature | -40~90℃ |
| Assemble | Soldering |
| Pins | 4P |

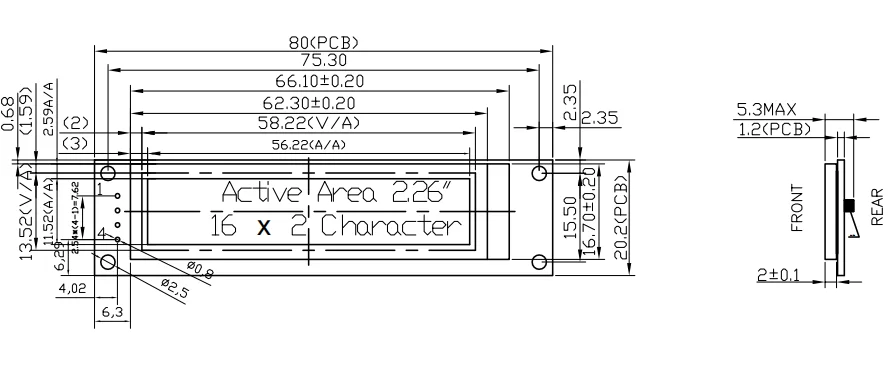

Drawing(2.26" oled display module)

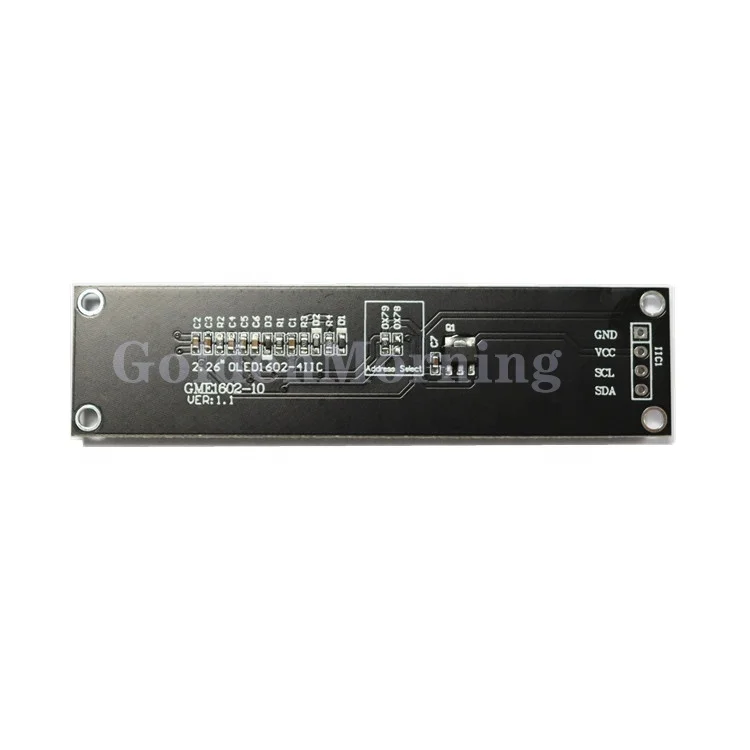

Pin Assignment(2.26" oled module,Pins:4P)
