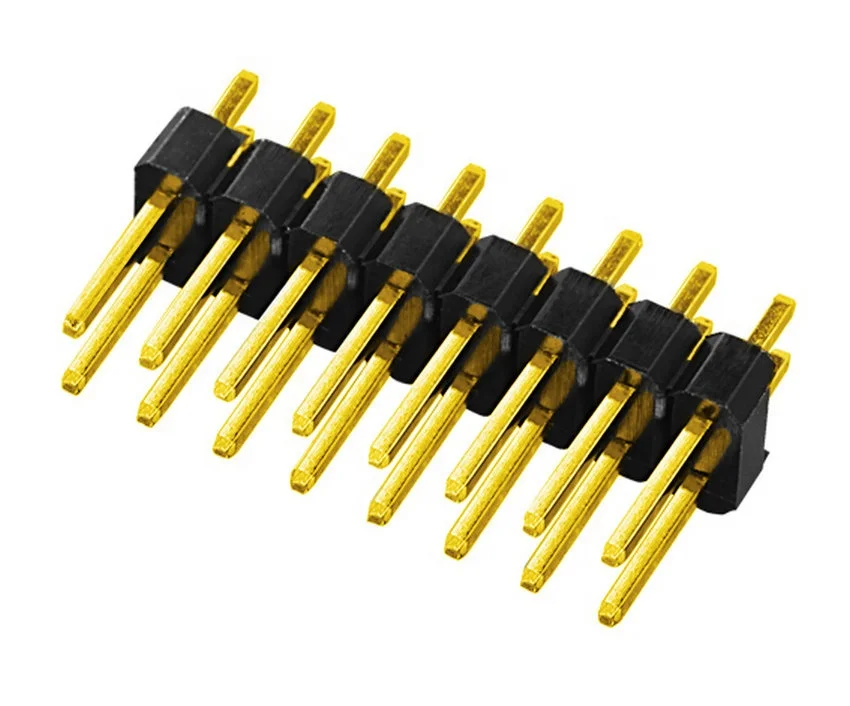

Pitch 2.54mm insulation height 1.5mm Pin Header Dual Row 180 degree Straight Type Board to Board Connector Pin Connector 2x5pin

Product Overview

Description

Pitch 2.54mm insulation height 1.5mm Pin Header Dual Row 180 degree Straight Type Board to Board Connector Pin Connector 2x5pin

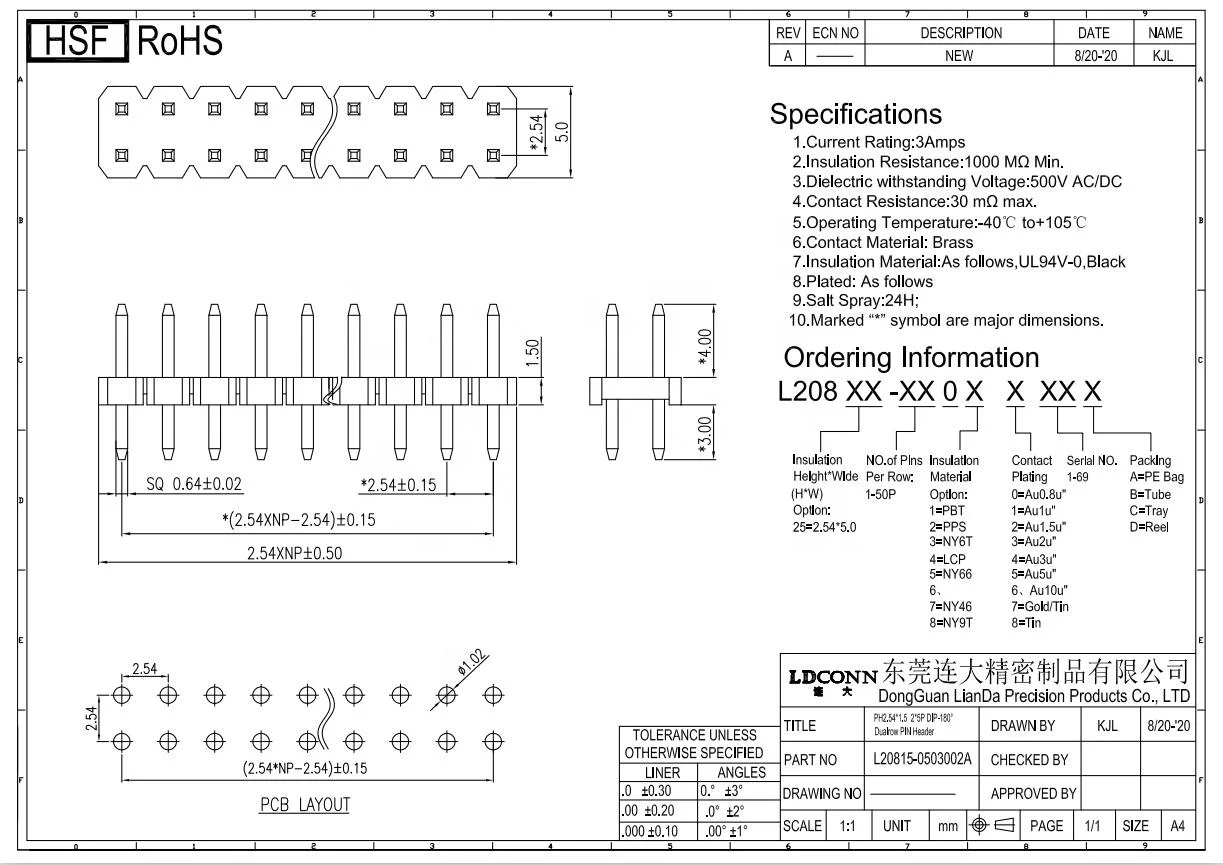

Drawing:



Parameter:



ARTICLE PROPERTIES
Pins	10
KIND PROPERTIES
Pitch	2.54mm
Rows	Dual
Gender	male header
Type	Through hole
MATERIAL PROPERTIES
Insulator Material	NY6T
Insulator Flammability Rating	UL94 V-0
Contact Material	Copper Alloy
Contact plating	Gold



Our Customer :





Why choose Lianda?

1) Independent R&D; manufacturing since 2002.

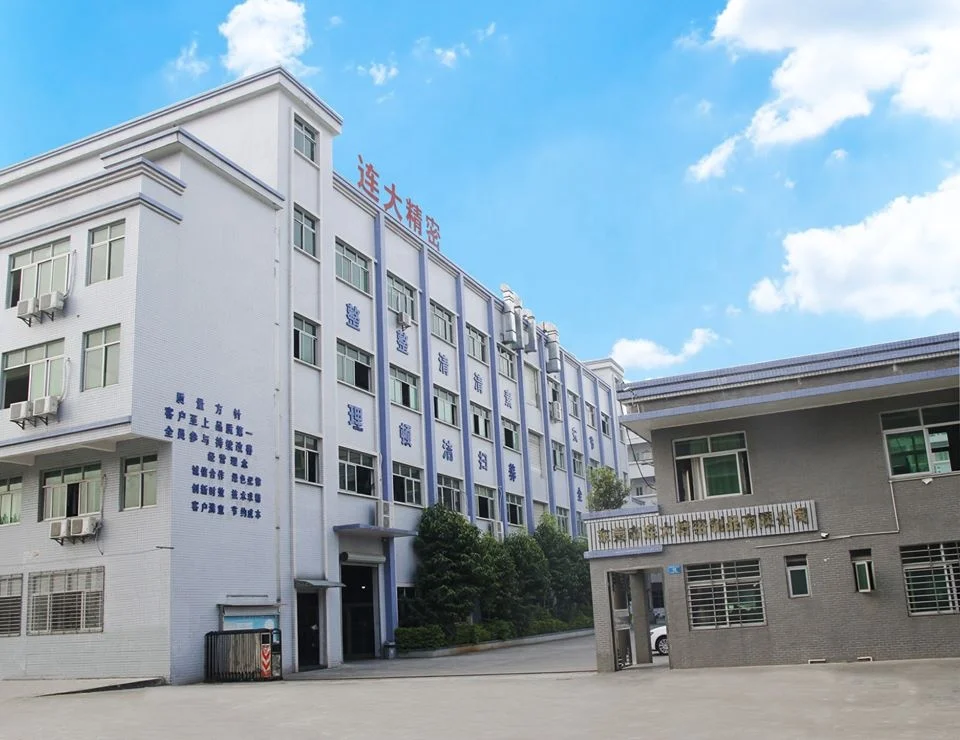

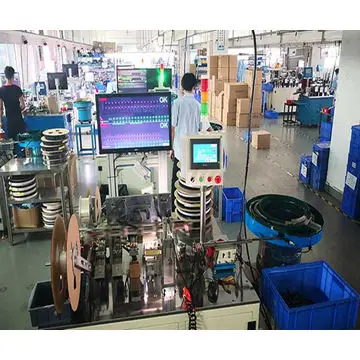

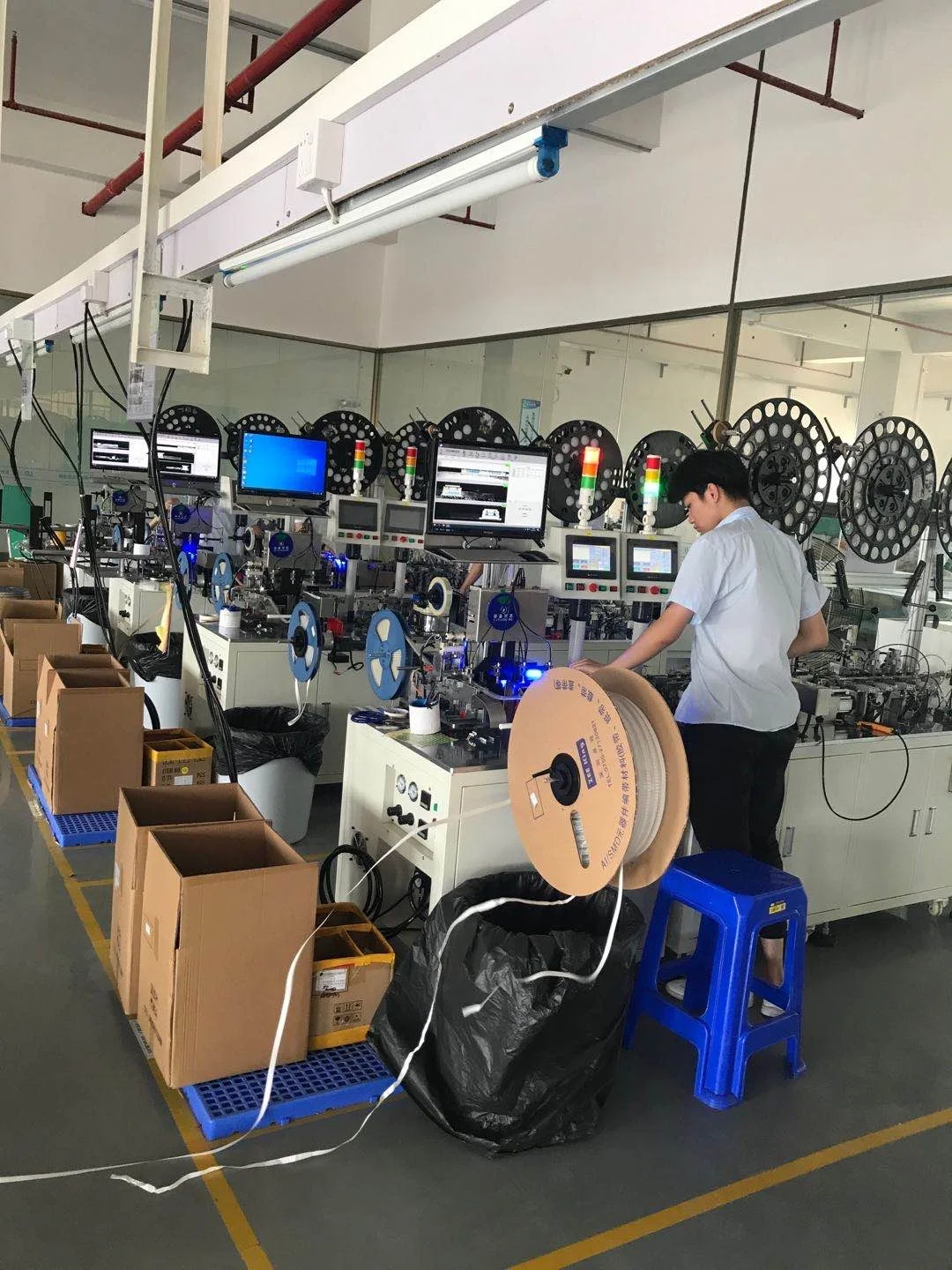

2) 10,000m2 factory; 90% automatic production.

3) Raw materials from the US, Japan and Taiwan.

4) Cooperating with Foxconn for more than 5 years.

5) 30+ professional technical engineers and 300+ workers.

6)We passed the UL,ISO,IATF16949 etc.certificates. all of our products meets the ROHS,REACH compliant.
